INTERIOR TRIM

09–17–6

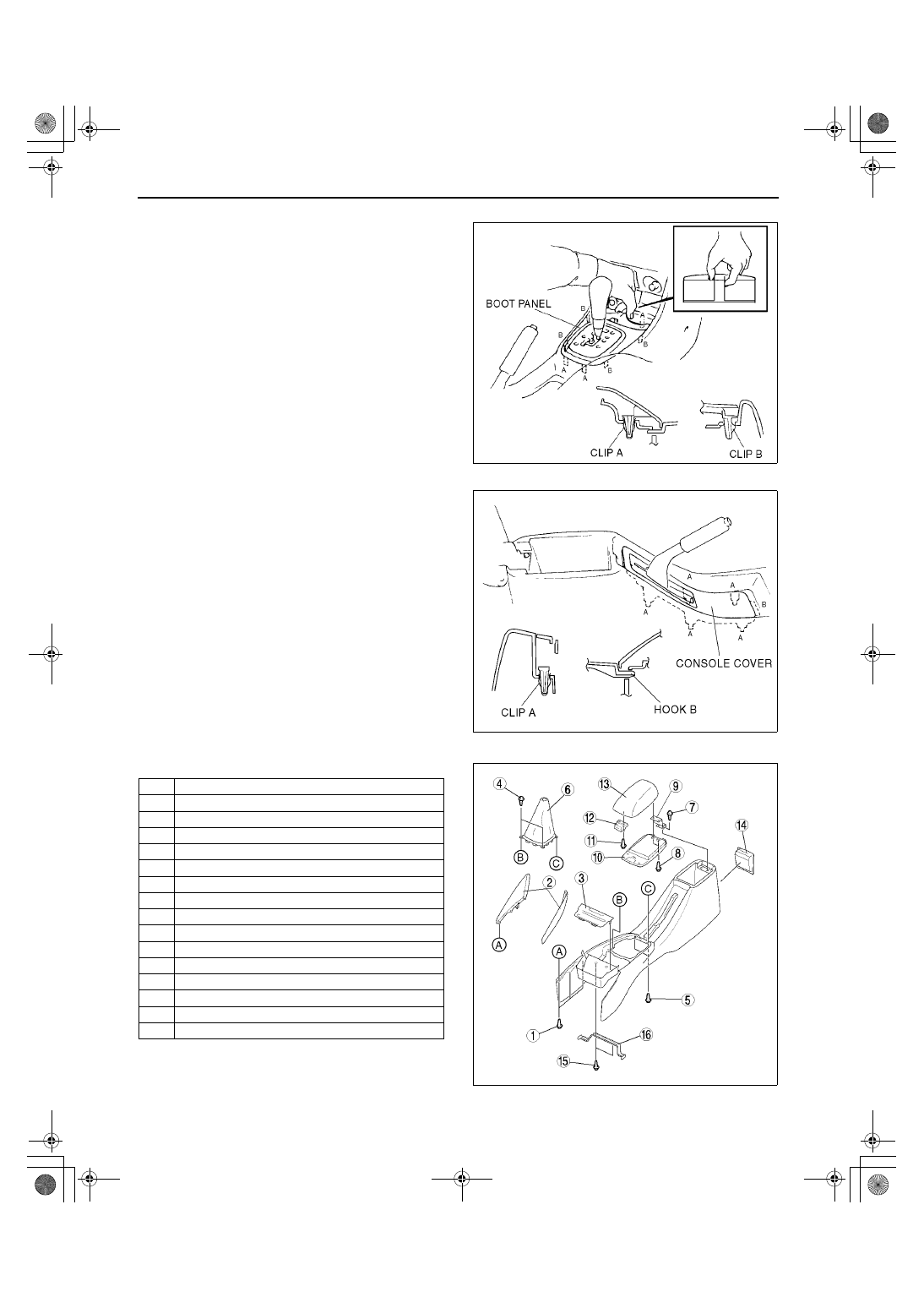

Boot Panel Removal Note

1. Pull the boot panel upward, then disengage clips

A and B from the console.

Console Cover Removal Note

1. Disengage clip A using a tape-wrapped flathead

screwdriver.

2. Pull the console cover upward, then disengage

hook B from the console.

End Of Sie

CONSOLE DISASSEMBLY/ASSEMBLY

A3U091764310W03

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

End Of Sie

Y3E7742W301

Y3E7742W302

1

Screw A

2

Side wall

3

Cover

4

Screw B (MTX)

5

Screw C (MTX)

6

Boot (MTX)

7

Screw D

8

Screw E

9

Console lid hinge

10

Console lid inner

11

Screw F

12

Console lid lock

13

Console lid outer

14

Ashtray

15

Screw G

16

Bracket

Y3E7742W305

1712-1U-01G(09-17).fm  6 ページ  ２００１年６月２９日 金曜日 午前１０時３５分

INTERIOR TRIM

09–17–7

09–17

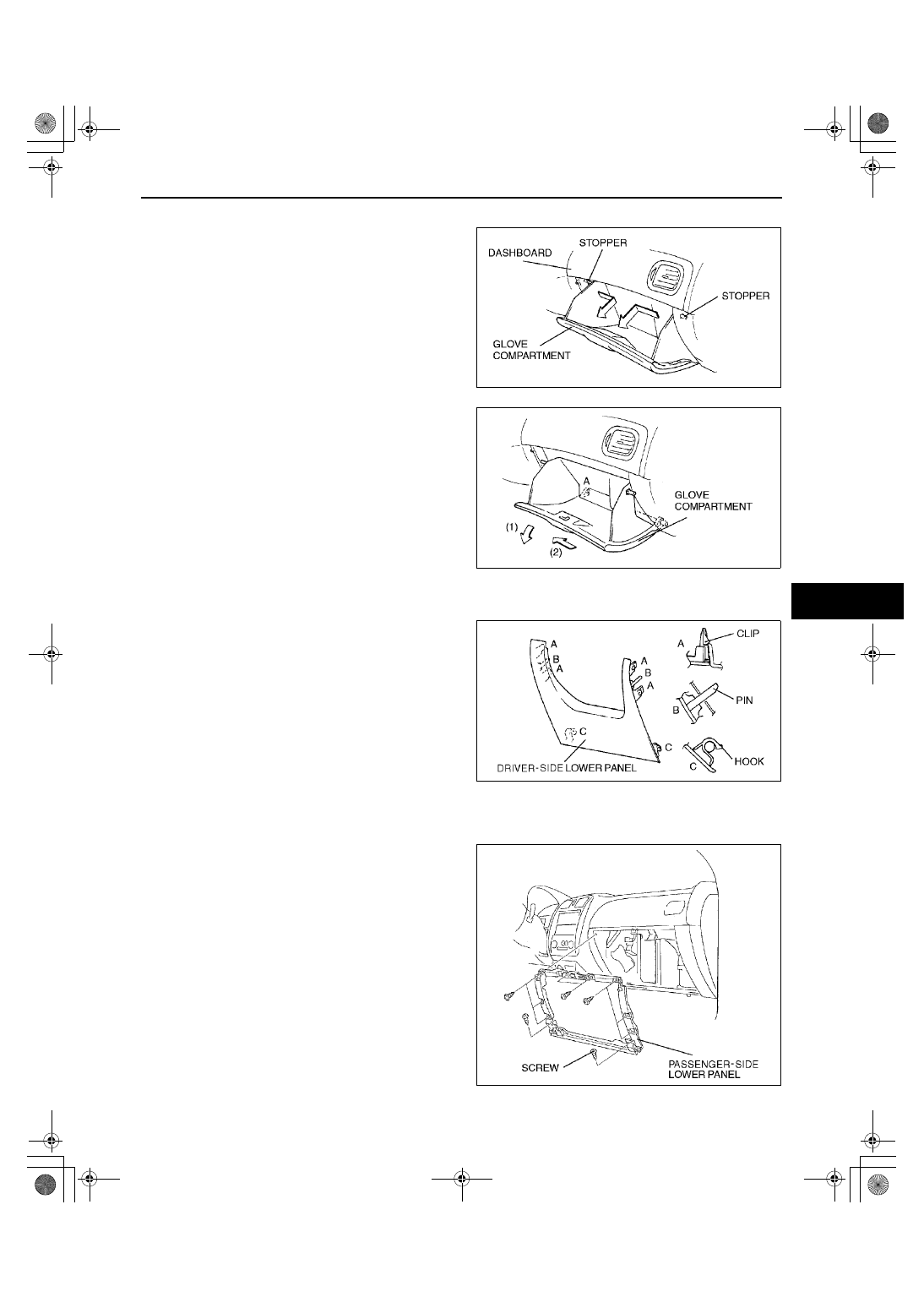

GLOVE COMPARTMENT REMOVAL/INSTALLATION

A3U091764030W01

1. Bend the stoppers inward, then remove them.

2. Pull the glove compartment toward you while

pushing it downward (1), then remove clip A.

3. Slide the glove compartment toward driver's side

door (2).

4. Install in the reverse order of removal.

End Of Sie

LOWER PANEL REMOVAL/INSTALLATION

A3U091764280W01

Driver’s side

1. Pull the upper side of the lower panel downward,

then disengage clips A and pins B from the
dashboard.

2. Pull the lower panel toward you, then disengage

hooks C from the dashboard.

3. Install in the reverse order of removal.

Passenger’s side

1. Remove the glove compartment.
2. Remove the screws.
3. Install in the reverse order of removal.

End Of Sie

X3U917WAG

X3U917WAH

Z3U0917W003

Z3U0917W004

1712-1U-01G(09-17).fm  7 ページ  ２００１年６月２９日 金曜日 午前１０時３５分

INTERIOR TRIM

09–17–8

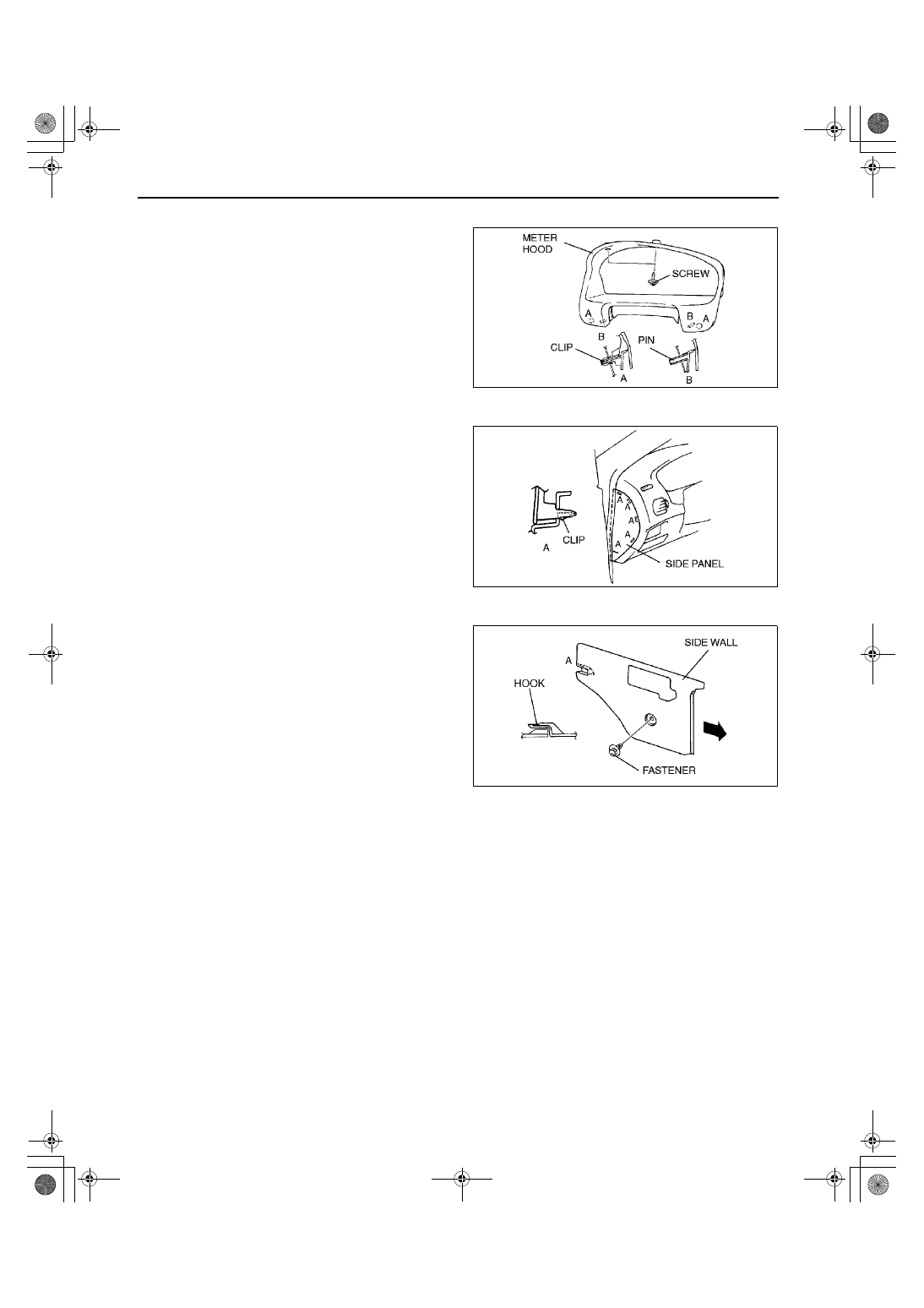

METER HOOD REMOVAL/INSTALLATION

A3U091755420W01

1. Remove the screws.
2. Pull the meter hood toward you, then remove

clips A and pins B from the dashboard.

3. Install in the reverse order of removal.

End Of Sie

SIDE PANEL REMOVAL/INSTALLATION

A3U091764960W01

1. Remove clips A using a tape-wrapped flathead

screwdriver.

2. Install in the reverse order of removal.

End Of Sie

SIDE WALL REMOVAL/INSTALLATION

A3U091768371W01

1. Remove the fastener.
2. Pull the side wall indicated toward the arrow and

disengage hook A from the body.

3. Install in the reverse order of removal.

End Of Sie

X3U917WAL

X3U917WAM

Y3U917WA3

1712-1U-01G(09-17).fm  8 ページ  ２００１年６月２９日 金曜日 午前１０時３５分

INTERIOR TRIM

09–17–9

09–17

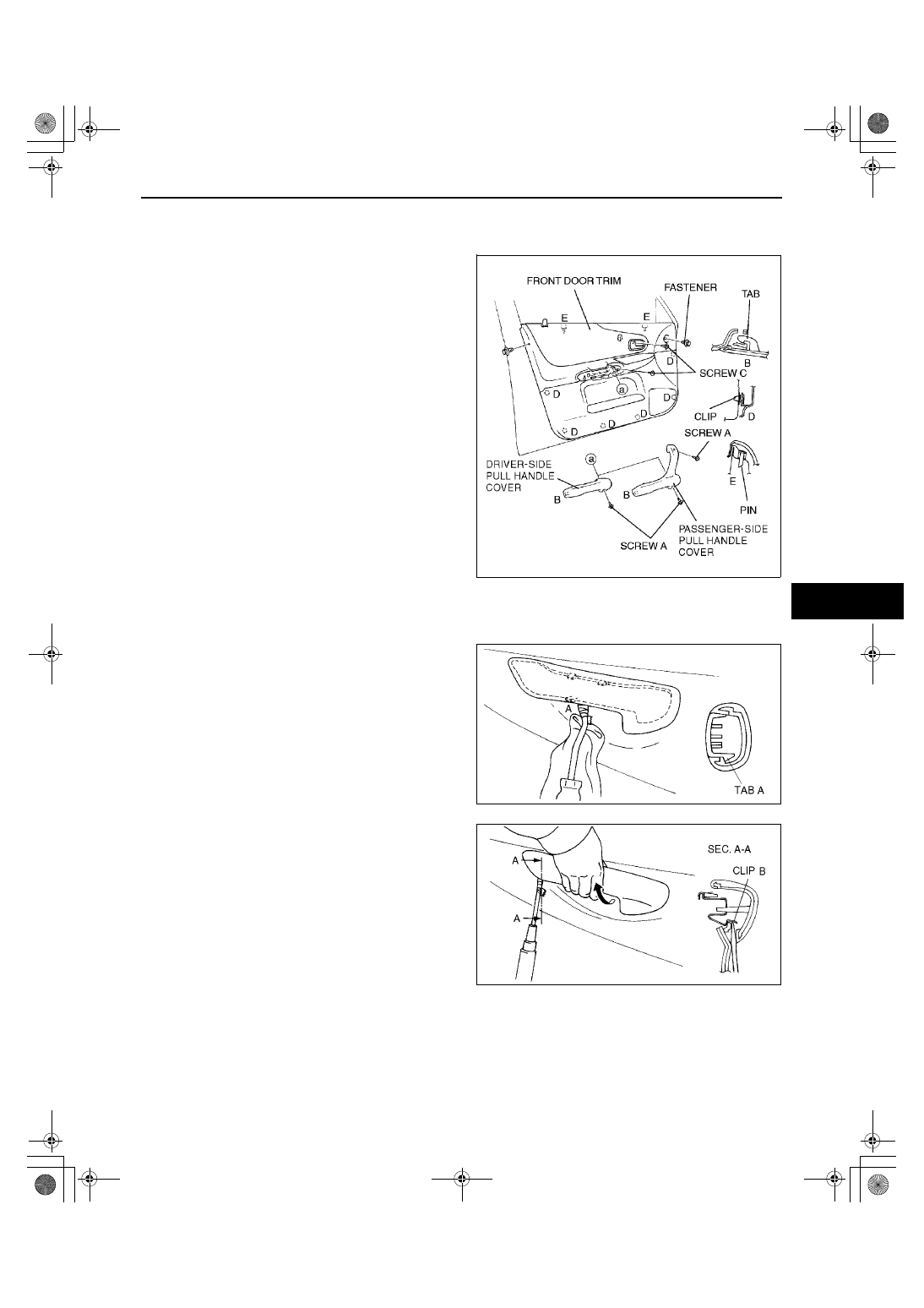

FRONT DOOR TRIM REMOVAL/INSTALLATION

A3U091768420W01

1. Remove the inner garnish.
2. Remove the regulator handle if equipped.
3. Remove screws A and the fastener.
4. Slide the pull handle cover toward the front of the

vehicle, then disengage tab B from the front door
trim.

5. Remove the screws C.
6. Disengage clips D using a fastener remover from

the body.

7. Pull the front door trim upward, then disengage

pins E from the body.

8. Extract the inner handle from the front door trim.
9. Disconnect the power window main switch

connector (driver’s side).

10. Disconnect the power window sub switch

connector (passenger’s side).

11. Install in the reverse order of removal.

End Of Sie

REAR DOOR TRIM REMOVAL/INSTALLATION

A3U091768520W01

1. Disconnect the negative battery cable if equipped with power window.
2. Remove the regulator handle if equipped.
3. Insert a tape-wrapped fastener remover under the

pull-handle cover, and disengage tab A.

4. Insert a tape-wrapped flathead screwdriver into

the access hole under the forward pull-handle
cover, and remove the pull-handle cover by
pulling it upward and diagonally while pushing clip
B.

Z3U0917W005

A3U0916W015

A3U0916W016
