INTERIOR TRIM

09–17–2

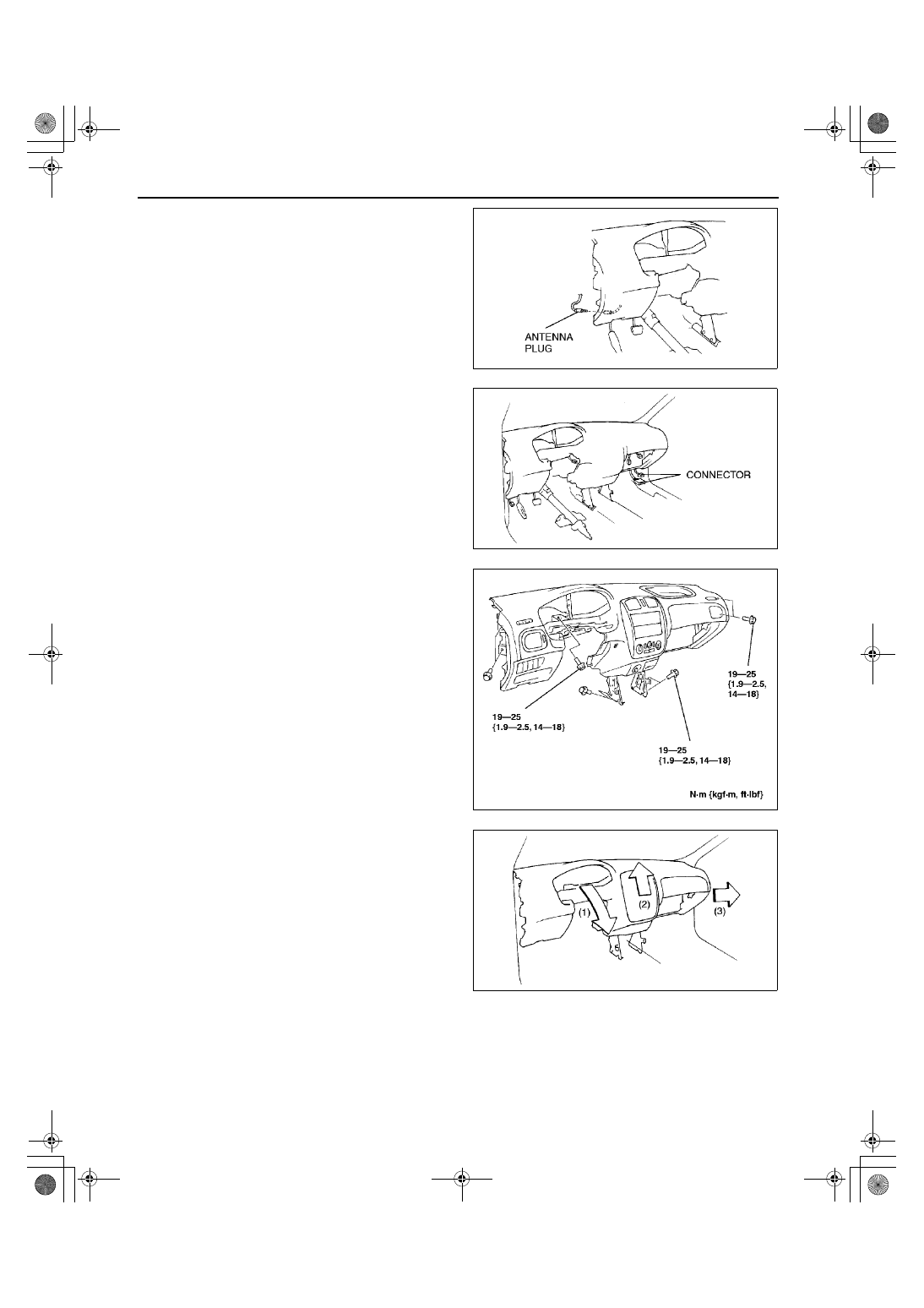

12. Disconnect the antenna plug.
13. For vehicles equipped with the semi-logic type

climate control unit, disconnect the wires for the
heater unit. (See 07–40–9 CLIMATE CONTROL
UNIT REMOVAL.) (See 07–40–10 CLIMATE
CONTROL UNIT INSTALLATION.)

14. Disconnect the connectors.

15. Remove the bolts.
16. Remove the dashboard from the vehicle.

Warning

••••

Removing the dashboard without
supporting it can be dangerous. The
dashboard may fall and injure you.
Always perform these procedures
together with at least another person.

(1) Incline the dashboard slowly forward.
(2) Lift up the dashboard while it is inclined

forward.

(3) Remove the dashboard from the vehicle

through the passenger-side front door.

17. Install in the reverse order of removal.

End Of Sie

X3U917WA0

X3U917WA1

X3U917WA2

X3U917WA3

1712-1U-01G(09-17).fm  2 ページ  2001年6月29日 金曜日 午前10時35分

INTERIOR TRIM

09–17–3

09–17

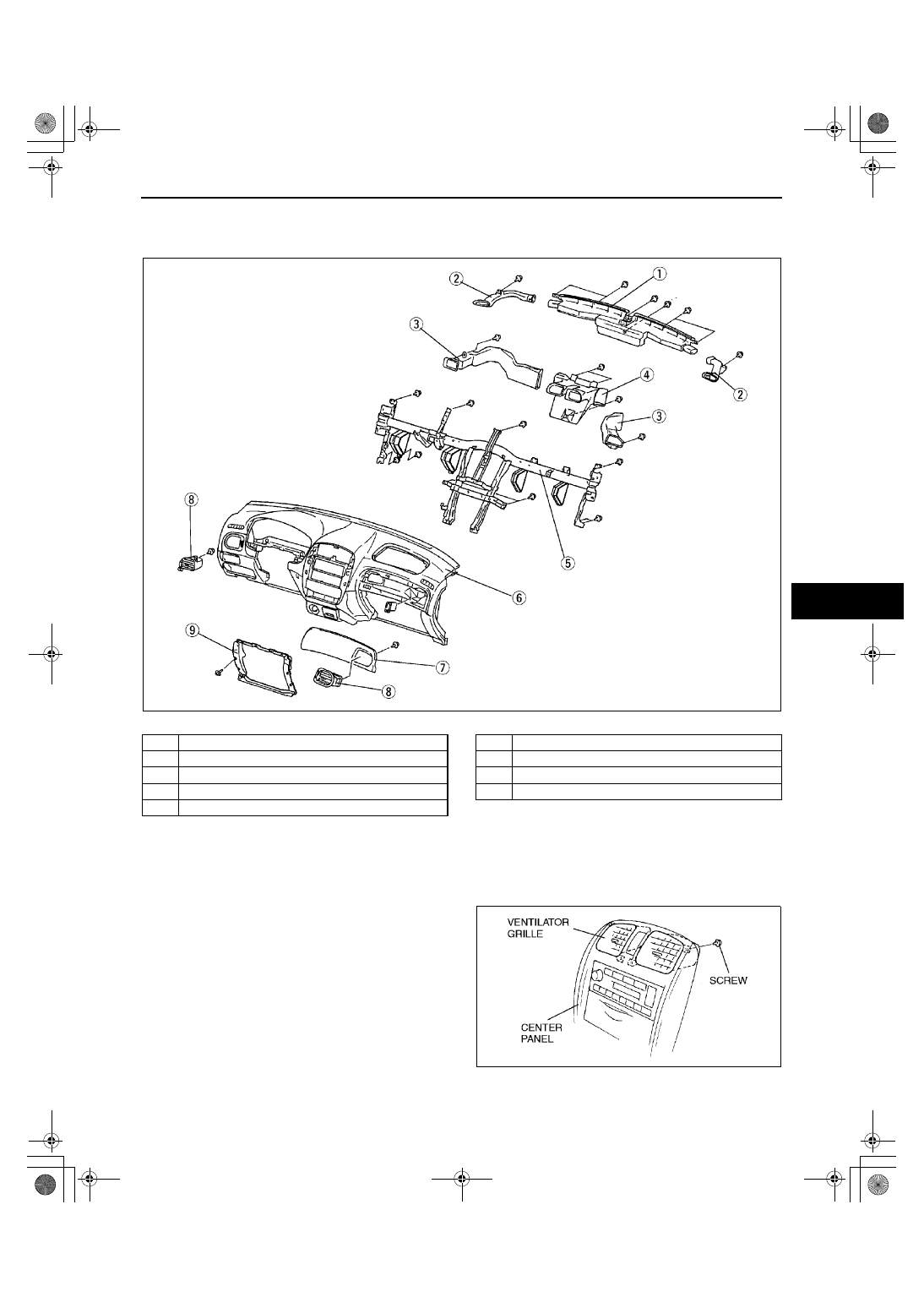

DASHBOARD DISASSEMBLY/ASSEMBLY

A3U091755100W02

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

.

End Of Sie

VENTILATOR GRILLE REMOVAL/INSTALLATION

A3U091764730W01

Center Side

1. Remove the center panel. (See 09–17–4 CENTER PANEL REMOVAL/INSTALLATION.)
2. Remove the screws from behind the center panel.
3. Install in the reverse order of removal.

X3U917WA4

1

Defroster nozzle

2

Side demister duct

3

Duct

4

Center duct

5

Dashboard member

6

Crush pad

7

Pad

8

Ventilator grille

9

Passenger-side lower panel

X3U917WA5

1712-1U-01G(09-17).fm  3 ページ  2001年6月29日 金曜日 午前10時35分

INTERIOR TRIM

09–17–4

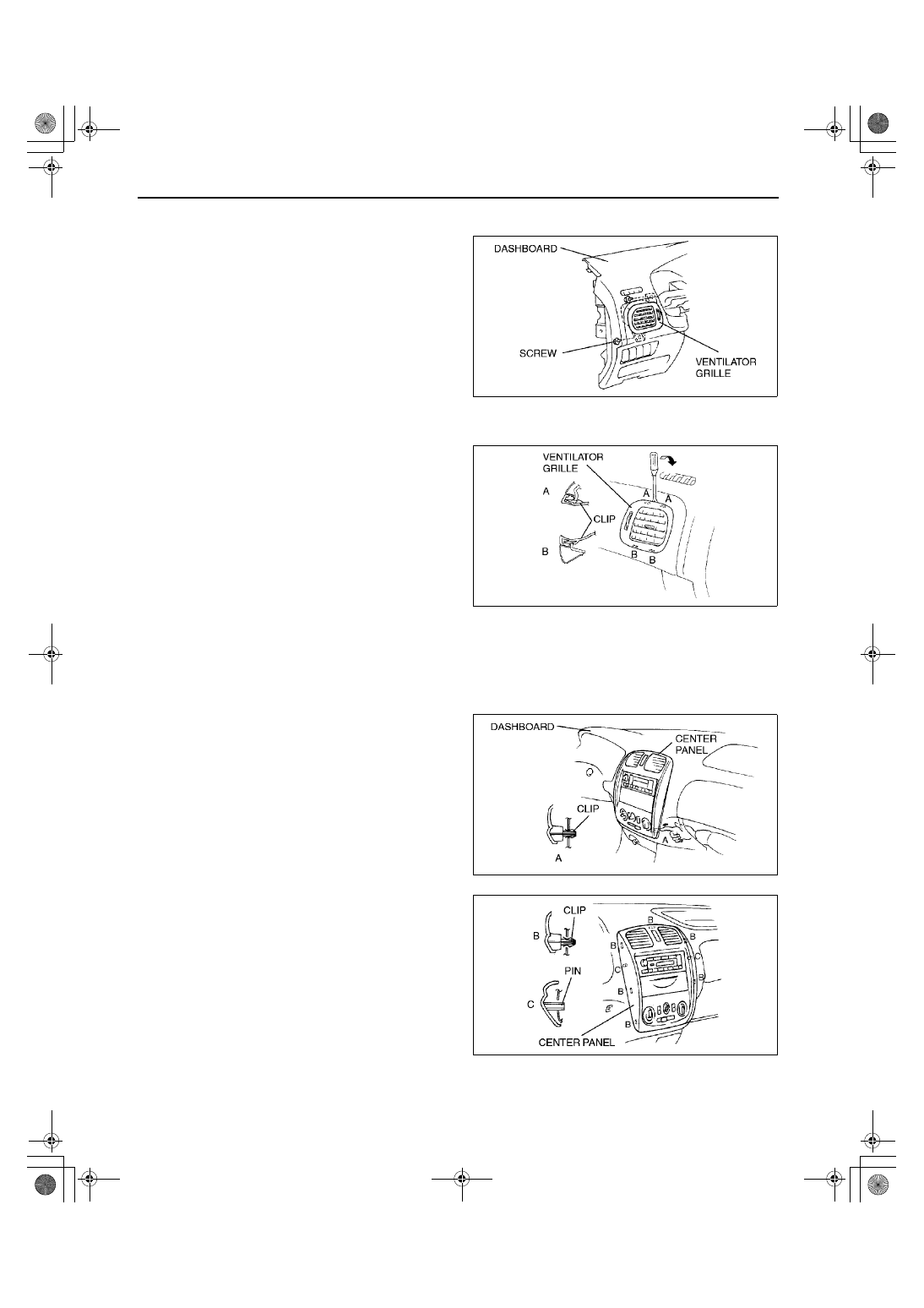

Driver’s side

1. Remove the dashboard. (See 09–17–1 DASHBOARD REMOVAL/INSTALLATION.)
2. Remove the screws from behind the dashboard.
3. Install in the reverse order of removal.

Passenger’s side

1. Disengage clips A and B using a fastener

remover as shown in the figure.

2. Install in the reverse order of removal.

End Of Sie

CENTER PANEL REMOVAL/INSTALLATION

A3U091755210W01

1. Disconnect the negative battery cable.
2. Remove the glove compartment.
3. For vehicles equipped with the semi-logic type climate control unit, disconnect the wires for the heater unit.

(See 07–40–9 CLIMATE CONTROL UNIT REMOVAL.) (See 07–40–10 CLIMATE CONTROL UNIT
INSTALLATION.)

4. Push out clip A from behind the dashboard.

5. Pull the center panel, then remove clips B and

pins C from the dashboard.

6. Disconnect the hazard warning switch connector

and climate control unit connector.

7. Install in the reverse order of removal.

End Of Sie

X3U917WA6

X3U917WA7

X3U917WA8

X3U917WA9

1712-1U-01G(09-17).fm  4 ページ  2001年6月29日 金曜日 午前10時35分

INTERIOR TRIM

09–17–5

09–17

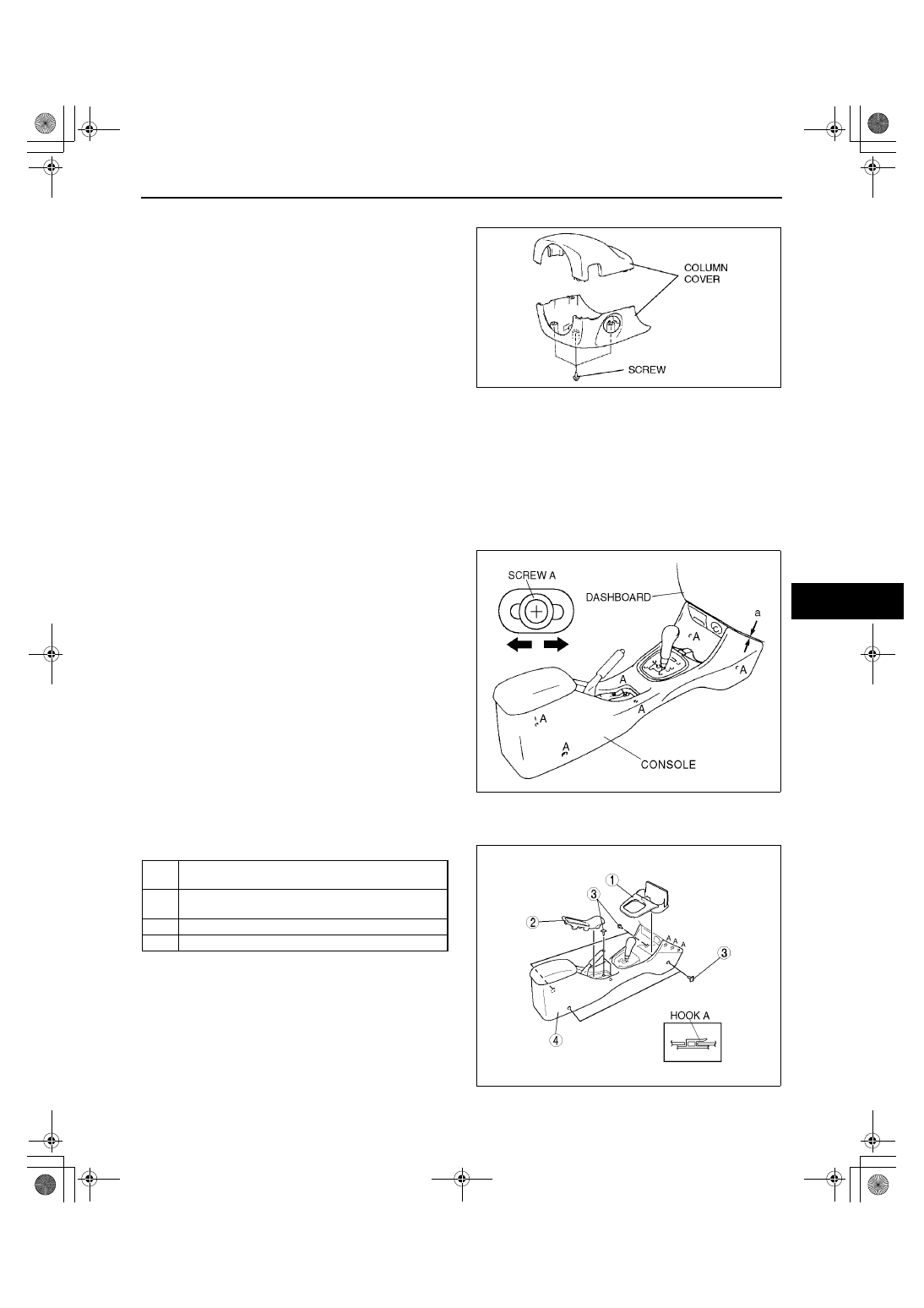

COLUMN COVER REMOVAL/INSTALLATION

A3U091760200W01

1. Remove the screws, then remove the column

cover.

2. Install in the reverse order of removal.

End Of Sie

CONSOLE ADJUSTMENT

A3U091764310W01

Caution

••••

Take care to install the console and the center panel so that there is no interference which may
cause noise.

1. Loosen screws A.
2. Slide the console indicated by the arrow and measure the gap between the console and the dashboard.

Clearance

a: 0.2—1.8 mm {0.0008—0.07 in}

3. Tighten screws A.

End Of Sie

CONSOLE REMOVAL/INSTALLATION

A3U091764310W02

1. For MTX vehicle, remove the shift lever knob.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

X3U917WAA

Z3U0917W006

1

Boot panel
(See 09–17–6 Boot Panel Removal Note.)

2

Console cover
(See 09–17–6 Console Cover Removal Note.)

3

Screw

4

Console

Z3U0917W007

1712-1U-01G(09-17).fm  5 ページ  2001年6月29日 金曜日 午前10時35分
