SUNROOF

09–15–9

09–15

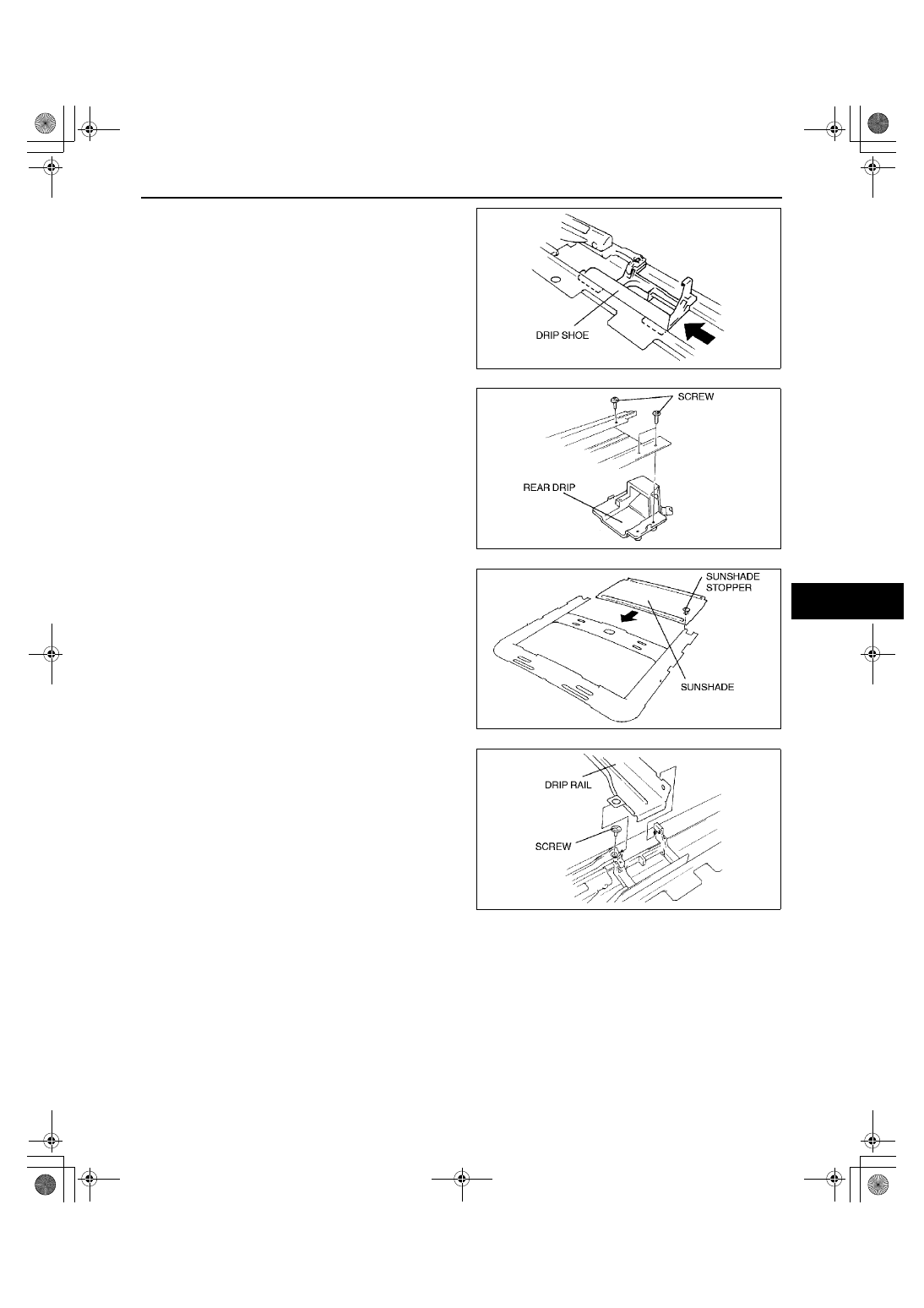

7. Slide the drip shoe forward, and install it to the

sunroof frame.

8. Use IPA (Isopropyl alcohol) to remove any excess

repair sealant.

9. Install the screws, and then install the rear drip.

10. Slide the sunshade forward, and install it to the

sunroof frame.

11. Install the sunshade stopper.

12. Install the screws, and then install the drip rail.

5HB

1. Install the sunroof relay.
2. Install the deflector.
3. Slide the drive unit backward, and install it to the sunroof frame.

X3U915WAK

X3U915WAL

X3U915WAM

X3U915WAN

1712-1U-01G(09-15).fm  9 ページ  2001年6月29日 金曜日 午前10時33分

SUNROOF

09–15–10

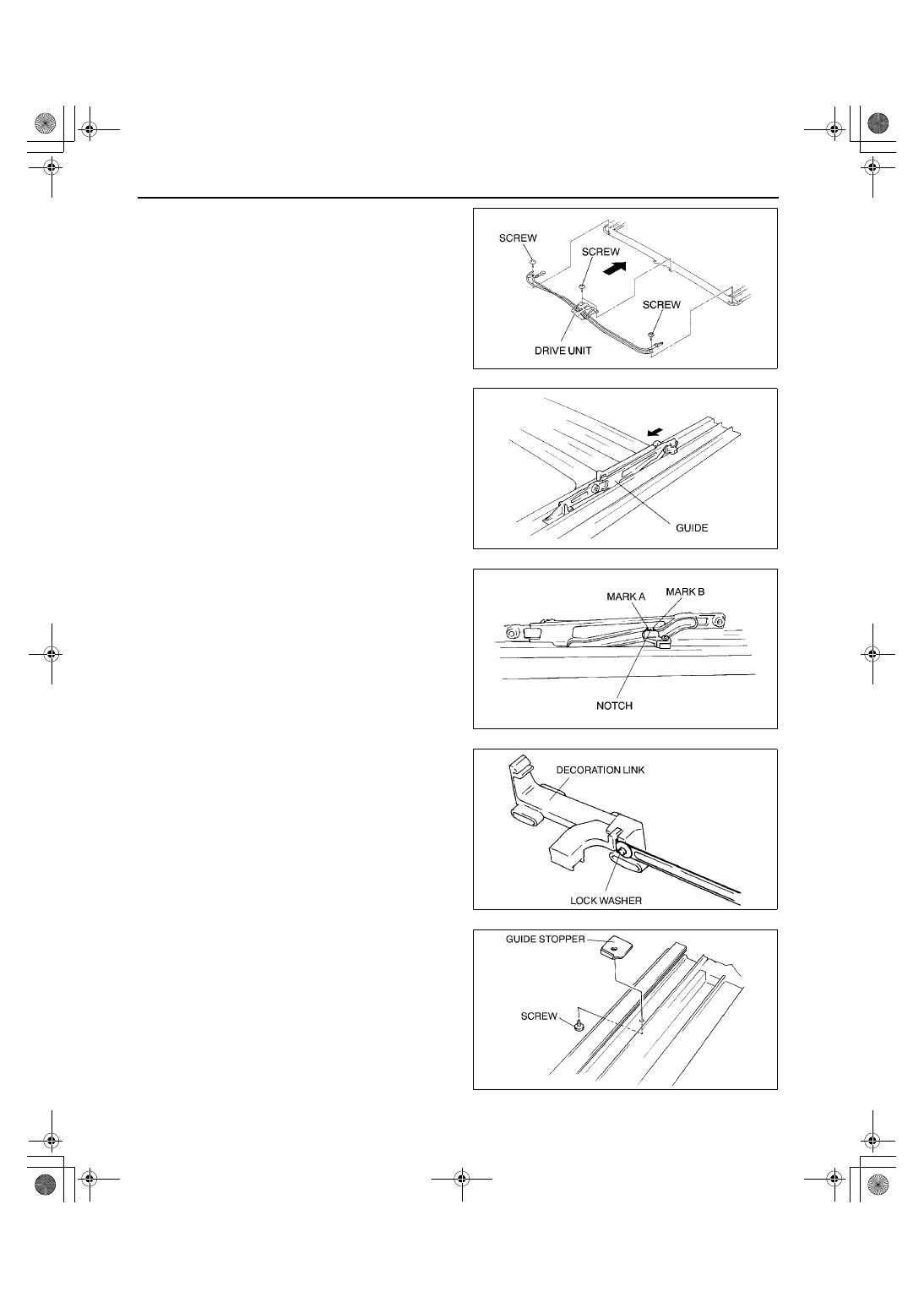

4. Install the screws.

5. Slide the guide forward, and install it to the

sunroof frame.

6. Move the guide by hand until it is in the tilted up

position.

7. Move the guide by hand until notch comes

between mark A and mark B.

8. Install the sunroof motor.
9. Slide the decoration link forward, and install it to

the sunroof frame.

10. Install the lock washer.

11. Install the screw, and then install the guide

stopper.

A3U0915W009

A3U0915W010

A3U0915W011

A3U0915W012

A3U0915W005

1712-1U-01G(09-15).fm  10 ページ  2001年6月29日 金曜日 午前10時33分

SUNROOF

09–15–11

09–15

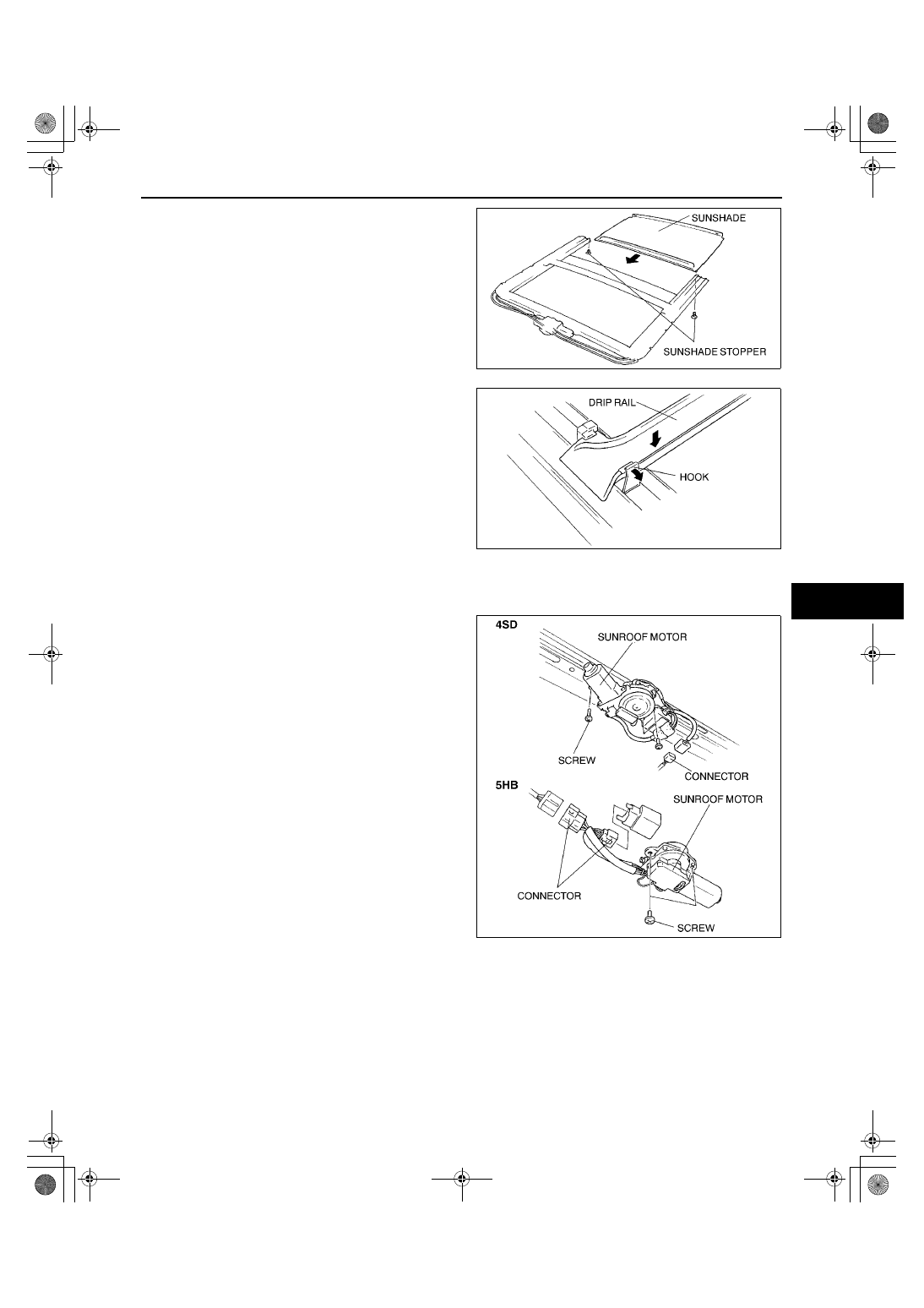

12. Slide the sunshade forward, and install it to the

sunroof frame.

13. Install the sunshade stopper.

14. Bend the hook of the decoration link backward to

install the drip rail.

End Of Sie

SUNROOF MOTOR REMOVAL

A3U091569870W01

1. Disconnect the negative battery cable.
2. Remove the headliner. (See 09–17–16 HEADLINER REMOVAL/INSTALLATION.)
3. Disconnect the connector.
4. Remove the screws, and then remove the sunroof

motor.

End Of Sie

SUNROOF MOTOR INSTALLATION

A3U091569870W02

1. Connect the sunroof motor connector.
2. Connect the sunroof switch connector.
3. Connect the negative battery cable.
4. Turn the ignition switch to ON position.
5. Press the CLOSE side of the slide switch until the sunroof motor stops.
6. Disconnect the sunroof switch connector.
7. Install the screws, and then install the sunroof motor.
8. Install the headliner. (See 09–17–16 HEADLINER REMOVAL/INSTALLATION.)

End Of Sie

A3U0915W013

A3U0915W014

A3U0915W015

1712-1U-01G(09-15).fm  11 ページ  2001年6月29日 金曜日 午前10時33分

SUNROOF

09–15–12

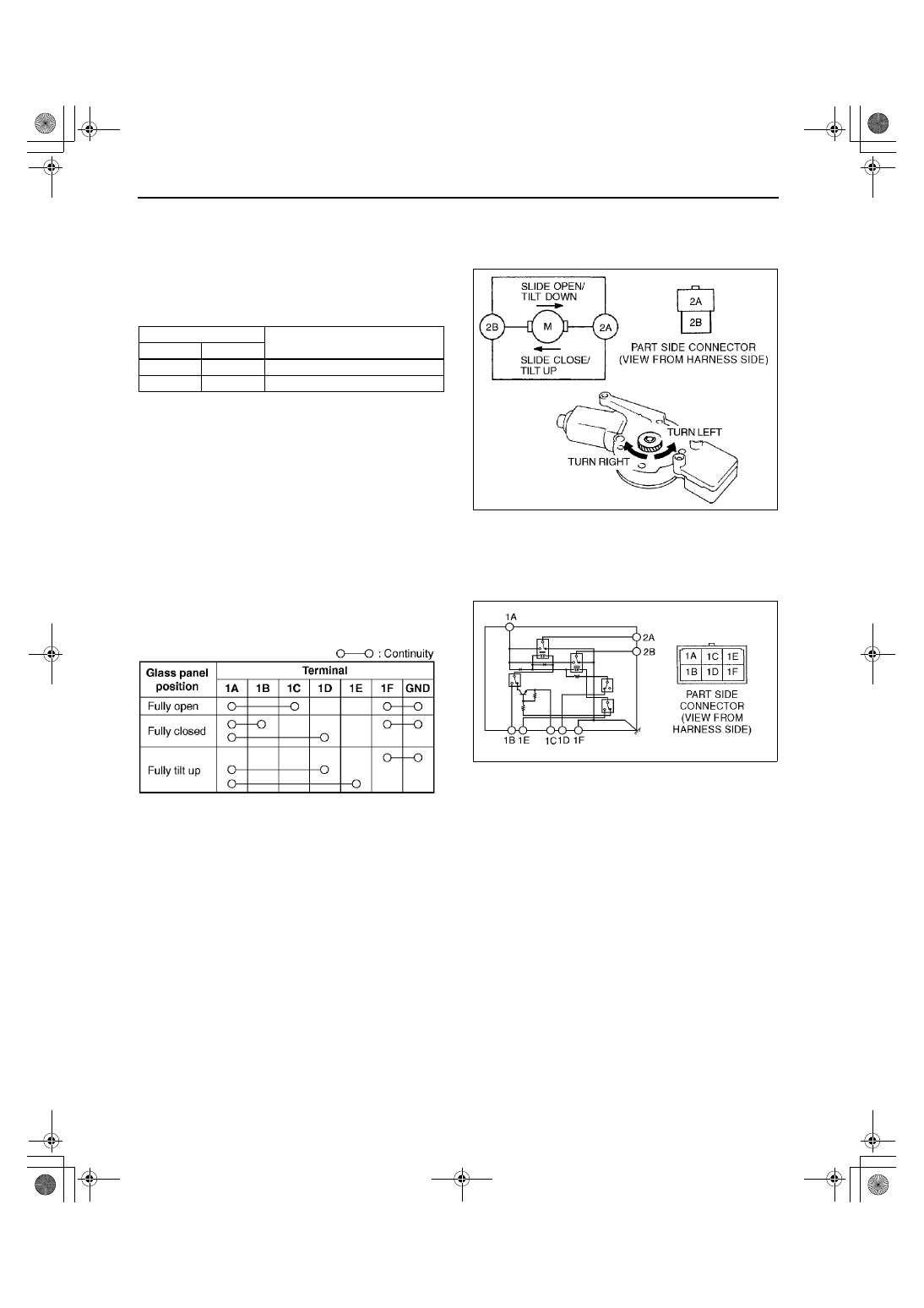

SUNROOF MOTOR INSPECTION

A3U091569870W03

4SD
Motor

1. Remove the sunroof motor.
2. Apply battery positive voltage to the sunroof

motor terminals and inspect the operation of the
sunroof motor.

If not as specified, replace the sunroof motor.

Limit Switch

1. Remove the headliner. (See 09–17–16 HEADLINER REMOVAL/INSTALLATION.)
2. Verify the glass panel position.
3. Disconnect the connector.
4. Inspect for continuity between the sunroof motor

terminals using an ohmmeter.

If not as specified, replace the sunroof motor.

Connection

Motor operation

2A

2B

B+

GND

Turn left (Slide close/Tilt up)

GND

B+

Turn right (Slide open/Tilt down)

A3U0915W025

Y3U915WA1

X3U915WAR

1712-1U-01G(09-15).fm  12 ページ  2001年6月29日 金曜日 午前10時33分
