SECURITY AND LOCKS

09–14–7

09–14

DOOR LOCK SWITCH REMOVAL/INSTALLATION

A3U091466210W02

1. Disconnect the negative battery cable.
2. Insert a tape-wrapped flathead screwdriver

between the front door trim and the door lock
switch and push the clip to remove the door lock
switch.

3. Disconnect the door lock switch connector.
4. Install in the reverse order of removal.

End Of Sie

DOOR LOCK STRIKER REMOVAL/INSTALLATION

A3U091458361W01

Warning

••••

Handling the side air bag sensor improperly can accidentally deploy the side air bag module,
which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before working
around the B-pillar areas. (See 08–10–3 AIR BAG SYSTEM SERVICE WARNINGS.)

Note

•

The side air bag sensor is located in the B-pillar.

1. Disconnect the negative battery cable.
2. Remove the screws.
3. Remove the door lock striker.
4. Install in the reverse order of removal.

End Of Sie

LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION

A3U091462361W01

1. Remove the bolts.
2. Remove the liftgate striker.
3. Install in the reverse order of removal.

End Of Sie

Z3U0914W005

X3U914WA8

A3U0911W005

1712-1U-01G(09-14).fm  7 ページ  ２００１年６月２９日 金曜日 午前１０時３２分

SECURITY AND LOCKS

09–14–8

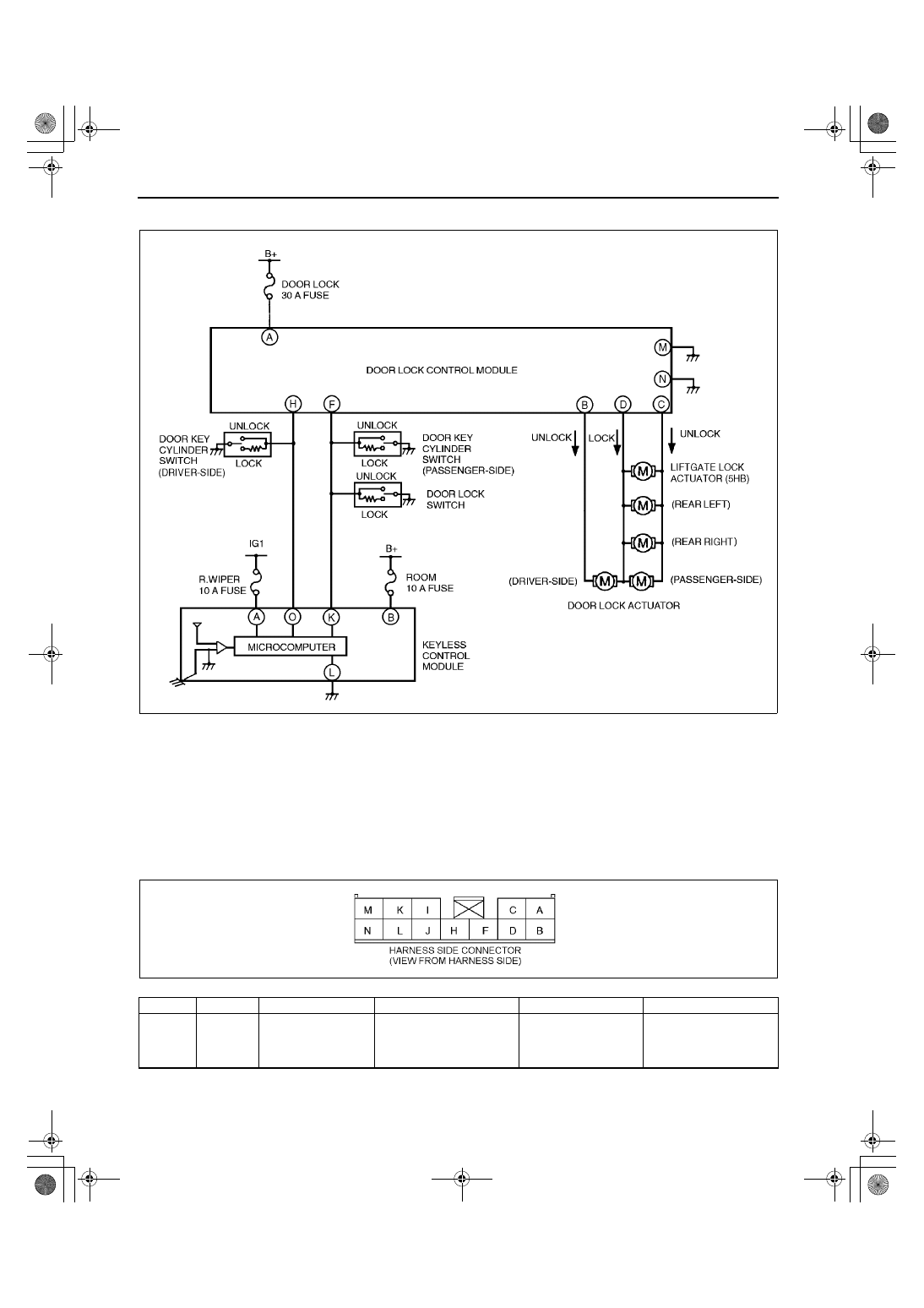

POWER DOOR LOCK SYSTEM WIRING DIAGRAM

A3U091466000W02

End Of Sie

DOOR LOCK CONTROL MODULE INSPECTION

A3U091467830W01

1. Remove the lower panel.
2. Measure the voltage at the door lock control module terminals as indicated below.
3. Disconnect the door lock control module connector before inspecting for continuity at terminals F, H, M and N.

•

If not as specified, inspect the parts listed under “Action” and the related wiring harnesses.

•

If the parts and wiring harnesses are okay but the system still does not work properly, replace the door lock
control module.

Terminal Voltage List (Reference)

A3U0914W008

Terminal

Signal

Connected to

Test condition

Voltage (V)/continuity

Action

A

Power
supply

DOOR LOCK 30 A
fuse

Under any condition

B+

•

Inspect DOOR LOCK
30 A fuse

•

Inspect related
harness

Y3U914WA5

1712-1U-01G(09-14).fm  8 ページ  ２００１年６月２９日 金曜日 午前１０時３２分

SECURITY AND LOCKS

09–14–9

09–14

*

: Equipped with keyless entry system

End Of Sie

B

Unlock
output

Driver-side door lock
actuator

Driver-side door (door lock
actuator) is unlocked

Below 1.0

→

B+

→



Below 1.0

•

Inspect driver-side
door lock actuator

•

Inspect related
harness

Other

0

C

Unlock
output

Except driver-side
door lock actuator

Except driver-side door
(door lock actuator and
liftgate lock actuator) is
unlocked

Below

1.0

→

B+

→

Below 1.0

•

Inspect except driver-
side door lock
actuator

•

Inspect related
harness

Other

Below 1.0

D

Lock
output

Door lock actuator

Door (door lock actuator) is
locked

Below

1.0

→

B+

→

Below 1.0

•

Inspect door lock
actuator

•

Inspect related
harness

Other

Below 1.0

F

Lock/
unlock
input

Passenger-side door
key cylinder switch,
door lock switch, and
*keyless control
module

Passenger-side door is
locked with key

B+

→

5

→

B+

•

Inspect passenger-
side door key cylinder
switch
(See 09–14–6 DOOR
KEY CYLINDER
SWITCH
INSPECTION)

•

Inspect door lock
switch
(See 09–14–6 DOOR
LOCK SWITCH
INSPECTION)

•

Inspect *keyless
control module
(See 09–14–11
KEYLESS
CONTROL MODULE
INSPECTION)

•

Inspect related
harness

*5

→

2.5

→

5

Passenger-side door is
unlocked with key

B+

→

Below 1.0

→

B+

*5

→

Below 1.0

→

5

Door lock switch is locked

B+

→

5

→

B+

*5

→

2.5

→

5

Door lock switch is
unlocked

B+

→

Below 1.0

→

B+

*5

→

Below 1.0

→

5

*Transmitter UNLOCK
button is pressed twice
within 5 seconds

5

→

Below 1.0

→

5

Other

B+

*5

H

Unlock
input

Driver-side door key
cylinder switch, and
*keyless control
module

Driver-side door is locked
with key

B+

→

5

→

B+

•

Inspect driver-side
door key cylinder
switch
(See 09–14–6 DOOR
KEY CYLINDER
SWITCH
INSPECTION)

•

Inspect *keyless
control module
(See 09–14–11
KEYLESS
CONTROL MODULE
INSPECTION)

•

Inspect related
harness

*5

→

2.5

→

5

Driver-side door is
unlocked with key

B+

→

Below 1.0

→

B+

*5

→

Below 1.0

→

5

*Transmitter LOCK button
is pressed

5

→

2.5

→

5

*Transmitter UNLOCK
button is pressed once

5

→

Below 1.0

→

5

Other

B+

*5

I

-

-

-

-

-

J

-

-

-

-

-

K

-

-

-

-

-

L

-

-

-

-

-

M

Signal
ground

GND

Under any condition:
inspect for continuity to
ground

Yes

-

N

Power
ground

GND

Under any condition:
inspect for continuity to
ground

Yes

-

Terminal

Signal

Connected to

Test condition

Voltage (V)/continuity

Action

1712-1U-01G(09-14).fm  9 ページ  ２００１年６月２９日 金曜日 午前１０時３２分

SECURITY AND LOCKS

09–14–10

DOOR LOCK CONTROL MODULE REMOVAL/INSTALLATION

A3U091467830W02

Note

•

Because the lock section of the module is damaged easily, do not remove the module from the bracket
unless replacement is necessary. Always perform an inspection of the door lock control module before
removal.

1. Disconnect the negative battery cable.
2. Remove the lower panel.
3. Remove the bracket.
4. Disconnect the door lock control module

connector.

5. Remove the door lock control module by prying

the lock section of the upper part with a flathead
screwdriver.

6. Install in the reverse order of removal.

End Of Sie

KEYLESS ENTRY SYSTEM WIRING DIAGRAM

A3U091469000W01

End Of Sie
