SECURITY AND LOCKS

09–14–3

09–14

End Of Sie

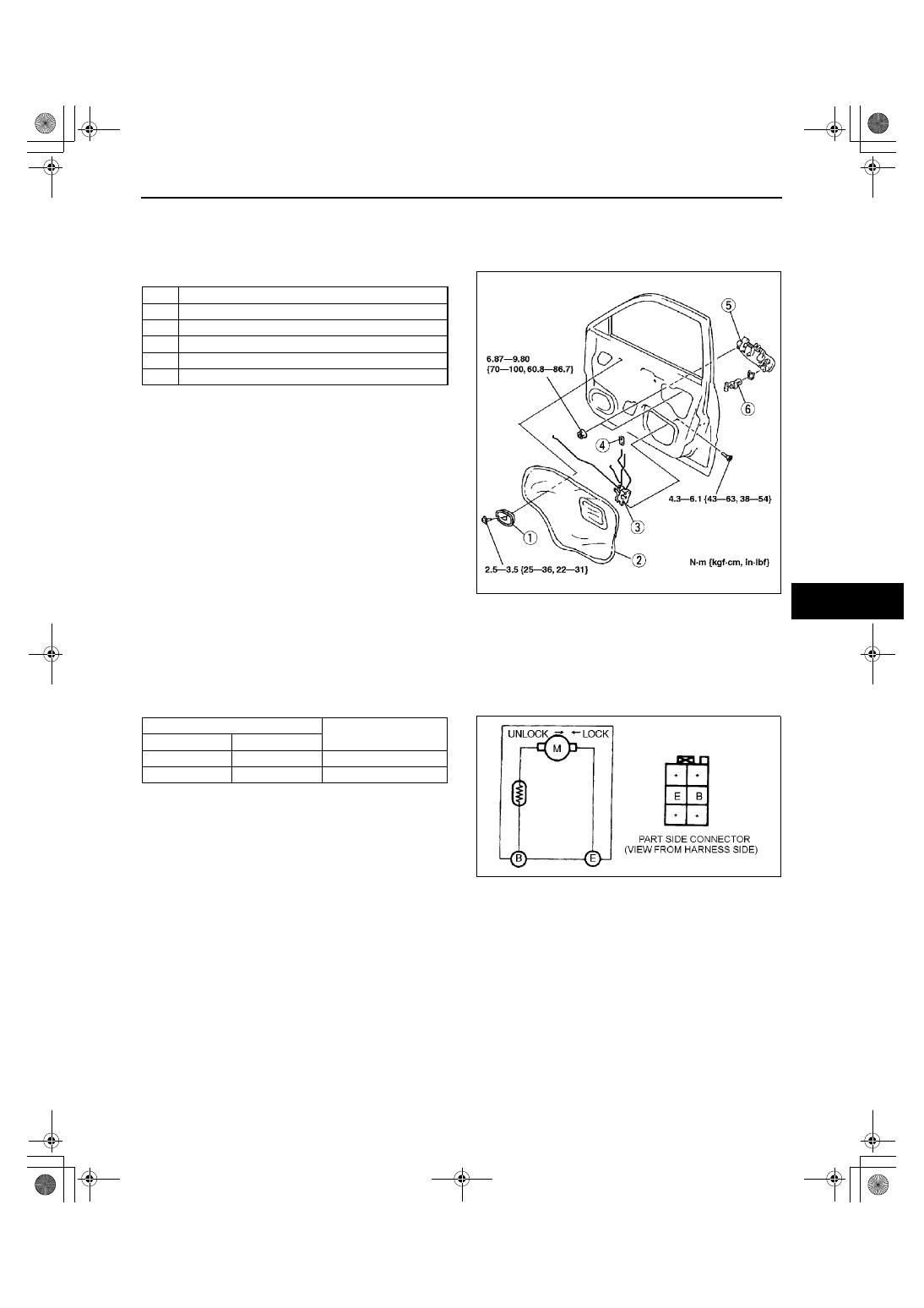

FRONT DOOR LOCK AND OPENER REMOVAL/INSTALLATION

A3U091458311W01

1. Close the front door glass completely.
2. Disconnect the negative battery cable.
3. Remove the front door trim. (See 09–17–9 FRONT DOOR TRIM REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

End Of Sie

FRONT DOOR LOCK ACTUATOR INSPECTION

A3U091458310W01

1. Remove the front door trim.
2. Turn the door screen over.
3. Disconnect the front door lock actuator connector.
4. Apply battery positive voltage to the front door lock actuator terminals and inspect the operation of the front

door lock actuator.

If not as specified, replace the front door lock.

End Of Sie

FRONT DOOR LOCK ACTUATOR REMOVAL/INSTALLATION

A3U091458310W02

1. Disconnect the negative battery cable.
2. Remove the door screen. (See 09–14–3 FRONT DOOR LOCK AND OPENER REMOVAL/INSTALLATION.)
3. Disconnect the front door lock actuator connector.
4. Disconnect the rods from the outer handle and the door key cylinder.
5. Remove the screws, and then remove the front door lock.
6. Remove the screws, and then remove the front door lock actuator from the front door lock.
7. Install in the reverse order of removal.

End Of Sie

1

Inner handle

2

Door screen

3

Front door lock

4

Door lock knob

5

Outer handle

6

Door key cylinder

X3U914WA0

Connection

Actuator operation

B+

GND

E

B

Lock

B

E

Unlock

Z3U0914W010

1712-1U-01G(09-14).fm  3 ページ  2001年6月29日 金曜日 午前10時32分

SECURITY AND LOCKS

09–14–4

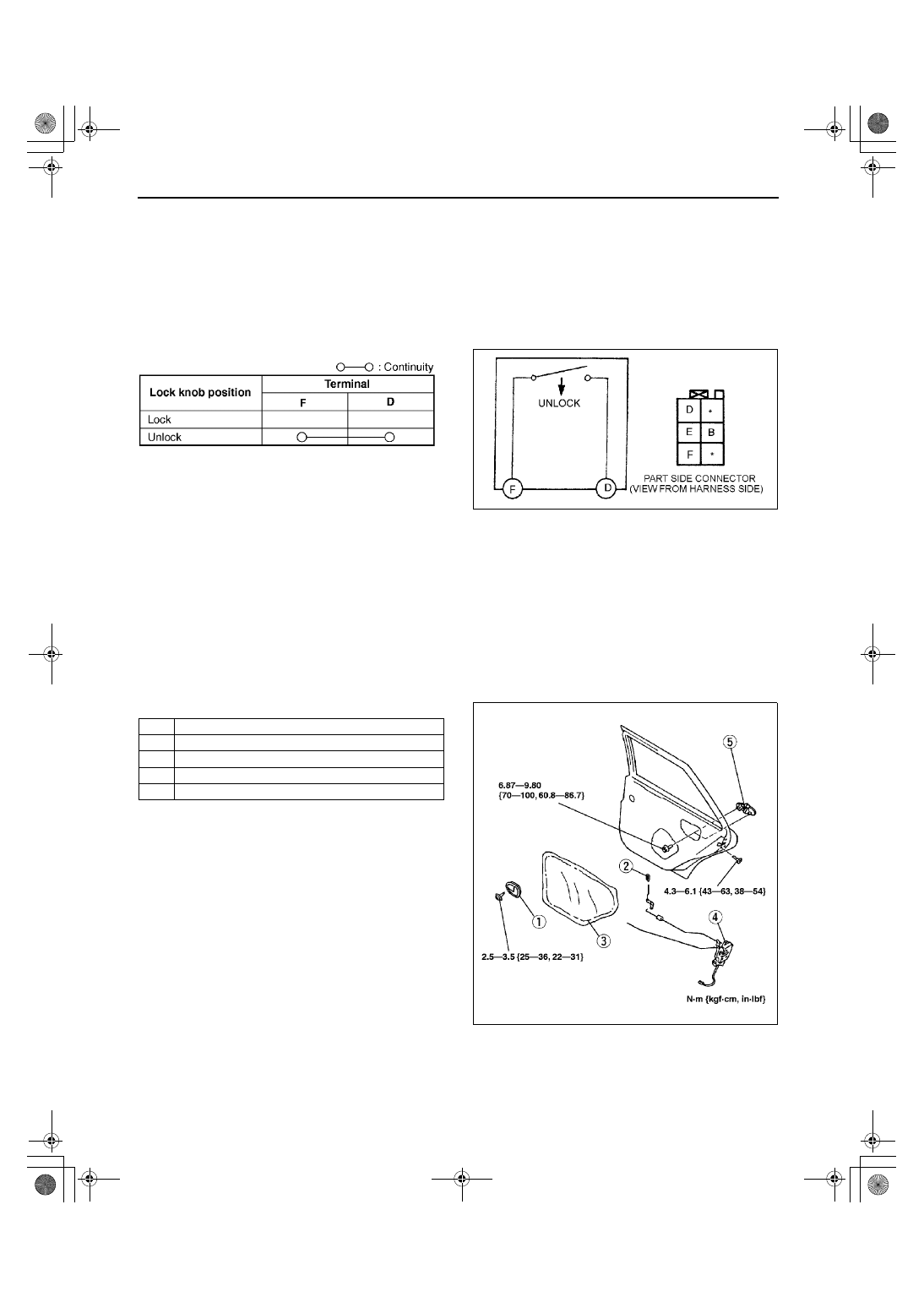

DOOR LOCK-LINK SWITCH INSPECTION

A3U091458211W01

Note

The door lock-link switch is together with the driver-side door lock actuator.

1. Remove the driver-side door trim.
2. Turn the door screen over.
3. Disconnect the door lock-link switch connector.
4. Inspect for continuity between the door lock-link switch terminals using an ohmmeter.

If not as specified, replace the door lock actuator.

End Of Sie

DOOR LOCK-LINK SWITCH REMOVAL/INSTALLATION

A3U091458211W02

Note

The door lock-link switch is together with the driver-side door lock actuator.

1. Remove the driver-side door lock actuator. (See 09–14–3 FRONT DOOR LOCK ACTUATOR REMOVAL/

INSTALLATION.)

End Of Sie

REAR DOOR LOCK AND OPENER REMOVAL/INSTALLATION

A3U091472311W01

1. Close the rear door glass completely.
2. Disconnect the negative battery cable.
3. Remove the rear door trim. (See 09–17–9 REAR DOOR TRIM REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

End Of Sie

Z3U0914W011

Z3U0914W012

1

Inner handle

2

Door lock knob

3

Door screen

4

Rear door lock

5

Outer handle

X3U914WA2

1712-1U-01G(09-14).fm  4 ページ  2001年6月29日 金曜日 午前10時32分

SECURITY AND LOCKS

09–14–5

09–14

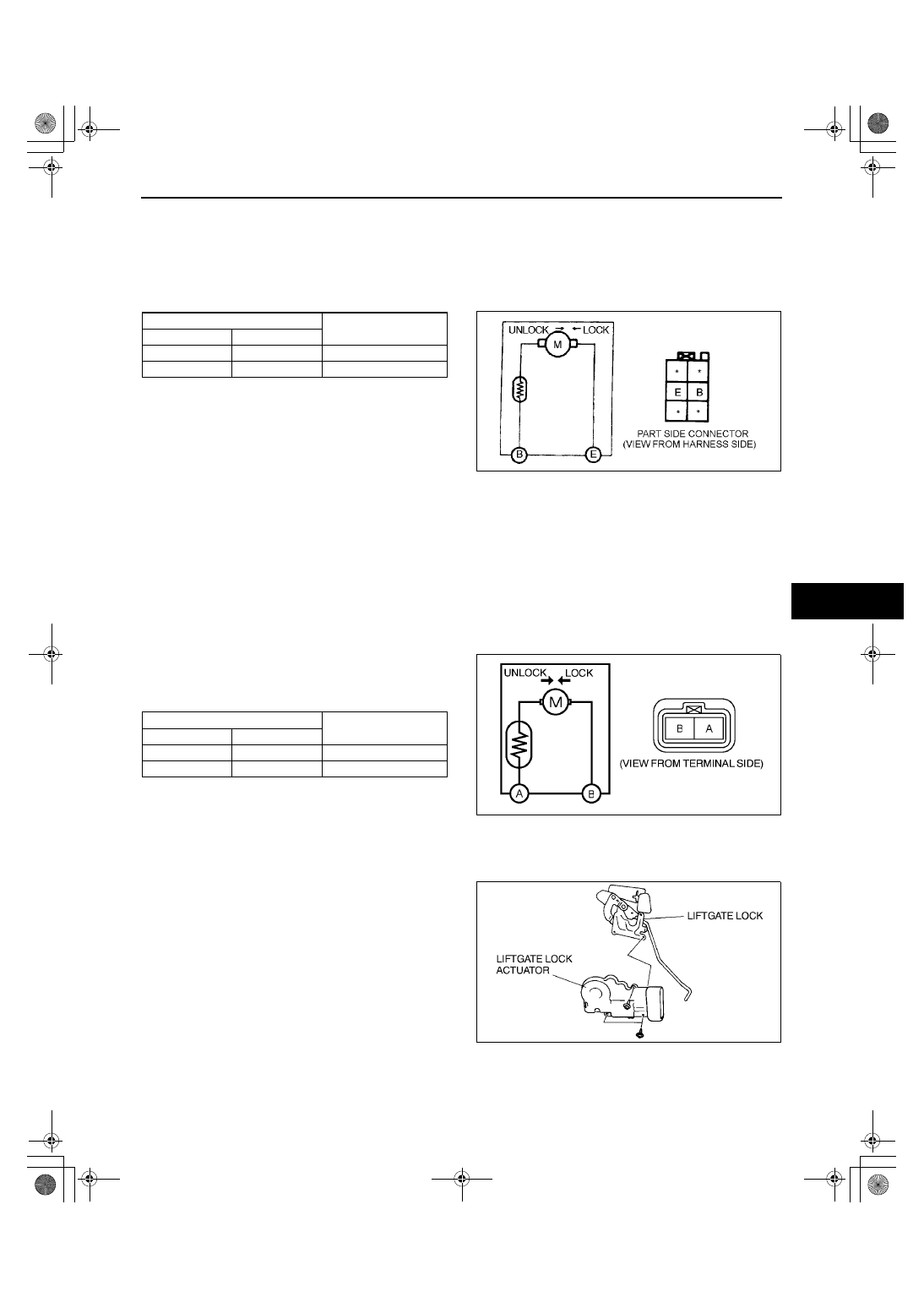

REAR DOOR LOCK ACTUATOR INSPECTION

A3U091472310W01

1. Remove the rear door trim.
2. Turn the door screen over.
3. Disconnect the rear door lock actuator connector.
4. Apply battery positive voltage to the rear door lock actuator terminals and inspect the operation of the rear door

lock actuator.

If not as specified, replace the rear door lock.

End Of Sie

REAR DOOR LOCK ACTUATOR REMOVAL/INSTALLATION

A3U091472310W02

1. Disconnect the negative battery cable.
2. Remove the door screen. (See 09–14–4 REAR DOOR LOCK AND OPENER REMOVAL/INSTALLATION.)
3. Disconnect the rear door lock actuator connector.
4. Disconnect the rod from the outer handle.
5. Remove the screws, and then remove the rear door lock.
6. Remove the screws, and then remove the rear door lock actuator from the rear door lock.
7. Install in the reverse order of removal.

End Of Sie

LIFTGATE LOCK ACTUATOR INSPECTION

A3U091462310W01

1. Disconnect the liftgate lock actuator connector.
2. Apply battery positive voltage to the liftgate lock

actuator terminals and inspect the operation of
the liftgate lock actuator.

If not as specified, replace the liftgate lock.

End Of Sie

LIFTGATE LOCK ACTUATOR REMOVAL/INSTALLATION

A3U091462310W02

1. Disconnect the negative battery cable.
2. Remove the liftgate lock.
3. Remove the screws, then remove the liftgate lock

actuator.

4. Install in the reverse order of removal.

End Of Sie

Connection

Actuator operation

B+

GND

E

B

Lock

B

E

Unlock

Z3U0914W013

Connection

Actuator operation

B+

GND

B

A

Lock

A

B

Unlock

A3U0914W003

A3U0914W002

1712-1U-01G(09-14).fm  5 ページ  2001年6月29日 金曜日 午前10時32分

SECURITY AND LOCKS

09–14–6

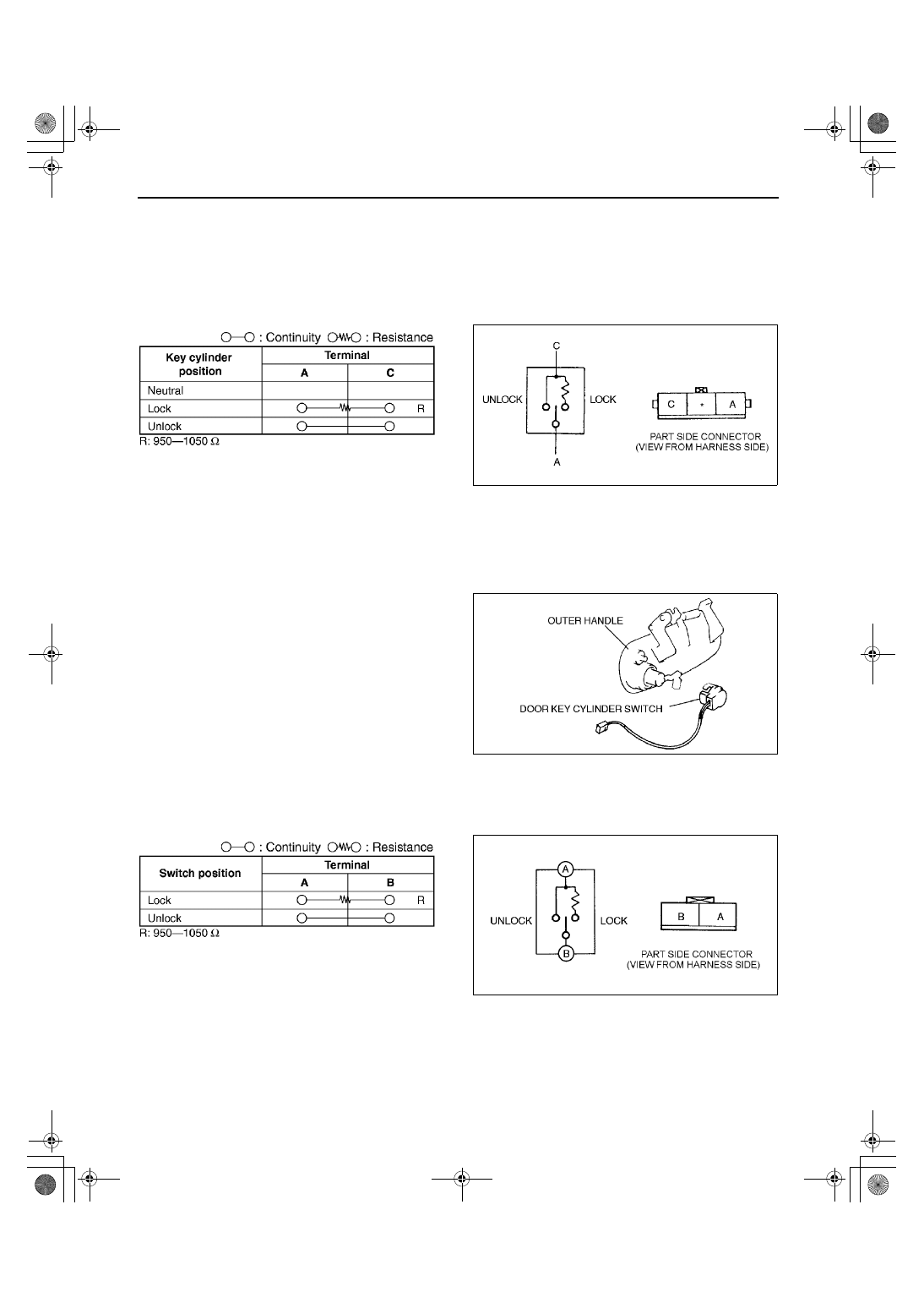

DOOR KEY CYLINDER SWITCH INSPECTION

A3U091475911W01

1. Raise the door glass completely.
2. Disconnect the negative battery cable.
3. Remove the passenger-side front door trim.
4. Remove the door screen.
5. Disconnect the door key cylinder switch connector.
6. Inspect for continuity between the door key cylinder switch terminals using an ohmmeter.

If not as specified, replace the door key cylinder switch.

End Of Sie

DOOR KEY CYLINDER SWITCH REMOVAL/INSTALLATION

A3U091475911W02

1. Close the door glass completely.
2. Disconnect the negative battery cable.
3. Remove the passenger-side front door trim.
4. Remove the door screen.
5. Release the outer handle and the door key cylinder installation rods.
6. Disconnect the door key cylinder switch

connector.

7. Remove the door key cylinder switch.
8. Install in the reverse order of removal.

End Of Sie

DOOR LOCK SWITCH INSPECTION

A3U091466210W01

1. Remove the door lock switch.
2. Inspect for continuity between the door lock switch terminals using an ohmmeter.

If not as specified, replace the door lock switch.

End Of Sie

Z3U0914W014

X3U914WC7

X3U914WA5

Y3U914WA3

X3U914WA7
