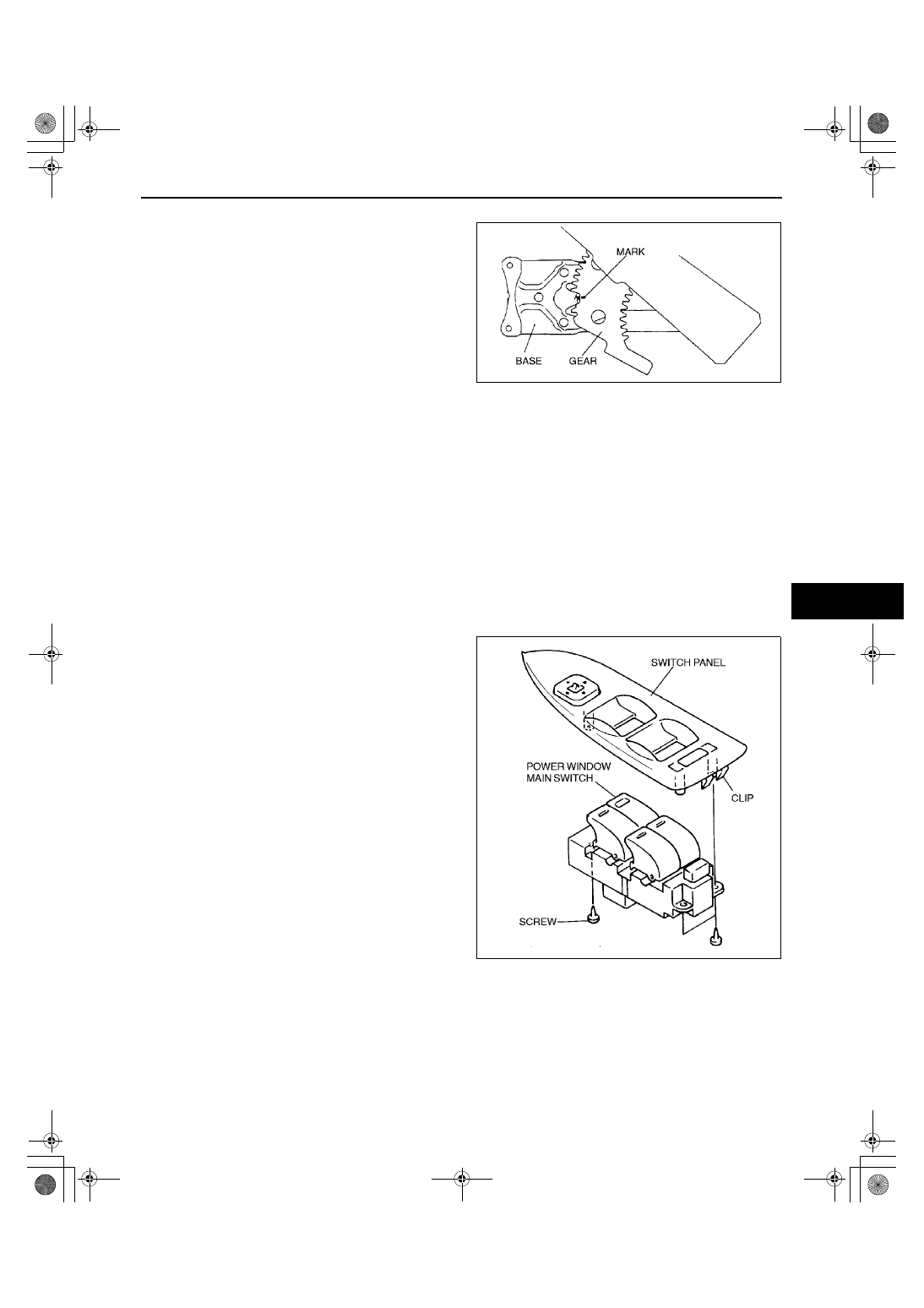

Power Window Motor Disassembly Note

1. Make marks on the gear and the base before

disassembling the power window motor.

Power Window Motor Assembly Note

1. Align the marks on the gear and the base before assembling the power window motor.

End Of Sie

REAR MANUAL WINDOW REGULATOR REMOVAL/INSTALLATION

A3U091272561W01

1. Remove the rear door glass. (See 09–12–4 REAR DOOR GLASS AND GUIDE REMOVAL/INSTALLATION.)
2. Remove the bolts, then remove the rear manual window regulator.

Tightening torque

6.87—9.80 N·m {70—100 kgf·cm, 60.8—86.7 in·lbf}

3. Install in the reverse order of removal.

End Of Sie

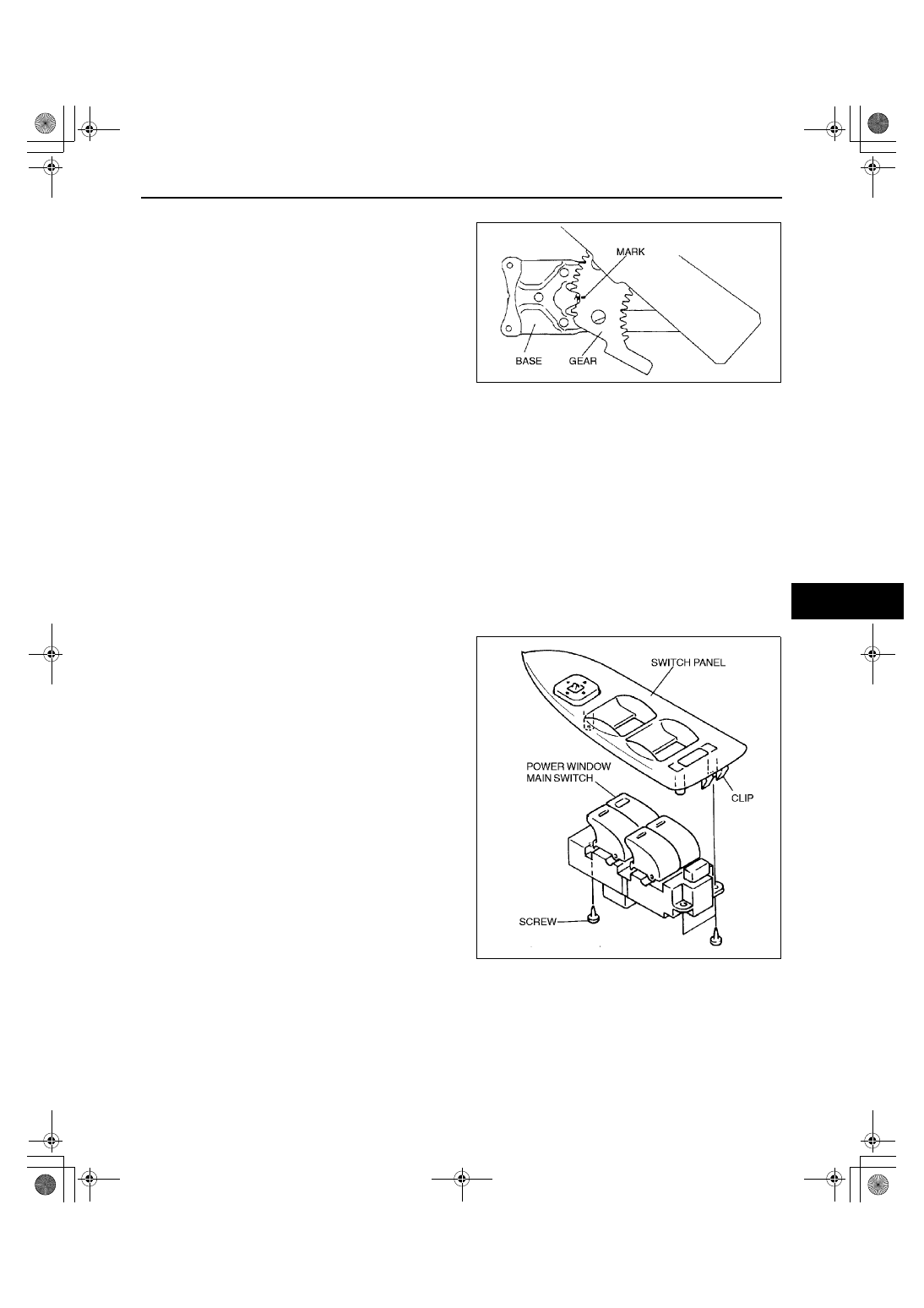

POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION

A3U091266350W01

1. Disconnect the negative battery cable.
2. Remove the driver-side front door trim. (See 09–17–9 FRONT DOOR TRIM REMOVAL/INSTALLATION.)
3. Push out the clip from the reverse side of the trim,

and remove the switch panel.

4. Remove the screw, and remove the power

window main switch.

5. Install in the reverse order of removal.

End Of Sie

X3U912WC3

X3U912WC4

1712-1U-01G(09-12).fm  7 ページ  ２００１年６月２９日 金曜日 午前１０時３０分

GLASS/WINDOWS/MIRRORS

09–12–8

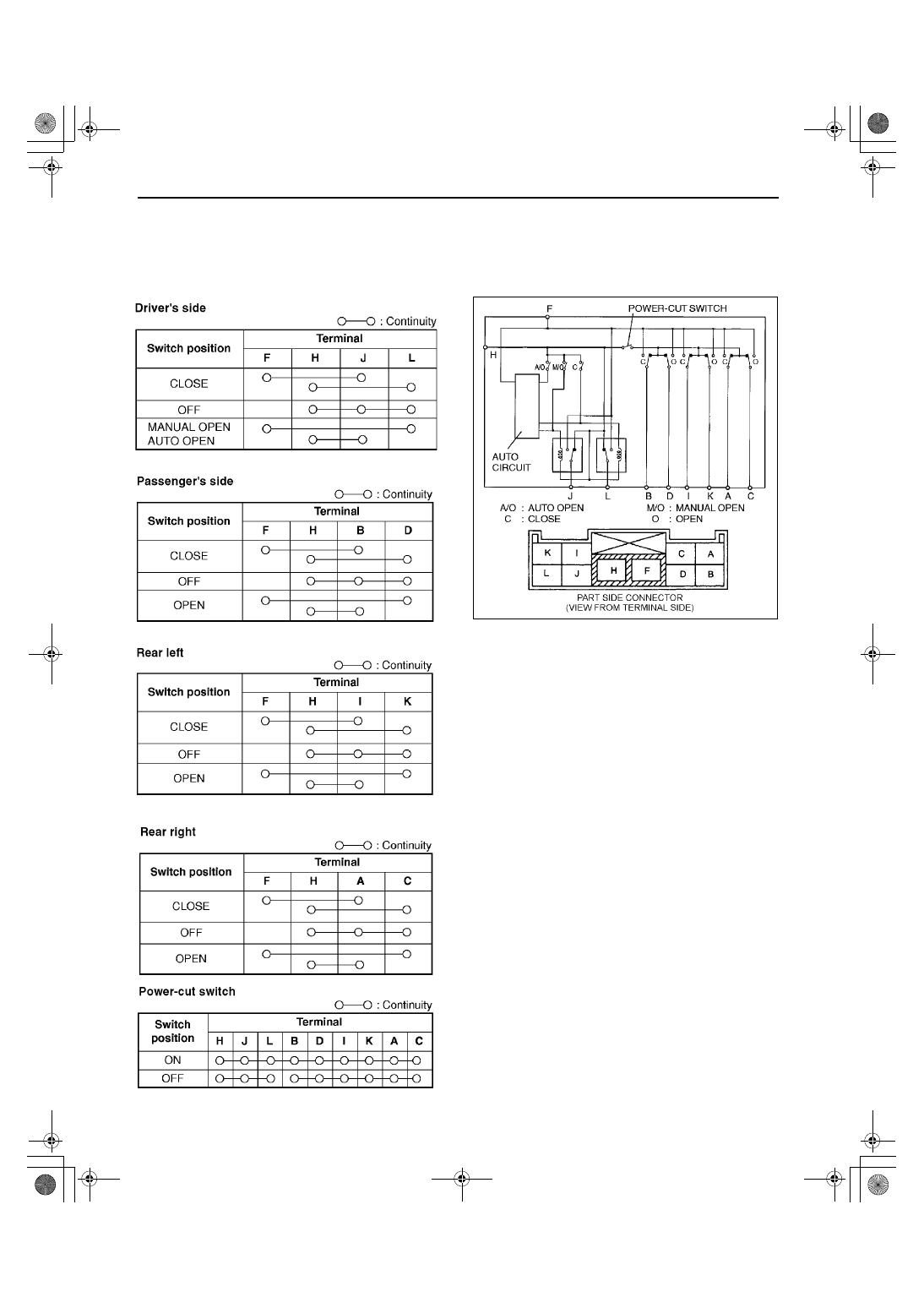

POWER WINDOW MAIN SWITCH INSPECTION

A3U091266350W02

1. Remove the power window main switch. (See 09–12–7 POWER WINDOW MAIN SWITCH REMOVAL/

INSTALLATION.)

2. When inspecting the passenger’s side and the rear, turn the power-cut switch to ON.
3. Inspect for continuity between the power window main switch terminals using an ohmmeter.

•

If not as specified, replace the power window main switch.

End Of Sie

Y3U912WA2

Z3U0912W003

Z3U0912W004

Z3U0912W005

Z3U0912W006

Z3U0912W007

1712-1U-01G(09-12).fm  8 ページ  ２００１年６月２９日 金曜日 午前１０時３０分

GLASS/WINDOWS/MIRRORS

09–12–9

09–12

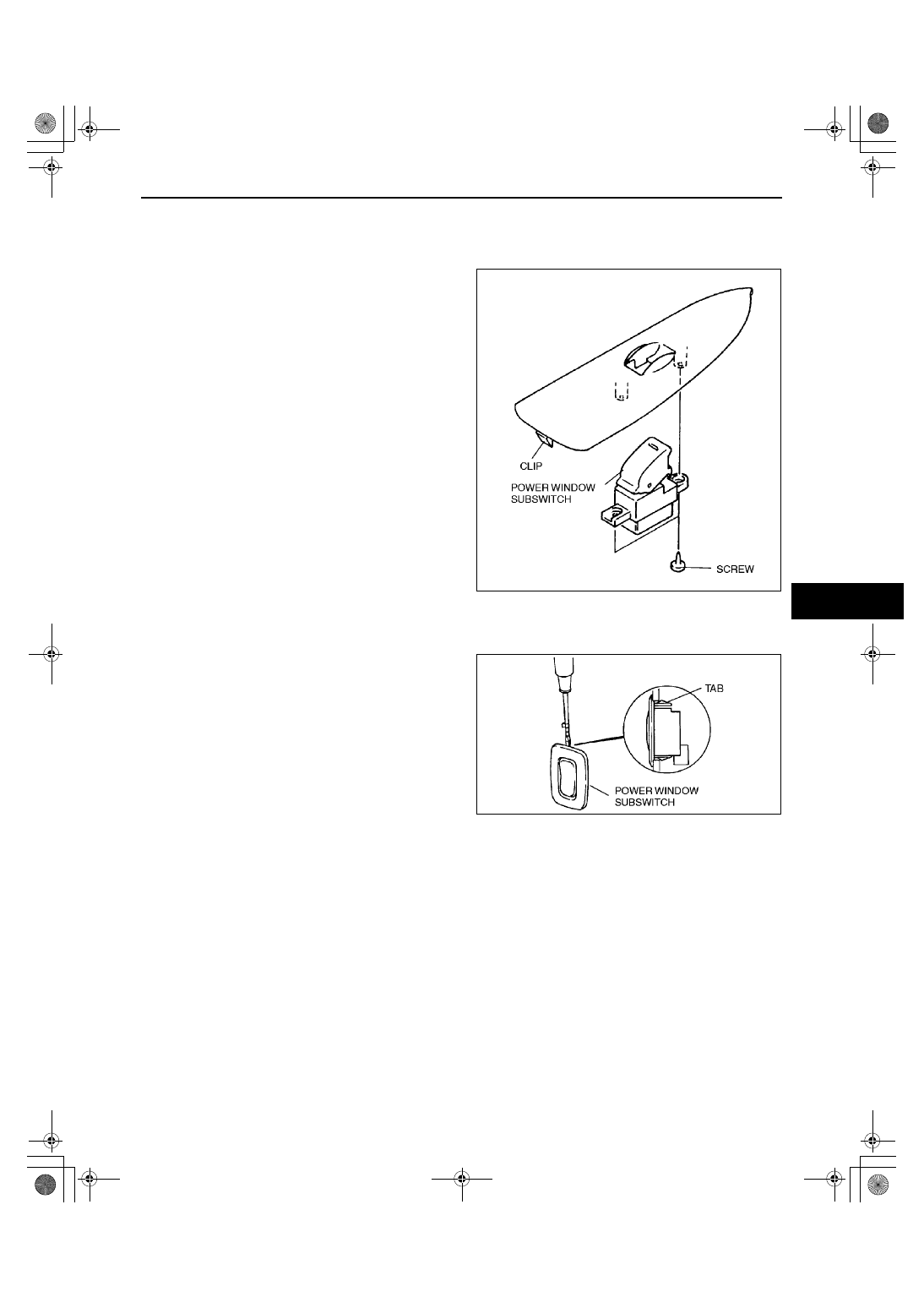

POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION

A3U091266370W01

Passenger’s side

1. Disconnect the negative battery cable.
2. Remove the passenger-side front door trim. (See 09–17–9 FRONT DOOR TRIM REMOVAL/INSTALLATION.)
3. Push out the clip from the reverse side of the trim,

and remove the switch panel.

4. Remove the screw, and remove the power

window subswitch.

5. Install in the reverse order of removal.

Rear

1. Disconnect the negative battery cable.
2. Remove the tab by inserting a tape-wrapped,

flathead screwdriver between the switch and the
rear door trim.

3. Disconnect the connector, and remove the power

window subswitch.

4. Install in the reverse order of removal.

End Of Sie

X3U912WD0

Y3U912WAK

1712-1U-01G(09-12).fm  9 ページ  ２００１年６月２９日 金曜日 午前１０時３０分

GLASS/WINDOWS/MIRRORS

09–12–10

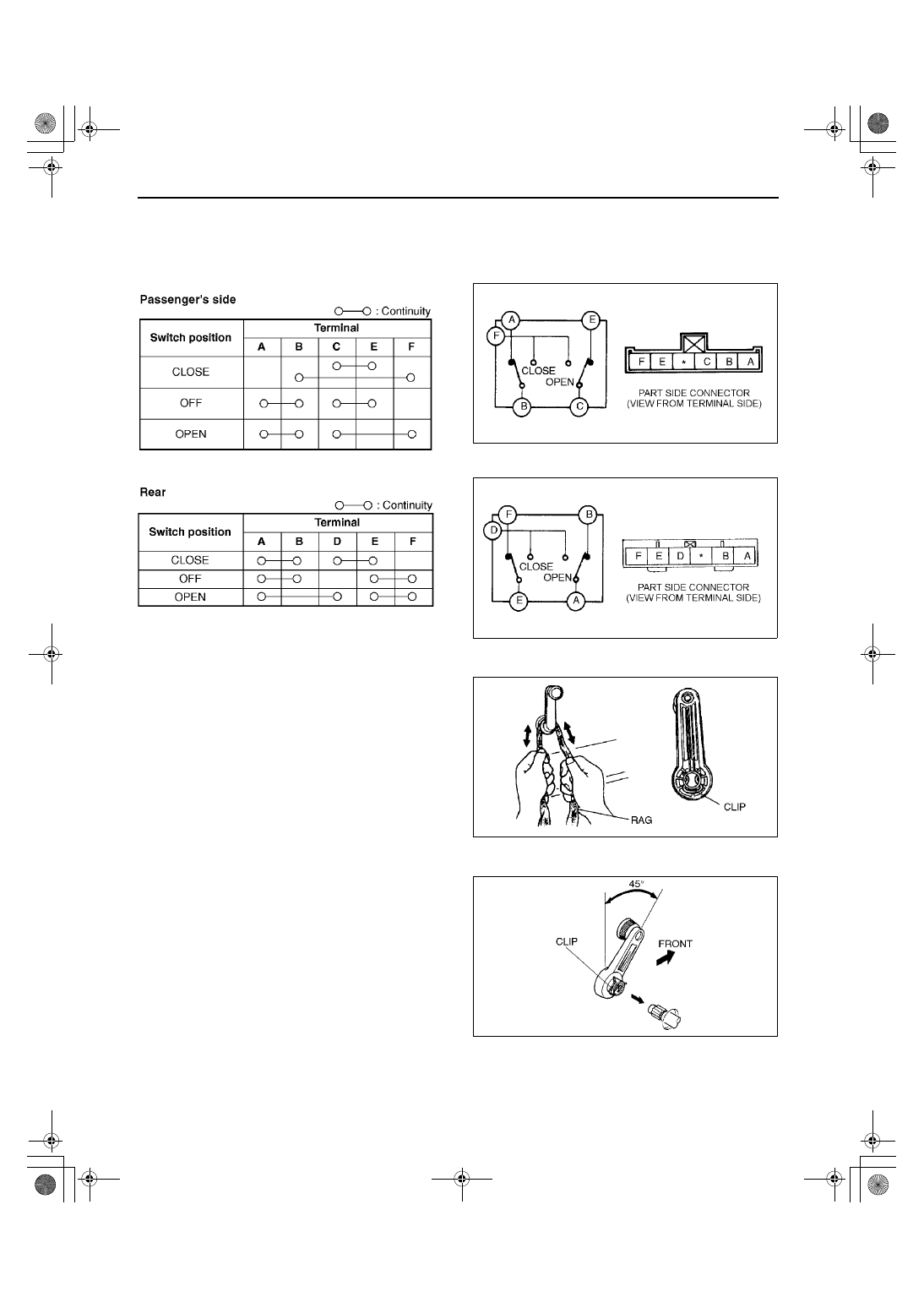

POWER WINDOW SUBSWITCH INSPECTION
