Mazda Protege 5. Manual - part 287





ON-BOARD DIAGNOSTIC

08–02–16

End Of Sie

3

INSPECT WIRING HARNESS BETWEEN
PASSENEGER-SIDE PRE-TENSIONER SEAT
BELT AND SAS CONTROL MODULE

Turn ignition switch to LOCK position.

Disconnect negative battery cable and wait
for more than 1 minute.

Remove column cover.

Disconnect clock spring connector.

Remove glove compartment.

Disconnect passenger-side air bag module
connector

Disconnect driver- and passenger-side side
air bag module connectors. (Vehicles with
side air bag)

Remove driver-side B-pillar lower trim.

Disconnect driver-side pre-tensioner seat
belt connector.

Remove left side side wall.

Disconnect all SAS control module
connectors.

Inspect wiring harness between SAS control
module connector terminal 3I and
passenger-side pre-tensioner seat belt
connector terminal A, and between SAS
control module connector terminal 3K and
passenger-side pre-tensioner seat belt
connector terminal B for following.
— Short to ground
— Short to power supply
— Open circuit

Are wiring harnesses okay?

Yes

Present malfunction diagnosis:

Replace SAS control module.
(See 08–10–12 SAS CONTROL MODULE REMOVAL/
INSTALLATION)

Past malfunction diagnosis:

Replace passenger-side pre-tensioner seat belt.

No

Replace wiring harness.

STEP

INSPECTION

ACTION

1712-1U-01G(08-02).fm  16 ページ  2001年6月29日 金曜日 午後3時22分

ON-BOARD DIAGNOSTIC

08–02–17

08–02

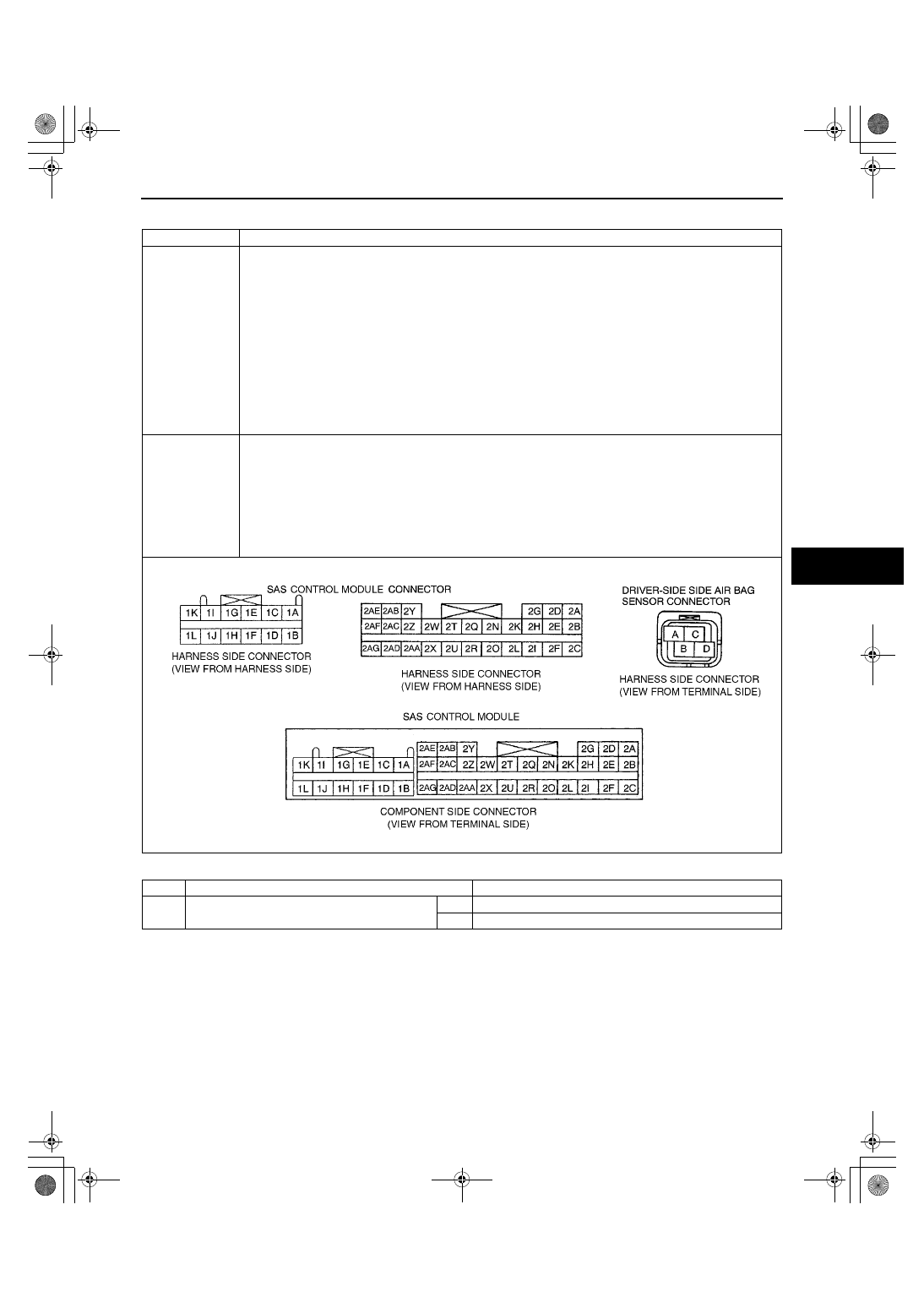

DTC 22

A3U080201046W11

Diagnostic procedure

DTC 22

Driver-side side air bag sensor system (Internal circuit abnormal)

DETECTION

CONDITION

Warning

••••

Detection conditions are for understanding DTC outline before performing inspection.
Performing inspection with only detection conditions may cause injury due to operating error
or damage the system. When performing inspection, always follow diagnostic procedure.

Note

For vehicles without side air bag, DTC 22, 25, 26, 32, 35, or 37 may be indicated concurrently. In
such a case, perform only the smallest DTC troubleshooting among them.

Vehicles with side air bag

Malfunction in wiring harness between driver-side side air bag sensor and SAS control module.

Malfunction in driver-side side air bag sensor circuit.

Vehicles without side air bag

Terminal 2AA of SAS control module connector is open.

POSSIBLE

CAUSE

Vehicles with side air bag

Driver-side side air bag sensor malfunction.

Open or short circuit in wiring harness between driver-side side air bag sensor and SAS control
module.

SAS control module malfunction.

Vehicles without side air bag

Malfunction of connector between SAS control module and ground.

Open or short circuit in wiring harness between SAS control module and ground.

SAS control module malfunction.

STEP

INSPECTION

ACTION

1

Is vehicle equipped with side air bag?

Yes

Go to next step.

No

Go to Step 6.

1712-1U-01G(08-02).fm  17 ページ  2001年6月29日 金曜日 午後3時22分

ON-BOARD DIAGNOSTIC

08–02–18

2

INSPECT WIRING HARNESS BETWEEN
DRIVER-SIDE SIDE AIR BAG SENSOR AND
SAS CONTROL MODULE

Warning

••••

Handling air bag system components
improperly can accidentally deploy air
bag modules and pre-tensioner seat
belts, which may seriously injure you.
Read AIR BAG SYSTEM SERVICE
WARNINGS before handling air bag
system components.
(See 08–10–3 AIR BAG SYSTEM
SERVICE WARNINGS)

Turn ignition switch to LOCK position.

Disconnect negative battery cable and wait
for more than 1 minute.

Remove column cover.

Disconnect clock spring connector.

Remove glove compartment.

Disconnect passenger-side air bag module
connector.

Disconnect driver- and passenger-side side
air bag module connectors.

Remove B-pillar lower trims.

Disconnect driver-and passenger-side pre-
tensioner seat belt connectors.

Remove left side side wall.

Disconnect all SAS control module
connectors.

Disconnect driver-side side air bag sensor
connector.

Inspect wiring harness between terminal 1B
of SAS control module connector and
terminal A of driver-side side air bag sensor
connector, between terminal 1D of SAS
control module connector and terminal B of
driver-side side air bag sensor connector,
between terminal 1F of SAS control module
connector and terminal C of driver-side side
air bag sensor connector, and between
terminal 1E of SAS control module connector
and terminal D of driver-side side air bag
sensor connector for following.
— Short to ground
— Short to power supply
— Open circuit

Are wiring harnesses okay?

Yes

Present malfunction diagnosis:

Go to next step.

Past malfunction diagnosis:

Replace driver-side side air bag sensor.
(See 08–10–10 SIDE AIR BAG SENSOR REMOVAL/
INSTALLATION)

No

Replace wiring harness.

3

INSPECT GROUND CIRCUIT IN SAS
CONTROL MODULE

Is there continuity between terminal 1F and
2Q of SAS control module?

Yes

Go to next step.

No

Replace SAS control module.
(See 08–10–12 SAS CONTROL MODULE REMOVAL/
INSTALLATION)

4

INSPECT POWER SUPPLY CIRCUIT OF
DRIVER-SIDE SIDE AIR BAG SENSOR

Connect all SAS control module connectors.

Connect clock spring connector.

Connect passenger-side air bag module
connector.

Connect driver- and passenger-side side air
bag module connectors.

Connect driver- and passenger-side pre-
tensioner seat belt connectors.

Connect negative battery cable.

Turn ignition switch to ON position.

Measure voltage at terminal A of driver-side
side air bag sensor connector.

Is voltage approximately 5 V?

Yes

Replace driver-side side air bag sensor, then go to next
step.
(See 08–10–10 SIDE AIR BAG SENSOR REMOVAL/
INSTALLATION)

No

Replace SAS control module.
(See 08–10–12 SAS CONTROL MODULE REMOVAL/
INSTALLATION)

STEP

INSPECTION

ACTION

1712-1U-01G(08-02).fm  18 ページ  2001年6月29日 金曜日 午後3時22分

ON-BOARD DIAGNOSTIC

08–02–19

08–02

End Of Sie

5

VERIFY WHETHER SAS CONTROL MODULE
IS MALFUNCTIONING OR NOT

Connect driver-side side air bag sensor
connector.

Connect negative battery cable.

Turn ignition switch to ON position.

Is DTC 22 indicated?

Yes

Replace SAS control module.
(See 08–10–12 SAS CONTROL MODULE REMOVAL/
INSTALLATION)

No

Complete inspection by DTC.

6

VERIFY THAT SAS CONTROL MODULE
CONNECTOR TERMINAL 2AA IS GROUNDED

Warning

••••

Handling air bag system components
improperly can accidentally deploy air
bag modules and pre-tensioner seat
belts, which may seriously injure you.
Read AIR BAG SYSTEM SERVICE
WARNINGS before handling air bag
system components.
(See 08–10–3 AIR BAG SYSTEM
SERVICE WARNINGS)

Turn ignition switch to LOCK position.

Disconnect negative battery cable and wait
for more than 1 minute.

Remove column cover.

Disconnect clock spring connector.

Remove glove compartment.

Disconnect passenger-side air bag module
connector.

Remove B-pillar lower trims.

Disconnect driver-and passenger-side pre-
tensioner seat belt connectors.

Remove left side side wall.

Disconnect all SAS control module
connectors.

Disconnect driver-side side air bag sensor
connector.

Inspect wiring harness between terminal
2AA of SAS control module connector and
ground for following.
— Short to power supply
— Open circuit

Is wiring harnesses okay?

Yes

Present malfunction diagnosis:

Replace SAS control module.
(See 08–10–12 SAS CONTROL MODULE REMOVAL/
INSTALLATION)

Past malfunction diagnosis:

Complete inspection by DTC.

No

Replace wiring harness.

STEP

INSPECTION

ACTION

1712-1U-01G(08-02).fm  19 ページ  2001年6月29日 金曜日 午後3時22分
