Mazda Protege 5. Manual - part 220





ON-BOARD DIAGNOSTIC

05–02–8

P0301

Cylinder 1 misfire detected

(See 01–02A–65 DTC P0301, P0302, P0303, P0304 [ZM])
(See 01–02B–75 DTC P0301, P0302, P0303, P0304 [FS])

P0302

Cylinder 2 misfire detected

(See 01–02A–65 DTC P0301, P0302, P0303, P0304 [ZM])
(See 01–02B–75 DTC P0301, P0302, P0303, P0304 [FS])

P0303

Cylinder 3 misfire detected

(See 01–02A–65 DTC P0301, P0302, P0303, P0304 [ZM])
(See 01–02B–75 DTC P0301, P0302, P0303, P0304 [FS])

P0304

Cylinder 4 misfire detected

(See 01–02A–65 DTC P0301, P0302, P0303, P0304 [ZM])
(See 01–02B–75 DTC P0301, P0302, P0303, P0304 [FS])

P0325

Knock sensor circuit malfunction

(See 01–02B–77 DTC P0325 [FS])

P0335

CKP sensor circuit malfunction

(See 01–02A–67 DTC P0335 [ZM])
(See 01–02B–79 DTC P0335 [FS])

P0340

CMP sensor circuit malfunction

(See 01–02B–80 DTC P0340 [FS])

P0401

EGR flow insufficient detected

(See 01–02A–69 DTC P0401 [ZM])
(See 01–02B–82 DTC P0401 [FS])

P0402

EGR flow excessive detected

(See 01–02A–70 DTC P0402 [ZM])
(See 01–02B–83 DTC P0402 [FS])

P0421

Warm-up catalyst system efficiency below
threshold

(See 01–02A–71 DTC P0421 [ZM])
(See 01–02B–84 DTC P0421 [FS])

P0442

Evaporative emission system leak detected
(small leak)

(See 01–02A–72 DTC P0442 [ZM])
(See 01–02B–86 DTC P0442 [FS])

P0443

Evaporative emission control system purge
solenoid valve circuit malfunction

(See 01–02A–75 DTC P0443 [ZM])
(See 01–02B–89 DTC P0443 [FS])

P0451

Fuel tank pressure sensor performance problem

(See 01–02A–77 DTC P0451 [ZM])
(See 01–02B–90 DTC P0451 [FS])

P0452

Fuel tank pressure sensor low input

(See 01–02A–78 DTC P0452 [ZM])
(See 01–02B–93 DTC P0452 [FS])

P0453

Fuel tank pressure sensor high input

(See 01–02A–80 DTC P0453 [ZM])
(See 01–02B–95 DTC P0453 [FS])

P0455

Evaporative emission control system leak
detected (blockage or large leak)

(See 01–02A–83 DTC P0455 [ZM])
(See 01–02B–97 DTC P0455 [FS])

P0456

Evaporative emission control system leak
detected (very small leak)

(See 01–02B–102 DTC P0456 [FS])

P0461

Fuel gauge sender unit circuit range/
performance

(See 01–02A–87 DTC P0461 [ZM])
(See 01–02B–104 DTC P0461 [FS])

P0462

Fuel gauge sender unit circuit low input

(See 01–02A–88 DTC P0462 [ZM])
(See 01–02B–105 DTC P0462 [FS])

P0463

Fuel gauge sender unit circuit high input

(See 01–02A–90 DTC P0463 [ZM])
(See 01–02B–107 DTC P0463 [FS])

P0464

Fuel gauge sender unit circuit performance
(slosh check)

(See 01–02A–91 DTC P0464 [ZM])
(See 01–02B–108 DTC P0464 [FS])

P0480

Cooling fan relay malfunction

(See 01–02A–92 DTC P0480 [ZM])
(See 01–02B–109 DTC P0480 [FS])

P0500

VSS circuit malfunction (MTX)

(See 01–02A–94 DTC P0500 [ZM])
(See 01–02B–111 DTC P0500 [FS])

VSS circuit malfunction (ATX)

ON

YES

2

CCM

×

(See 05–02–10
DTC P0500)

P0505

IAC valve circuit malfunction

(See 01–02B–113 DTC P0505 [FS])

P0506

Idle control system RPM lower than expected

(See 01–02A–96 DTC P0506 [ZM])
(See 01–02B–115 DTC P0506 [FS])

P0507

Idle control system RPM higher than expected

(See 01–02A–97 DTC P0507 [ZM])
(See 01–02B–117 DTC P0507 [FS])

P0550

PSP switch circuit malfunction

(See 01–02A–99 DTC P0550 [ZM])
(See 01–02B–118 DTC P0550 [FS])

P0660

VICS solenoid valve circuit malfunction

(See 01–02B–119 DTC P0660 [FS])

P0703

Brake switch input malfunction

(See 01–02A–100 DTC P0703 [ZM])
(See 01–02B–122 DTC P0703 [FS])

P0704

Clutch switch input circuit malfunction (MTX)

(See 01–02A–102 DTC P0704 [ZM])
(See 01–02B–123 DTC P0704 [FS])

DTC No.

Condition

MIL

O/D OFF

indicator

light

flashes

DC

Monitor

item

Memory

function

Page

1712-1U-01G(05-02).fm  8 ページ  2001年6月29日 金曜日 午後4時35分

ON-BOARD DIAGNOSTIC

05–02–9

05–02

P0705

Neutral switch input circuit malfunction (MTX)

(See 01–02A–104 DTC P0705 [ZM])
(See 01–02B–125 DTC P0705 [FS])

Transaxle range (TR) switch circuit malfunction
(Short circuit) (ATX)

ON

YES

1

CCM

×

(See 05–02–14
DTC P0705)

P0706

Transaxle range (TR) switch circuit malfunction
(Open circuit)

ON

YES

2

CCM

×

(See 05–02–16
DTC P0706)

P0710

Transaxle fluid temperature (TFT) sensor circuit
malfunction (short to ground/open circuit)

ON

YES

1

CCM

×

(See 05–02–18
DTC P0710)

P0711

Transaxle fluid temperature (TFT) sensor circuit
malfunction (Stuck)

ON

NO

2

CCM

×

(See 05–02–21
DTC P0711)

P0715

Input/turbine speed sensor circuit malfunction

ON

YES

1

CCM

×

(See 05–02–22
DTC P0715)

P0731

Gear 1 incorrect (Incorrect Gear Ratio Detected)

OFF

YES

1

CCM

×

(See 05–02–24
DTC P0731)

P0732

Gear 2 incorrect (Incorrect Gear Ratio Detected)

OFF

YES

1

CCM

×

(See 05–02–26
DTC P0732)

P0733

Gear 3 incorrect (Incorrect Gear Ratio Detected)

OFF

YES

1

CCM

×

(See 05–02–28
DTC P0733)

P0734

Gear 4 incorrect (Incorrect Gear Ratio Detected)

OFF

YES

1

CCM

×

(See 05–02–30
DTC P0734)

P0741

Torque converter clutch (TCC) (stuck OFF)

OFF

YES

1

CCM

×

(See 05–02–32
DTC P0741)

P0742

Torque converter clutch (TCC) (stuck ON)

OFF

YES

1

CCM

×

(See 05–02–33
DTC P0742)

P0745

Pressure control solenoid malfunction

OFF

YES

1

CCM

×

(See 05–02–36
DTC P0745)

P0751

Shift solenoid A stuck OFF

ON

YES

2

CCM

×

(See 05–02–38
DTC P0751)

P0752

Shift solenoid A stuck ON

ON

YES

2

CCM

×

(See 05–02–40
DTC P0752)

P0753

Shift solenoid A malfunction (electrical)

ON

YES

1

CCM

×

(See 05–02–42
DTC P0753)

P0756

Shift solenoid B stuck OFF

ON

YES

2

CCM

×

(See 05–02–44
DTC P0756)

P0757

Shift solenoid B stuck ON

ON

YES

2

CCM

×

(See 05–02–46
DTC P0757)

P0758

Shift solenoid B malfunction (electrical)

ON

YES

1

CCM

×

(See 05–02–48
DTC P0758)

P0761

Shift solenoid C stuck OFF

ON

YES

2

CCM

×

(See 05–02–50
DTC P0761)

P0762

Shift solenoid C stuck ON

ON

YES

2

CCM

×

(See 05–02–52
DTC P0762)

P0763

Shift solenoid C malfunction (electrical)

ON

YES

1

CCM

×

(See 05–02–54
DTC P0763)

P0766

Shift solenoid D stuck OFF

ON

YES

2

CCM

×

(See 05–02–56
DTC P0766)

P0767

Shift solenoid D stuck ON

ON

YES

2

CCM

×

(See 05–02–58
DTC P0767.)

P0768

Shift solenoid D malfunction (electrical)

ON

YES

1

CCM

×

(See 05–02–60
DTC P0768)

P0771

Shift solenoid E stuck OFF

ON

YES

2

CCM

×

(See 05–02–62
DTC P0771)

P0772

Shift solenoid E stuck ON

ON

YES

2

CCM

×

(See 05–02–64
DTC P0772)

P0773

Shift solenoid E malfunction (electrical)

ON

YES

1

CCM

×

(See 05–02–66
DTC P0773)

P1102

MAF sensor inconsistent with TP sensor (Lower
than expected)

(See 01–02A–106 DTC P1102 [ZM])

DTC No.

Condition

MIL

O/D OFF

indicator

light

flashes

DC

Monitor

item

Memory

function

Page

1712-1U-01G(05-02).fm  9 ページ  2001年6月29日 金曜日 午後4時35分

ON-BOARD DIAGNOSTIC

05–02–10

End Of Sie

DTC P0500

A3U050201030W06

P1103

Mass air flow inconsistent with engine speed
(Greater than expected)

(See 01–02A–107 DTC P1103 [ZM])

P1122

Throttle position stuck closed (lower than
expected)

(See 01–02A–108 DTC P1122 [ZM])

P1123

Throttle position stuck open (higher than
expected)

(See 01–02A–110 DTC P1123 [ZM])

P1170

HO2S (front) no inversion

(See 01–02A–111 DTC P1170 [ZM])

P1250

PRC solenoid valve circuit malfunction

(See 01–02A–114 DTC P1250 [ZM])
(See 01–02B–127 DTC P1250 [FS])

P1345

CMP sensor circuit malfunction

(See 01–02A–116 DTC P1345 [ZM])

P1449

CDCV circuit malfunction

(See 01–02A–118 DTC P1449 [ZM])
(See 01–02B–129 DTC P1449 [FS])

P1450

Evaporative emission control system
malfunction (excessive vacuum)

(See 01–02A–120 DTC P1450 [ZM])
(See 01–02B–131 DTC P1450 [FS])

P1487

EGR boost sensor solenoid valve circuit
malfunction

(See 01–02A–121 DTC P1487 [ZM])
(See 01–02B–133 DTC P1487 [FS])

P1496

EGR valve stepping motor coil 1 open or short

(See 01–02A–123 DTC P1496 [ZM])
(See 01–02B–135 DTC P1496 [FS])

P1497

EGR valve stepping motor coil 2 open or short

(See 01–02A–125 DTC P1497 [ZM])
(See 01–02B–137 DTC P1497 [FS])

P1498

EGR valve stepping motor coil 3 open or short

(See 01–02A–127 DTC P1498 [ZM])
(See 01–02B–139 DTC P1498 [FS])

P1499

EGR valve stepping motor coil 4 open or short

(See 01–02A–129 DTC P1499 [ZM])
(See 01–02B–141 DTC P1499 [FS])

P1504

IAC valve circuit malfunction

(See 01–02A–131 DTC P1504 [ZM])

P1512

VTCS shutter valve close stuck

(See 01–02A–134 DTC P1512 [ZM])
(See 01–02B–143 DTC P1512 [FS])

P1562

PCM +BB voltage low

(See 01–02A–135 DTC P1562 [ZM])
(See 01–02B–144 DTC P1562 [FS])

P1569

VTCS solenoid valve circuit low input

(See 01–02A–137 DTC P1569 [ZM])
(See 01–02B–146 DTC P1569 [FS])

P1570

VTCS solenoid valve circuit high input

(See 01–02A–139 DTC P1570 [ZM])
(See 01–02B–148 DTC P1570 [FS])

P1631

Generator output voltage signal no electricity

(See 01–02A–141 DTC P1631 [ZM])
(See 01–02B–150 DTC P1631 [FS])

P1632

Battery voltage monitor signal circuit malfunction

(See 01–02A–143 DTC P1632 [ZM])
(See 01–02B–152 DTC P1632 [FS])

P1633

Battery overcharge

(See 01–02A–144 DTC P1633 [ZM])
(See 01–02B–153 DTC P1633 [FS])

P1634

Generator terminal B circuit open

(See 01–02A–145 DTC P1634 [ZM])
(See 01–02B–154 DTC P1634 [FS])

DTC No.

Condition

MIL

O/D OFF

indicator

light

flashes

DC

Monitor

item

Memory

function

Page

DTC P0500

Vehicle speed sensor (VSS) malfunction

DETECTION

CONDITION

•

Vehicle speed signal not input after following conditions are met and 4.5 seconds or more have passed
— D, 2, or 1 range switch ON.
— P and N position of TR switch OFF.
— Engine coolant temperature 60

°°°°

C {140

°°°°

F} or above.

— Turbine speed 1,500 rpm or above.

Diagnostic support note:

•

This is a continuous monitor (CCM).

•

MIL illuminates if PCM detects the above malfunction conditions during two consecutive drive cycles.

•

PENDING CODE is available.

•

FREEZE FRAME DATA is available.

•

O/D OFF indicator light flashes.

•

DTC is stored in the PCM memory.

1712-1U-01G(05-02).fm  10 ページ  2001年6月29日 金曜日 午後4時35分

ON-BOARD DIAGNOSTIC

05–02–11

05–02

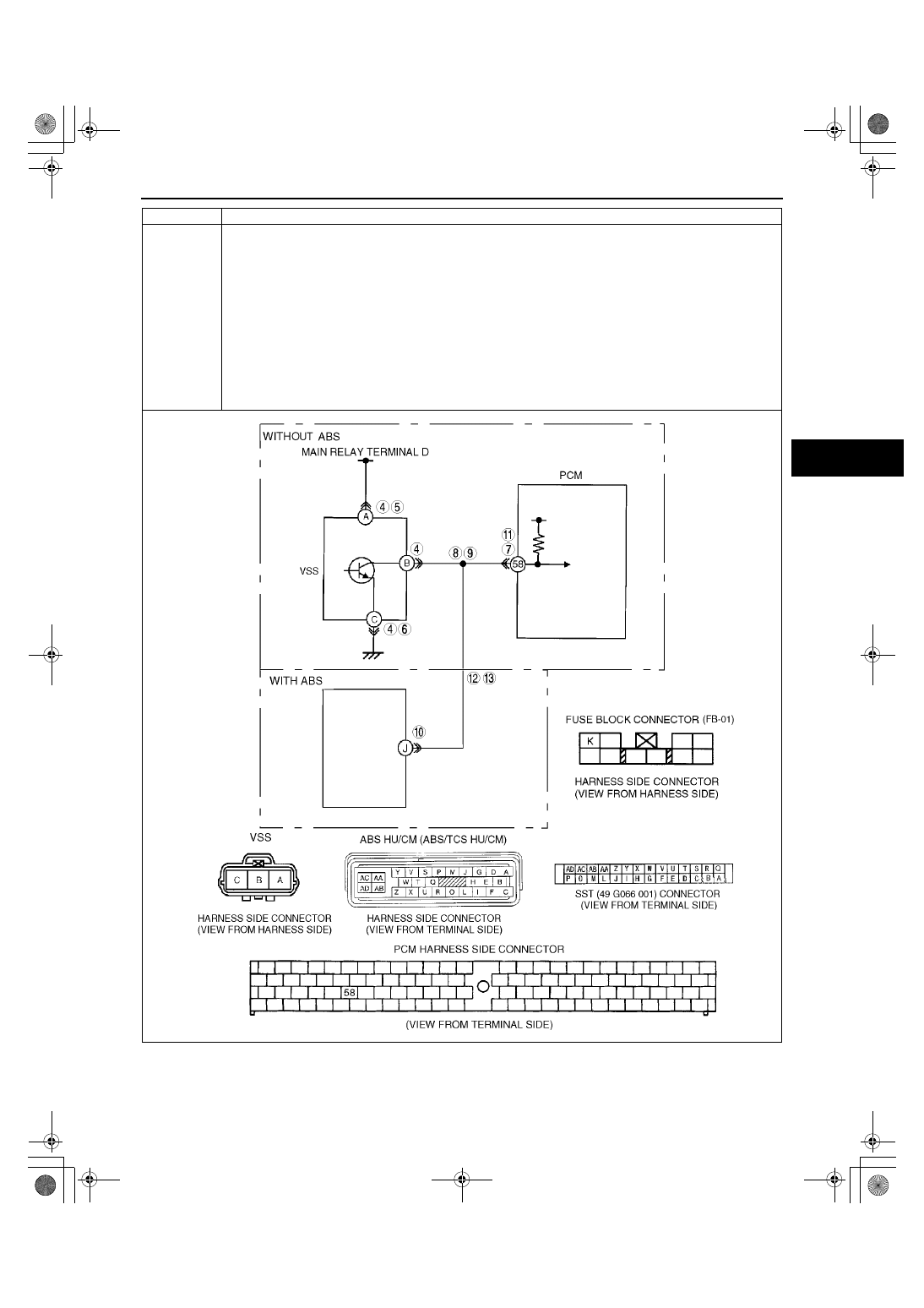

POSSIBLE

CAUSE

Without ABS:

•

VSS malfunction

•

Open circuit between VSS terminal B and PCM terminal 58

•

Short to ground between VSS terminal B and PCM terminal 58

•

Open circuit between VSS terminal A and fuse block connector (FB-01) terminal K

•

Open circuit between VSS terminal C and body ground

•

Damaged connectors between VSS and PCM

•

PCM malfunction

With ABS:

•

ABS HU/CM malfunction

•

Open circuit between ABS HU/CM terminal J and PCM terminal 58

•

Short to ground between ABS HU/CM terminal J and PCM terminal 58

•

Damaged connectors between ABS HU/CM and PCM

•

PCM malfunction

DTC P0500

Vehicle speed sensor (VSS) malfunction

1712-1U-01G(05-02).fm  11 ページ  2001年6月29日 金曜日 午後4時35分















Content   ..  218  219  220  221   ..
