ANTILOCK BRAKE SYSTEM

04–13–8

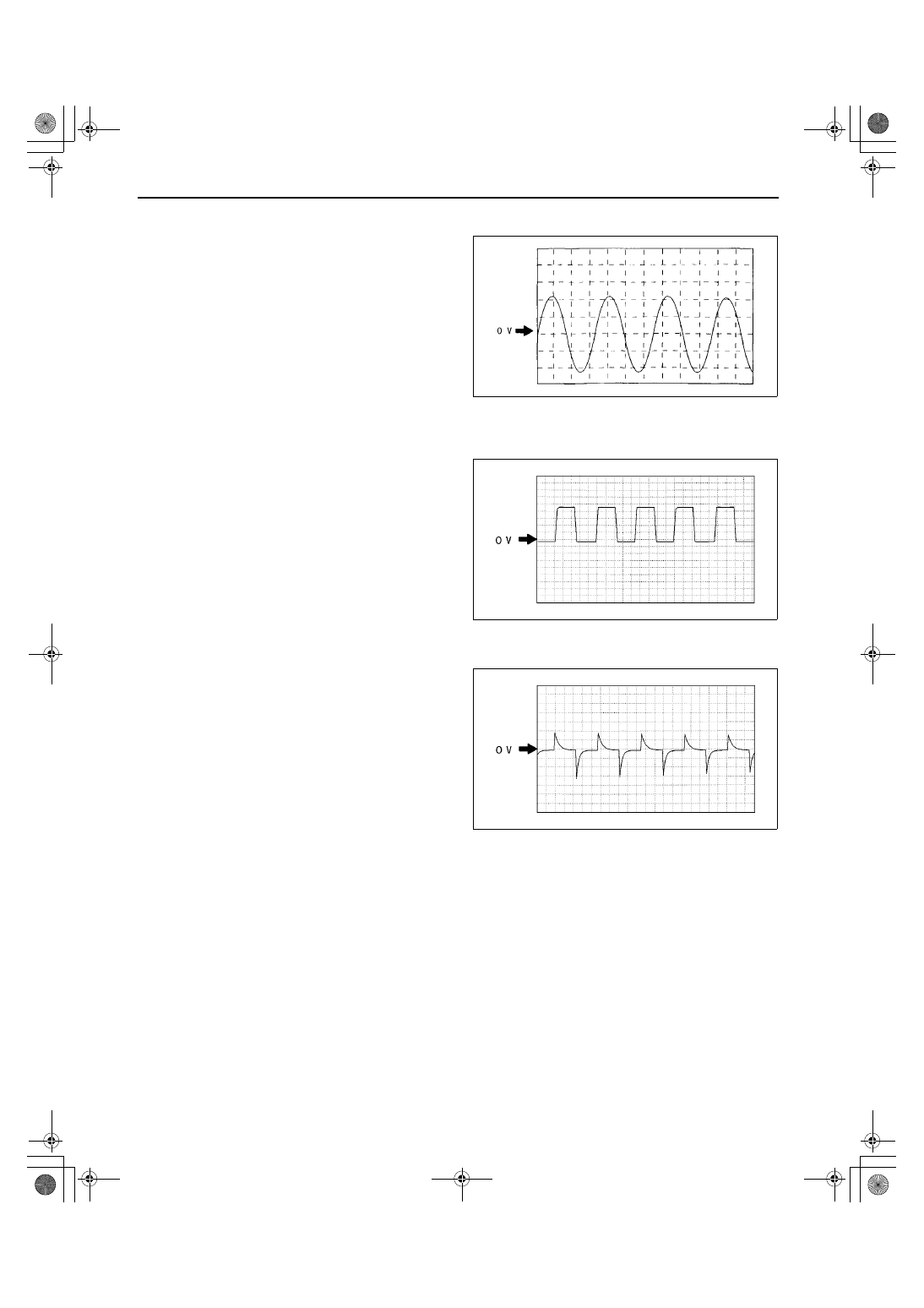

Inspection Using An Oscilloscope (Reference)
Wheel speed

•

•

ABS HU/CM terminal:
RR : A ( + ) — B ( - )
LR : C ( + ) — F ( - )
RF : D ( + ) — G ( - )
LF : E ( + ) — I ( - )

•

Oscilloscope setting:
1 V/DIV (Y), 2 ms/DIV (X), AC range

•

Vehicle condition: Driving 30 km/h (18.6 mph)

Note

•

As vehicle speed increases, period of wave
shortens.

•

If there is malfunctioning in the sensor rotor,
wave profile warps.

Vehicle speed output (to PCM) (ATX only)

•

•

ABS HU/CM terminal: J ( + ) — AA ( - )

•

Oscilloscope setting:
1 V/DIV (Y), 5 ms/DIV (X), DC range

•

Vehicle condition: Driving 30 km/h (18.6 mph)

Note

•

As vehicle speed increases, period of wave
shortens.

Vehicle speed output (to instrument cluster)

•

•

ABS HU/CM terminal: Q ( + ) — AA ( - )

•

Oscilloscope setting:
1 V/DIV (Y), 5 ms/DIV (X), DC range

•

Vehicle condition: Driving 30 km/h (18.6 mph)

Note

•

As vehicle speed increases, period of wave
shortens.

End Of Sie

Z3U0413W201

Z3U0413W202

Z3U0413W203

1712-1U-01G(04-13).fm  8 ページ  ２００１年６月２９日 金曜日 午前１０時４分

ANTILOCK BRAKE SYSTEM

04–13–9

04–13

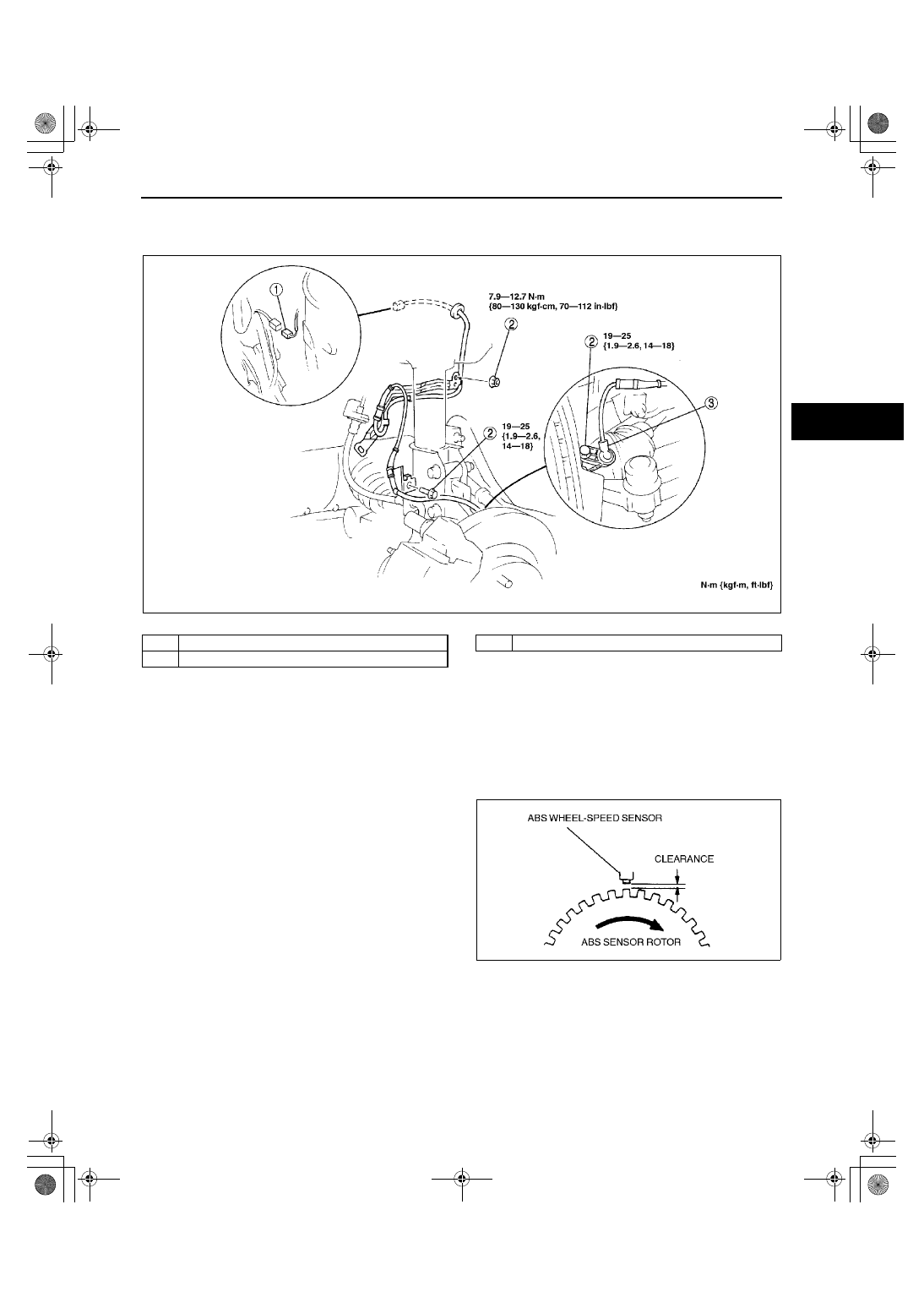

FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

A3U041343720W01

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

.

End Of Sie

FRONT/REAR ABS WHEEL-SPEED SENSOR INSPECTION

A3U041343720W02

Visual Inspection

1. Remove the wheel and tire, and inspect the sensor for looseness and damage. Replace the sensor if

necessary.

Clearance Inspection

1. Inspect the clearance between the wheel-speed

sensor and the sensor rotor.

Clearance

0.3—1.1 mm {0.012—0.043 in}

Resistance Inspection

1. Disconnect the ABS wheel-speed sensor connector.
2. Inspect the resistance at the ABS wheel-speed sensor.

•

If not as specified, replace the ABS wheel-speed sensor.

Resistance

1.3—1.7 kilohm

X3U413WAB

1

Connector

2

Bolt, nut

3

Front ABS wheel-speed sensor

X3U413WAC

1712-1U-01G(04-13).fm  9 ページ  ２００１年６月２９日 金曜日 午前１０時４分

ANTILOCK BRAKE SYSTEM

04–13–10

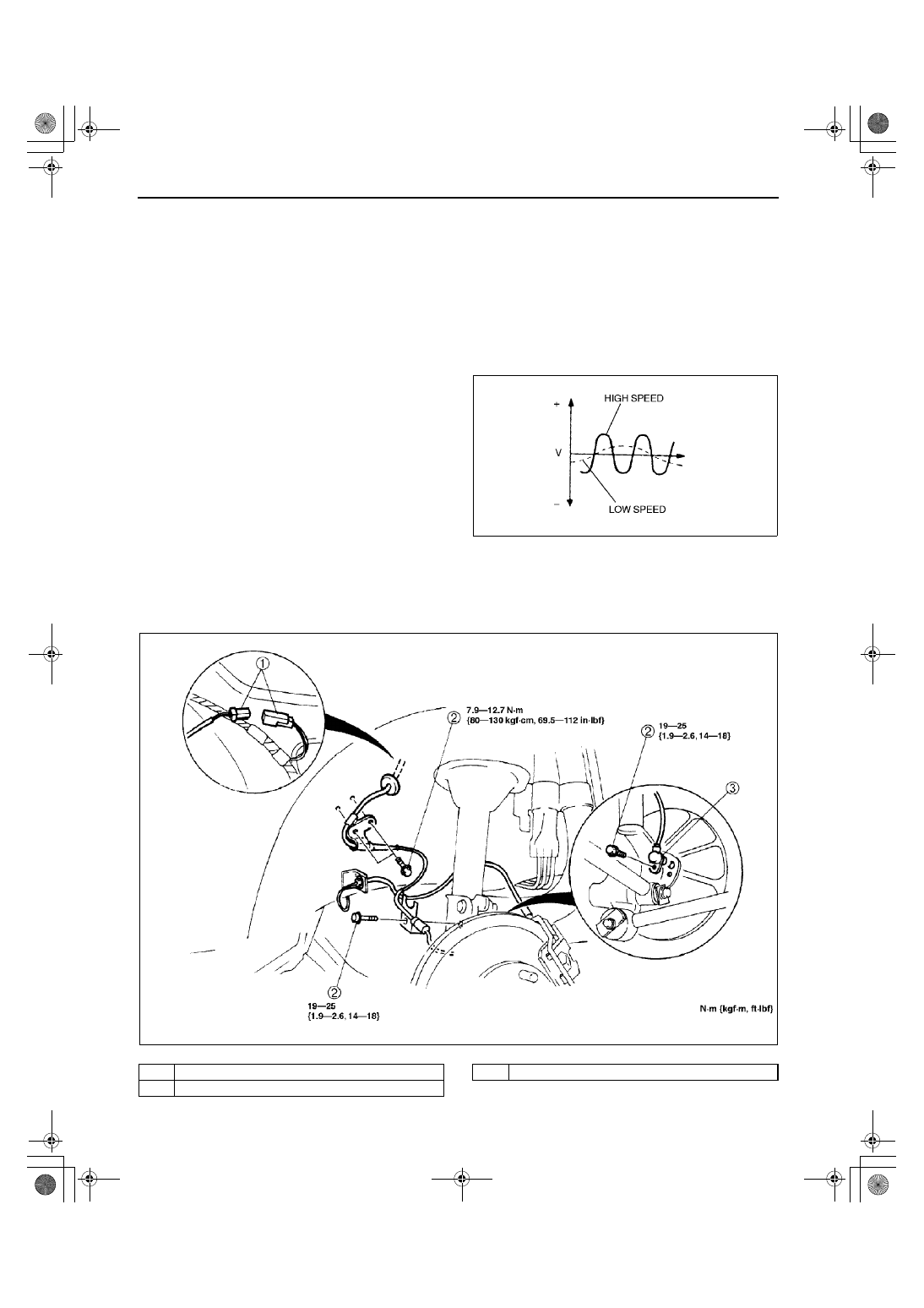

Voltage Inspection

1. On level ground, jack up the vehicle and support it evenly on safety stands.
2. Disconnect the ABS wheel-speed sensor connector.
3. Inspect each sensor by rotating each wheel one revolution per second.

•

If not as specified, replace the ABS wheel-speed sensor.

Voltage

0.25—1.2 V (AC)

Voltage Pattern Inspection

1. On level ground, jack up the vehicle and support it evenly on safety stands.
2. Disconnect the ABS wheel-speed sensor connector.
3. Using an oscilloscope, inspect voltage pattern for

distortion and noise by rotating each wheel.

•

If there is distortion or noise, inspect the ABS
sensor rotor.

End Of Sie

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

A3U041343710W01

1. For 4SD, remove the rear seat back. (See 09–13–5 REAR SEAT REMOVAL/INSTALLATION.)

For 5HB, remove the trunk side trim. (See 09–17–15 5HB.)

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

.

End Of Sie

X3U413WAD

X3U413WAE

1

Connector

2

Bolt

3

Rear ABS wheel-speed sensor

1712-1U-01G(04-13).fm  10 ページ  ２００１年６月２９日 金曜日 午前１０時４分

TECHNICAL DATA

04–50–1

04–50

04–50

TECHNICAL DATA

BRAKES TECHNICAL DATA . . . . . . . . .  04–50–1

End of Toc

BRAKES TECHNICAL DATA

A3U045001020W01

End Of Sie

Item

ZM engine

FS engine

CONVENTIONAL BRAKE SYSTEM

Brake pedal

Brake pedal height

(mm {in})

185 {7.28} (reference value)

Brake pedal play

(mm {in})

4—12 {0.16—0.47}

Pedal-to-floor clearance
(Brake pedal when
depressed at 588 N {60 kgf,
132 lbf})

(mm {in})

88 {3.5} min.

84 {3.3} min.

Power brake
unit

Fluid pressure

At 0 kPa {0
mmHg, 0 inHg}

650 {7, 94} min.

600 {6, 87} min.

(kPa {kgf/cm

2

, psi}) At 66.7 kPa

{500 mmHg,
19.7 inHg}

6,500 {66, 943} min.

7,200 {73, 1,044} min.

Dual
proportioning
valve (without
ABS)

Switching point

(kPa {kgf/cm

2

,

psi})

2,900 {30, 430}

±

200 {2, 30}

3,400 {35, 500}

±

300 {3, 40}

Rear wheel pressure when master cylinder
pressure is 5900 kPa {60 kgf/cm

2

, 850 psi}

3,800 {39, 550}

±

300 {3, 40}

4,200 {42.5, 600}

±

400 {4, 60}

(kPa {kgf/cm

2

, psi})

Front disc
brake

Minimum disc pad
thickness

(mm {in})

1.5 {0.059}

2.0 {0.079}

Minimum disc plate
thickness

(mm {in})

20 {0.78}

22 {0.87}

Disc plate runout limit

(mm {in})

0.05 {0.002}

Rear disc
brake

Minimum disc pad
thickness

(mm {in})

—

1.0 {0.039}

Minimum disc plate
thickness

(mm {in})

8 {0.31}

Disc plate runout limit

(mm {in})

0.05 {0.002}

Rear drum
brake

Maximum brake drum
diameter

(mm {in})

201.5 {7.933}

—

Minimum lining thickness

(mm {in})

1.0 {0.039}

Clearance between shoe and drum

Automatic adjuster

Brake fluid

Type

SAE J1703 or FMVSS 116 DOT3

PARKING BRAKE SYSTEM

Parking brake
lever

Lever stroke when pulled at
98 N {10 kgf, 22 lbf}

(notches)

5—7
