ON-BOARD DIAGNOSTIC

04–02–2

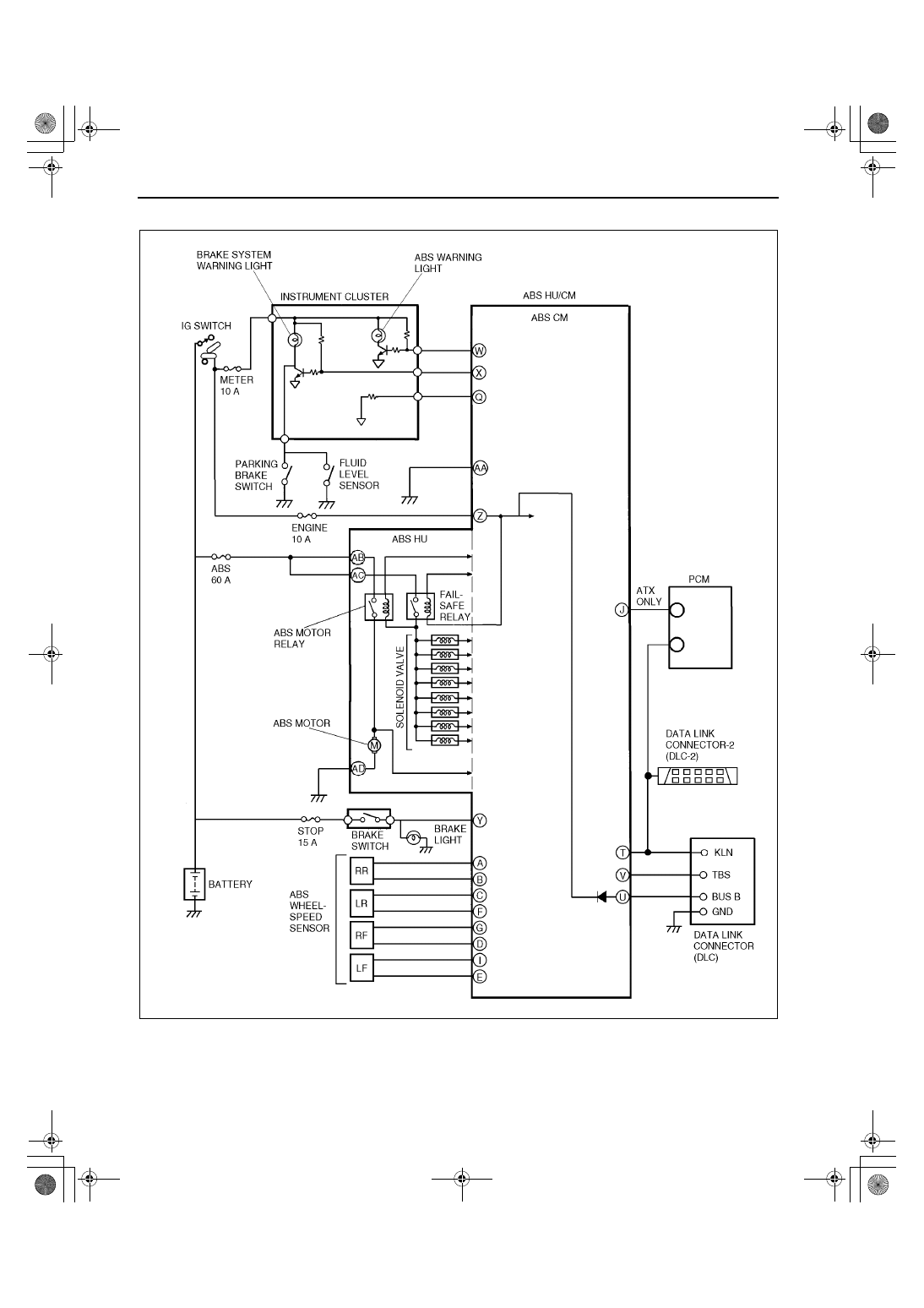

ABS SYSTEM DIAGRAM

A3U040243000W01

End Of Sie

A3U0402W001

1712-1U-01G(04-02).fm  2 ページ  2001年6月29日 金曜日 午前10時1分

ON-BOARD DIAGNOSTIC

04–02–3

04–02

ABS ON-BOARD DIAGNOSTIC

A3U040243000W02

On-Board Diagnostic (OBD) Test Description

The OBD test inspects the integrity and function of the ABS and outputs the results when requested by the
specific tests.

On-board diagnostic test also:
— Provides a quick inspection of the ABS.
— Is usually performed at the start of each diagnostic procedure.
— Provides verification after repairs to ensure that no other faults occurred during service.

The OBD test is divided into 3 tests:
— Read/clear diagnostic results, PID monitor and record and active command modes.

Read/clear diagnostic results

This function allows you to read or clear DTCs in the ABS HU/CM memory.

PID/data monitor and record

This function allows you to access certain data values, input signals, calculated values, and system status
information.

Active command modes

This function allows you to control devices through the SST (WDS or equivalent).

DTCs Retrieving Procedure
Using SST (WDS or equivalent)

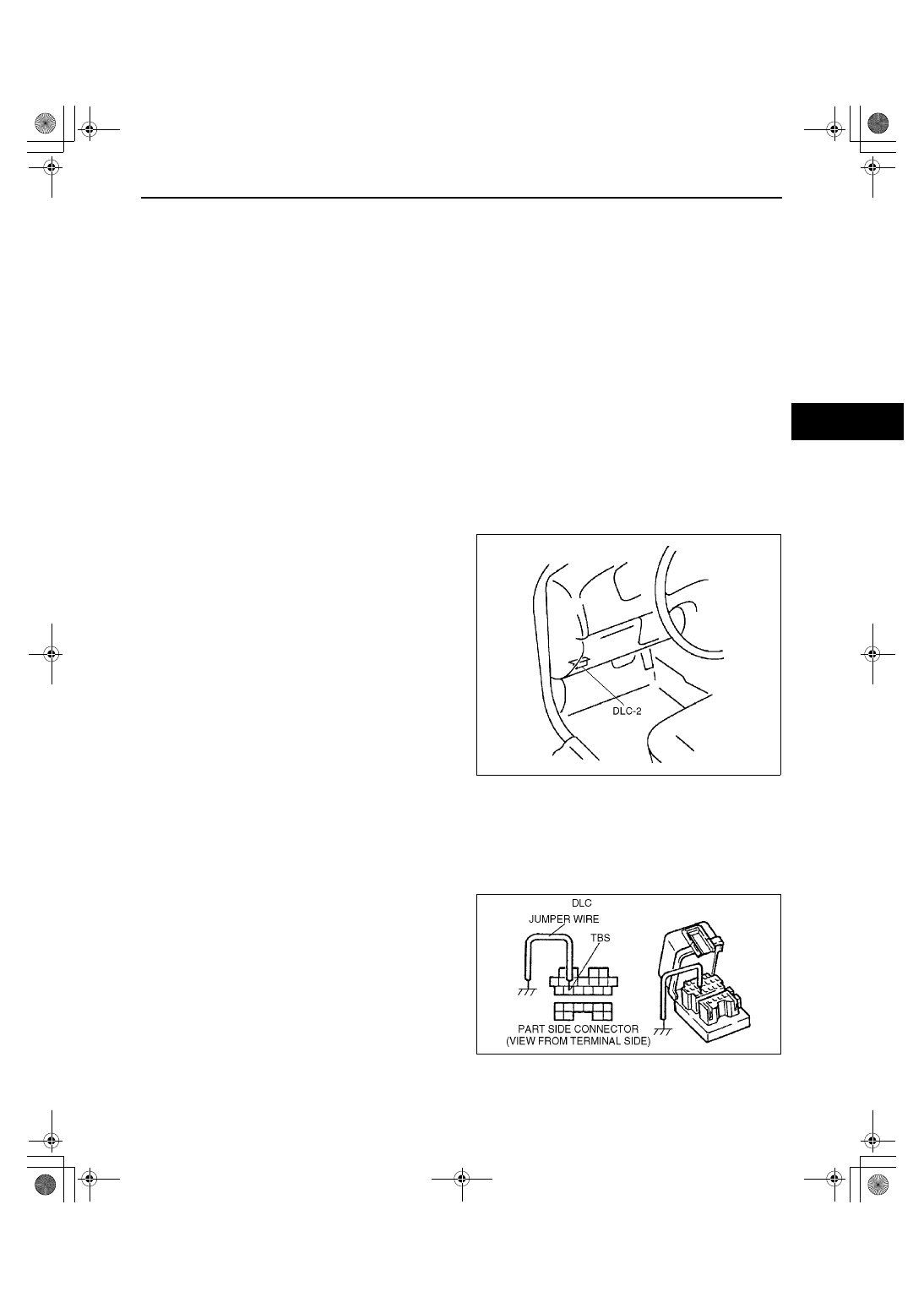

1. Connect WDS or equivalent to the vehicle DLC-2

16-pin connector located the left side of the
steering column.

2. Retrieve DTC by WDS or equivalent.

Without using SST (WDS or equivalent)

Caution

••••

Connecting the wrong DLC terminal may possibly cause a malfunction. Carefully connect the
specified terminal only.

1. Connect the TBS terminal at DLC to body ground

using a jumper wire.

2. Turn the ignition key to ON (engine OFF).

Z3U0102W001

Z3U0402W001

1712-1U-01G(04-02).fm  3 ページ  2001年6月29日 金曜日 午前10時1分

ON-BOARD DIAGNOSTIC

04–02–4

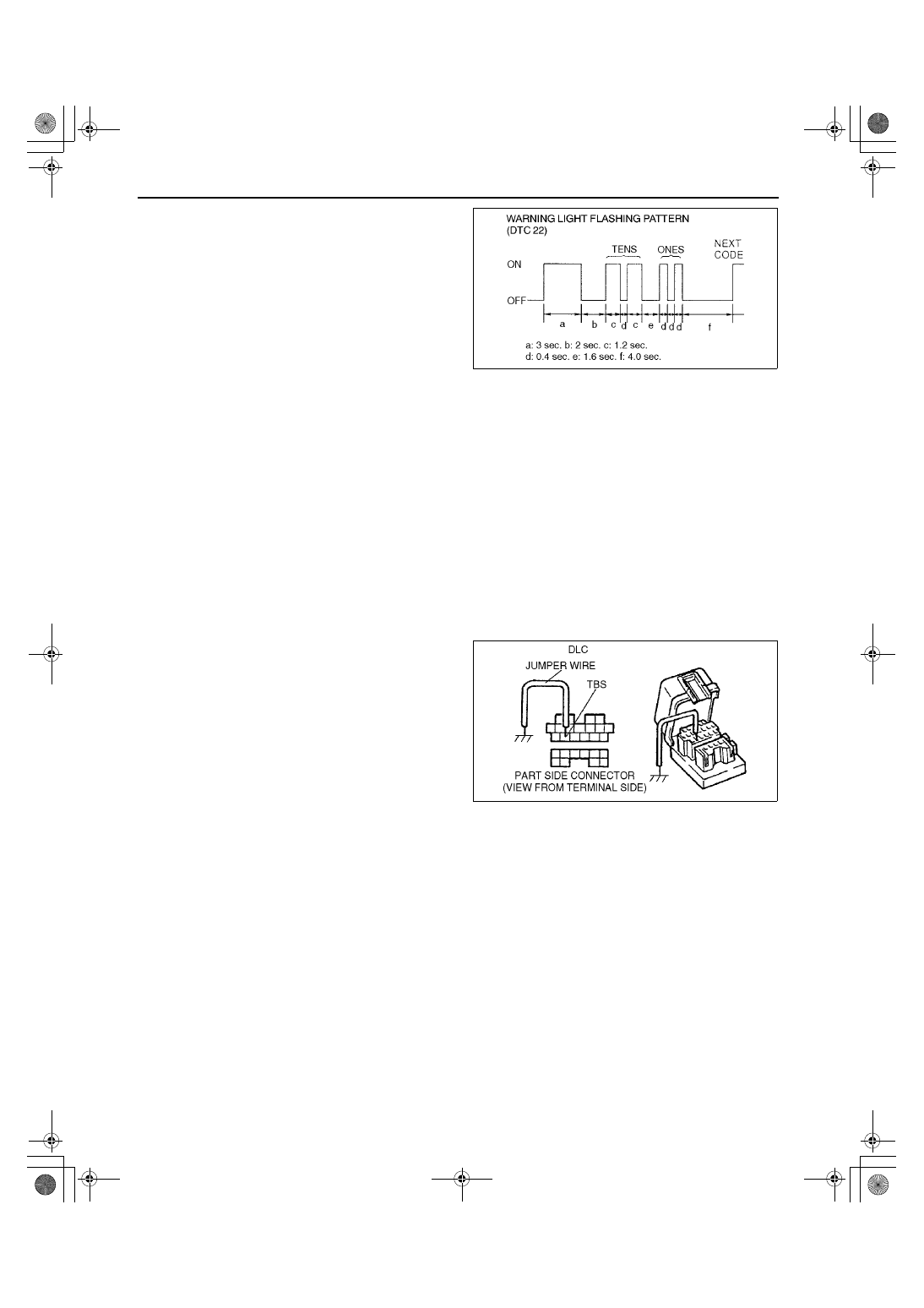

3. After the ABS warning light illuminates for 3 sec

the ABS warning light indicates DTCs.

4. After completion of repairs, clear DTCs.

DTCs Clearing Procedure
Using SST (WDS or equivalent)

1. After repairs have been made, perform the DTCs retrieving procedure.
2. Erase DTC by WDS or equivalent.
3. Ensure that the customer’s concern has been resolved.

Note

After repairing the ABS wheel-speed sensor or replacing ABS HU/CM, the ABS and/or BRAKE system
warning light may not go off when ignition key is turned ON. In this case, start engine and drive the vehicle
at a speed of more than 10 km/h {6.2 mph} until the ABS and/or BRAKE system warning light goes off.

Without using SST (WDS or equivalent)

Caution

••••

Connecting the wrong DLC terminal may possibly cause a malfunction. Carefully connect the
specified terminal only.

1. Connect the TBS terminal at the DLC to body

ground using a jumper wire.

2. Turn the ignition key to ON (engine OFF).
3. Output all stored DTCs.
4. After verifying that the first code is repeated,

depress the brake pedal 10 times at intervals of
less than 1 second.

5. Turn the ignition key to OFF and disconnect the

jumper wire.

6. Turn the ignition key to ON and verify the ABS

warning light turns off after 3 seconds.

Note

DTCs cannot be cleared if the following
conditions occur:
— If intervals of depressing the brake pedal exceed 1 second.
— The brake switch has failed.

After repairing the ABS wheel-speed sensor or replacing ABS HU/CM, the ABS and/or BRAKE system
warning light may not go off when ignition key is turned ON. In this case, start engine and drive the vehicle
at a speed of more than 10 km/h {6.2 mph} until the ABS and/or BRAKE system warning light goes off.

PID/Data Monitor and Record Procedure

1. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located the left side of the steering column.
2. Access and monitor PIDs by WDS or equivalent.

Active Command Modes Procedure

Note

When driving, the ABS motor and each valve forcibly turn ABS_POWER on, and then each command on.
ABS_POWER regulates the power supply for the ABS motor and 8 valves.

1. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located the left side of the steering column.
2. Turn the ignition key to ON (Engine OFF) or start engine.
3. Activate active command modes by WDS or equivalent.

YMU402WA1

Z3U0402W001

1712-1U-01G(04-02).fm  4 ページ  2001年6月29日 金曜日 午前10時1分

ON-BOARD DIAGNOSTIC

04–02–5

04–02

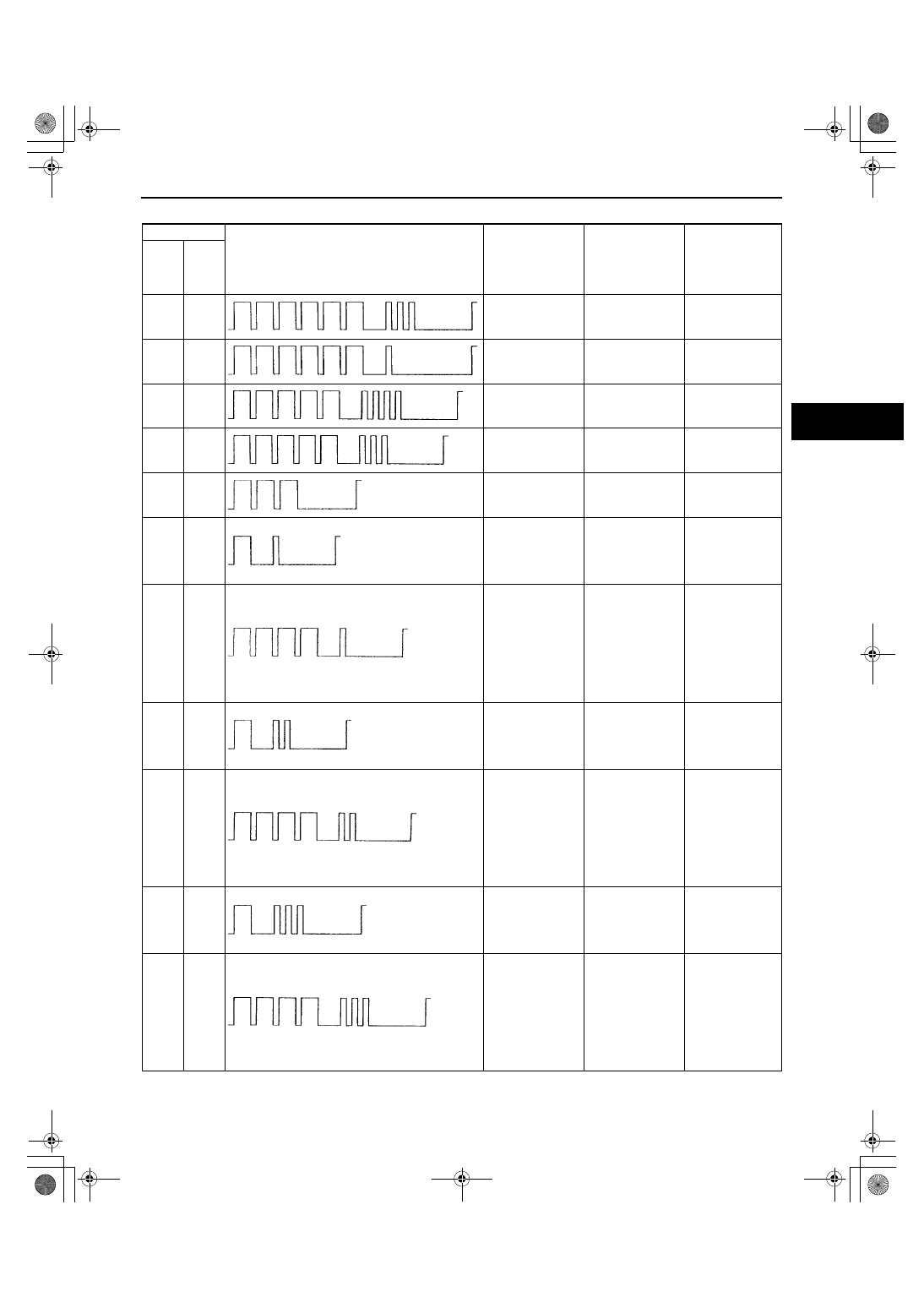

DTC Table

DTC

ABS warning light flashing pattern

DTC definition

Diagnosis

system

component

Page

WDS

or

equi-

valent

ABS

warn-

ing

light

B1318

63

Battery low
voltage

ABS HU/CM
power supply

(See 04–02–18
DTC B1318 (63).)

B1342

61

Defecive ABS CM ABS HU/CM (CM) (See 04–02–18

DTC B1342 (61).)

C1095

54

Circuit failure of
ABS motor and/or
motor relay

ABS motor, motor
relay

(See 04–02–17
DTC C1095 (54),
C1096 (53).)

C1096

53

Open circuit of
ABS motor and/or
motor relay

ABS motor, motor
relay

(See 04–02–17
DTC C1095 (54),
C1096 (53).)

C1140

30

ABS HU failure

ABS HU/CM
(pump)

(See 04–02–14
DTC C1140
(30).)

C1145

11

Circuit failure of
RF ABS wheel-
speed sensor

Right front ABS
wheel-speed
sensor

(See 04–02–11
DTC C1145 (11),
C1155 (12),
C1165 (13),
C1175 (14).)

C1148

41

RF ABS wheel-
speed sensor and/
or sensor rotor
malfunction

Right front ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–12
DTC C1148 (41),
C1158 (42),
C1168 (43),
C1178 (44),
C1233 (46),
C1234 (45),
C1235 (47),
C1236 (48).)

C1155

12

Circuit failure of
LF ABS wheel-
speed sensor

Left front ABS
wheel-speed
sensor

(See 04–02–11
DTC C1145 (11),
C1155 (12),
C1165 (13),
C1175 (14).)

C1158

42

LF ABS wheel-
speed sensor and/
or sensor rotor
malfunction

Left front ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–12
DTC C1148 (41),
C1158 (42),
C1168 (43),
C1178 (44),
C1233 (46),
C1234 (45),
C1235 (47),
C1236 (48).)

C1165

13

Circuit failure of
RR ABS wheel-
speed sensor

Right rear ABS
wheel-speed
sensor

(See 04–02–11
DTC C1145 (11),
C1155 (12),
C1165 (13),
C1175 (14).)

C1168

43

RR ABS wheel-
speed sensor and/
or sensor rotor
malfunction

Right rear ABS
wheel-speed
sensor/sensor
rotor

(See 04–02–12
DTC C1148 (41),
C1158 (42),
C1168 (43),
C1178 (44),
C1233 (46),
C1234 (45),
C1235 (47),
C1236 (48).)

1712-1U-01G(04-02).fm  5 ページ  2001年6月29日 金曜日 午前10時1分
