Mazda Protege 5. Manual - part 199

TECHNICAL DATA

03–50–1

03–50

TECHNICAL DATA

DRIVELINE/AXLE TECHNICAL DATA. . 03–50–1

End of Toc

DRIVELINE/AXLE TECHNICAL DATA

A3U035001018W01

End Of Sie

Item

MTX

ATX

MTX

ATX

FRONT AXLE

Maximum wheel bearing play

(mm {in})

0.05 {0.002}

REAR AXLE

Maximum wheel bearing play

(mm {in})

0.05 {0.002}

DRIVE SHAFT

Shaft length (Air in boot
at atmospheric pressure)

(mm {in})

Left side

642.6—652.6

{25.30—25.69}

626.7—636.7

{24.68—25.06}

641.0—651.0

{25.24—25.62}

627.9—637.9

{24.73—25.11}

Right side

607.9—617.9 {23.94—24.32}

604.6—614.6

{23.81—24.19}

608.9—618.9

{23.98—24.36}

1712-1U-01G(03-50).fm 1 ページ２００１年６月２９日金曜日午前１０時０分

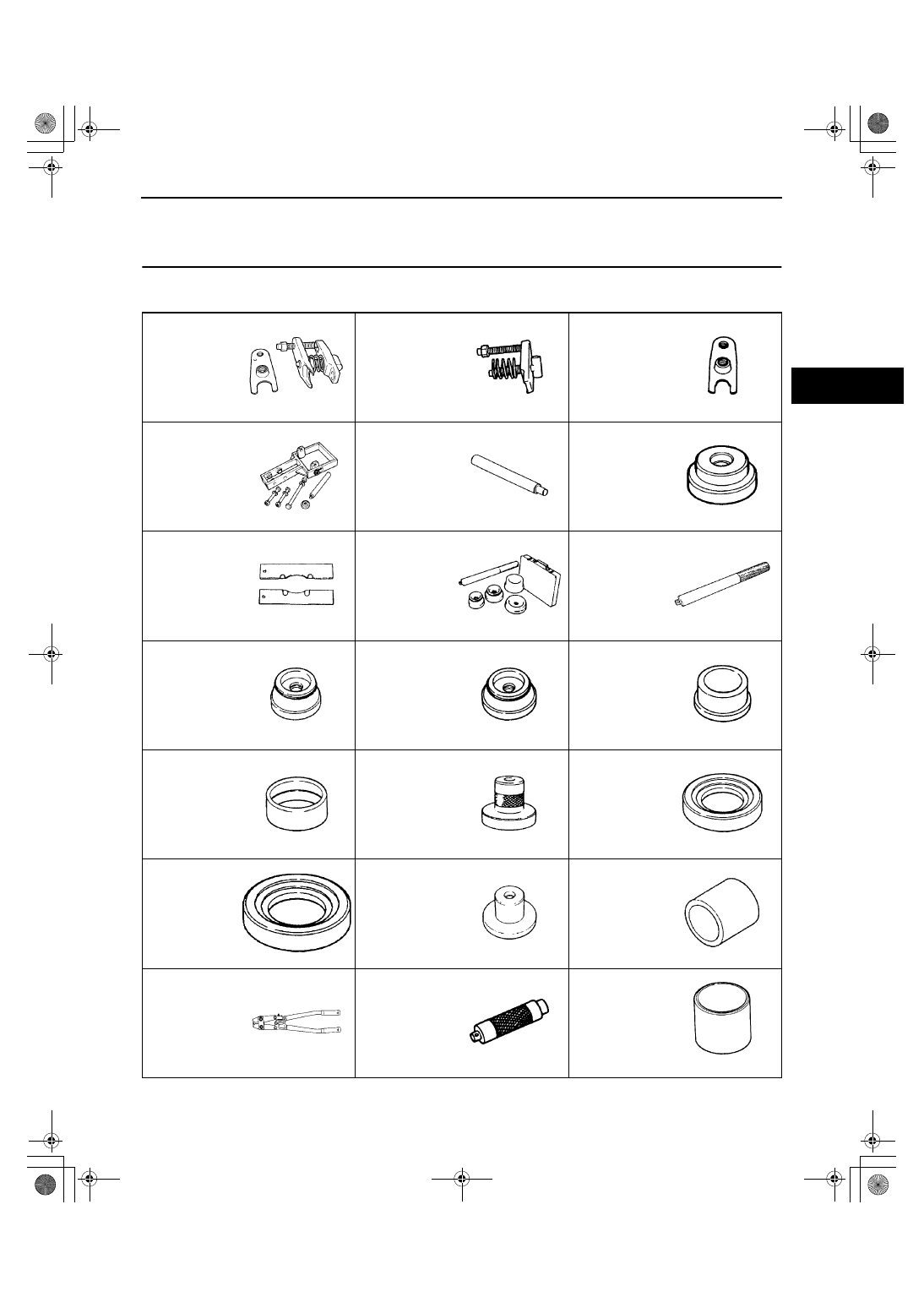

SERVICE TOOLS

03–60–1

03–60

SERVICE TOOLS

DRIVELINE/AXLE SST . . . . . . . . . . . . . . 03–60–1

End of Toc

DRIVELINE/AXLE SST

A3U036001018W01

49 T028 3A0

Ball joint puller
set

49 T028 303

Body (Part of 49
T028 3A0)

49 T028 304

Attachment
(Part of 49 T028
3A0)

49 B026 1A0

Wheel hub
puller set

49 G033 102

Handle (Part of
49 B026 1A0)

49 G030 727

Attachment
(Part of 49 B026
1A0)

49 F026 103

Wheel hub
puller

49 F027 0A1

Bearing installer
set

49 F027 003

Handle (Part of
49 F027 0A1)

49 F027 005

Attachment ø62
(Part of 49 F027
0A1)

49 F027 007

Attachment ø72
(Part of 49 F027
0A1)

49 F027 009

Attachment ø68
& 77 (Part of 49
F027 0A1)

49 E033 101

Dust cover
installer

49 V001 795

Oil seal installer

49 B026 103

Sensor rotor
installer

49 G026 105

Sensor rotor
installer

49 F026 102

Bearing installer

49 W027 003

Bearing installer

49 T025 001

Boot clamp
crimper

49 G030 797

Handle (Part of
49 G030 795)

49 B025 004

Dust boot
installer

1712-1U-01G(03-60).fm 1 ページ２００１年６月２９日金曜日午前１０時０分

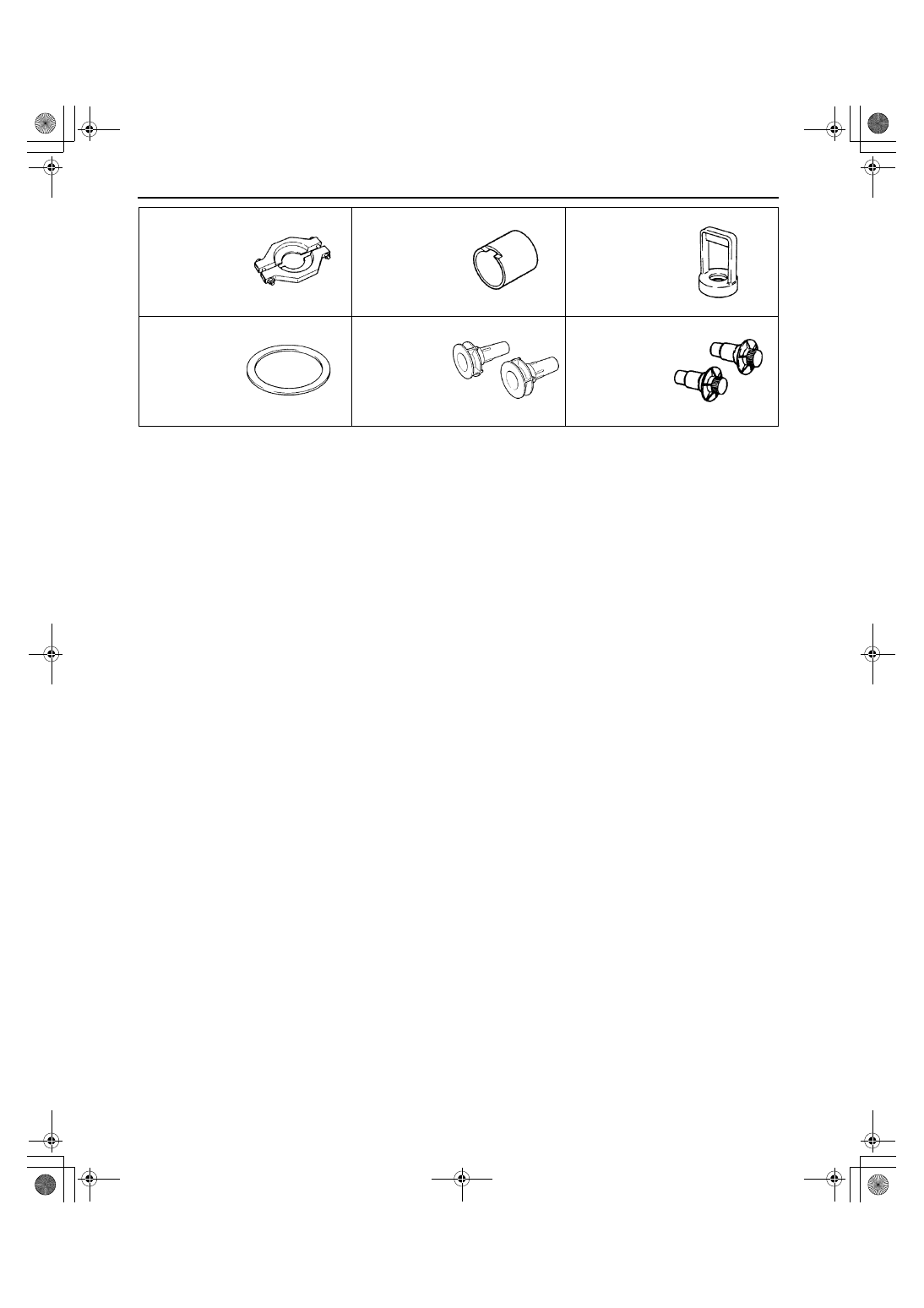

SERVICE TOOLS

03–60–2

End Of Sie

49 H027 002

Bearing installer

49 H034 201

Support block

49 B025 006A

Sensor rotor
installer

49 B025 009A

Installer
attachment

49 B027 006

Diff. side gear
holder (MTX)

49 G030 455

Diff. side gear
holder (ATX)

1712-1U-01G(03-60).fm 2 ページ２００１年６月２９日金曜日午前１０時０分

04–02–1

BRAKES

SECTION

04–02

Toc of SCT

ON-BOARD DIAGNOSTIC . . . . 04-02
SYMPTOM

TROUBLESHOOTING . . . . . . 04-03

GENERAL PROCEDURES . . . . 04-10
CONVENTIONAL BRAKE

SYSTEM . . . . . . . . . . . . . . . . . 04-11

PARKING BRAKE SYSTEM . . 04-12
ANTILOCK BRAKE

SYSTEM. . . . . . . . . . . . . . . . . 04-13

TECHNICAL DATA . . . . . . . . . 04-50
SERVICE TOOLS. . . . . . . . . . . 04-60

Toc of SCT

04–02

ON-BOARD DIAGNOSTIC

ABS SYSTEM DIAGRAM. . . . . . . . . . . . . 04–02–2
ABS ON-BOARD DIAGNOSTIC . . . . . . . 04–02–3

On-Board Diagnostic (OBD)

Test Description . . . . . . . . . . . . . . . . . 04–02–3

DTCs Retrieving Procedure . . . . . . . . . 04–02–3
DTCs Clearing Procedure . . . . . . . . . . . 04–02–4
PID/Data Monitor and Record

Procedure . . . . . . . . . . . . . . . . . . . . . . 04–02–4

Active Command Modes Procedure . . . 04–02–4
DTC Table. . . . . . . . . . . . . . . . . . . . . . . 04–02–5
PID/DATA Monitor Table. . . . . . . . . . . . 04–02–8
Active Command Modes Table . . . . . . . 04–02–10

DTC C1145 (11), C1155 (12),

C1165 (13), C1175 (14) . . . . . . . . . . . . . 04–02–11

DTC C1148 (41), C1158 (42),

C1168 (43), C1178 (44), C1233 (46),
C1234 (45), C1235 (47), C1236 (48) . . . 04–02–12

DTC C1194 (24), C1198 (25),

C1210 (22), C1214 (23), C1242 (28),
C1246 (26), C1250 (29), C1254 (27) . . . 04–02–14

DTC C1140 (30) . . . . . . . . . . . . . . . . . . . . 04–02–14
DTC C1510 (32), C1511 (33),

C1512 (34), C1513 (35) . . . . . . . . . . . . . 04–02–15

DTC C1186 (51), C1266 (52) . . . . . . . . . .  04–02–16
DTC C1095 (54), C1096 (53) . . . . . . . . . .  04–02–17
DTC B1342 (61) . . . . . . . . . . . . . . . . . . . .  04–02–18
DTC B1318 (63) . . . . . . . . . . . . . . . . . . . .  04–02–18

End of Toc
