Mazda Protege 5. Manual - part 131





LUBRICATION

01–11–4

OIL PAN REMOVAL/INSTALLATION

A3U011110040W01

1. Disconnect the negative battery cable.
2. Drain the engine oil. (See 01–11–3 ENGINE OIL REPLACEMENT.)
3. Remove the front pipe.
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Start the engine and inspect for engine oil leakage.

.

X3U111WA6

1

Integrated stiffener
(See 01–11–8 Integrated Stiffener Installation Note)

2

Oil pan
(See 01–11–5 Oil Pan Removal Note)
(See 01–11–7 Oil Pan Installation Note)

3

Oil strainer

4

MBSP (Main bearing support plate)
(See 01–11–6 MBSP (Main bearing support plate)
Removal Note)
(See 01–11–6 MBSP (Main bearing support plate)
Installation Note)

1712-1U-01G(01-11).fm  4 ページ  2001年6月29日 金曜日 午前9時40分

LUBRICATION

01–11–5

01–11

.

Oil Pan Removal Note

1. Remove the oil pan mounting bolts.
2. Screw in a oil pan bolt in a weld nut hole to make

a small gap between the oil pan upper block and
the oil pan. (FS model)

Caution

••••

Pry tools can easily scratch the cylinder
block and MBSP contact surfaces. Prying
off the MBSP can also easily bend the
MBSP flange. (ZM model)

Z3U0111W0999

1

Oil pan
(See 01–11–5 Oil Pan Removal Note)
(See 01–11–7 Oil Pan Installation Note)

2

Oil strainer
(See 01–11–7 Oil Strainer Installation Note)

X3U111WA8

1712-1U-01G(01-11).fm  5 ページ  2001年6月29日 金曜日 午前9時40分

LUBRICATION

01–11–6

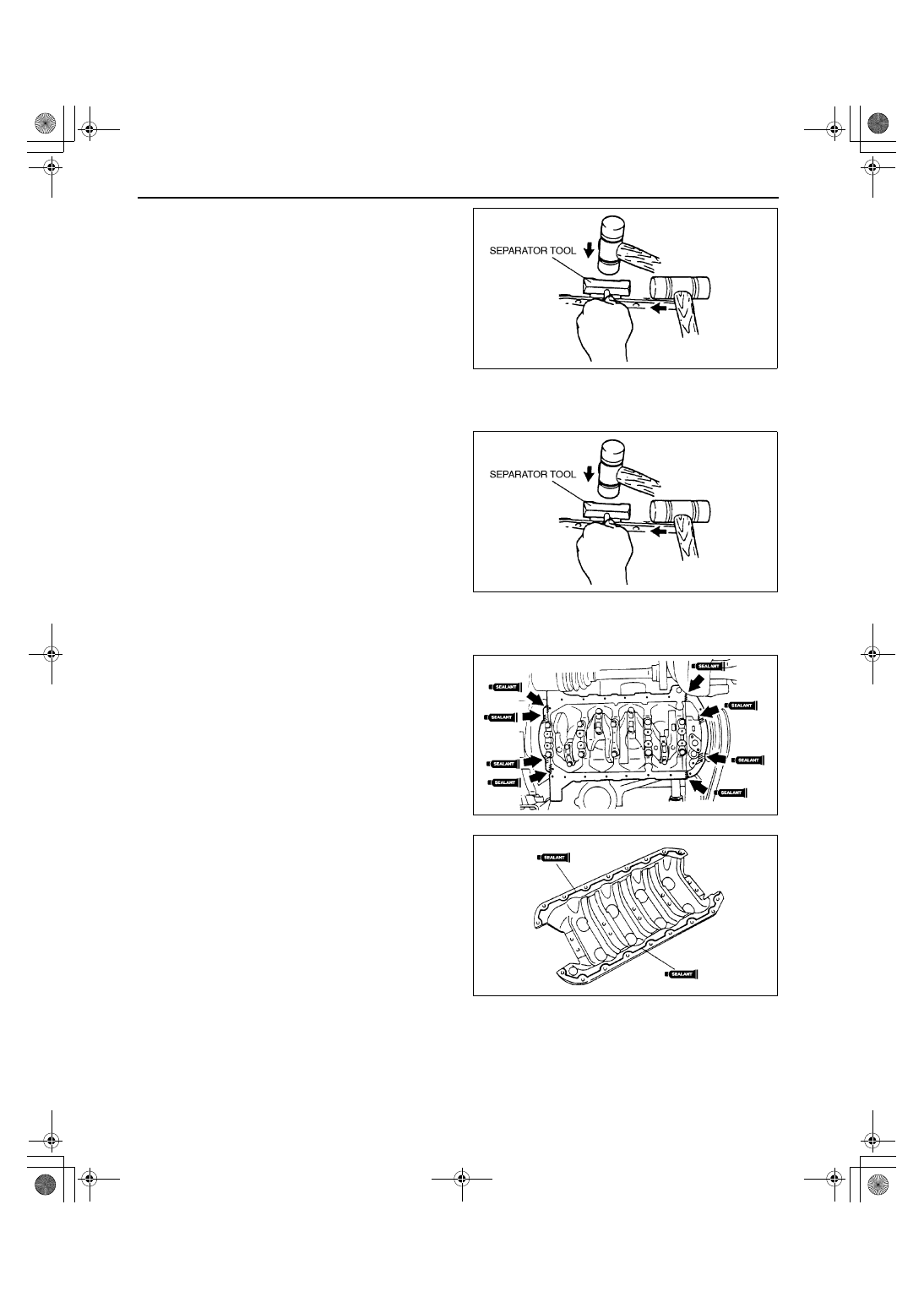

3. Remove the oil pan using a separator tool.

MBSP (Main bearing support plate) Removal Note
ZM

1. Using a separator tool, separate the MBSP.

MBSP (Main bearing support plate) Installation Note
ZM

1. Apply silicon sealant to the shaded areas as

shown.

2. Apply silicone sealant to the MBSP along the

inside of the bolt holes.

Thickness

2.5—3.5 mm {0.099—0.137 in}

X3U111WA9

X3U111WAA

X3U111WAB

X3U111WAC

1712-1U-01G(01-11).fm  6 ページ  2001年6月29日 金曜日 午前9時40分

LUBRICATION

01–11–7

01–11

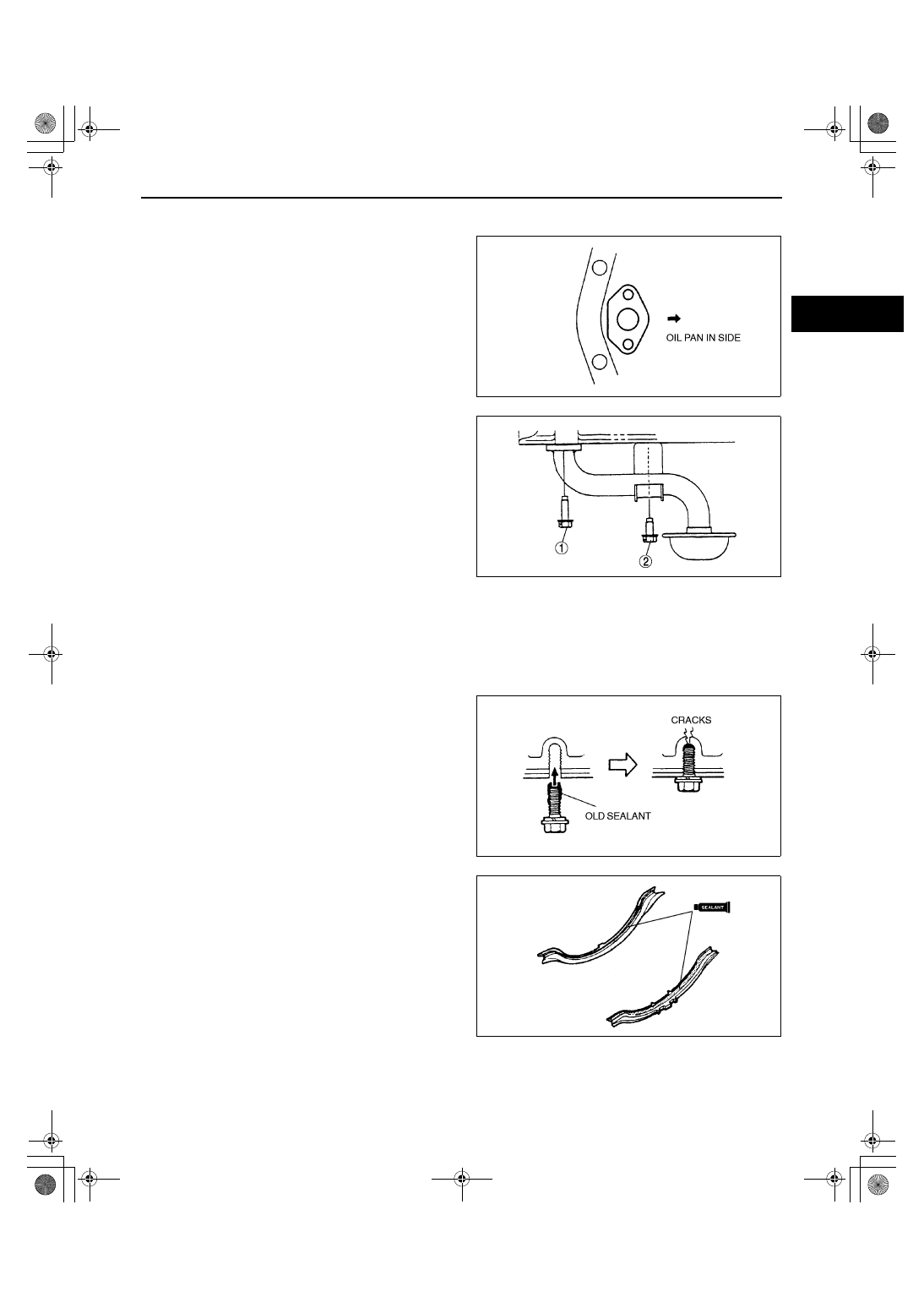

Oil Strainer Installation Note
FS

1. Install the oil strainer gasket as shown.

2. Tighten the bolts in the order shown.

Oil Pan Installation Note

Caution

••••

If the bolts are reused, remove the old sealant from the bolt threads. Tightening a bolt that has old
sealant on it can cause bolt hole damage.

1. Apply silicone sealant to the contact surfaces of

new oil pan gaskets as shown. (ZM model)

X3U111WAD

X3U111WAE

X3U111WAF

X3U111WAG

1712-1U-01G(01-11).fm  7 ページ  2001年6月29日 金曜日 午前9時40分
