ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (ZM)]

01–02A–42

End Of Sie

DTC P0122 [ZM]

A3U010201084W43

4

CLASSIFY ECT SENSOR OR HARNESS
MALFUNCTION

Measure resistance between ECT sensor
teminals A and B (part-side).

Is resistance within 0.111—25.403 kilohms

Yes Go to next step.

No

Replace ECT sensor, then go to Step 10.

5

INSPECT ECT SENSOR SIGNAL CIRCUIT FOR
SHORT TO POWER

Turn ignition key to ON (Engine OFF).

Measure voltage between ECT sensor terminal
A (harness-side) and body ground.

Is there voltage B+?

Yes Repair or replace harness for short to power, then go to

Step 10.

No

Go to next step.

6

INSPECT PCM CONNECTOR FOR POOR
CONNECTION

Disconnect PCM connector.

Check for poor connection at terminals 38 and
91 (damaged/pulled-out pins, corrosion, etc.).

Is there malfunction?

Yes Repair or replace terminal, then go to Step 10.

No

Go to next step.

7

INSPECT ECT SENSOR SIGNAL CIRCUIT FOR
OPEN CIRCUIT

Connect breakout box with PCM disconnected.

Check for continuity between ECT sensor
terminal A (harness-side) and breakout box
terminal 38.

Is there continuity?

Yes Go to next step.

No

Repair or replace harness for open, then go to Step 10.

8

INSPECT ECT SENSOR GROUND CIRCUIT
FOR OPEN CIRCUIT

Check for continuity between ECT sensor
terminal B (harness-side) and breakout box
terminal 91.

Is there continuity?

Yes Go to next step.

No

Repair or replace harness for open, then go to next step.

9

VERIFY TROUBLESHOOTING OF DTC P0118
COMPLETED

Make sure to reconnect all disconnected
connectors.

Clear DTC from PCM memory using WDS or
equivalent.

Start engine.

Is same DTC present?

Yes Replace PCM, then go to next step.

No

No concern is detected. Go to next step.

10

VERIFY AFTER REPAIR PROCEDURE

Perform “After Repair Procedure”.
(See 01–02A–10 AFTER REPAIR
PROCEDURE [ZM].)

Is there any DTC present?

Yes Go to applicable DTC inspection.

(See 01–02A–15 DTC TABLE [ZM].)

No

Troubleshooting completed.

STEP

INSPECTION

ACTION

DTC P0122

TP circuit low input

DETECTION

CONDITION

If PCM detects TP sensor voltage at PCM terminal 89 below 0.10 V after engine start, PCM determines
that TP circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).

MIL illuminates if PCM detects the above malfunction conditions during first drive cycle. Therefore,
PENDING CODE is not available.

FREEZE FRAME DATA is available.

DTC is stored in PCM memory.

POSSIBLE

CAUSE

TP sensor malfunction

Connector or terminal malfunction

Open circuit between TP sensor terminal C and PCM terminal 89

Short to ground circuit between TP sensor terminal C and PCM terminal 89

Open circuit between TP sensor terminal A and PCM terminal 90

Short to ground circuit between TP sensor terminal A and PCM terminal 90

PCM malfunction

1712-1U-01G(01-02A).fm  42 ページ  2001年6月29日 金曜日 午後2時20分

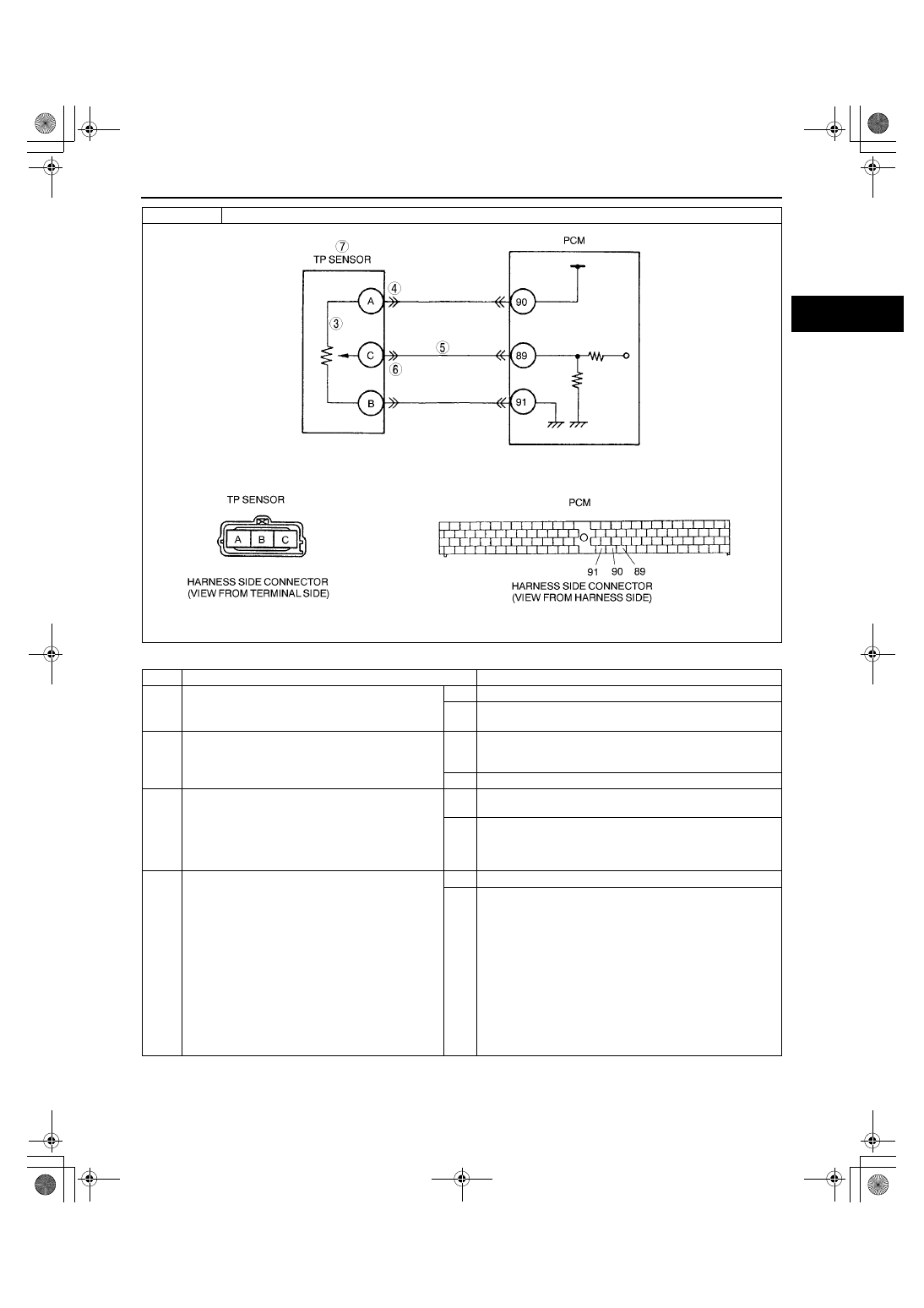

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (ZM)]

01–02A–43

01–02A

Diagnostic procedure

DTC P0122

TP circuit low input

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

Has FREEZE FRAME DATA been recorded?

Yes Go to next step.

No

Record FREEZE FRAME DATA on repair order, then go to
next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

Check for related Service Bulletins availability.

Is any related repair information available?

Yes Perform repair or diagnosis according to available repair

information.

If vehicle is not repaired, go to next step.

No

Go to next step.

3

CHECK TP SENSOR CIRCUIT FOR OPEN
CIRCUIT

Turn ignition key to OFF.

Check for continuity between TP sensor
terminals A and C (part-side).

Is there continuity?

Yes Check TP sensor connector terminal A for poor connection.

Repair or replace as necessary, then go to Step 8.

No

Go to Step 8.

4

CHECK POWER SUPPLY CIRCUIT VOLTAGE
AT TP SENSOR CONNECTOR

Note

If DTC P0107 and P0452 are also retrieved
with P0122, go to REFERENCE VOLTAGE
troubleshooting procedure.
(See 01–03A–50 NO.30 CONSTANT
VOLTAGE [ZM].)

Turn ignition key to ON (Engine OFF).

Check voltage at TP sensor terminal A
(harness-side).

Is voltage within 4.5—5.5 V?

Yes Go to next step.

No

Repair or replace open circuit in wiring harness between
TP sensor terminal A (harness-side) and PCM terminal 90
(harness-side), then go to Step 8.

1712-1U-01G(01-02A).fm  43 ページ  2001年6月29日 金曜日 午後2時20分

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (ZM)]

01–02A–44

End Of Sie

5

VERIFY TP SIGNAL CIRCUIT FOR OPEN
CIRCUIT

Turn ignition key to OFF.

Disconnect PCM connector.

Connect breakout box with PCM disconnected.

Disconnect TP sensor connector.

Check for continuity between TP sensor
terminal C (harness-side) and breakout box
terminal 89.

Is there continuity?

Yes Go to next step.

No

Repair or replace suspected harness, then go to Step 8.

6

VERIFY TP SIGNAL CIRCUIT FOR SHORT TO
GROUND

Check for continuity between TP sensor
connector terminal C and body ground.

Is there continuity?

Yes Repair or replace suspected harness, then go to Step 8.

No

Go to next step.

7

INSPECT TP SENSOR

Perform TP sensor inspection.
(See 01–40A–28 THROTTLE POSITION (TP)
SENSOR INSPECTION [ZM].)

Is TP sensor Okay?

Yes Go to next step.

No

Replace TP sensor.

8

VERIFY TROUBLESHOOTING OF DTC P0122
COMPLETED

Make sure to reconnect all disconnected
connectors.

Start engine.

Clear DTC from PCM memory using WDS or
equivalent.

Depress and release accelerator pedal several
times.

Is same DTC present?

Yes Replace PCM, then go to next step.

No

Go to next step.

9

VERIFY AFTER REPAIR PROCEDURE

Perform “After Repair Procedure”.
(See 01–02A–10 AFTER REPAIR
PROCEDURE [ZM].)

Is there any DTC present?

Yes Go to applicable DTC inspection.

(See 01–02A–15 DTC TABLE [ZM].)

No

Troubleshooting completed.

STEP

INSPECTION

ACTION

1712-1U-01G(01-02A).fm  44 ページ  2001年6月29日 金曜日 午後2時20分

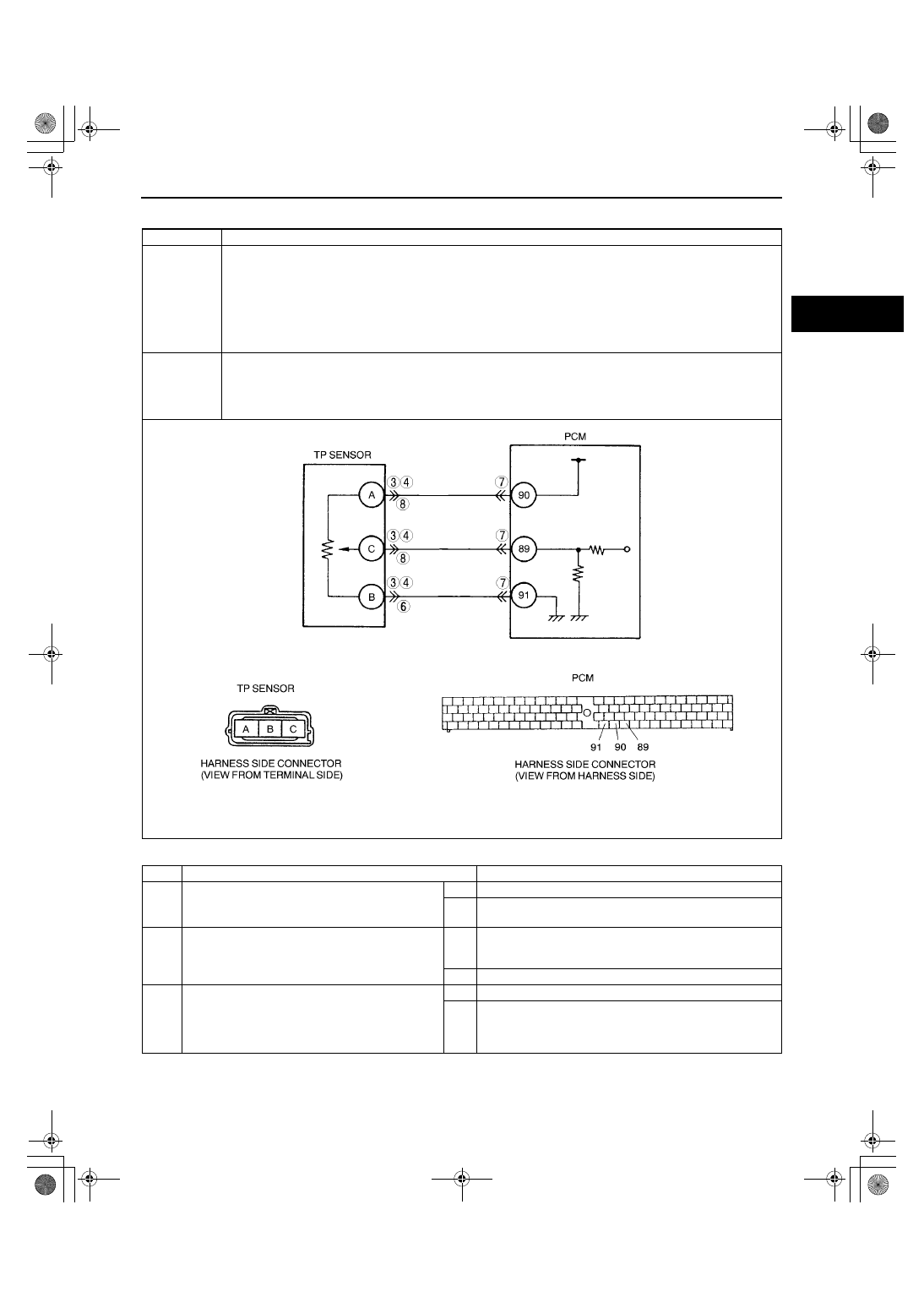

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (ZM)]

01–02A–45

01–02A

DTC P0123 [ZM]

A3U010201084W44

Diagnostic procedure

DTC P0123

TP circuit high input

DETECTION

CONDITION

If PCM detects TP sensor voltage at PCM terminal 89 is above 4.77 V after engine start, PCM determines
that TP circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).

MIL illuminates if PCM detects the above malfunction conditions during first drive cycle. Therefore,
PENDING CODE is not available.

FREEZE FRAME DATA is available.

DTC is stored in PCM memory.

POSSIBLE

CAUSE

TP sensor malfunction

Connector or terminal malfunction

Open circuit between TP sensor terminal B and PCM terminal 91

Short to reference voltage (Vref) supply circuit between TP sensor terminal C and PCM terminal 89

PCM malfunction

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

Has FREEZE FRAME DATA been recorded?

Yes Go to next step.

No

Record FREEZE FRAME DATA on repair order, then go to
next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

Check for related Service Bulletins availability.

Is any related repair information available?

Yes Perform repair or diagnosis according to available repair

information.

If vehicle is not repaired, go to next step.

No

Go to next step.

3

CHECK TP SENSOR CONNECTOR

Turn ignition key to OFF.

Verify that the TP sensor connector is
connected securely.

Is connector okay?

Yes Go to next step.

No

Connect the connector securely, then go to Step 9.

1712-1U-01G(01-02A).fm  45 ページ  2001年6月29日 金曜日 午後2時20分
