GENERAL INFORMATION

00–00–25

00–00

End Of Sie

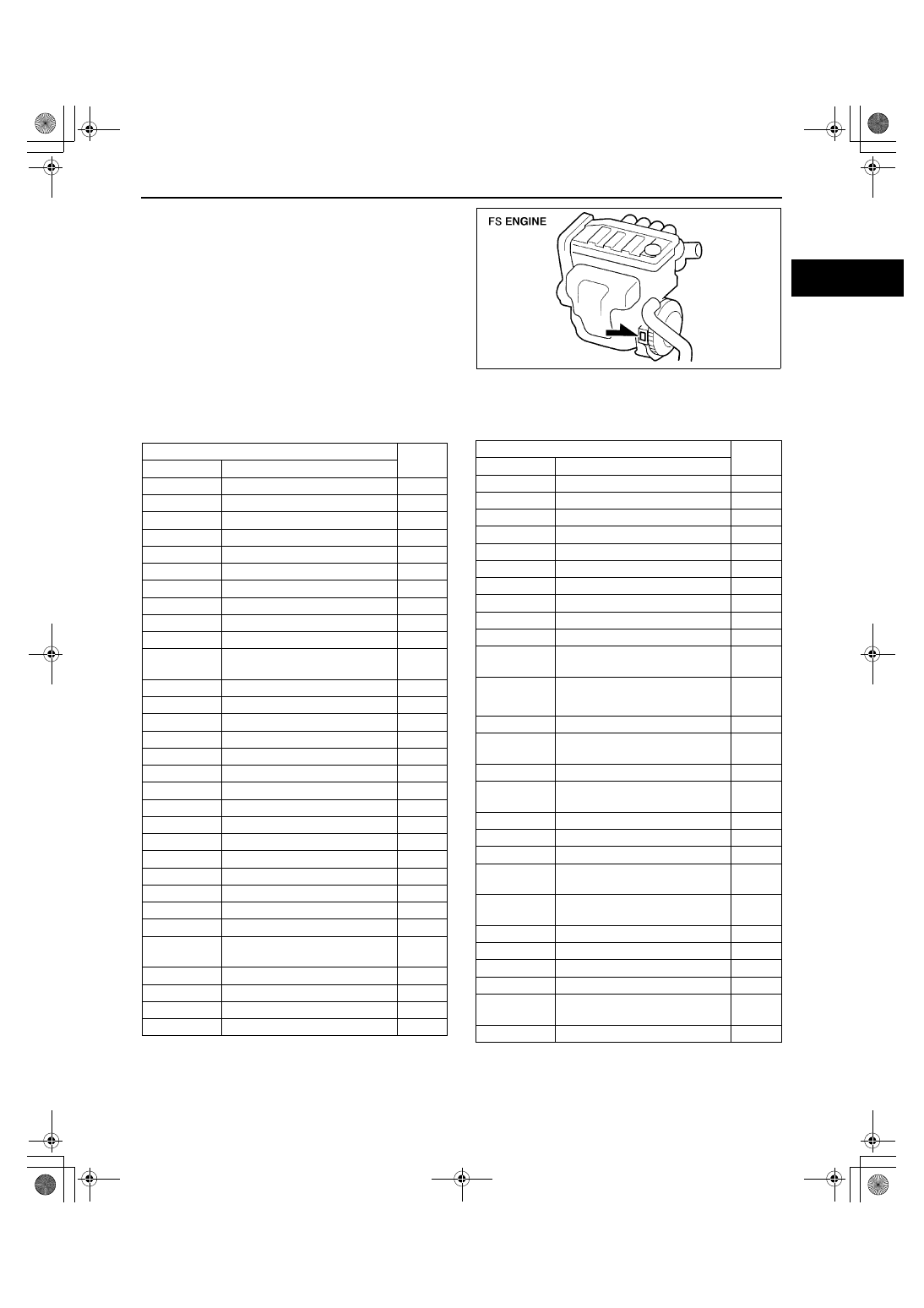

SAE STANDARDS

A3U000000003W01

•

In accordance with new regulations, SAE (Society of Automotive Engineers) standard names and
abbreviations are now used in this manual. The table below lists the names and abbreviations that have been
used in Mazda manuals up to now and their SAE equivalents.

#1 : Diagnostic trouble codes depend on the diagnostic test mode
#2 : Controlled by the PCM
#3 : Device that controls engine and powertrain
#4 : Directly connected to exhaust manifold

X3U000WBT

SAE Standard

Remar

Abbreviation

Name

Accelerator Pedal

ACL

Air Cleaner

A/C

Air Conditioning

BARO

Barometric Pressure

B+

Battery Positive Voltage

CMP sensor Camshaft Position Sensor
CAC

Charge Air Cooler

CLS

Closed Loop System

CTP

Closed Throttle Position

CPP

Clutch Pedal Position

CIS

Continuous Fuel Injection
System

CKP sensor Crankshaft Position Sensor
DLC

Data Link Connector

DTM

Diagnostic Test Mode

DTC

Diagnostic Trouble Code(s)

Distributor Ignition

Electronic Ignition

ECT

Engine Coolant Temperature

Engine Modification

EVAP

Evaporative Emission

EGR

Exhaust Gas Recirculation

Fan Control

Flexible Fuel

4GR

Fourth Gear

GEN

Generator

GND

Ground

HO2S

Heated Oxygen Sensor

With
heater

IAC

Idle Air control

IAT

Intake Air Temperature

Knock Sensor

MIL

Malfunction Indicator Lamp

MAP

Manifold Absolute Pressure

MAF sensor Mass Air Flow Sensor
MFI

Multiport Fuel Injection

OBD

On-Board Diagnostic

Open Loop

Oxidation Catalytic Converter

O2S

Oxygen Sensor

PNP

Park/Neutral Position

PSP

Power Steering Pressure

PCM

Powertrain Control Module

PAIR

Pulsed Secondary Air
Injection

Pulsed
injection

AIR

Secondary Air Injection

Injection
with air
pump

SAPV

Secondary Air Pulse Valve

SFI

Sequential Multipoint Fuel
Injection

3GR

Third Gear

TWC

Three Way Catalytic
Converter

Throttle Body

TP sensor

Throttle Position Sensor

TCC

Torque Converter Clutch

TCM

Transmission (Transaxle)
Control Module

Transmission (Transaxle)
Range

Turbocharger

VSS

Vehicle Speed Sensor

Voltage Regulator

VAF sensor

Volume Air Flow Sensor

WUTWC

Warm Up Three Way
Catalytic Converter

WOT

Wide Open Throttle

SAE Standard

Remar

Abbreviation

Name

GENERAL INFORMATION

00–00–26

End Of Sie

ABBREVIATIONS

A3U000000011W01

End Of Sie

AAS

Air adjusting screw

ABS

Antilock brake system

ACC

Accessories

ATF

Automatic transaxle fluid

ATX

Automatic transaxle

BDC

Bottom dead center

BTDC

Before top dead center

CDCV

Canister drain cut valve

CCM

Comprehensive component monitor

Control module

Drive cycle

DRL

Daytime running light

E/L

Electric load

ELR

Emergency locking retractor

Exhaust

High

ABS hydraulic unit

HVAC

Heater, ventilation, and air conditioning

Ignition

Intake

INT

Intermittent

Left front

Left hand

Low

Left rear

Motor

MAX

Maximum

MTX

Manual transaxle

O/D

Overdrive

OFF

Switch off

Switch on

PCV

Positive crankcase ventilation

PRC

Pressure regulator control

P/S

Power steering

Right front

Right hand

Right rear

SST

Special service tool

Switch

TAS

Throttle adjusting screw

TDC

Top dead center

TNS

Tail number side lights

Transmission range

VICS

Variable inertia charging system

VTCS

Variable tumble control system

1GR

First gear

2GR

Second gear

4SD

4 door sedan

5HB

5 door hatchback

GENERAL INFORMATION

00–00–27

00–00

PRE-DELIVERY INSPECTION

A3U000000012W01

Pre-Delivery Inspection Table
Exterior
INSPECT and ADJUST, if necessary, the following items to specification:

Glass, exterior bright metal and paint for damage

Wheel lug nuts

All weatherstrips for damage or detachment

Operation of hood release and lock

Operation of trunk lid and fuel lid opener

Door operation and alignment

Headlight aiming

INSTALLthe following parts:

Wheel caps

Under hood—engine off
INSPECTand ADJUST, if necessary, the following items to specification:

Fuel, engine coolant, and hydraulic lines, fittings, connections, and components for leaks

Engine oil level

Power steering fluid level

Brake and clutch fluid level

Windshield washer reservoir fluid level

Radiator coolant level and specific gravity

Tightness of water hose clamps

Tightness of battery terminals, electrolyte level and specific gravity

Drive belt(s) tension

Accelerator cable and linkage for free movement CLEAN the spark plugs

Interior
INSPECT the operations of the following items:

Seat controls (slide and recline) and headrests

Folding rear seat (if equipped)

Door locks, including childproof door locks (if equipped)

Seat belts and warning system

Ignition switch and steering lock

Air bag system using warning light

Cruise control system (if equipped)

Shift-lock system (if equipped)

Starter interlock

All lights including warning, and indicator lights

Sound warning system

Horn, wipers, and washers

Wiper blades performance

Clean wiper blades and windshield, if necessary

Antenna

Audio system (if equipped)

Cigarette lighter and clock

Power windows (if equipped)

eater, defroster, and air conditioner at various mode selections (if equipped)

INSPECT the following items:

Presence of spare fuse

Upholstery and interior finish

INSPECT and ADJUST, if necessary, the following items:

Operation and fit of windows

Pedal height and free play of clutch pedal

Parking brake

Under hood—engine running at operating temperature
INSPECT the following items:

Automatic transaxle fluid level

Operation of idle-up system for electrical load, air conditioner or power steering (if equipped)

Ignition timing

Idle speed

GENERAL INFORMATION

00–00–28

On hoist
INSPECT the following items:

Manual transaxle oil level

Underside fuel, coolant and hydraulic lines, fittings, connections, and components for leaks

Tires for cuts or bruises

Steering linkage, suspension, exhaust system, and all underside hardware for looseness or damage

Road test
INSPECT the following items:

Brake operation

Clutch operation

Steering control

Operation of gauges

Squeaks, rattles, and unusual noises

Engine general performance

Emergency locking retractors and automatic locking retractors

Cruise control system (if equipped)

After road test
INSPECT for necessary owner information materials, tools, and spare tire in vehicle
The following items must be done just before delivery to your customer.

Load test battery and charge if necessary (Load test result: Volts)

Adjust tire pressure to specification (Specified tire pressure is indicated on the door label.)

Clean outside of vehicle

Install fuses for accessories

Remove seat and cabin carpet protective covers

Vacuum inside of vehicle
