GENERAL INFORMATION

00–00–13

00–00

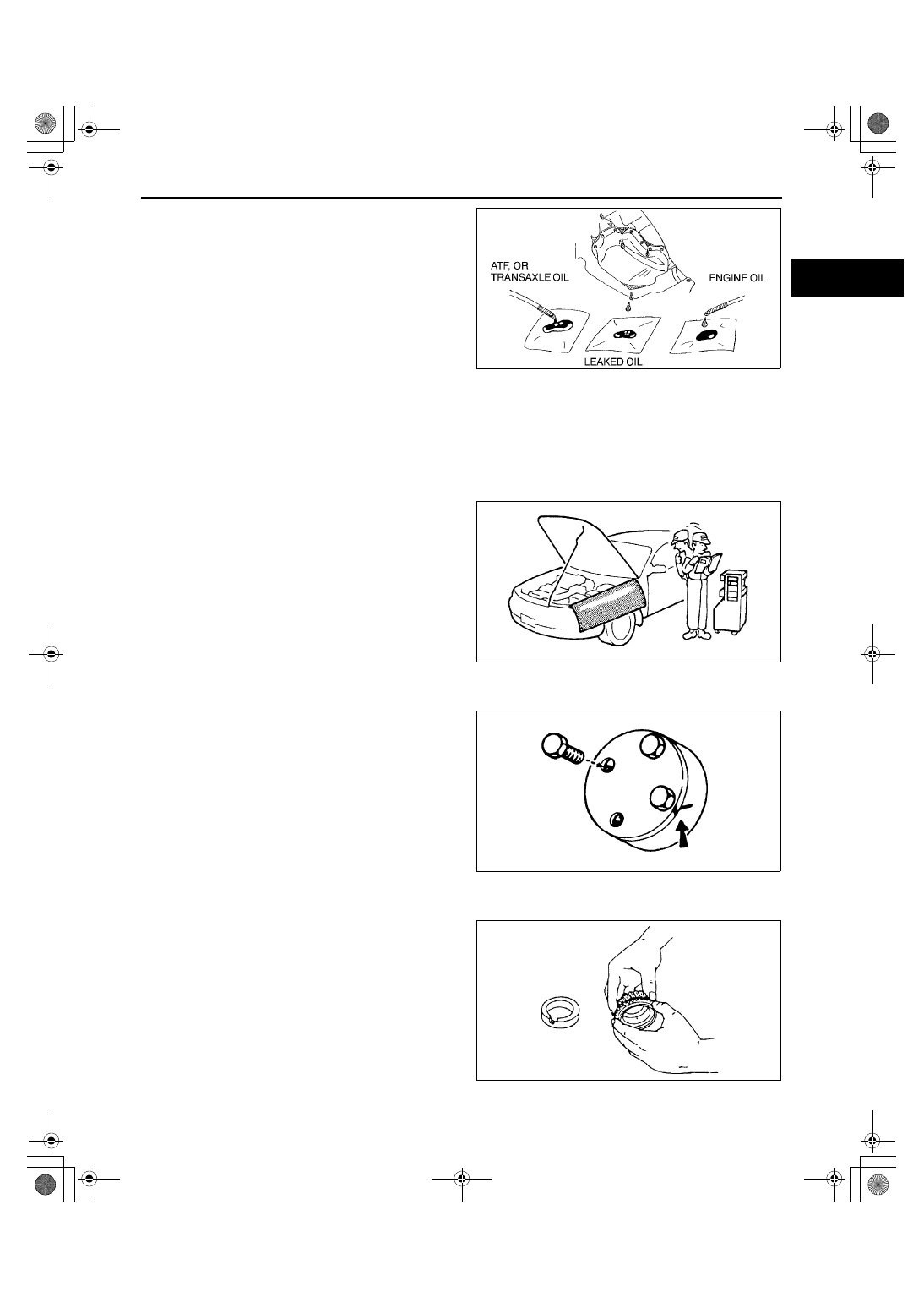

3. Compare the appearance and smell, and identify

the type of oil that is leaking.

4. Remove any oil on the engine or transaxle.
5. Allow the engine to run for 30 minutes.
6. Check the area where the oil is leaking, then

make necessary repairs.

Disconnection of the Negative Battery Cable

Before beginning any work, turn the ignition switch to LOCK position, then disconnect the negative battery
cable and wait for more than 1 minute to allow the backup power supply of the SAS control module to deplete
its stored power. Disconnecting the battery cable will delete the memories of the clock, audio, and DTCs, etc.
Therefore, it is necessary to verify those memories before disconnecting the cable.

Removal of Parts

While correcting a problem, also try to determine
its cause. Begin work only after first learning
which parts and subassemblies must be removed
and disassembled for replacement or repair. After
removing the part, plug all holes and ports to
prevent foreign material from entering.

Disassembly

If the disassembly procedure is complex,
requiring many parts to be disassembled, all parts
should be marked in a place that will not affect
their performance or external appearance and
identified so that reassembly can be performed
easily and efficiently.

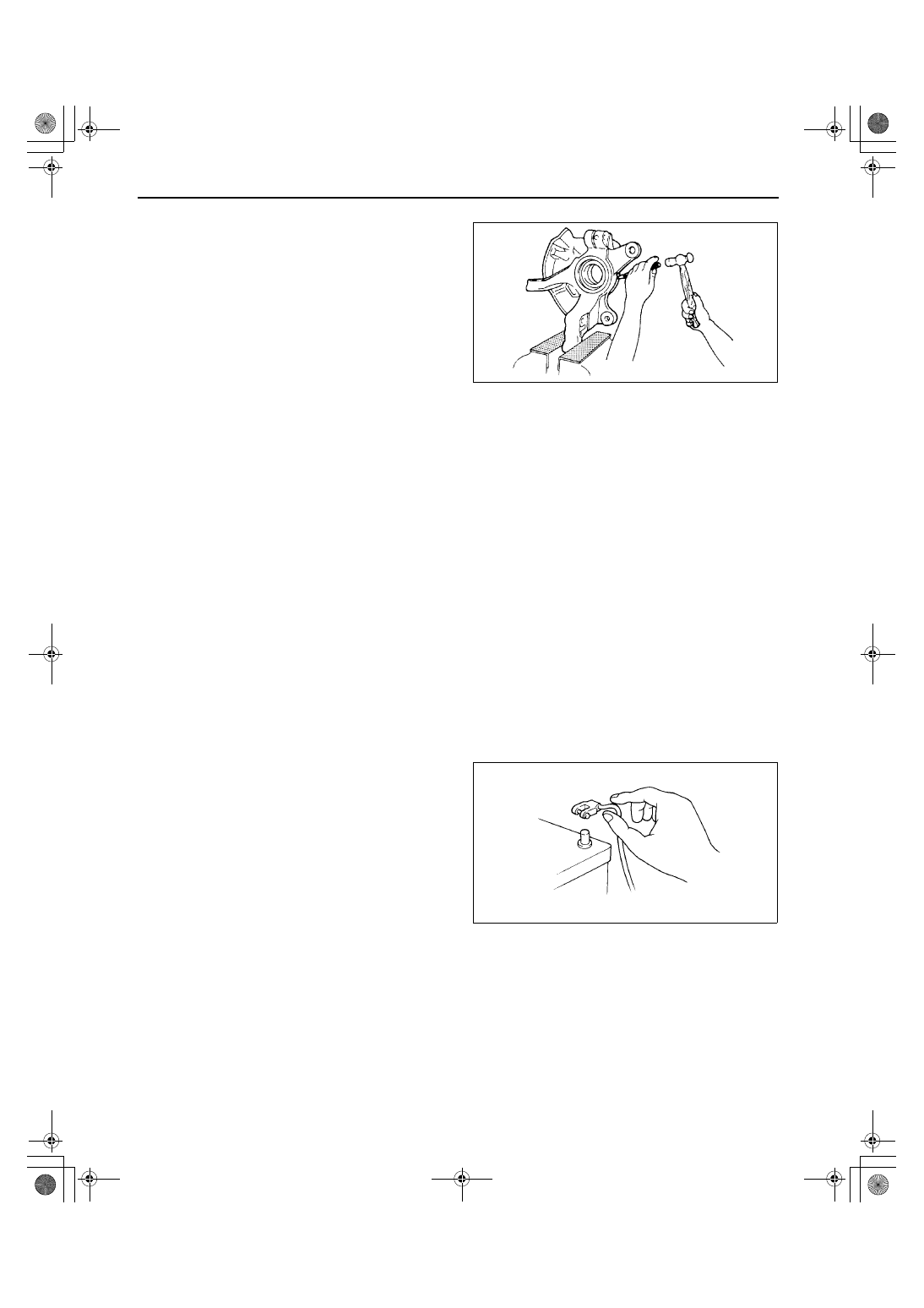

Inspection During Removal, Disassembly

When removed, each part should be carefully
inspected for malfunction, deformation, damage,
and other problems.

YMU000WAH

X3U000WAK

X3U000WAL

X3U000WAM

GENERAL INFORMATION

00–00–14

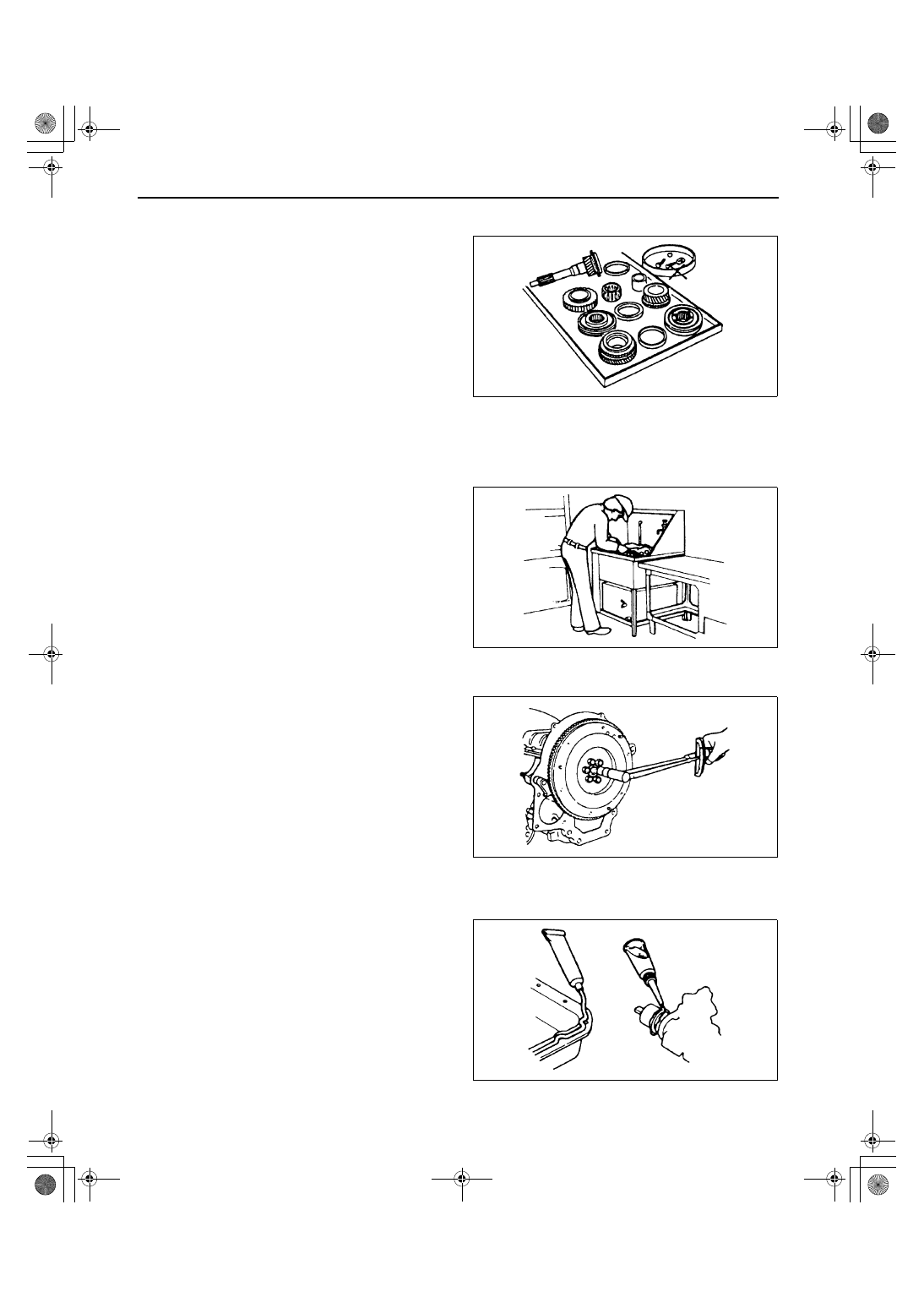

Arrangement of Parts

All disassembled parts should be carefully arranged for reassembly.

Be sure to separate or otherwise identify the parts
to be replaced from those that will be reused.

Cleaning of Parts

All parts to be reused should be carefully and thoroughly cleaned in the appropriate method.

Warning

••••

Using compressed air can cause dirt and
other particles to fly out causing injury to
the eyes. Wear protective eye wear
whenever using compressed air.

Reassembly

Standard values, such as torques and certain
adjustments, must be strictly observed in the
reassembly of all parts.

If removed, these parts should be replaced with
new ones:
— Oil seals
— Gaskets
— O-rings
— Lockwashers
— Cotter pins
— Nylon  nuts

Depending on location:
— Sealant and gaskets, or both, should be

applied to specified locations. When sealant
is applied, parts should be installed before sealant hardens to prevent leakage.

— Oil should be applied to the moving components of parts.
— Specified oil or grease should be applied at

the prescribed locations (such as oil seals)
before reassembly.

X3U000WAN

X3U000WAP

X3U000WAQ

X3U000WAR

GENERAL INFORMATION

00–00–15

00–00

Adjustment

Use suitable gauges and/or testers when making
adjustments.

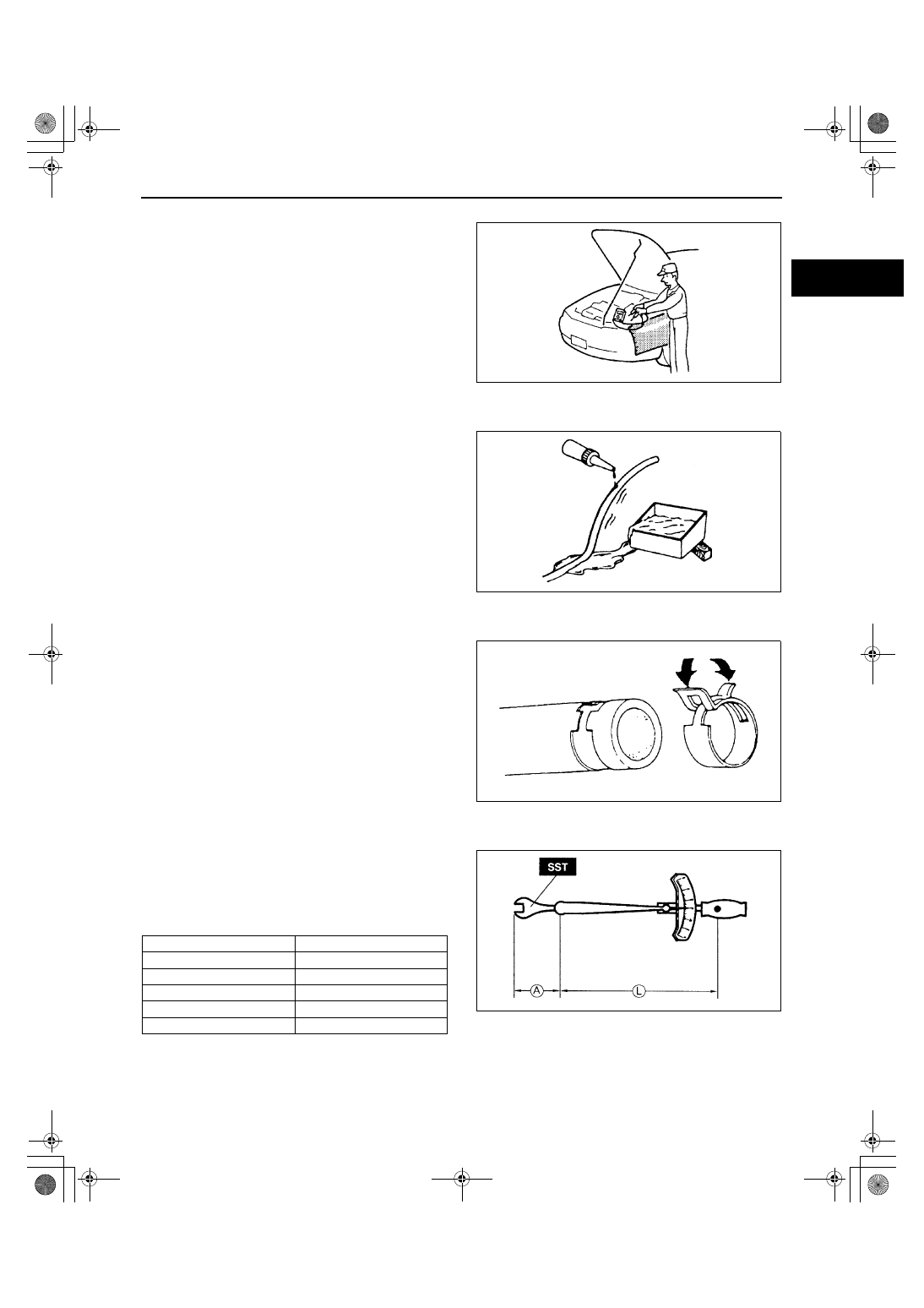

Rubber Parts and Tubing

Prevent gasoline or oil from getting on rubber
parts or tubing.

Hose Clamps

When reinstalling, position the hose clamp in the
original location on the hose and squeeze the
clamp lightly with large pliers to ensure a good fit.

Torque Formulas

When using a torque wrench-SST or equivalent
combination, the written torque must be
recalculated due to the extra length that the SST
or equivalent adds to the torque wrench.
Recalculate the torque using the following
formulas. Choose the formula that applies to you.

A : The length of the SST past the torque wrench drive.
L : The length of the torque wrench.

X3U000WAS

X3U000WAT

X3U000WAU

Torque Unit

Formula

N·m

N·m

×

 [L/(L+A)]

kgf·m

kgf·m

×

 [L/(L+A)]

kgf·cm

kgf·cm

×

 [L/(L+A)]

ft·lbf

ft·lbf

×

 [L/(L+A)]

in·lbf

in·lbf

×

 [L/(L+A)]

X3U000WAV

GENERAL INFORMATION

00–00–16

Vise

When using a vise, put protective plates in the
jaws of the vise to prevent damage to parts.

Dynamometer

When test-running a vehicle on a dynamometer:
— Place a fan, preferably a vehicle-speed proportional type, in front of the vehicle.
— Connect an exhaust gas ventilation unit.
— Cool the exhaust pipes with a fan.
— Keep the area around the vehicle uncluttered.
— Watch the water temperature gauge.

Note

When the vehicle is on a chassis roller and only the front wheels rotate, the ABS warning light may
illuminate. (Refer to 04–10–1 PRECAUTION (BRAKES) to turn off the warning light.)

End Of Sie

INSTALLATION OF RADIO SYSTEM

A3U000000005W01

If a radio system is installed improperly or if a high-powered type is used, the CIS and other systems may be
affected. When the vehicle is to be equipped with a radio, observe the following precautions:

Install the antenna at the farthest point from control modules.

Install the antenna feeder as far as possible from the control module harnesses.

Ensure that the antenna and feeder are properly adjusted.

Do not install a high-powered radio system.

End Of Sie

ELECTRICAL SYSTEM

A3U000000006W01

Electrical Parts
Battery cable

Before disconnecting connectors or removing
electrical parts, disconnect the negative battery
cable.

X3U000WAW

WGIWXX0038E
