Fig. 34: Disconnecting Rear Lateral Link (Lower) Ball Joint Using SST
Courtesy of MAZDA MOTORS CORP.

REAR CROSSMEMBER COMPONENT REMOVAL NOTE

1. Support the rear crossmember with the jack, and remove the bolt.

WARNING:



Be sure that the crossmember component is securely supported by
the jack. If not securely supported, the crossmember component
could fall, resulting in serious injury or death, and damage to the
vehicle.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata

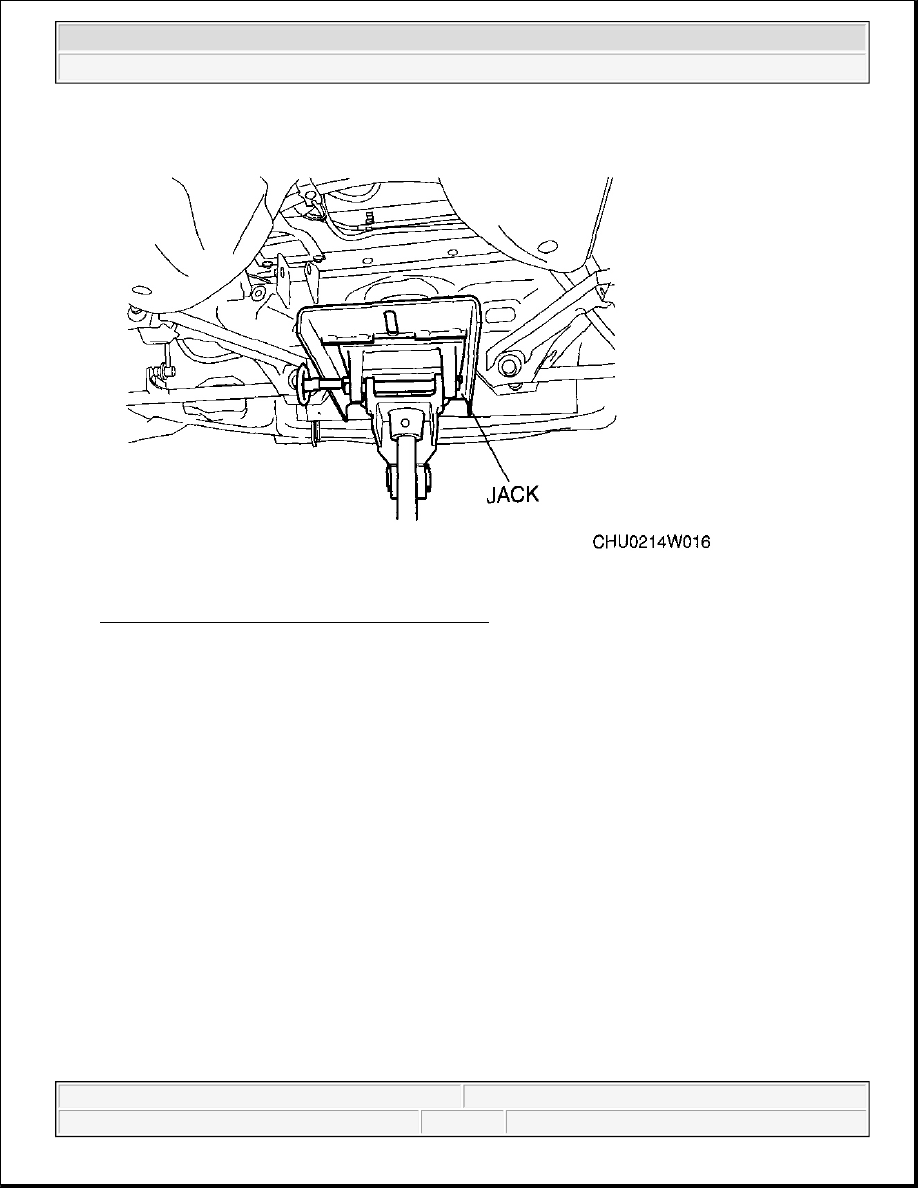

Fig. 35: Supporting Rear Crossmember With Jack
Courtesy of MAZDA MOTORS CORP.

2. Remove the rear crossmember component.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata



2008 ENGINE

Starting System - MX-5 Miata

STARTING SYSTEM LOCATION INDEX [LF]

Fig. 1: Identifying Location Of Starting System Components
Courtesy of MAZDA MOTORS CORP.

STARTER REMOVAL/INSTALLATION [LF]

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)

3. Remove the side cover. (LH)

WARNING:



Remove and install all parts when the engine is cold, otherwise they
can cause severe burns or serious injury.



When the battery cables are connected, touching the vehicle body
with starter terminal B will generate sparks. This can cause personal
injury, fire, and damage to the electrical components. Always
disconnect the negative battery cable before performing the
following operation.



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Starting System - MX-5 Miata





2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Starting System - MX-5 Miata



4. Remove the under cover. (MT) (See TRANSVERSE MEMBER REMOVAL/INSTALLATION .)

5. Remove the clutch release cylinder with the pipes still connected. Position the clutch release cylinder so

that it is out of the way. (MT) (See TRANSMISSION REMOVAL/INSTALLATION [M15M-D] .)
(See TRANSMISSION REMOVAL/INSTALLATION [P66M-D] .)

6. Remove in the order indicated in Fig. 2 .

7. Install in the reverse order of removal.

Fig. 2: View Of Starter Removal Order & Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

STARTER INSTALLATION NOTE

1. Peel off the insulator from the starter completely using a scraper.

NOTE:



If there is peeling on or damage to the insulator, attach a new insulator
using the following procedure:



2008 Mazda MX-5 Miata Grand Touring

2008 ENGINE Starting System - MX-5 Miata
