Fig. 30: Measuring Ball-Joint Rotational Torque Using Allen Wrench & Torque Wrench
Courtesy of MAZDA MOTORS CORP.

REAR CROSSMEMBER REMOVAL/INSTALLATION

1. Remove the exhaust pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF] .)

2. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)

3. Remove the power plant frame. (See TRANSMISSION REMOVAL/INSTALLATION [M15M-D] .)

(See TRANSMISSION REMOVAL/INSTALLATION [P66M-D] .) (See AUTOMATIC
TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL] .)

4. Remove the rear drive shaft. (See REAR DRIVE SHAFT REMOVAL/INSTALLATION .)

5. Remove the rear differential. (See REAR DIFFERENTIAL REMOVAL/INSTALLATION .)

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

CAUTION:



Performing the following procedures without first removing the ABS
wheel-speed sensor may possibly cause an open circuit in the wiring
harness if it is pulled by mistake. Before operations, remove the ABS
wheel-speed sensor (axle side) and move the sensor away from the
harnesses.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata



8. Inspect the rear wheel alignment. (See REAR WHEEL ALIGNMENT .)

Fig. 31: Identifying Rear Crossmember Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

REAR AXLE COMPONENT REMOVAL NOTE

NOTE:



When removing the ball joints, the rear knuckle bushings may also come
off. If they come off, replace the rear knuckle.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata



1. Support the knuckle using a jack.

2. Using the SST , disconnect the rear trailing link (upper) ball joint.

3. Remove the rear trailing link (lower) outer bolt.

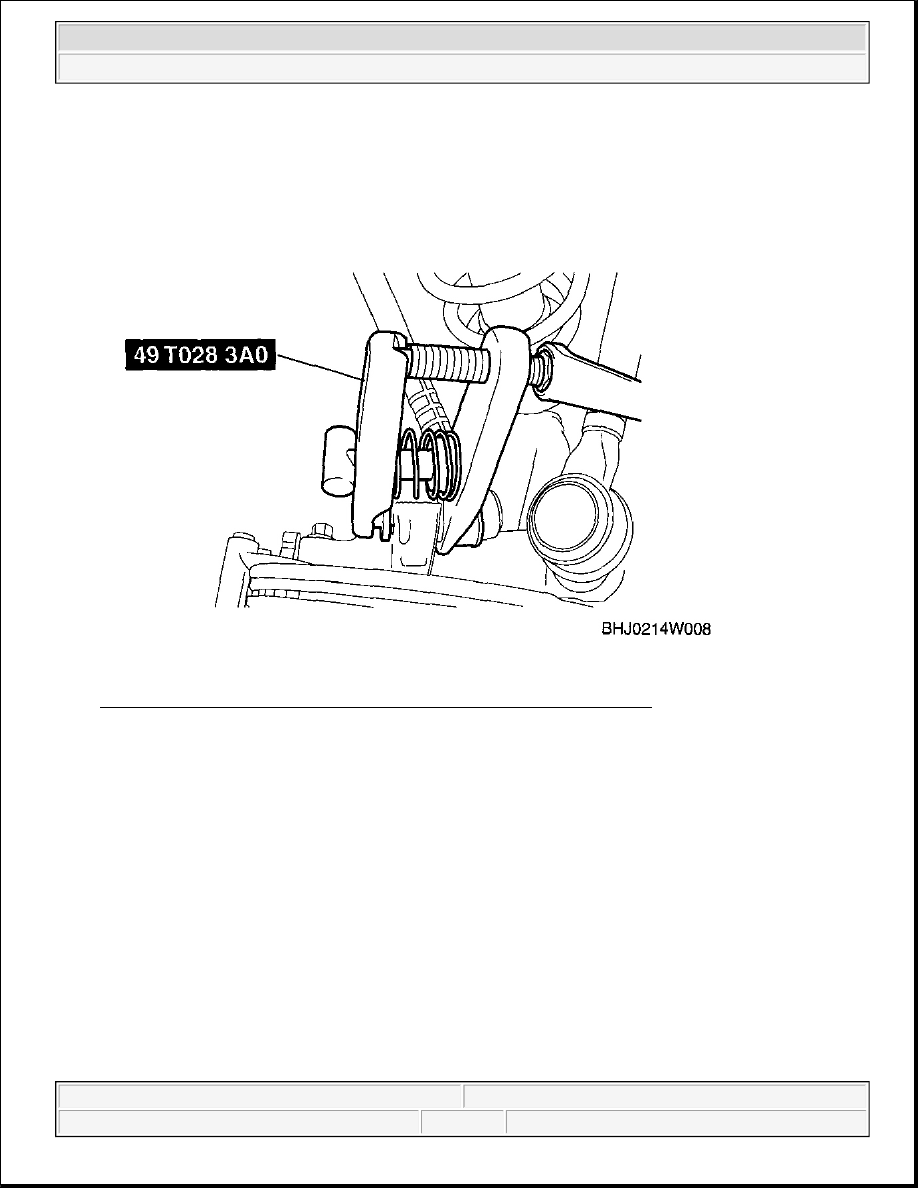

Fig. 32: Disconnecting Rear Trailing Link (Upper) Ball Joint Using SST
Courtesy of MAZDA MOTORS CORP.

4. Using the SST , disconnect the rear lateral link (upper) ball joint.



2008 Mazda MX-5 Miata Grand Touring

2008 SUSPENSION Rear Suspension - MX-5 Miata



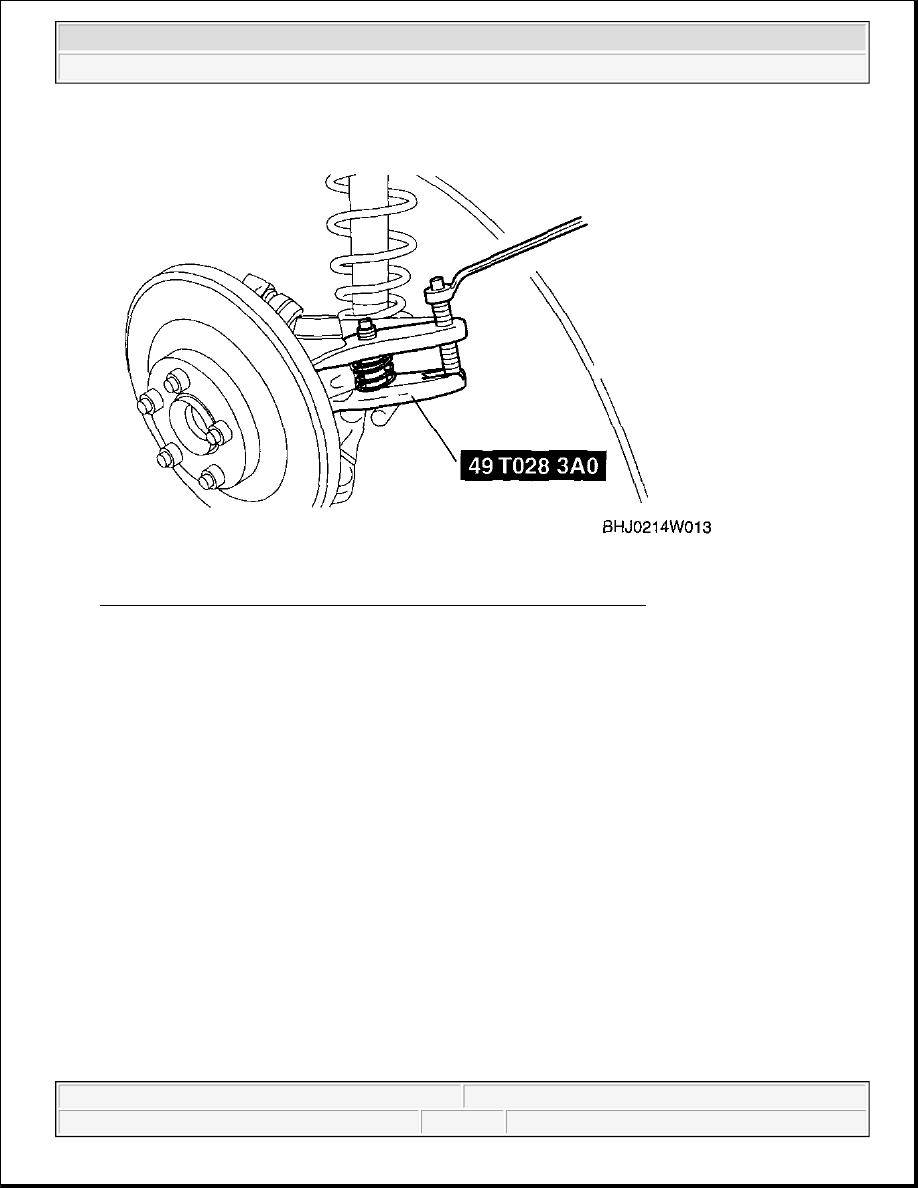

Fig. 33: Disconnecting Rear Lateral Link (Upper) Ball Joint Using SST
Courtesy of MAZDA MOTORS CORP.

5. Using the SST , disconnect the rear lateral link (lower) ball joint.

6. Remove the toe control link outer bolt.

7. Remove the shock absorber lower bolt.

8. Remove the rear axle component.
