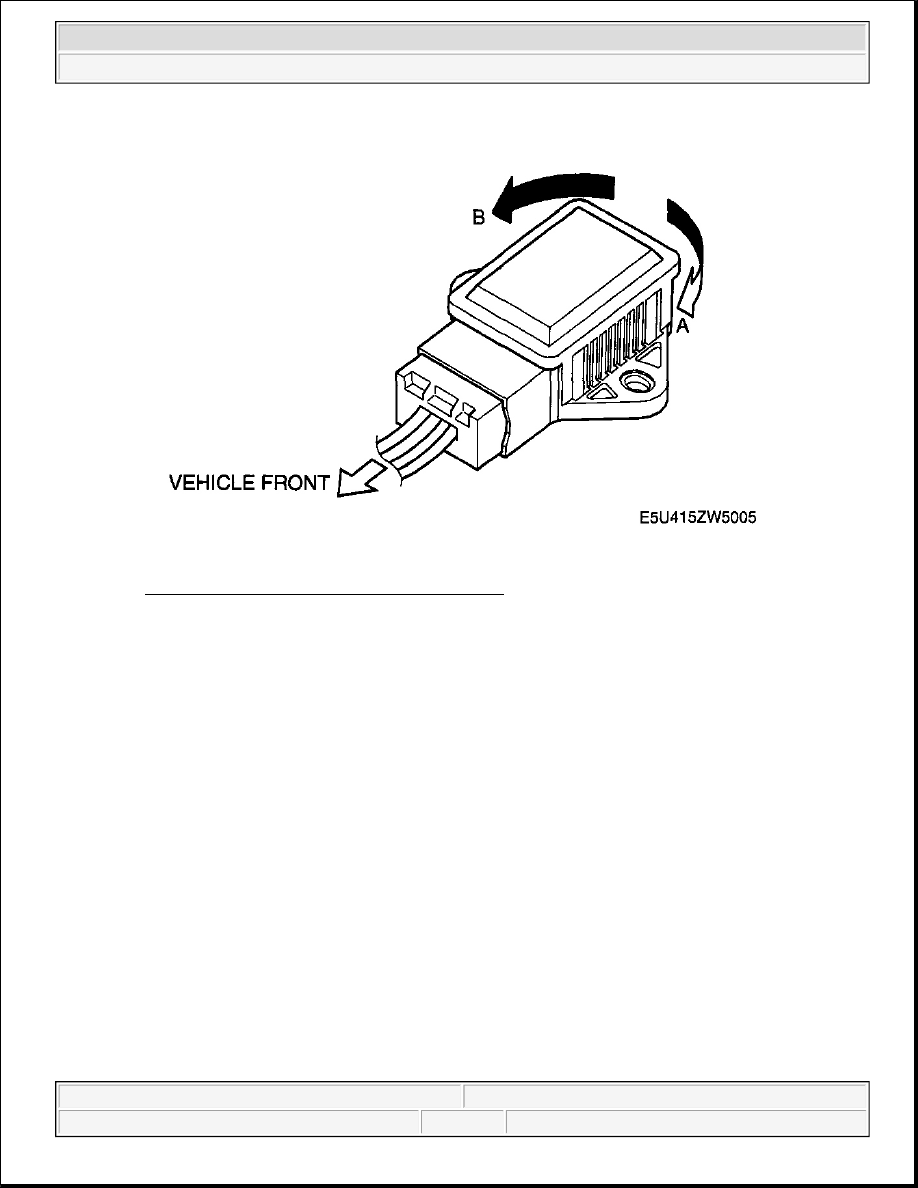

Fig. 16: Tilting Combined Sensor Left & Right
Courtesy of MAZDA MOTORS CORP.

COMBINED SENSOR INITIALIZATION PROCEDURE

1. Inspect the wheel alignment and inflation pressure.

If there is any malfunction, adjust the applicable part.

2. Park the vehicle on level ground.

3. Turn the ignition switch off.

4. Connect the M-MDS to the DLC-2.

WARNING:

Unless the initialization procedure of the combined sensor is
completed, the DSC will not operate, causing an unexpected
accident. Therefore, always perform the initialization procedure to
ensure DSC operation if the combined sensor and DSC HU/CM have
been removed or replaced.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Dynamic Stability Control - MX-5 Miata



Fig. 17: Locating DLC-2 Connector
Courtesy of MAZDA MOTORS CORP.

5. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

When using the IDS (laptop PC)

1. Select "Chassis".

2. Select "ABS/DSC".

3. Select "Sensor Initialization".

When using the PDS (Pocket PC)

1. Select "All Tests and Calibrations".

2. Select "Sensor Initialization".

6. Drive the vehicle forward.

7. After 5 min of driving, verify that the DSC system is normal.

BRAKE FLUID PRESSURE SENSOR INSPECTION

1. Turn the ignition switch off.

2. Install the SSTs to the master cylinder.

NOTE:

Install the SST (49 N043 001) to the master cylinder using a
commercially available flare nut wrench.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Dynamic Stability Control - MX-5 Miata



3. Bleed the air from the SSTs and the brake line. (Bleed air from the SSTs through air bleeding valve A.)

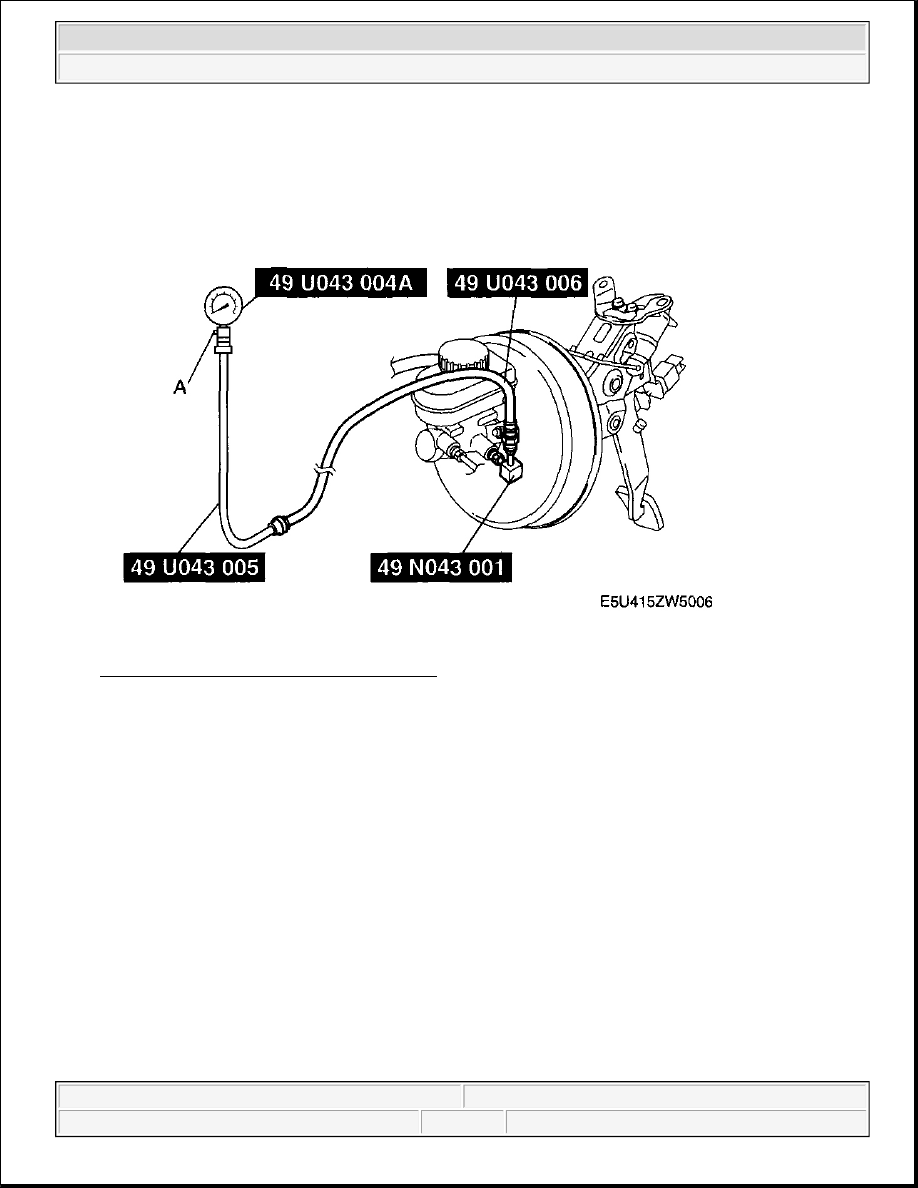

Fig. 18: Installing SSTs To Master Cylinder
Courtesy of MAZDA MOTORS CORP.

4. Connect the M-MDS to the DLC-2.

5. Select the MCYLI P PID.

6. Start the engine.

7. Depress the brake pedal, and confirm that the fluid pressure value of the SST (Gauge) and the value

shown on the M-MDS are equal.

If the fluid pressures are different, replace the DSC HU/CM.

Flare nut across flat: 12 mm {0.47 in}



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Dynamic Stability Control - MX-5 Miata



Fig. 19: Locating DLC-2 Connector
Courtesy of MAZDA MOTORS CORP.

STEERING ANGLE SENSOR REMOVAL/INSTALLATION

STEERING ANGLE SENSOR INSPECTION

1. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

2. Measure the voltage between steering angle sensor terminal B and ground.

If there is any malfunction, inspect the wiring harness between steering angle sensor terminal B and
battery, then repair or replace if necessary.

Standard voltage

B+

NOTE:

The steering angle sensor is integrated into the combination switch to
ensure sensor performance. Replace the steering angle sensor and
combination switch as a single unit. (See COMBINATION SWITCH
REMOVAL/INSTALLATION .)
