Fig. 45: Measuring Probe Of Dial Gauge Attached To End Of One Of Ring Gear Teeth
Courtesy of MAZDA MOTORS CORP.

8. Secure the drive pinion and measure the backlash of the ring gear.

Backlash of drive pinion and ring gear

Standard: 0.09-0.11 mm {0.0035-0.0043 in}

Minimum value: 0.05 mm {0.0020 in} or more

Variance: 0.07 mm {0.0028 in} or less

NOTE:



Measure the backlash at 4 locations around the ring gear. Make sure
all of the 4 locations are within specification, and the minimum value
for the 4 locations is 0.05 mm {0.0020 in} or more and the variance is
0.07 mm {0.0028 in} or less



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata



9. If the backlash is not within the specification, adjust the gear case component by moving it in the axial

direction.

BEARING CAP ASSEMBLY NOTE

1. Align the bearing cap alignment marks and assemble the bearing cap with the arrow facing outward.

Tightening torque

72.6-106.9 N.m {7.41-10.91 kgf.m, 53.5-78.84 ft.lbf}

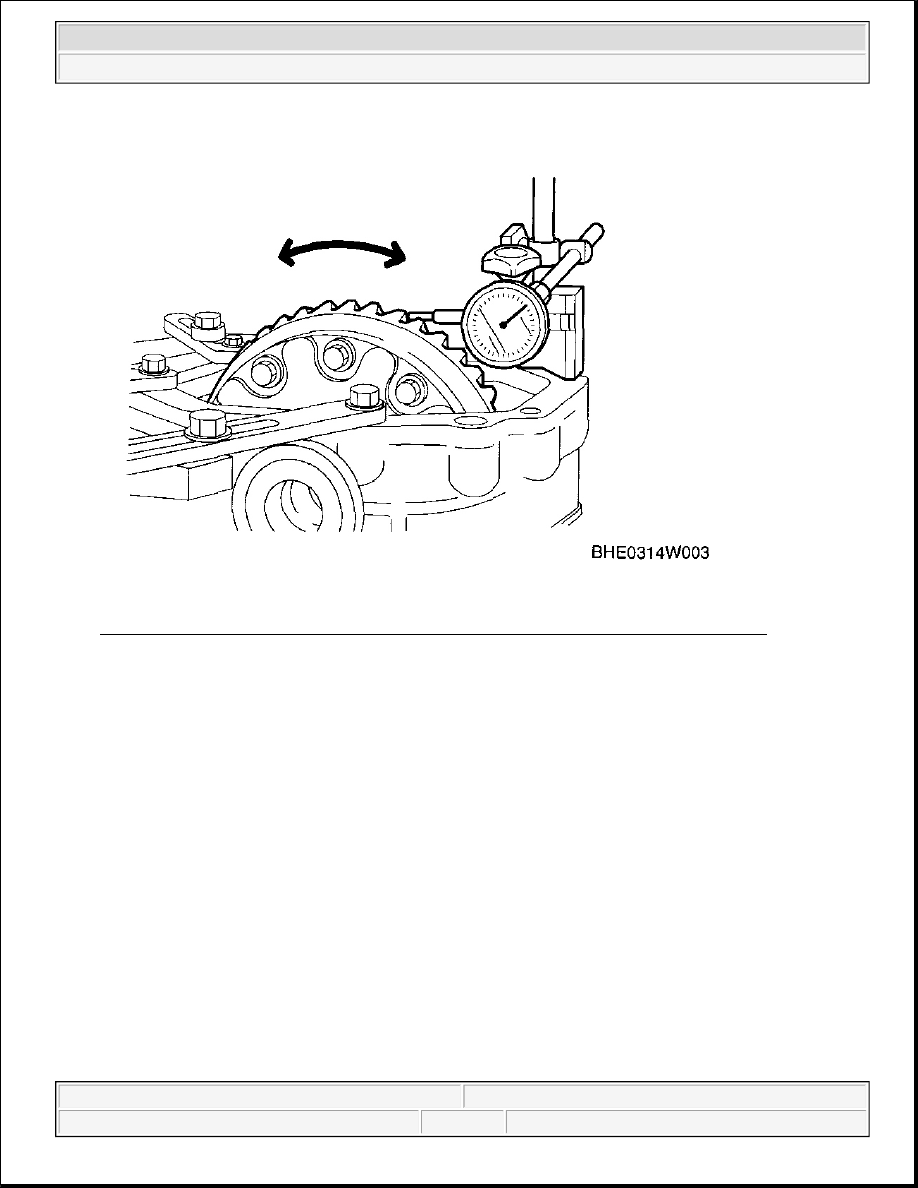

Fig. 46: Measuring Backlash At 4 Locations Around Ring Gear
Courtesy of MAZDA MOTORS CORP.

NOTE:



When moving the gear case component in the axial direction, replace
the adjustment shims. If the adjustment shim on the right side is
replaced with one that is 0.05 mm {0.0020 in} thicker, replace the one
on the left with one that is 0.05 mm {0.0020 in} thinner.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata



Fig. 47: Aligning Bearing Cap Alignment Marks & Assembling Bearing Cap
Courtesy of MAZDA MOTORS CORP.

2. Perform the drive pinion and ring gear tooth contact inspection.

DRIVE PINION, RING GEAR TOOTH CONTACT INSPECTION

1. Apply tooth marking compound evenly to both surfaces of the ring gear.

2. Rotate the ring gear back and forth for several times.

3. Inspect the tooth contact pattern in 4 locations around the ring gear, and verify that the tooth contact

points exhibit the pattern shown in Fig. 48 .



If the tooth contact points are normal, wipe off the marking compound.



If the tooth contact points are not normal, adjust the pinion height, then adjust the backlash.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata

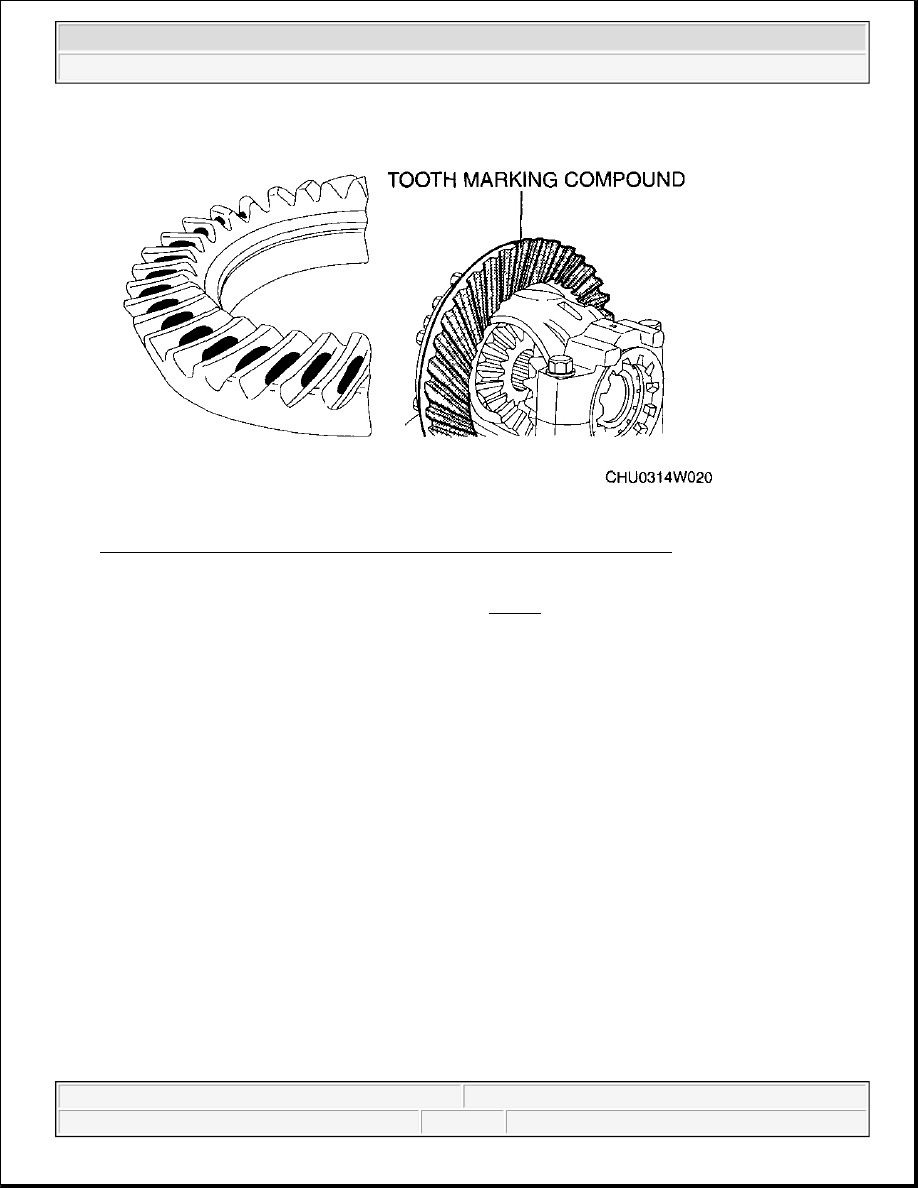

Fig. 48: Inspecting Tooth Contact Pattern In Locations Around Ring Gear
Courtesy of MAZDA MOTORS CORP.

4. If the toe and flank contact points appear as shown in Fig. 49 after the drive pinion and ring gear teeth

contact inspection, replace the spacer with a thinner one, and move the drive pinion outward.
