Fig. 37: Pressing Drive Pinion Into Rear Bearing Using SSTs & Press
Courtesy of MAZDA MOTORS CORP.

DRIVE PINION COMPONENT ASSEMBLY NOTE

Drive Pinion Preload Adjustment

1. Assemble the following parts to the drive pinion.



New collapsible spacer



Front bearing



New spacer



Companion flange



New washer



New locknut

2. Turn the serrated part of the drive pinion by hand to seat the bearing.

3. Tighten the locknut temporarily tightened in Step 1 from the lower limit of the specified tightening torque

using the SST , and obtain the specified preload. Record the tightening torque at this time.

Tightening torque

NOTE:



Perform preload adjustment with the oil seal uninstalled.



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata



150-380 N.m {15.3-38.7 kgf.m, 111-280 ft.lbf}

Drive pinion preload

1.3-1.8 N.m {14-18 kgf.cm, 12-15 in.lbf}

Fig. 38: Tighten Locknut Using SST
Courtesy of MAZDA MOTORS CORP.



If the specified preload cannot be obtained within the specified tightening torque, replace with a
new collapsible spacer and adjust again.

4. Remove the locknut, washer, and companion flange.

OIL SEAL (COMPANION FLANGE) ASSEMBLY NOTE

1. Apply differential oil to the lip of a new oil seal.

2. Assemble the oil seal using the SST .



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata



Fig. 39: Assembling Oil Seal Using SST
Courtesy of MAZDA MOTORS CORP.

LOCKNUT ASSEMBLY NOTE

1. Tighten a new locknut with the torque recorded at the drive pinion preload adjustment using the SST .



2008 Mazda MX-5 Miata Grand Touring

2008 DRIVELINE/AXLES Differential - MX-5 Miata



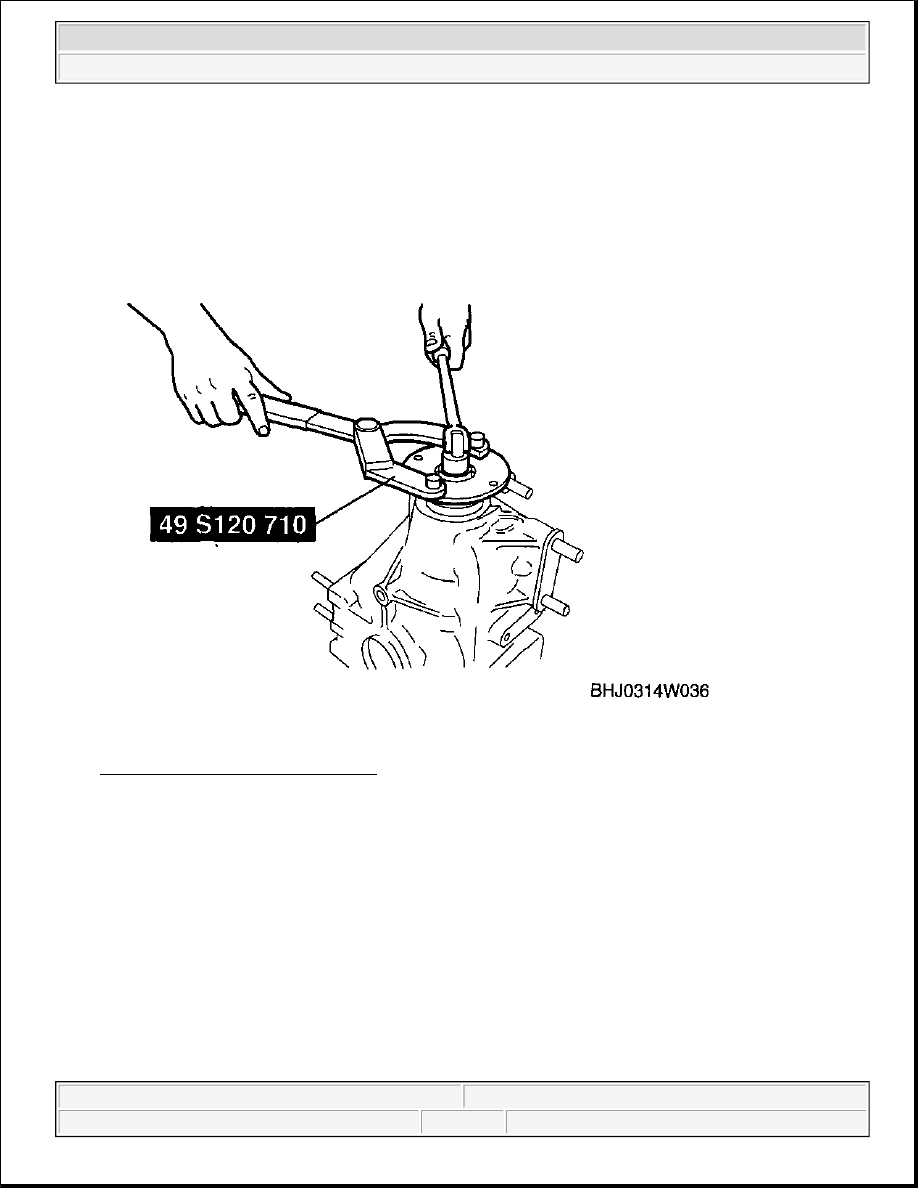

Fig. 40: Tightening Locknut Using SST
Courtesy of MAZDA MOTORS CORP.

2. Verify that the drive pinion preload is within the specification.



If not within the specification, perform the preload adjustment again.

Drive pinion preload

1.3-1.8 N.m {14-18 kgf.cm, 12-15 in.lbf}
