Fig. 53: Identifying Brake Hose (Front) Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

BRAKE HOSE (REAR) REMOVAL/INSTALLATION

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See AIR BLEEDING.)



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



Fig. 54: Identifying Brake Hose (Rear) Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



2008 ELECTRICAL

Charging System - MX-5 Miata

CHARGING SYSTEM LOCATION INDEX [LF]

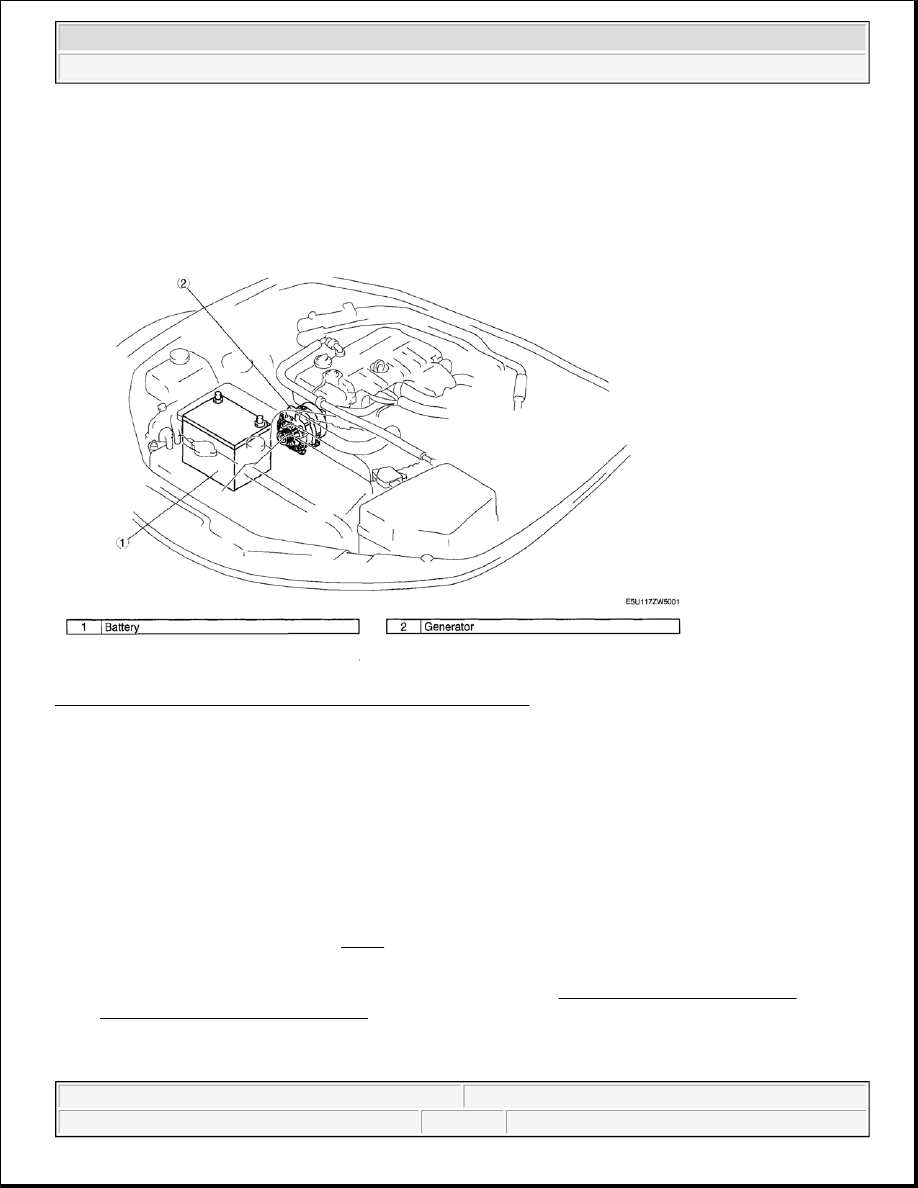

Fig. 1: Identifying Location Of Charging System Components
Courtesy of MAZDA MOTORS CORP.

BATTERY REMOVAL/INSTALLATION [LF]

1. Remove in the order indicated in Fig. 2 .

2. Install in the reverse order of removal.

3. Perform the steering angle sensor initialization procedure. (See STEERING ANGLE SENSOR

INITIALIZATION PROCEDURE .)

WARNING:



For vehicles with DSC, if the negative battery cable is disconnected,
the stored initial position of the steering angle sensor will be cleared
and the DSC will not operate properly, making the vehicle unsafe to
drive. Perform the steering angle sensor initialization procedure
after connecting the negative battery cable.



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata





2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata

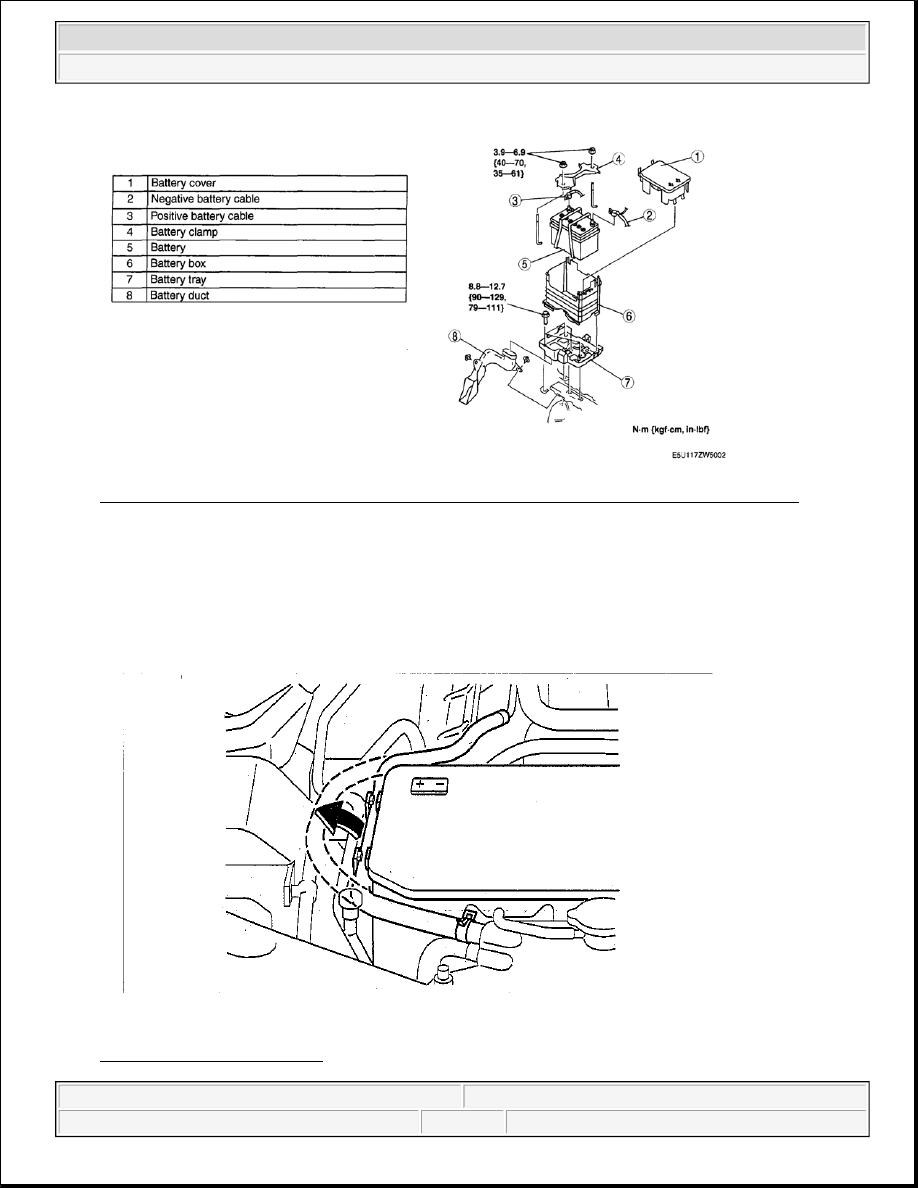

Fig. 2: Identifying Removal Order Of Battery & Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

BATTERY COVER REMOVAL NOTE

1. Remove the rubber hose from the battery cover.

Fig. 3: View Of Rubber Hose
Courtesy of MAZDA MOTORS CORP.



2008 Mazda MX-5 Miata Grand Touring

2008 ELECTRICAL Charging System - MX-5 Miata
