Mazda MX-5 Miata / Grand Touring. Manual - part 37

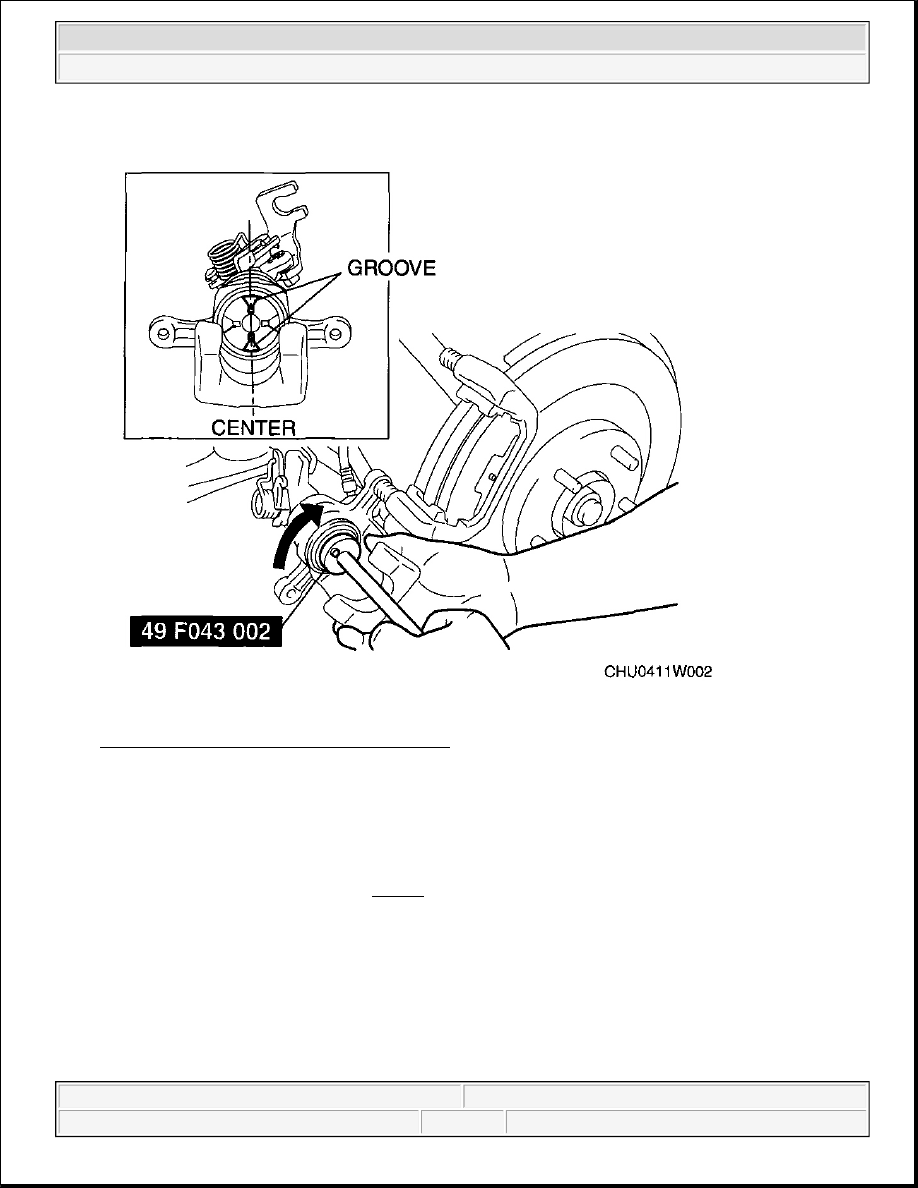

Fig. 45: Rotating Piston Clockwise Using SST
Courtesy of MAZDA MOTORS CORP.

PARKING BRAKE CABLE INSTALLATION NOTE

1. After installing the parking brake cable, verify that the operating lever returns to the stopper nut with the

parking brake lever released.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



Fig. 46: Identifying Stopper Nut & Operating Lever
Courtesy of MAZDA MOTORS CORP.

DISC PAD (REAR) REPLACEMENT

1. Remove in the order indicated in Fig. 47 .

2. Install in the reverse order of removal.

3. After installation, depress the brake pedal a few times, and inspect the following.



The disc pad projection is securely installed to the piston groove



Parking brake lever stroke



Brake drag



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



Fig. 47: Identifying Disc Pad (Rear) Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

CALIPER INSTALLATION NOTE

1. Clean the exposed area of the piston.

2. Rotate the piston clockwise slowly using the SST and push in the piston completely until the piston

grooves are in the position shown in Fig. 48 .



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



Fig. 48: Rotating Piston Clockwise Using SST
Courtesy of MAZDA MOTORS CORP.

3. Install the caliper.

CALIPER (REAR) DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in Fig. 49 .



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata
