Mazda MX-5 Miata / Grand Touring. Manual - part 34

Fig. 34: Identifying Front Brake (Disc) Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

CALIPER INSTALLATION NOTE

1. Clean the exposed area of the piston.

2. Install the piston using the SST .

3. Install the caliper.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



Fig. 35: Installing Piston Using Special Tool
Courtesy of MAZDA MOTORS CORP.

DISC PAD (FRONT) REPLACEMENT

1. Remove in the order indicated in Fig. 36 .

2. Install in the reverse order of removal.

3. After installation, depress the brake pedal a few times, then verify that the brakes do not drag.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



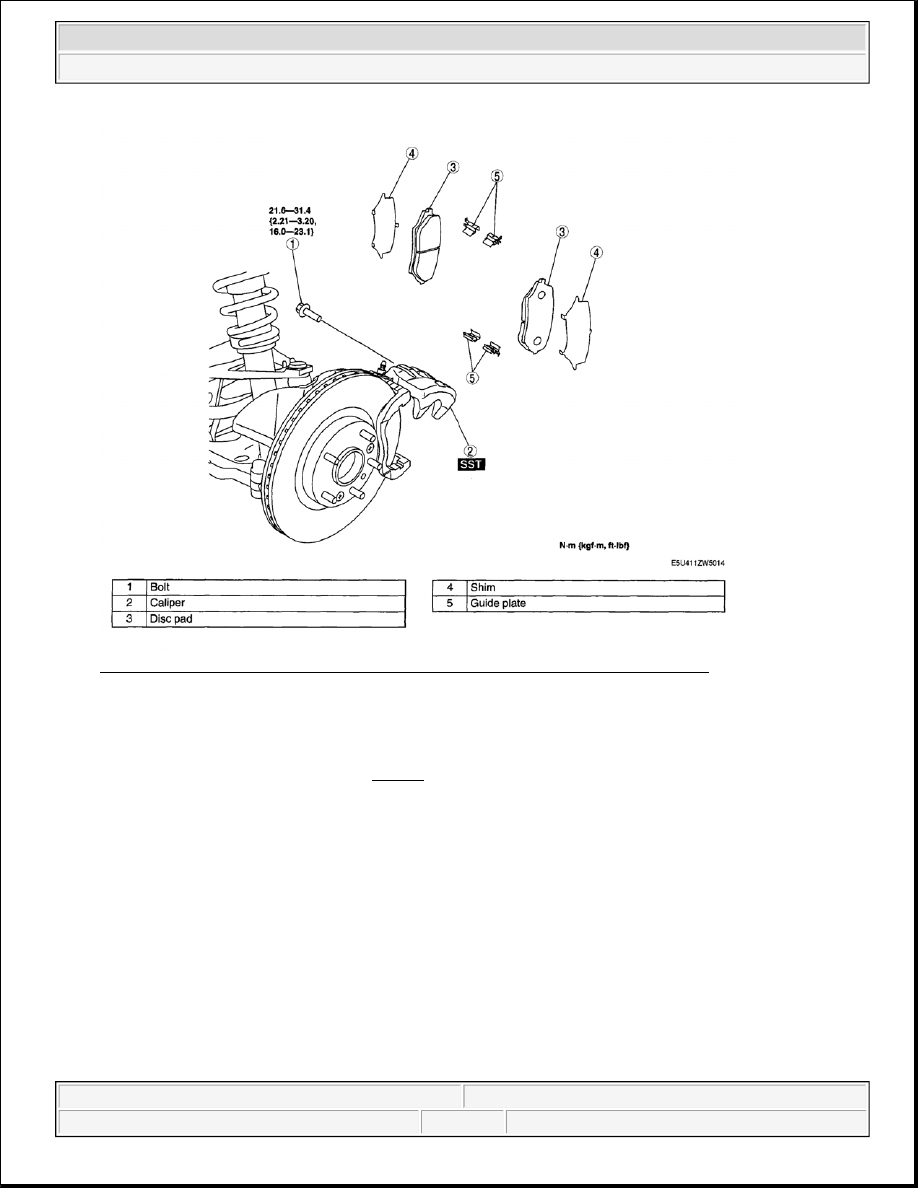

Fig. 36: Identifying Disc Pad Components (Front) (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

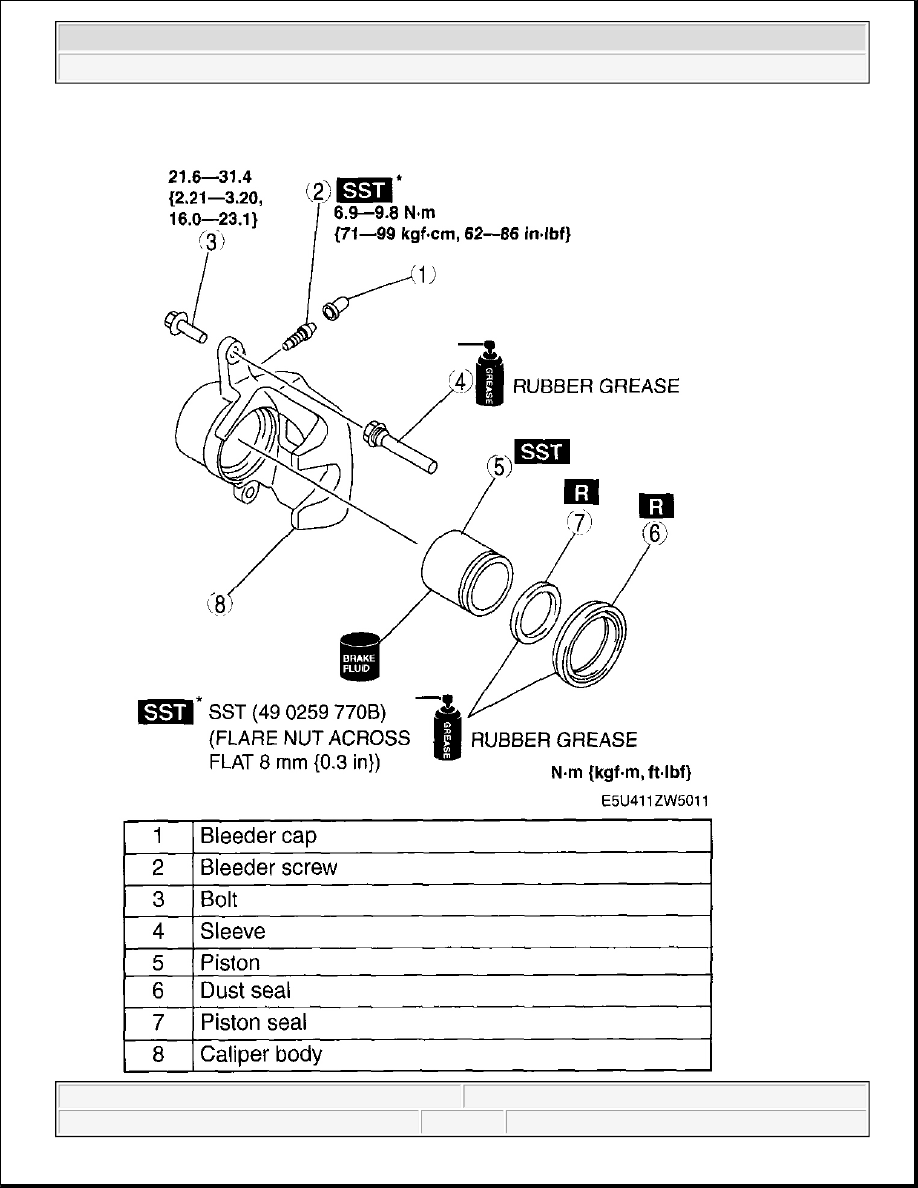

CALIPER (FRONT) DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in Fig. 37 .



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata





2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata
