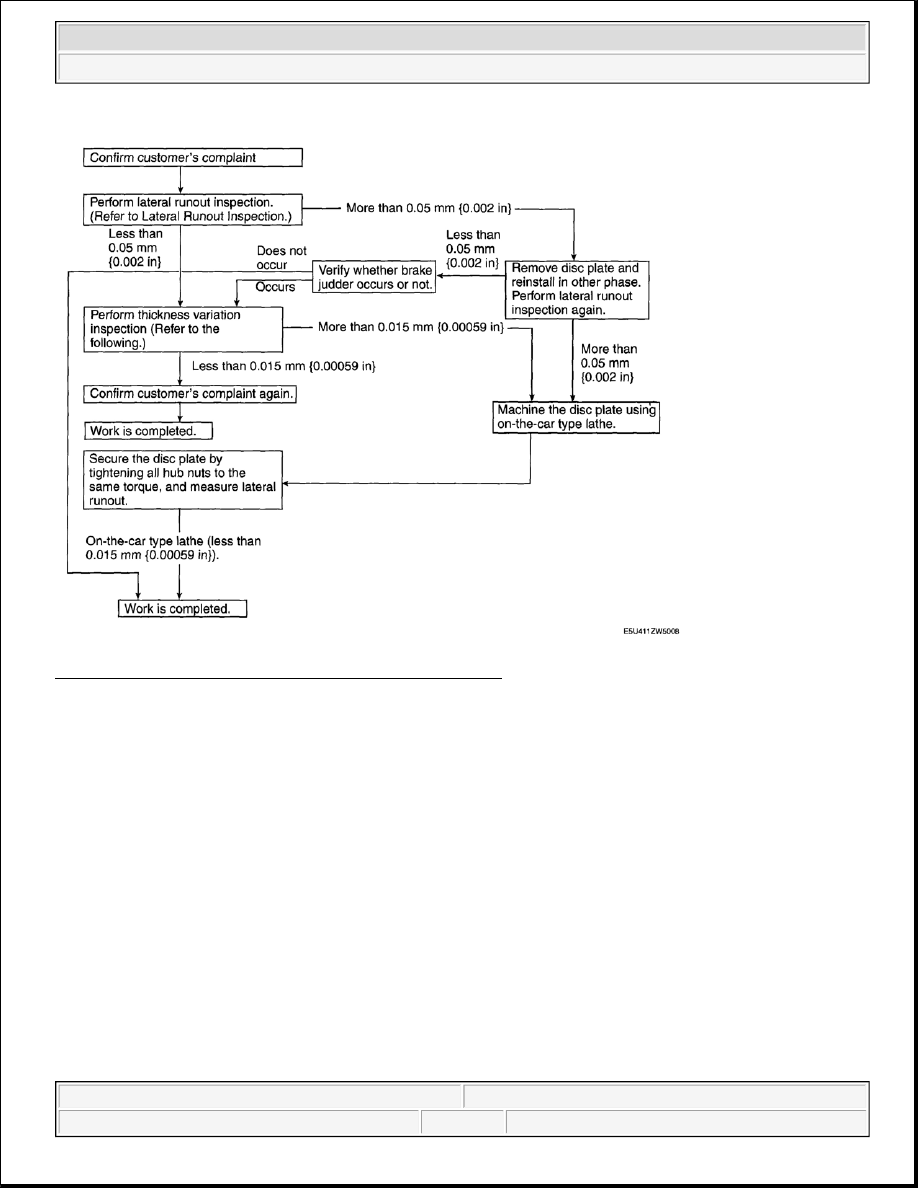

Fig. 30: Front Brake Inspection & Repair Flow Procedure
Courtesy of MAZDA MOTORS CORP.

Lateral Runout Inspection

1. To secure the disc plate and the hub, insert the washer (thickness 10 mm {0.39 in} , inner diameter more

than 12 mm {0.47 in} ) between each hub bolt and the hub nut, then tighten all the hub nuts.

2. After tightening all the hub nuts to the same torque, put the dial gauge on the friction surface of disc plate

10 mm {0.12-0.28 in} from the disc plate edge.

3. Rotate the disc plate one time and measure the runout.

Front disc plate runout limit

0.05 mm {0.002 in}

NOTE:



The component parts of the SST (49 B017 001 or 49 G019 003) can be
used as a suitable washer.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata

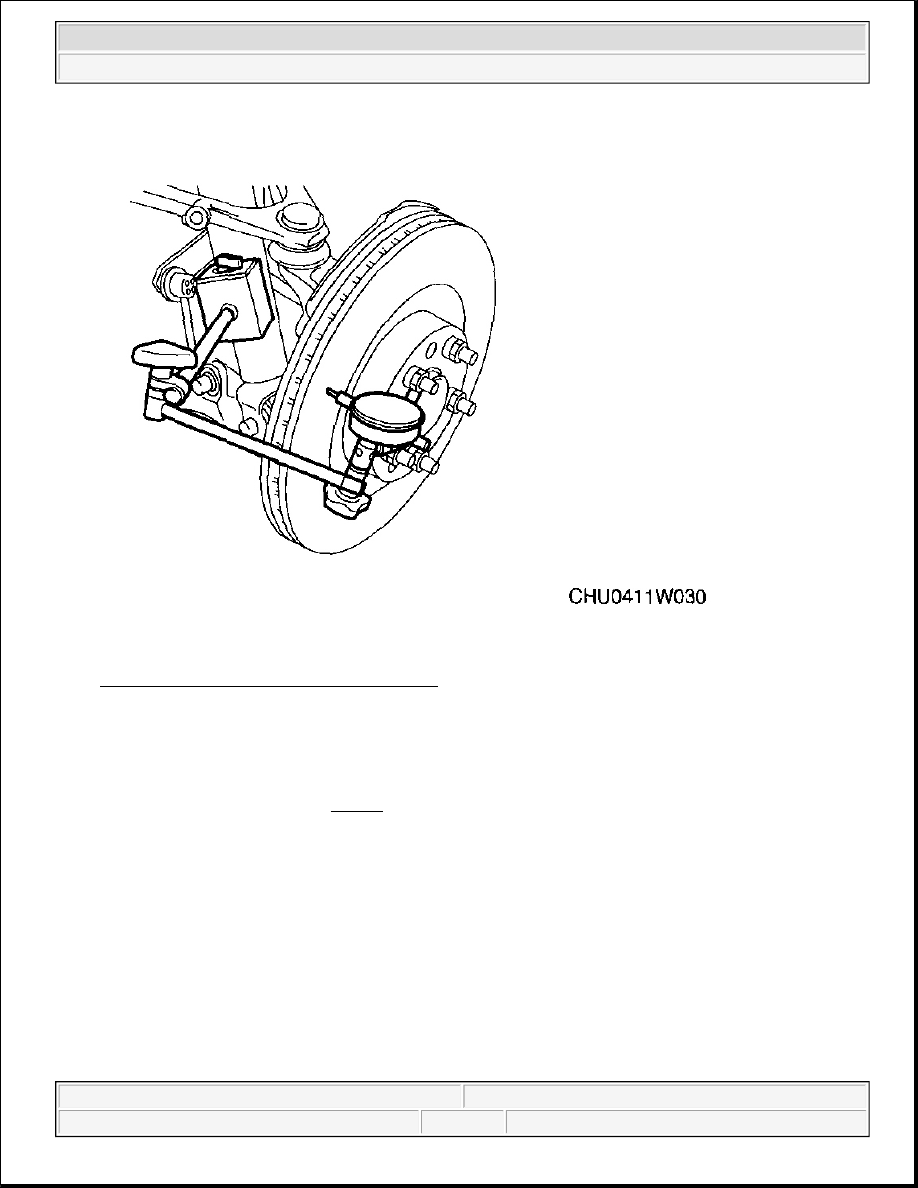

Fig. 31: Measuring Front Disc Plate Runout
Courtesy of MAZDA MOTORS CORP.

Thickness Variation Inspection

1. Clean the disc plate-to-pad friction surface using a brake cleaner.

2. Measure the points indicated in Fig. 32 using a caliper (micrometer).

3. Subtract the minimum value from the maximum, and if the result is not within specification, machine the

disc plate using a lathe.

Thickness variation limit

0.015 mm {0.00059 in}

WARNING:



Do not exceed minimum disc plate thickness.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



Fig. 32: Inspecting Disc Plate-To-Pad Friction Surface
Courtesy of MAZDA MOTORS CORP.

Disc Plate Thickness Inspection

1. Measure the thickness of the disc plate.



If the thickness is not within the specification, replace the disc plate.

Minimum front disc plate thickness

20 mm {0.79 in}

Minimum front disc plate thickness after machining using a brake lathe on-vehicle

20.8 mm {0.82 in}

Disc Pad Thickness Inspection

CAUTION:



Excessive runout may result if the disc plate is removed from the
vehicle then machined. Machine the disc plate while installed on the
vehicle.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



1. Jack up the front of the vehicle and support it with safety stands.

2. Remove the wheel and tires.

3. Verify the remaining thickness of the pads.

Minimum front disc pad thickness

2.0 mm {0.079 in} min.

4. Replace the pads as a set (right and left wheels) if either one is at or less than the minimum thickness.

Fig. 33: Inspecting Disc Pad Thickness
Courtesy of MAZDA MOTORS CORP.

FRONT BRAKE (DISC) REMOVAL/INSTALLATION

1. Remove in the order indicated in Fig. 34 .

2. Install in the reverse order of removal.

3. After installation, depress the brake pedal a few times, then verify that the brakes do not drag.
