Mazda MX-5 Miata / Grand Touring. Manual - part 29

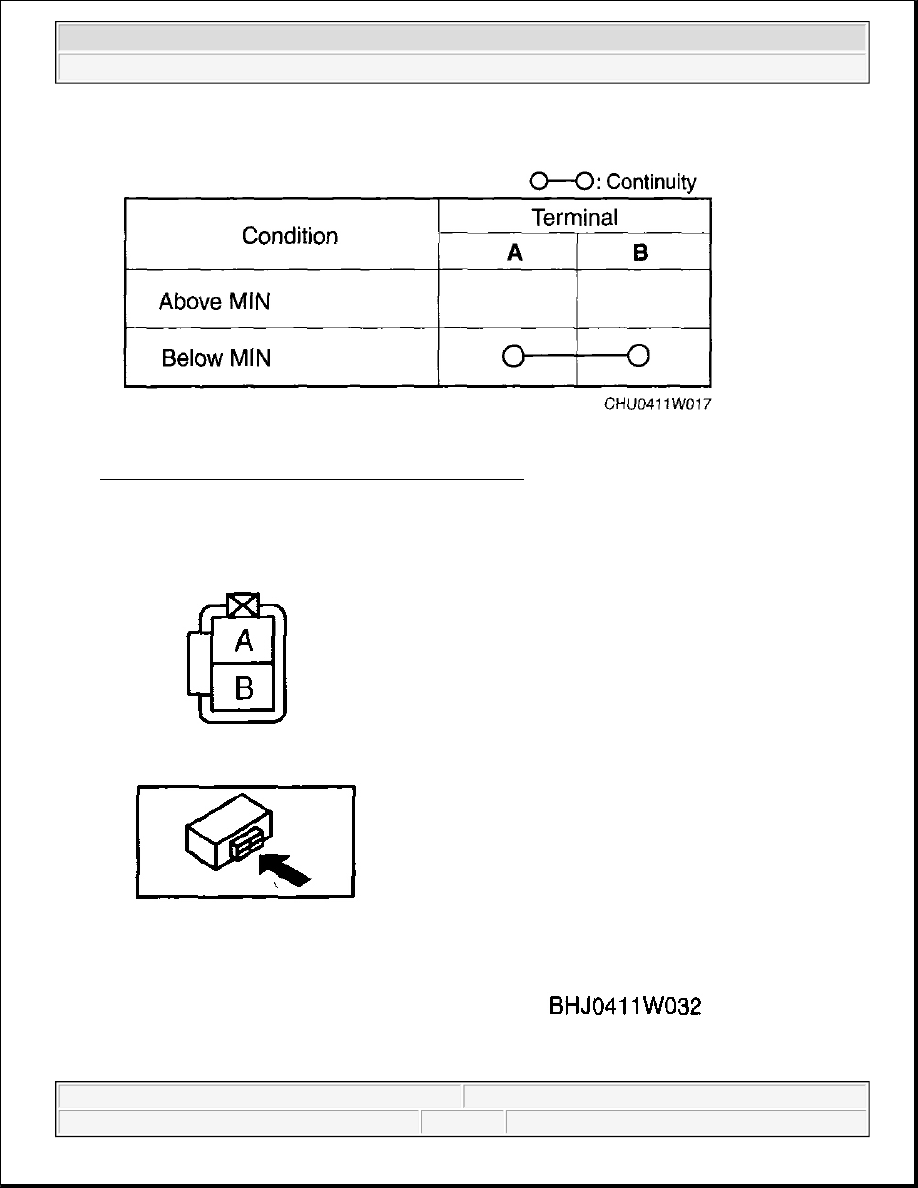

Fig. 16: Brake Fluid Sensor Terminal Continuity Table
Courtesy of MAZDA MOTORS CORP.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



Fig. 17: Identifying Brake Fluid Level Sensor Connector
Courtesy of MAZDA MOTORS CORP.

POWER BRAKE UNIT INSPECTION

WITHOUT USING SST

Operation Inspection

1. With the engine stopped, depress the pedal several times.

2. With the pedal depressed, start the engine.

3. If the pedal moves down slightly immediately after starting the engine, the unit is normal.

Vacuum Function Inspection

1. Start the engine.

2. After driving the vehicle for 1-2 min , stop the engine.

3. Depress the pedal with normal force.

4. If the first pedal stroke is long and becomes shorter with subsequent strokes, the unit is normal.



If a problem is found, inspect for damage to or improper installation of the check valve and vacuum
hose. After repairing, inspect again.

Vacuum Loss Function Inspection

1. Start the engine.

2. Depress the pedal with normal force.

3. With the pedal depressed, stop the engine.

4. Maintain the pedal depressed for approx. 30 s .

5. If the pedal height does not change during this time, the unit is normal.

USING SST

Pre-inspection Preparation

1. Install the SST (49 N043 001) in the orientation shown in Fig. 18 , (with DSC)

NOTE:



The following inspection methods are simple inspection methods to judge
the function of the power brake unit.



If there is any malfunction in the power brake unit, replace the power brake
unit as a single unit.

NOTE:



Install the SST (49 N043 001) to the master cylinder using a
commercially available flare nut wrench.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



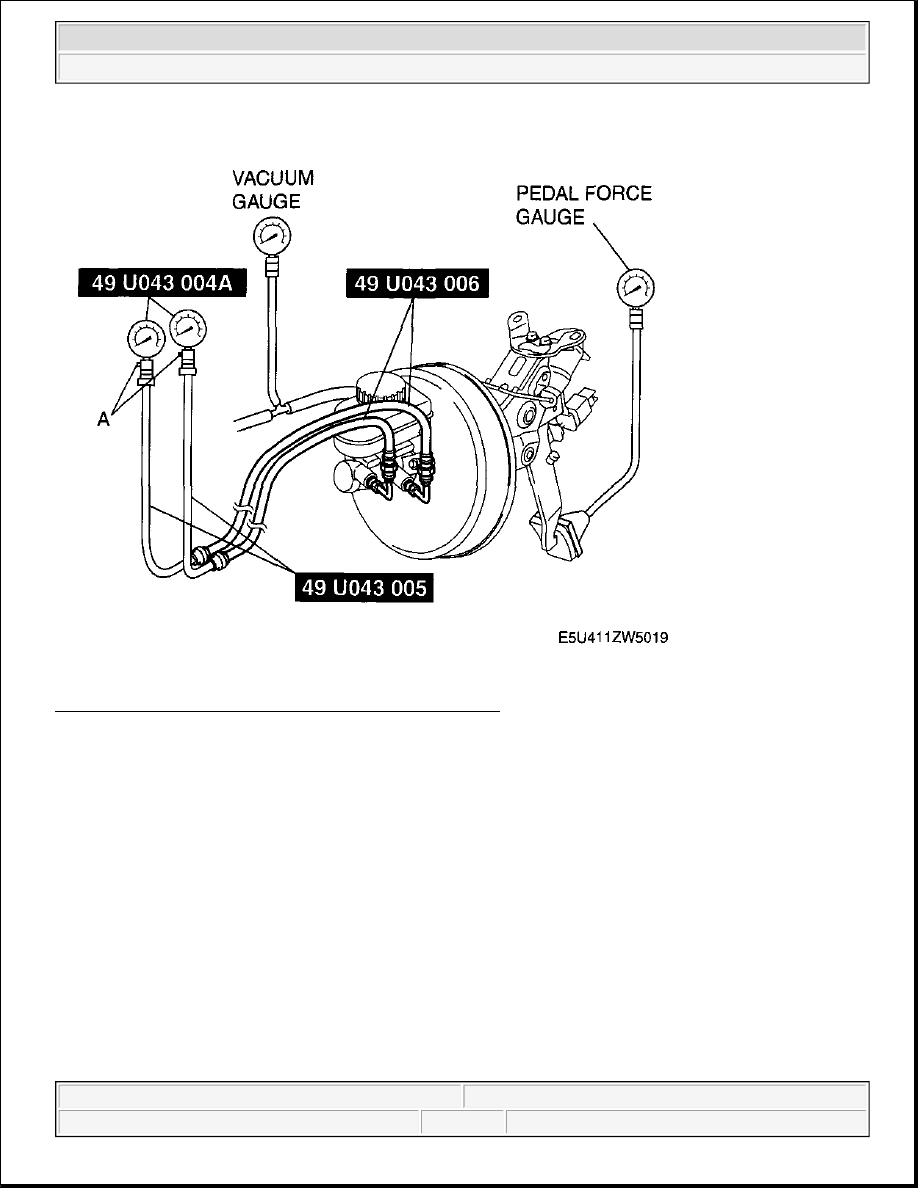

2. Connect the SSTs , a vacuum gauge and a pedal force gauge to the master cylinder and bleed the air from

the SSTs and the brake line. (Bleed the air from the SSTs through air bleeding valve A.)

Fig. 18: Installing SST (49 N043 001)
Courtesy of MAZDA MOTORS CORP.

WITHOUT DSC



Flare nut across flat: 12 mm {0.47 in}



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



Fig. 19: Inspecting Vacuum Loss Function - Without DSC
Courtesy of MAZDA MOTORS CORP.

WITH DSC



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata
