Mazda MX-5 Miata / Grand Touring. Manual - part 27

1. Move the power brake unit to the vehicle front where the power brake unit fork does not interfere with

the brake pedal arm.

2. Remove the brake pedal.

BRAKE SWITCH INSTALLATION NOTE

1. Install the new brake switch to the brake pedal (MT) or the interlock cable (AT), and secure it by turning

it clockwise 45° (AT) or counterclockwise 45° (MT).

Fig. 8: Identifying Brake Switch Installing Angle
Courtesy of MAZDA MOTORS CORP.

BRAKE SWITCH CONNECTOR INSTALLATION NOTE

1. Inspect the brake pedal. (See BRAKE PEDAL INSPECTION .)

2. With the brake pedal in its original position, install the brake switch to the brake switch connector.

BRAKE SWITCH INSPECTION

CAUTION:



If the brake switch is removed from the brake pedal or the interlock
unit, its proper functioning cannot be guaranteed when reinstalled.
Therefore, inspect the brake switch with it still installed, or replace



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



1. Verify continuity as indicated in Fig. 9 .



If not as indicated in Fig. 9 replace the brake switch.

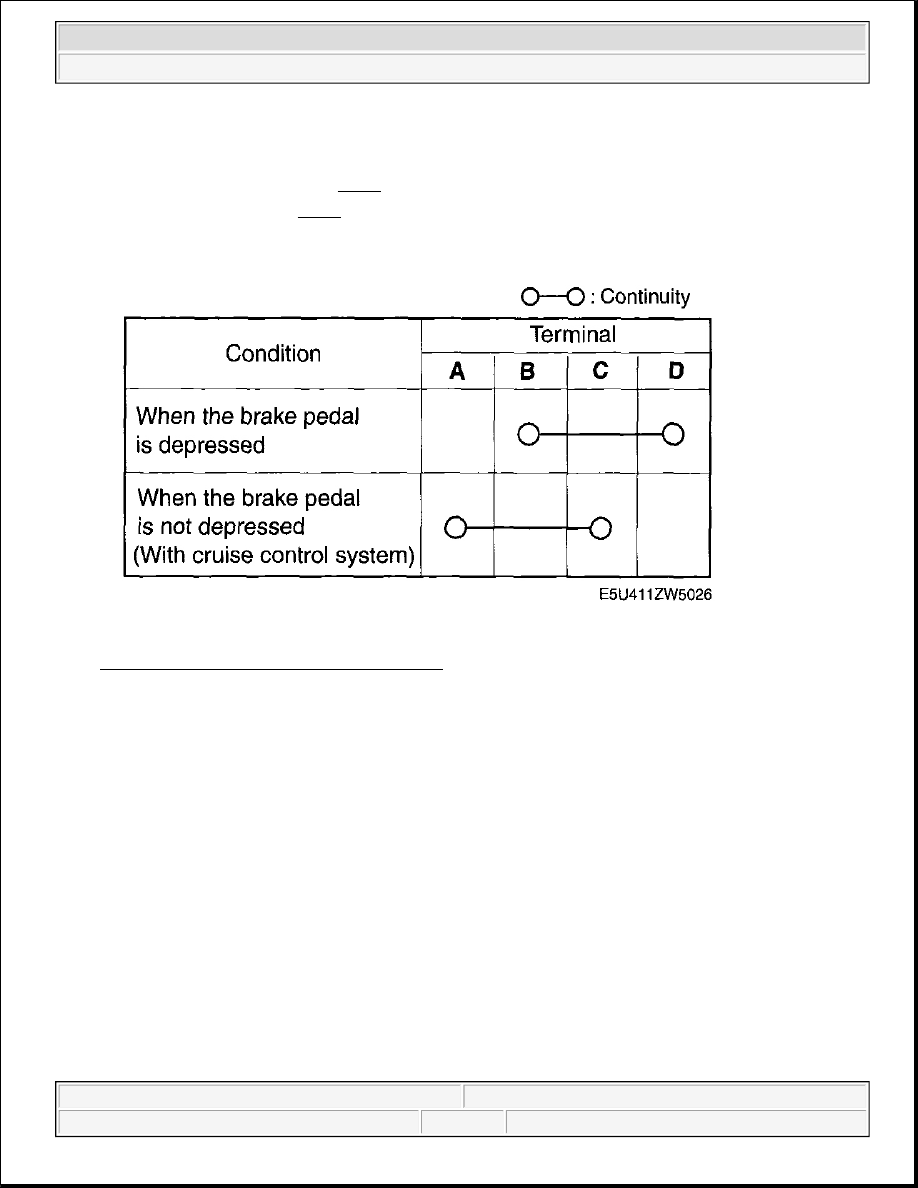

Fig. 9: Terminal Continuity Reference Table
Courtesy of MAZDA MOTORS CORP.

the brake switch if it is removed.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



Fig. 10: Identifying Brake Switch Connector
Courtesy of MAZDA MOTORS CORP.

MASTER CYLINDER REMOVAL/INSTALLATION

1. Remove in the order indicated in Fig. 11 .

2. Install in the reverse order of removal.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata



Fig. 11: Identifying Master Cylinder Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

MASTER CYLINDER INSTALLATION NOTE

1. Install the SST to the power brake unit and tighten to the specified torque.

Tightening torque

13.7-21.6 N.m {1.4-2.2 kgf.m, 10.2-15.9 ft.lbf}

CAUTION:



If the master cylinder is installed at an angle, the master cylinder
piston may push against the push rod retainer of the power brake
unit causing poor air bleeding, brake drag, or other malfunctions. Be
sure to install the master cylinder at a perpendicular angle to the
power brake unit.



2008 Mazda MX-5 Miata Grand Touring

2008 BRAKES Conventional Brake System - MX-5 Miata
