Mazda MX-5 Miata (1997+). Manual - part 83





MAIN FUSE BLOCK IDENTIFICATION

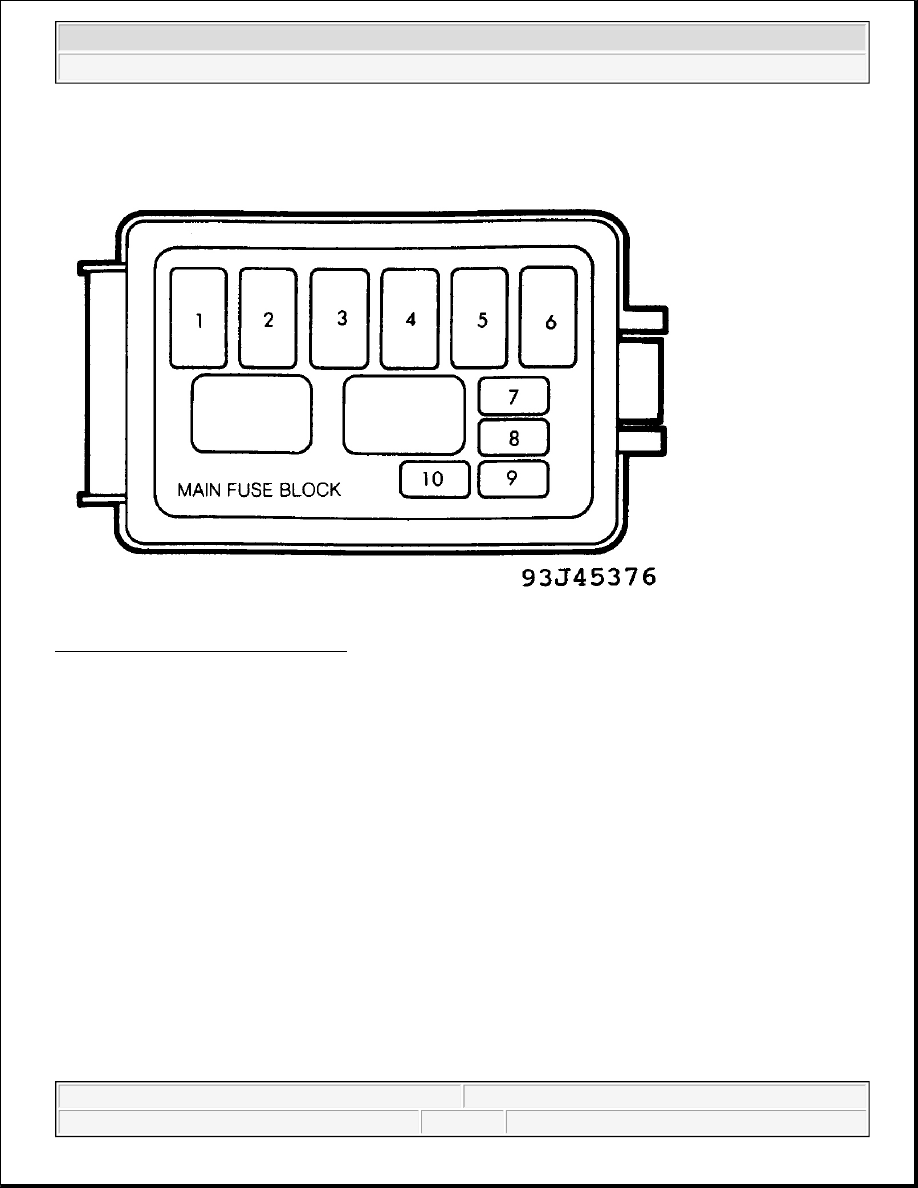

Fig. 3: Main Fuse Block Identification
Courtesy of MAZDA MOTOR OF AMERICA, INC.

Fuse & Circuit Breaker Identification

1 - 30 Amp (Pink) Headlights

2 - 30 Amp (Pink) Fuel Injection, Alternator

3 - 80 Amp (Black) Protection Of All Circuits

4 - 40 Amp (Green) Refer to HAZARD (15A), STOP (15A), ROOM (10A), TAIL (15A)

5 - 30 Amp (Pink) Anti-Lock Brake System

6 - 30 Amp (Pink) Cooling Fan

7 - Empty

8 - 20 Amp (Yellow) A/C Additional Fan

9 - 10 Amp (Red) Fuel Injection

10 - 30 Amp (Green) Headlight Retractor

WARNING:

Always disconnect battery ground cable before servicing "high-current
fuses. It is recommended that "high-current" fuses be replaced by a
qualified technician.



1997 Mazda MX-5 Miata

MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information



TRUNK MOUNTED FUSE PANEL IDENTIFICATION

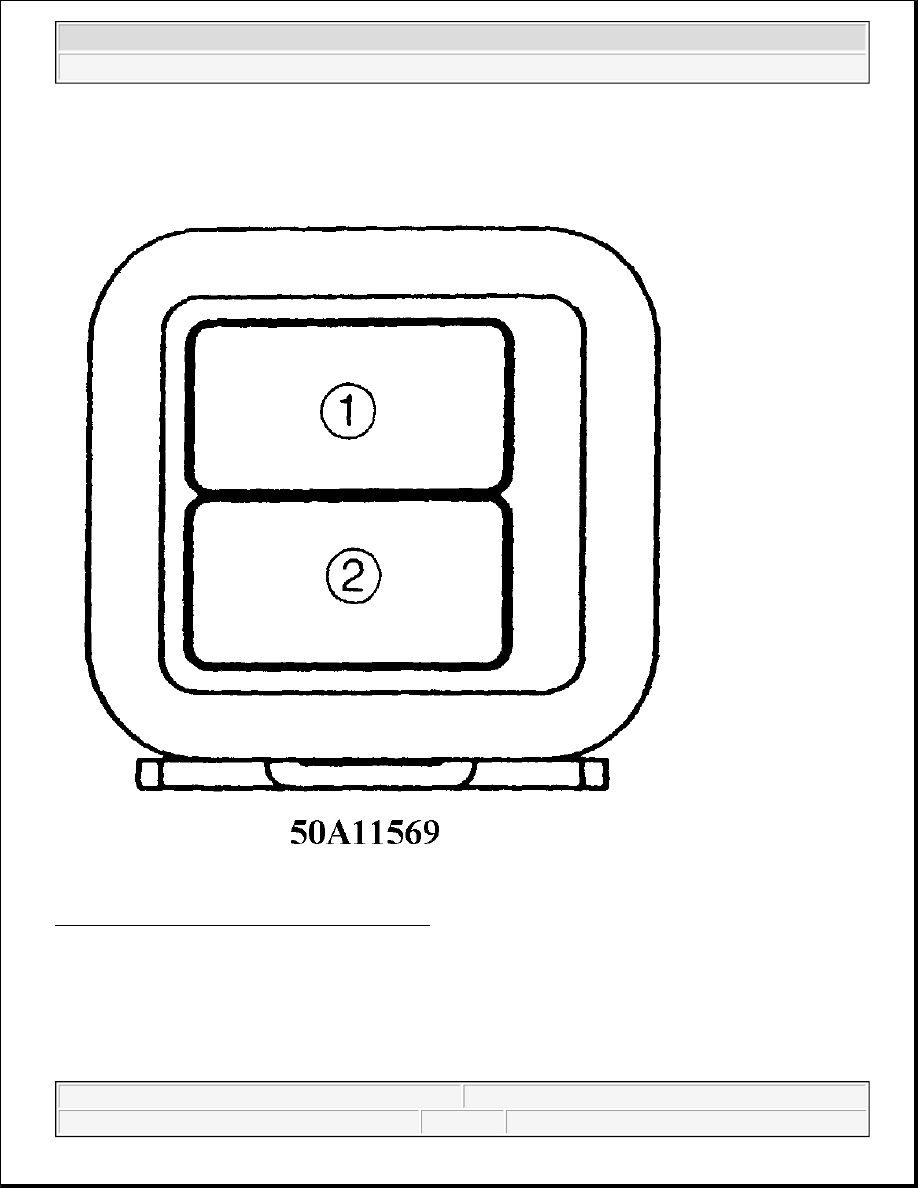

Fig. 4: Trunk Mounted Fuse Panel Identification
Courtesy of MAZDA MOTOR OF AMERICA, INC.

Fuse & Circuit Breaker Identification

1 - 10 Amp (Red) Rear Defroster

2 - 10 Amp (Red) Auto Antenna



1997 Mazda MX-5 Miata

MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information



INTERIOR FUSE PANEL IDENTIFICATION

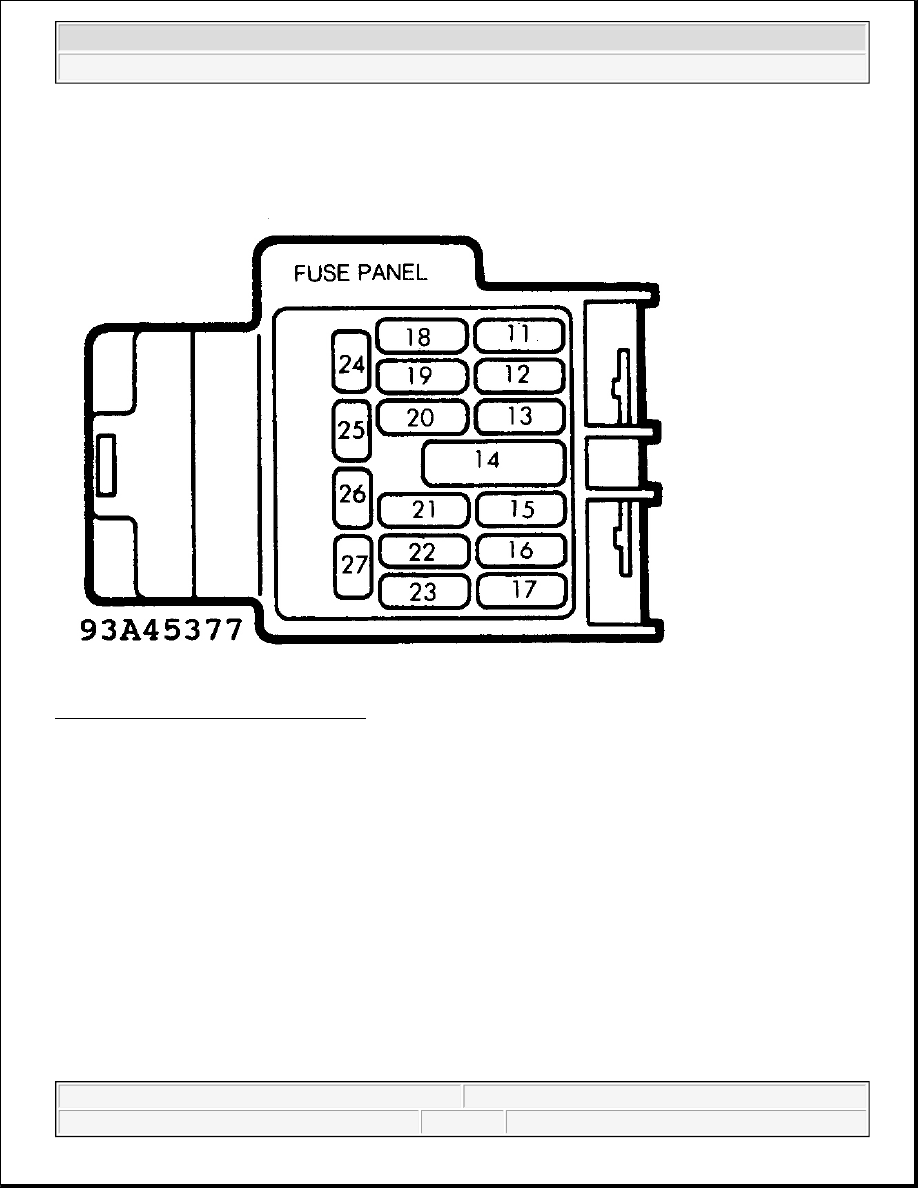

Fig. 5: Interior Fuse Panel Identification
Courtesy of MAZDA MOTOR OF AMERICA, INC.

Fuse & Circuit Breaker Identification

1 - 10 Amp (Red) Interior Light, Warning Buzzers, Radio/Cassette and Compact Disc Player and Clock

2 - Empty

3 - Empty

4 - 15 Amp (Blue) Tail Lights

5 - 15 Amp (Blue) Shift Lock, Cruise Control, Horn, Brakelights

6 - 15 Amp (Blue) Hazard Warning Lights

7 - Empty

8 - Empty

9 - 15 Amp (Blue) Radio/Cassette and Compact Disc Player and Clock, Cigarette Lighter

10 - Empty

11 - 20 Amp (Yellow) Wipers, Washer



1997 Mazda MX-5 Miata

MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information



12 - 30 Amp (Green) Power Windows

13 - Empty

14 - Empty 15 - 15 Amp (Blue) Gauges, Warning Lights, Turn-Signal Lights, Cruise Control

16 - 15 Amp (Blue) Cooling Fan

17 - 30 Amp (Pink) Heater

18 - Empty

19 - Empty

20 - 10 Amp Defog (Some Models)

21 - 10 Amp Antenna (Some Models)

22 - Empty



1997 Mazda MX-5 Miata

MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information
