MAINTENANCE INFORMATION

1997 MAINTENANCE Mazda Maintenance Information

MODEL IDENTIFICATION

VIN LOCATION

The Vehicle Identification Number (VIN) is located on the left side of the dash panel at the base of the
windshield. The VIN chart explains the code characters.

VIN CODE ID EXPLANATION

Numbers preceding the explanations in the legend below refer to the sequence of characters as listed on VIN
identification label. See VIN example below.

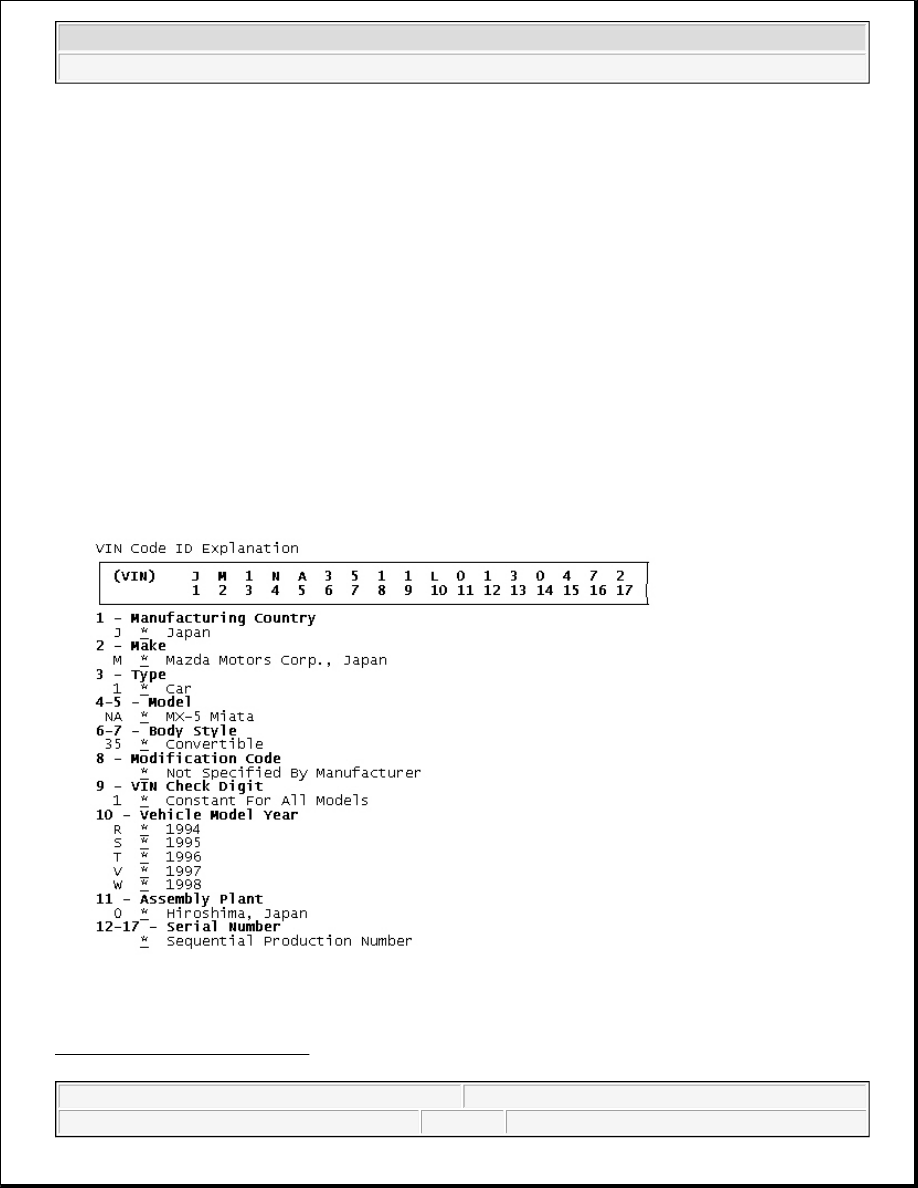

Fig. 1: VIN Code ID Explanation



1997 Mazda MX-5 Miata

MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information





1997 Mazda MX-5 Miata

MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information



MAINTENANCE SERVICE INFORMATION

SEVERE & NORMAL SERVICE DEFINITIONS

Service is recommended at mileage intervals based on vehicle operation. Service schedules are based on
following primary operating conditions:

Normal Service



Driven More Than 10 Miles Daily



No Operating Conditions From Severe Service Schedule

Severe Service (Unique Driving Conditions)



Repeated Short Distance Driving



Dusty Conditions



Extended Use Of Brakes



Salt Or Other Corrosive Materials On The Roads



Rough Or Muddy Roads



Extended Idling Or Low Speed Operation



Extended Operation In Extreme Temperatures

CAMSHAFT TIMING BELT

Replace camshaft timing belt at 60,000 mile intervals.

The condition of camshaft drive belts should always be checked on vehicles which have more than 50,000
miles. Although some manufacturers do not recommend belt replacement at a specified mileage, others require
it at 60,000-100,000 miles. A camshaft drive belt failure may cause extensive damage to internal engine
components on most engines, although some designs do not allow piston-to-valve contact. These designs are
often called "Free Wheeling".

Many manufacturers changed their maintenance and warranty schedules in the mid-1980's to reflect timing belt
inspection and/or replacement at 50,000-60,000 miles. Most service interval schedules in this manual reflect
these changes.

Belts or components should be inspected and replaced if any of the following conditions exist:

NOTE:

Use the Severe Service schedule if the vehicle to be serviced is operated under
ANY (one or more) of these conditions:

CAUTION: Failure to replace a faulty camshaft timing belt may result in serious

engine damage.



1997 Mazda MX-5 Miata

MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information





Cracks Or Tears In Belt Surface



Missing, Damaged, Cracked Or Rounded Teeth



Oil Contamination



Damaged Or Faulty Tensioners



Incorrect Tension Adjustment

SERVICE POINT LOCATIONS

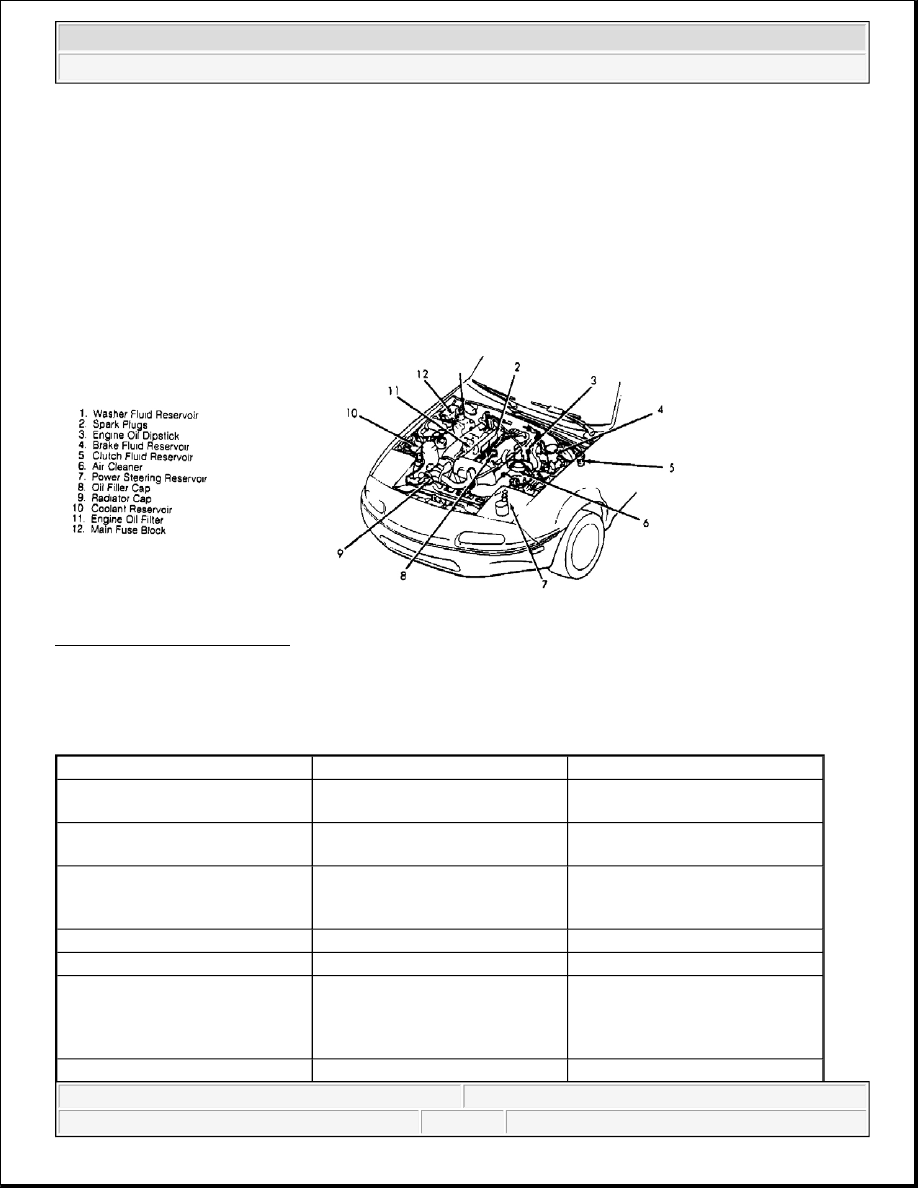

Fig. 2: Service Point Locations
Courtesy of MAZDA MOTOR OF AMERICA, INC.

LUBRICATION SPECIFICATIONS

LUBRICATION SPECIFICATIONS

Material

Condition

Specification

Engine Oil

(1)



Ambient Temperature Above -10°

F (-23°C) To Over 100°F (38°C)

SAE 10W-30

Engine Oil

(1)



Ambient Temperature Less Than -

10°F (-23°C) To 60°F (16°C)

SAE 5W-30

Engine Coolant

Above 3°F (-16°C) Above -15°F

(-26°C) Above -40°F (-40°C)

35/65 Mixture 45/55 Mixture

55/45 Mixture Distilled Water

Ethylene Glycol

Brake Fluid

All

DOT 3

Automatic Transaxle Fluid

All

ATF M-III or DEXRON II

Manual Transaxle Fluid

All

Hypoid Gear Oil API

Classification GL-4 or GL-5 SAE

75W-90 Above 50°F (10°C):

80W-90

A/C Refrigerant

All

R-134a



1997 Mazda MX-5 Miata

MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information



FLUID CAPACITIES

FLUID CAPACITIES

WHEEL & TIRE SPECIFICATIONS

WHEEL TIGHTENING

Tighten wheel lug nuts to 65-87 ft. lbs. (88-118 N.m).

BATTERY SPECIFICATIONS

Vehicle is equipped with a special 9 9/16" x 4 3/4" x 7 3/8" 12-volt battery that is vented to outside of vehicle.

CAUTIONS & WARNINGS

SUPPLEMENTAL RESTRAINT SYSTEM (AIR BAG)

Modifications or improper maintenance, including incorrect removal and installation of the Supplemental
Restraint System (SRS), can adversely affect system performance. DO NOT cover, obstruct or change the
steering wheel horn pad in any way, as such action could cause improper function of the system. Use only plain

(1)

Energy conserving oils are recommended, API classification SG", "SH".

Item

Condition

Specification

(1)

Engine Oil

Drained, With Filter

4.0 Qts. (3.8L)

Engine Oil

Drained

3.8 Qts. (3.6L)

Engine Coolant

Drained

6.3 Qts. (6.0L)

Automatic Transaxle Fluid

Capacity

7.1 Qts. (6.7L)

Manual Transaxle Fluid

Capacity

2.1 Qts. (2.0L)

Rear Axle Oil

Capacity

1.1 Qts. (l.0L)

A/C Refrigerant

Evacuated

1 lb. 3.4 oz. (0.6kg)

Fuel Tank

Capacity

12.6 Gal. (48.0L)

(1)

Capacities are recommended or calculated levels. Always use dipstick (if available) to measure level.

CAUTION: When battery is disconnected, vehicles equipped with computers may

lose memory data. When battery power is restored, driveability problems
may exist on some vehicles. These vehicles may require a relearn
procedure. See COMPUTER RELEARN PROCEDURES article in the
GENERAL INFORMATION Section.

NOTE:

See the AIR BAG RESTRAINT SYSTEM article in the ACCESSORIES/SAFETY
EQUIPMENT Section.



1997 Mazda MX-5 Miata

MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information
