Mazda MX-5 Miata (1997+). Manual - part 66

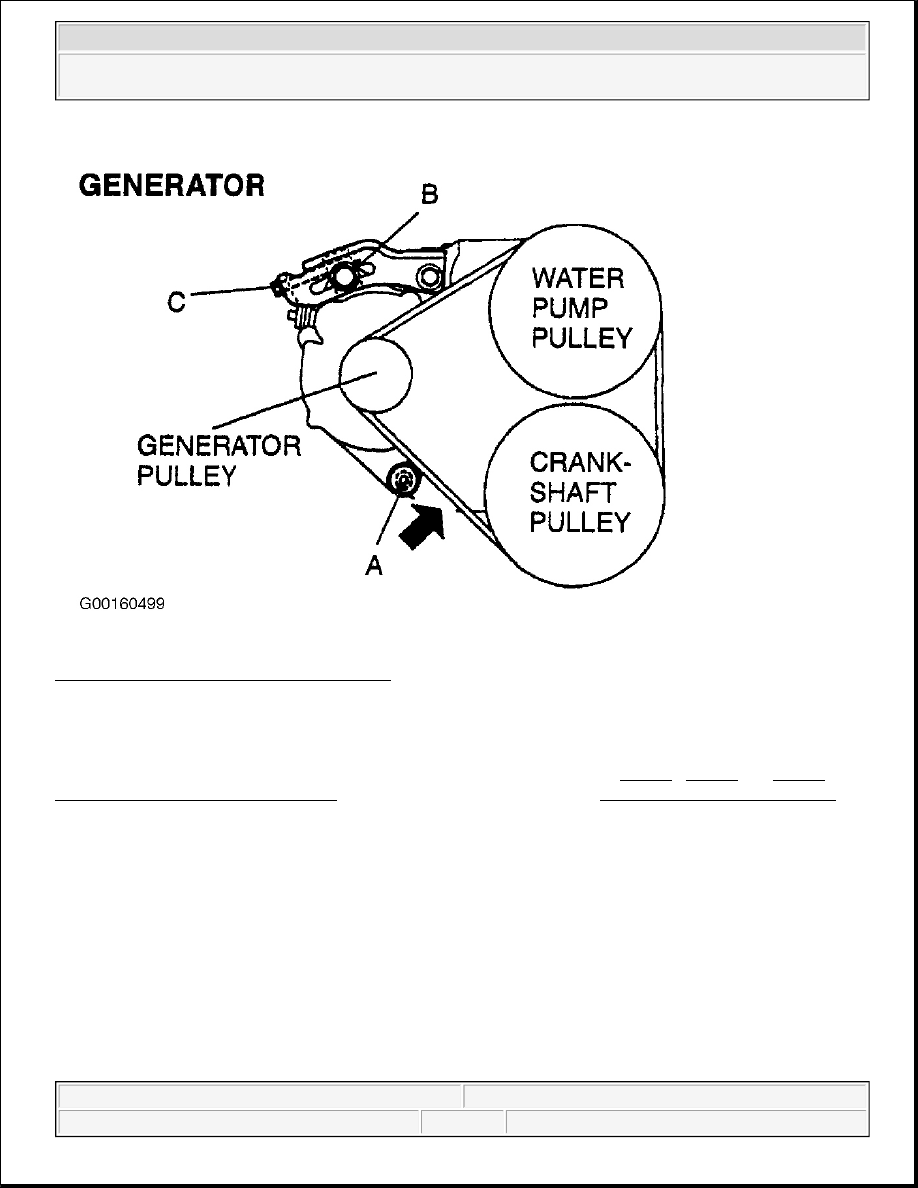

Fig. 12: Adjusting Alternator Belt (Protege)
Courtesy of MAZDA MOTORS CORP.

Power Steering Pump

Loosen nuts and bolts and adjust belt deflection by turning adjusting bolt. See Fig. 13 , Fig. 14 and Fig. 28 . See
ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege

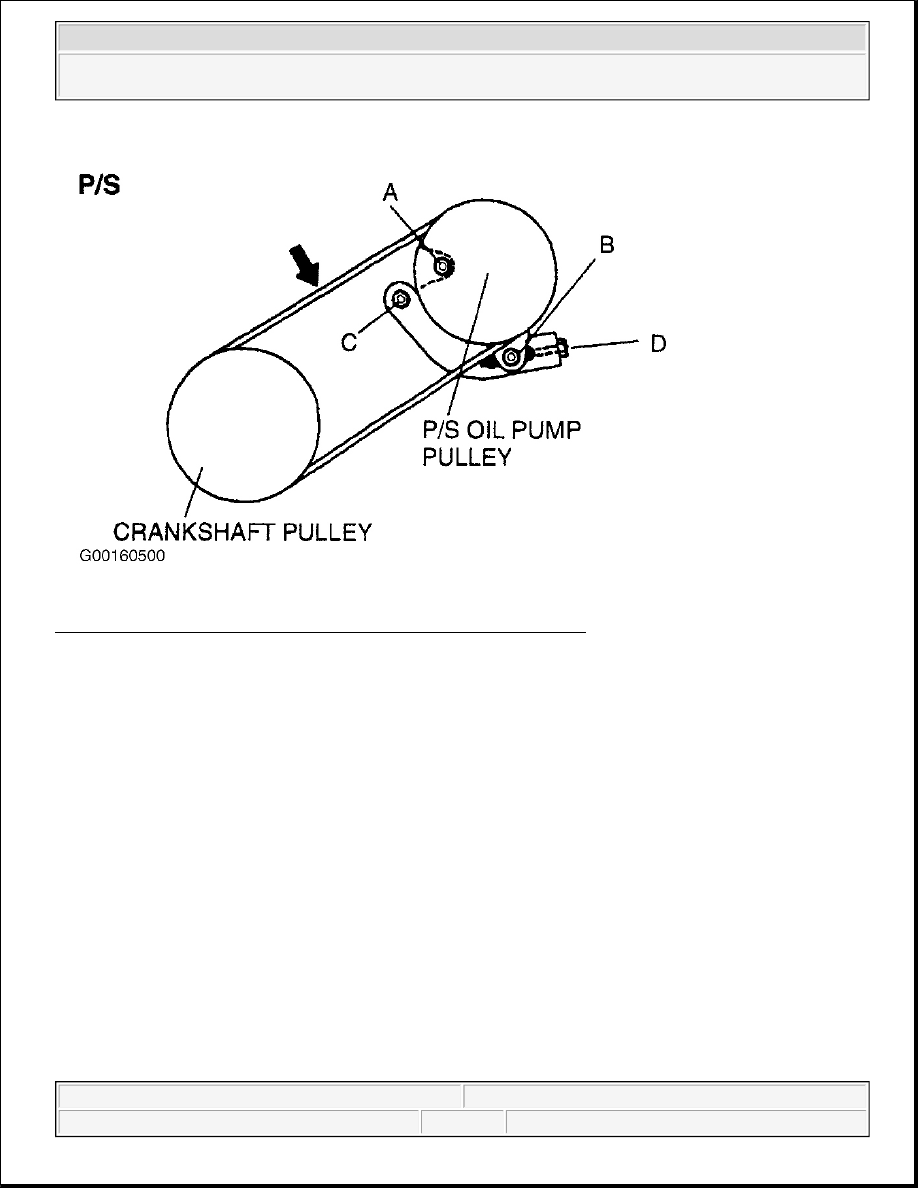

Fig. 13: Adjusting Power Steering Pump Belt (Without A/C, Protege)
Courtesy of MAZDA MOTORS CORP.



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege

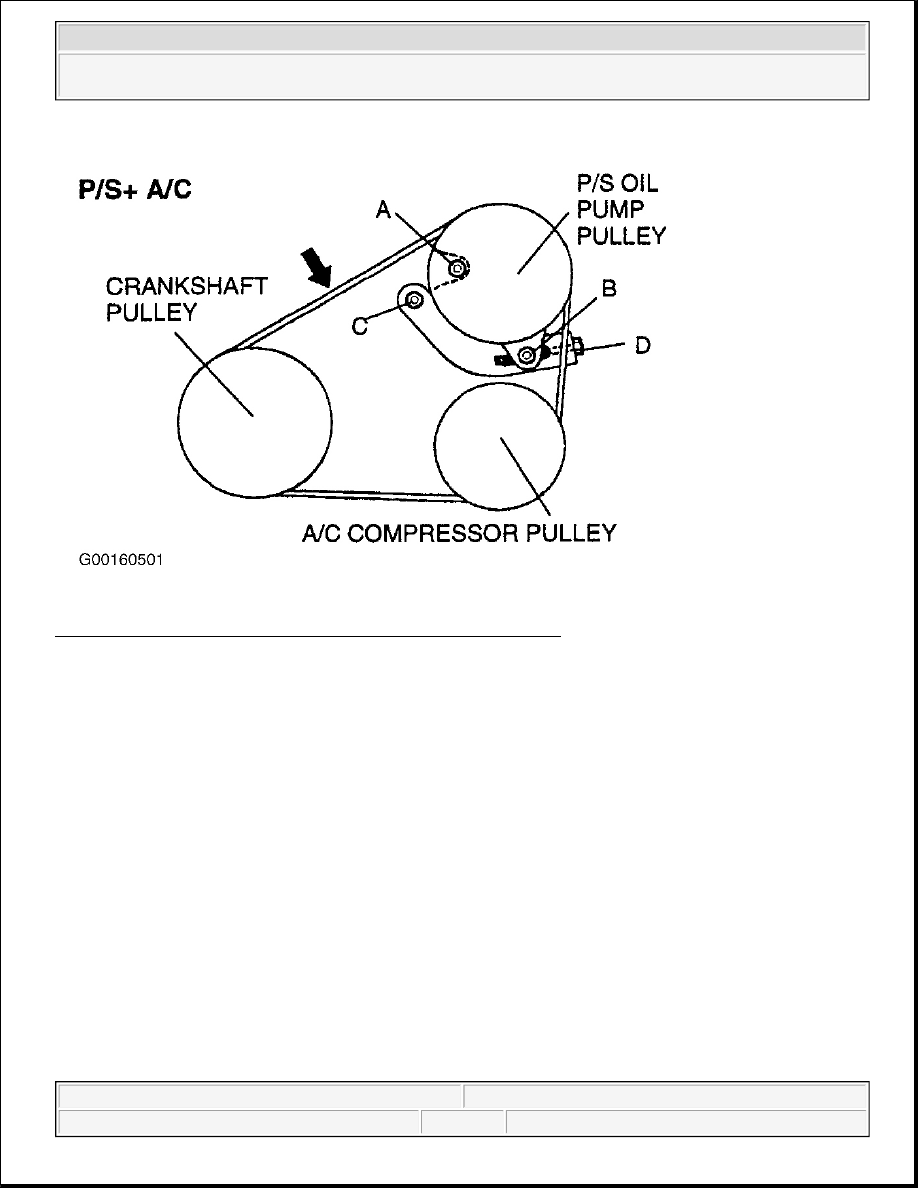

Fig. 14: Adjusting Power Steering Pump Belt (With A/C, Protege)
Courtesy of MAZDA MOTORS CORP.

DRIVE BELT ROUTING



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege

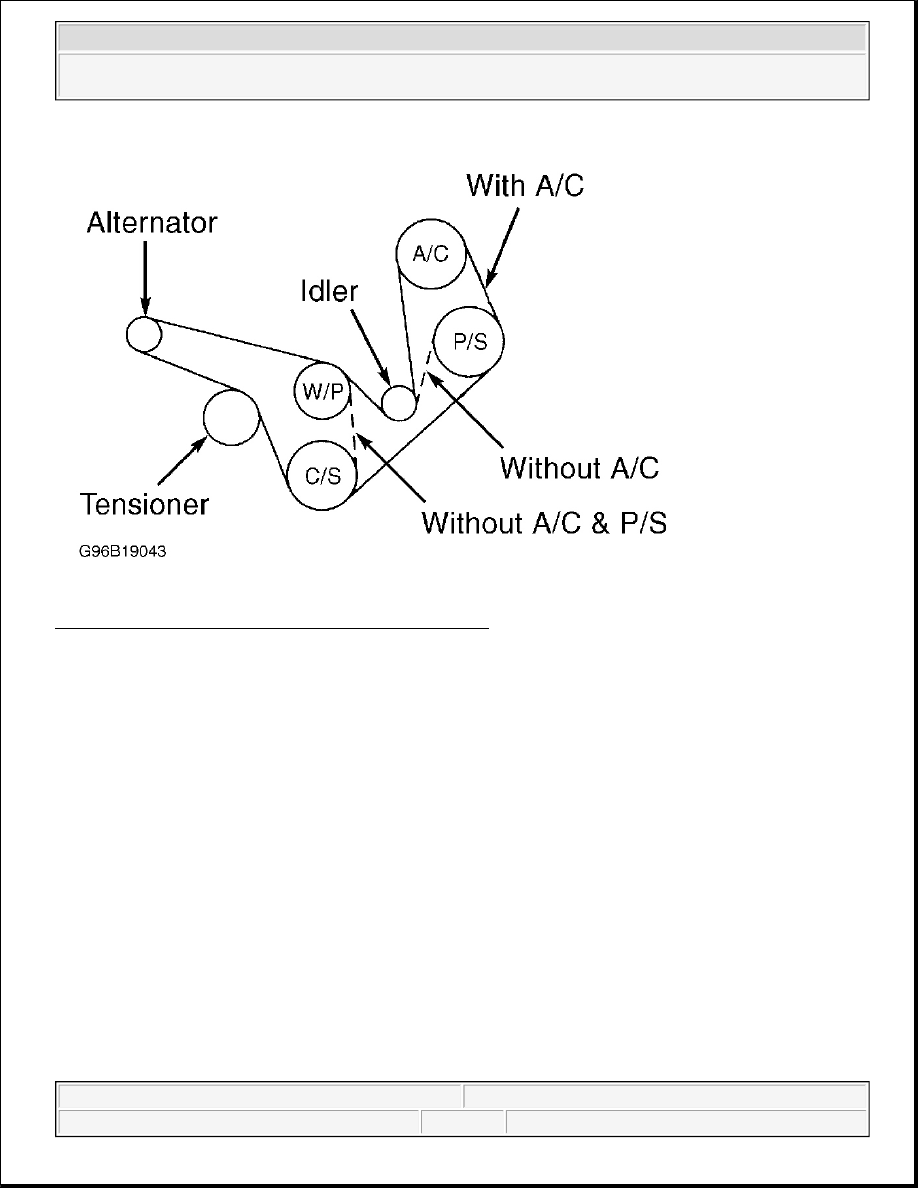

Fig. 15: Identifying Drive Belt Routing (B2300 & B2500)
Courtesy of FORD MOTOR CO.



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege
