Fig. 4: Adjusting Alternator Belt (Millenia, 2.5L)
Courtesy of MAZDA MOTORS CORP.

Power Steering Pump (2.5L)

Loosen idler pulley locknut and adjust belt deflection by turning adjusting bolt. See Fig. 5 and Fig. 20 . See
ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege



Fig. 5: Adjusting Power Steering Pump Belt (Millenia, 2.5L)
Courtesy of MAZDA MOTORS CORP.

MPV

Alternator

Loosen alternator bolts and adjust belt deflection by levering generator outward and applying tension. See Fig.
6 and Fig. 21 . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE
SPECIFICATIONS .

NOTE:

If a new belt is used, adjust belt deflection at midpoint of new belt specification.



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege

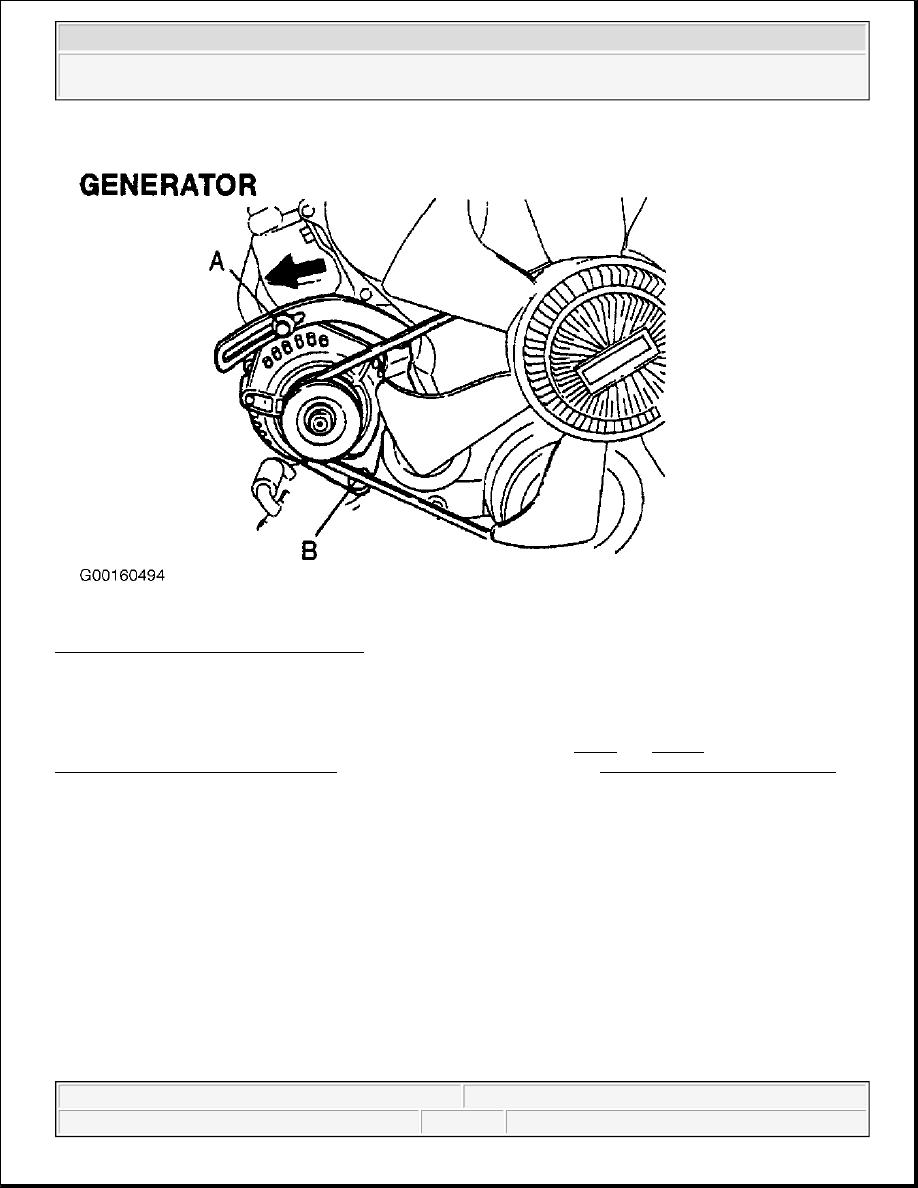

Fig. 6: Adjusting Alternator Belt (MPV)
Courtesy of MAZDA MOTORS CORP.

A/C Compressor

Loosen locknut and adjust belt deflection by turning adjusting bolt. See Fig. 7 and Fig. 23 . See
ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege

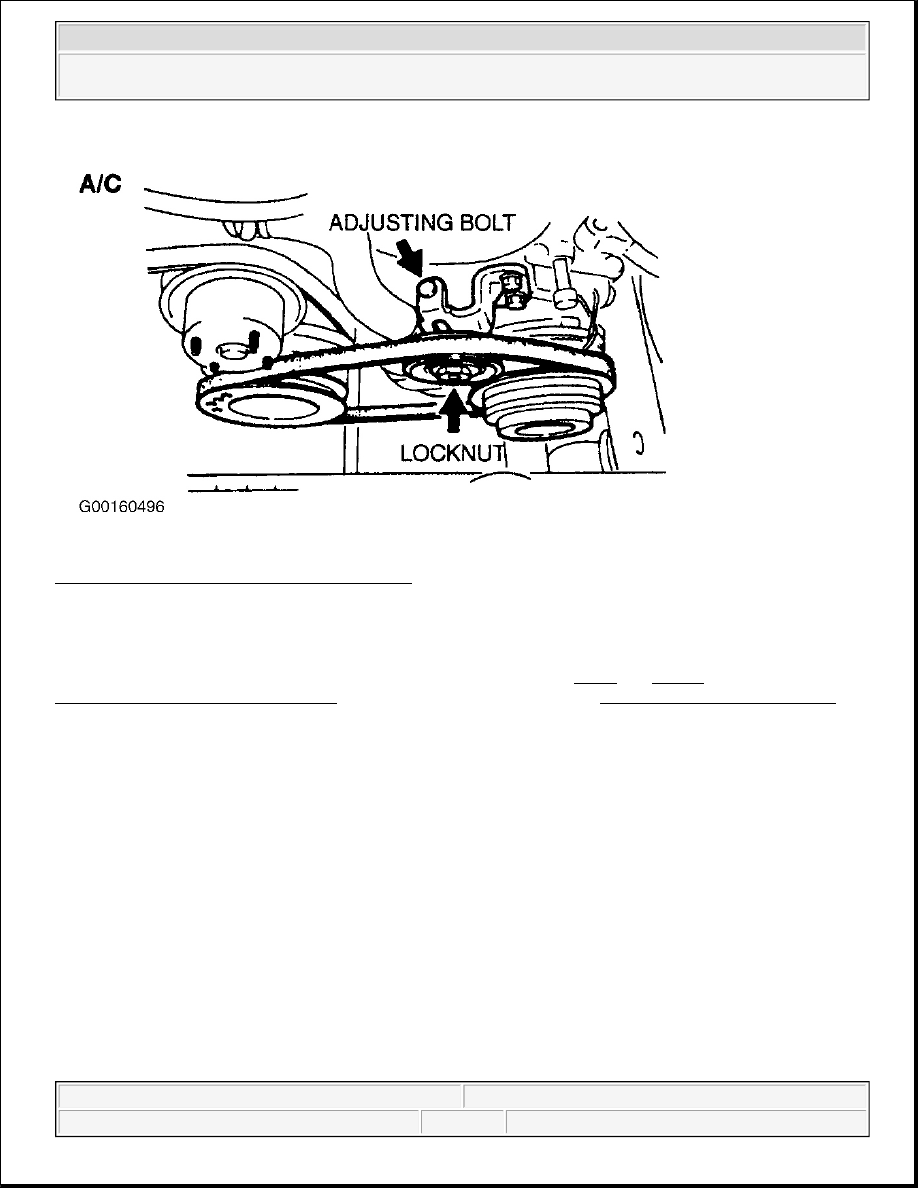

Fig. 7: Adjusting A/C Compressor Belt (MPV)
Courtesy of MAZDA MOTORS CORP.

Power Steering Pump

Loosen locknut and adjust belt deflection by turning adjusting bolt. See Fig. 8 and Fig. 22 . See
ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .



1997 Mazda MX-5 Miata

1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5

Miata & Protege
