Mazda MX-5 Miata (1997+). Manual - part 42

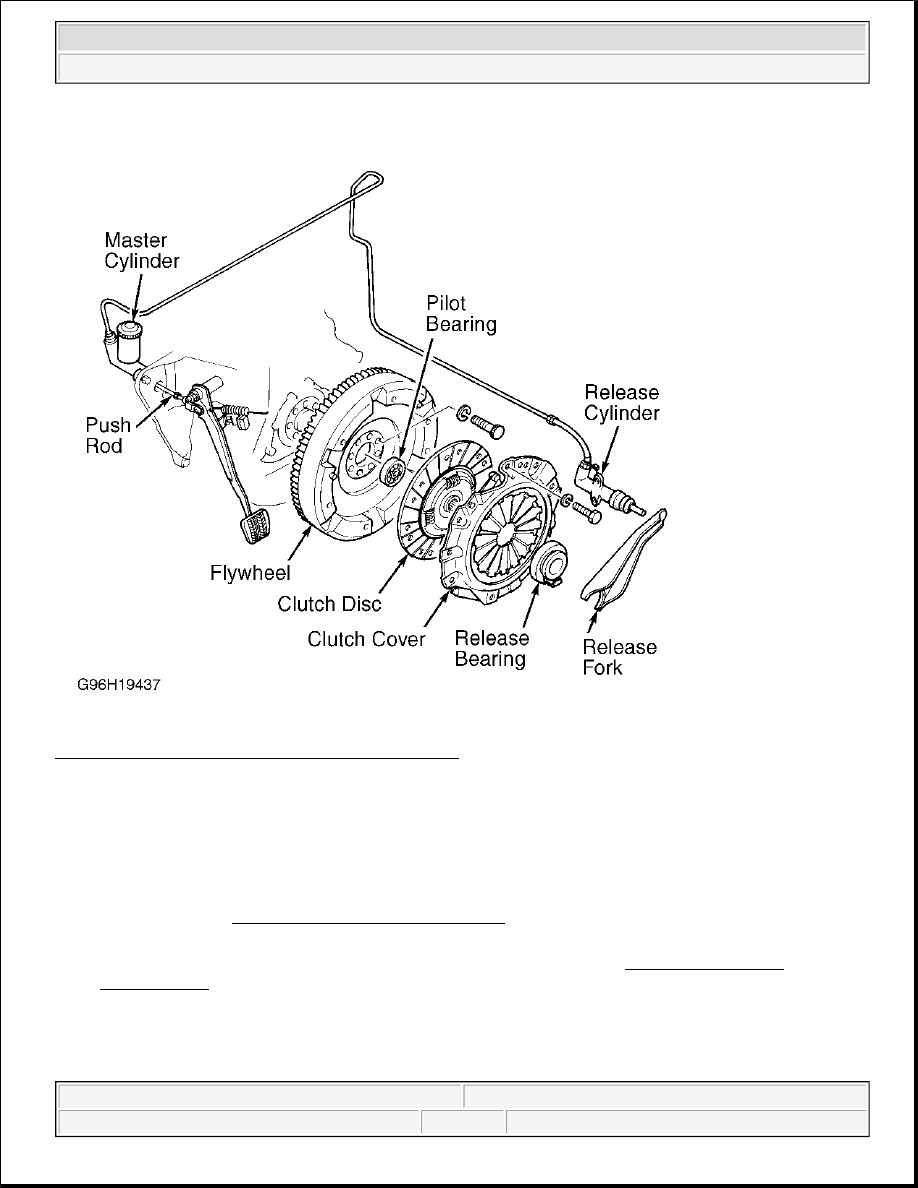

Fig. 7: Exploded View Of Clutch Assembly (Typical)
Courtesy of MAZDA MOTORS CORP.

Inspection (Miata)

1. Inspect disc for loose rivets, worn springs, excessive wear, or oil contamination. Inspect flywheel and

clutch cover for burns, scoring, or grooves.

2. Measure flywheel and clutch cover runout. Resurface or replace flywheel and clutch cover if beyond

specification. See CLUTCH RUNOUT (MAXIMUM) table. If flywheel ring gear is replaced, ensure
chamfer on flywheel teeth faces engine.

3. Measure clutch disc runout. Replace disc if it is not to specification. See CLUTCH RUNOUT

(MAXIMUM) table. Inspect disc hub and input shaft splines for excessive wear. Hub must slide
smoothly on input shaft splines.

4. Inspect pilot bearing for wear. Apply inward pressure while rotating pilot bearing. If bearing sticks or has

excessive resistance, replace bearing. Check for tight fit in crankshaft. Replace as necessary. Inspect
release bearing for smooth operation, wear, damage, or looseness. Replace bearing as necessary.



1997 Mazda MX-5 Miata

CLUTCH 1997-98 CLUTCHES Mazda - RWD



Installation (Miata)

1. Lightly coat input shaft splines, release bearing, and fork contact areas with molybdenum disulfide

grease. Align clutch cover dowel holes with flywheel dowels. Tighten clutch cover bolts evenly in a
crisscross pattern to specification. See TORQUE SPECIFICATIONS .

2. Place a wooden block on jack, and position jack under front of oil pan. Raise front of engine to ease

transmission installation. Install transmission. Tighten transmission-to-engine block bolts to specification.
See TORQUE SPECIFICATIONS . Place jack (from front of engine) under transmission.

3. Raise transmission until level with engine. Position Power Plant Frame (PPF) in place. Install

PPF/differential mounting spacer, and tighten bolts to 27-38 ft. lbs. (37-51 N.m). Install and tighten PPF
side mounting bolts.

4. Install sleeve into PPF housing block. Install spacer and bolts. Install reamer bolt into front hole, and

tighten bolt. See Fig. 5 .

5. Install transmission-to-PPF bracket. Install remaining PPF bolts, and tighten to specification. See

TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

RELEASE BEARING & FORK

Removal (B2300, B2500, B3000 & B4000)

With transmission removed, twist release bearing and carrier assembly until preload spring pushes bearing
assembly from slave cylinder. See Fig. 8 .

Installation

Lubricate bearing bore and bearing carrier with NIGI No. 2 (lithium base) grease. Push release bearing
assembly onto clutch slave cylinder.

NOTE:

Front PPF-to-differential side mounting bolt is the reamer bolt, used to
align frame.

NOTE:

Use only lithium base grease on release bearing. DO NOT use petroleum base
lubricants.



1997 Mazda MX-5 Miata

CLUTCH 1997-98 CLUTCHES Mazda - RWD

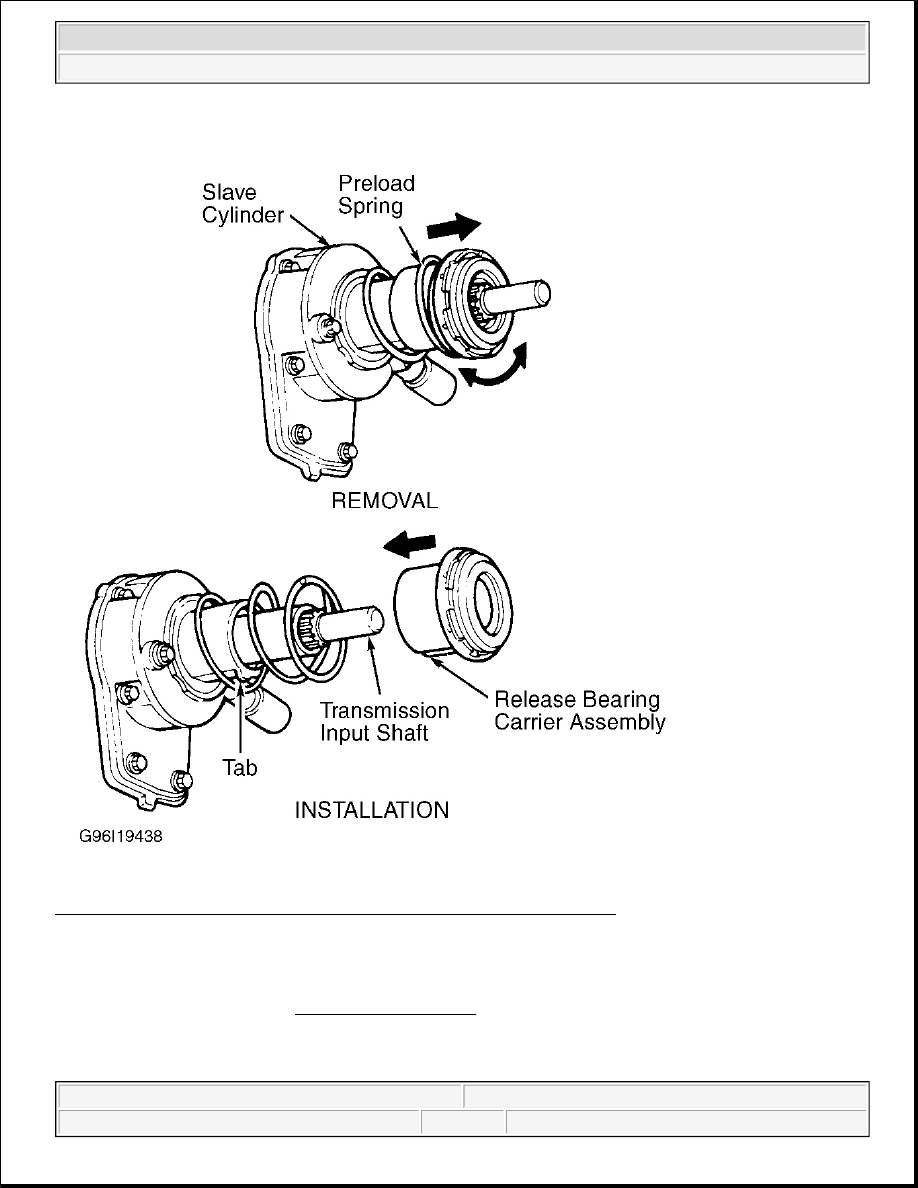

Fig. 8: Servicing Clutch Release Bearing (B2300, B2500, B3000 & B4000)
Courtesy of FORD MOTOR CO.

Removal & Installation (Miata)

1. Remove transmission. See CLUTCH ASSEMBLY . Remove release bearing and fork. Turn release

bearing in both directions. Replace bearing if rough or noisy.

2. Inspect release fork for wear and damage. Replace if necessary. Apply molybdenum disulfide grease to

release bearing contact and sliding surfaces. To complete installation, reverse removal procedure.



1997 Mazda MX-5 Miata

CLUTCH 1997-98 CLUTCHES Mazda - RWD



CLUTCH MASTER CYLINDER

Removal (B2300, B2500, B3000 & B4000)

1. Disengage master cylinder push rod from clutch pedal. Disconnect clutch/starter interlock switch

connector. See Fig. 9 .

2. Using Clutch Disconnect Tool (T88T-70522-A), disconnect hydraulic line. See Fig. 2 . Pull hydraulic

line to disconnect line from clutch slave cylinder. Remove master cylinder, reservoir, and hydraulic line.
Plug lines.

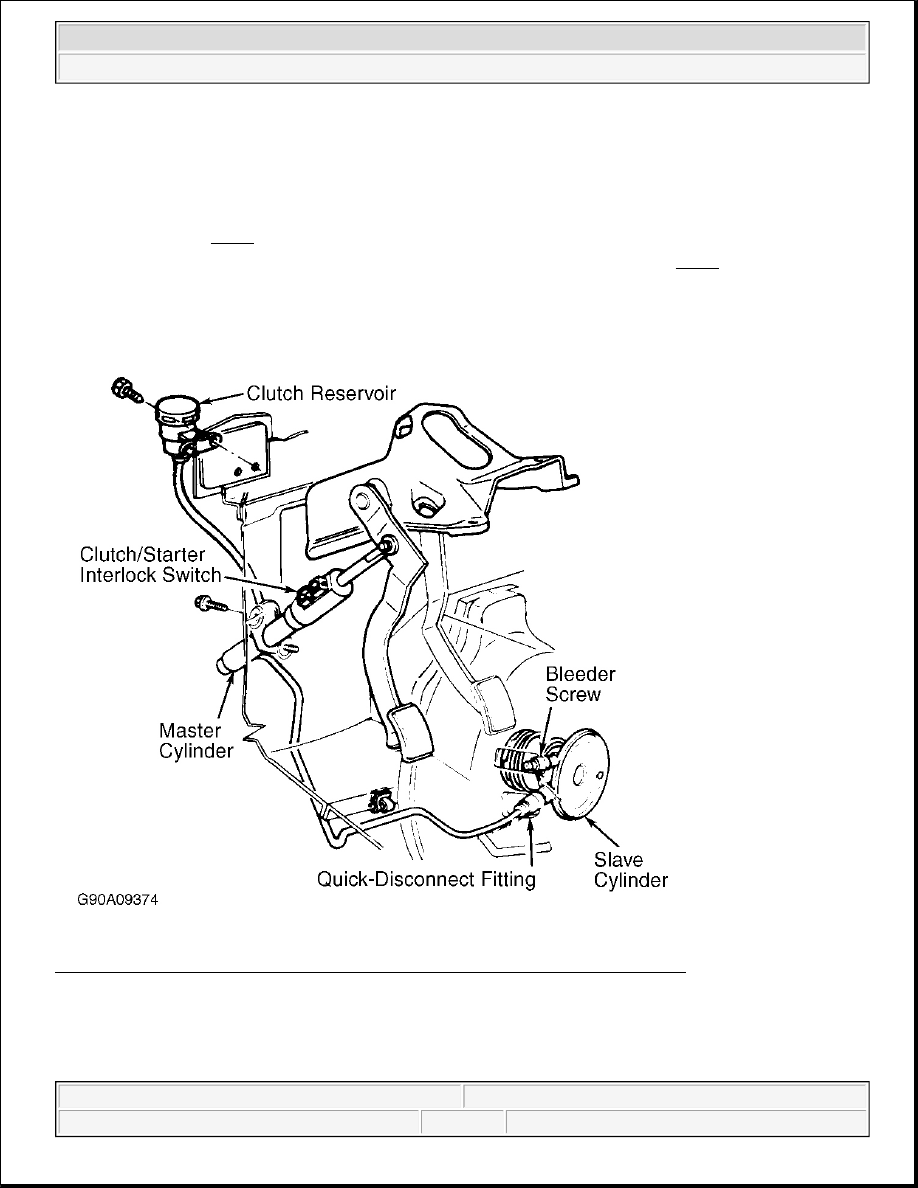

Fig. 9: Removing Clutch/Starter Interlock Switch (B2300, B2500, B3000 & B4000)
Courtesy of FORD MOTOR CO.

CAUTION: Disconnect master cylinder push rod if slave cylinder is to be

disconnected from release lever or bearing. Permanent damage to master
cylinder will occur if master cylinder is activated with slave cylinder



1997 Mazda MX-5 Miata

CLUTCH 1997-98 CLUTCHES Mazda - RWD
