BODY STRUCTURE [PANEL REPLACEMENT]

09–80B–3

09

End Of Sie

SHROUD PANEL REMOVAL/INSTALLATION

DPE098053140B03

For shroud panel removal/installation and replacement procedures, refer to the MAZDA5 Workshop Manual.

End Of Sie

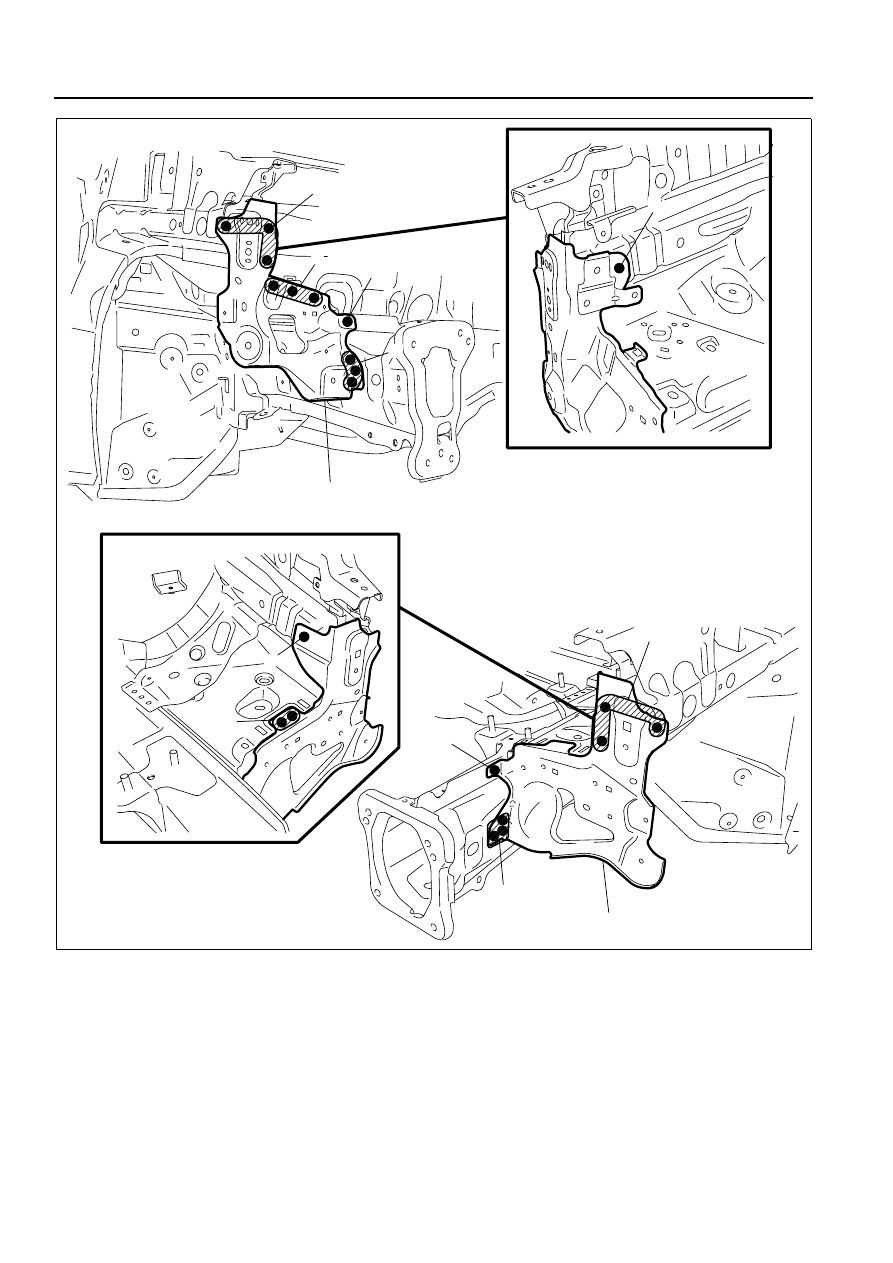

SHROUD SIDE PANEL REMOVAL

DPE098053140B01

1. Remove the shroud side panel.

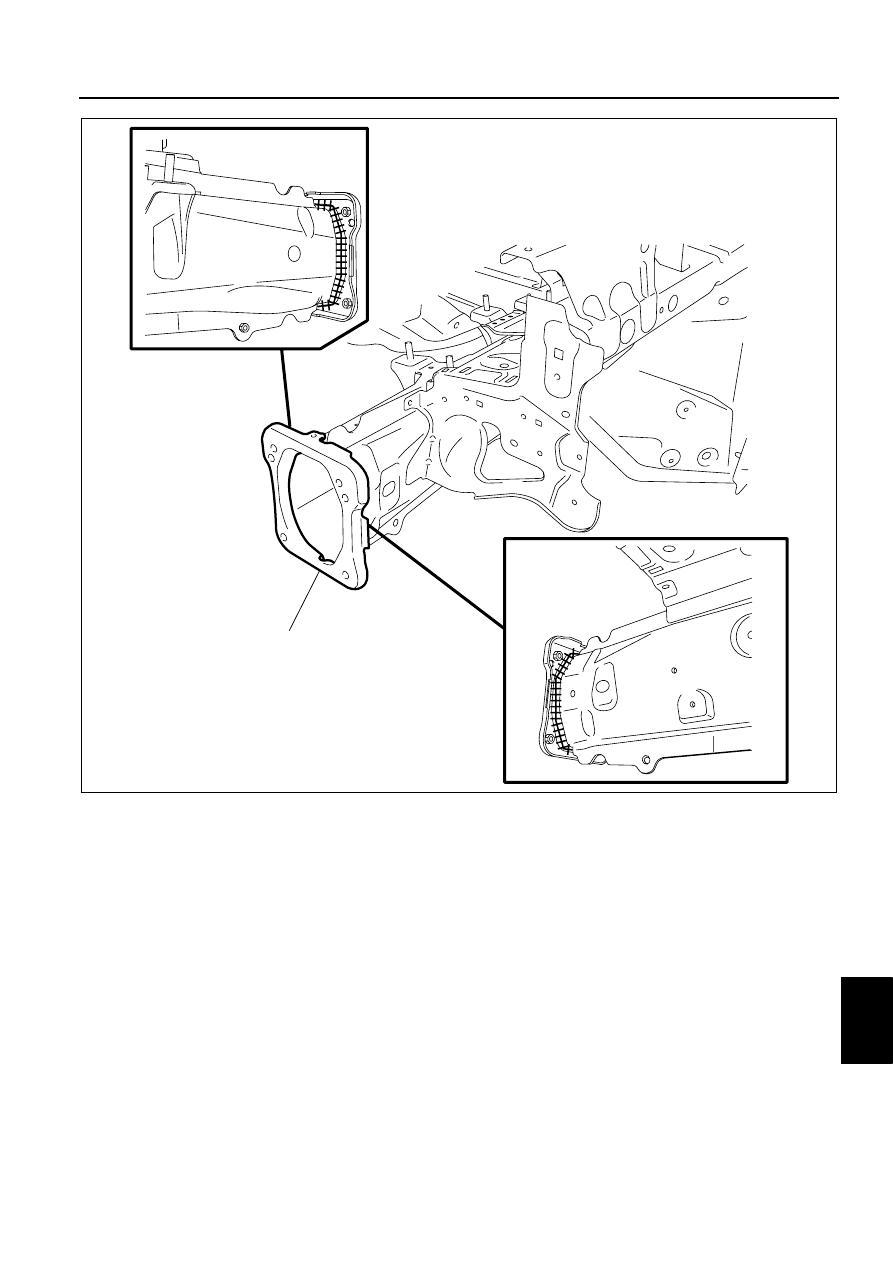

FRONT BUMPER BRACKET

DPE0980B049

09–80B–4

BODY STRUCTURE [PANEL REPLACEMENT]

End Of Sie

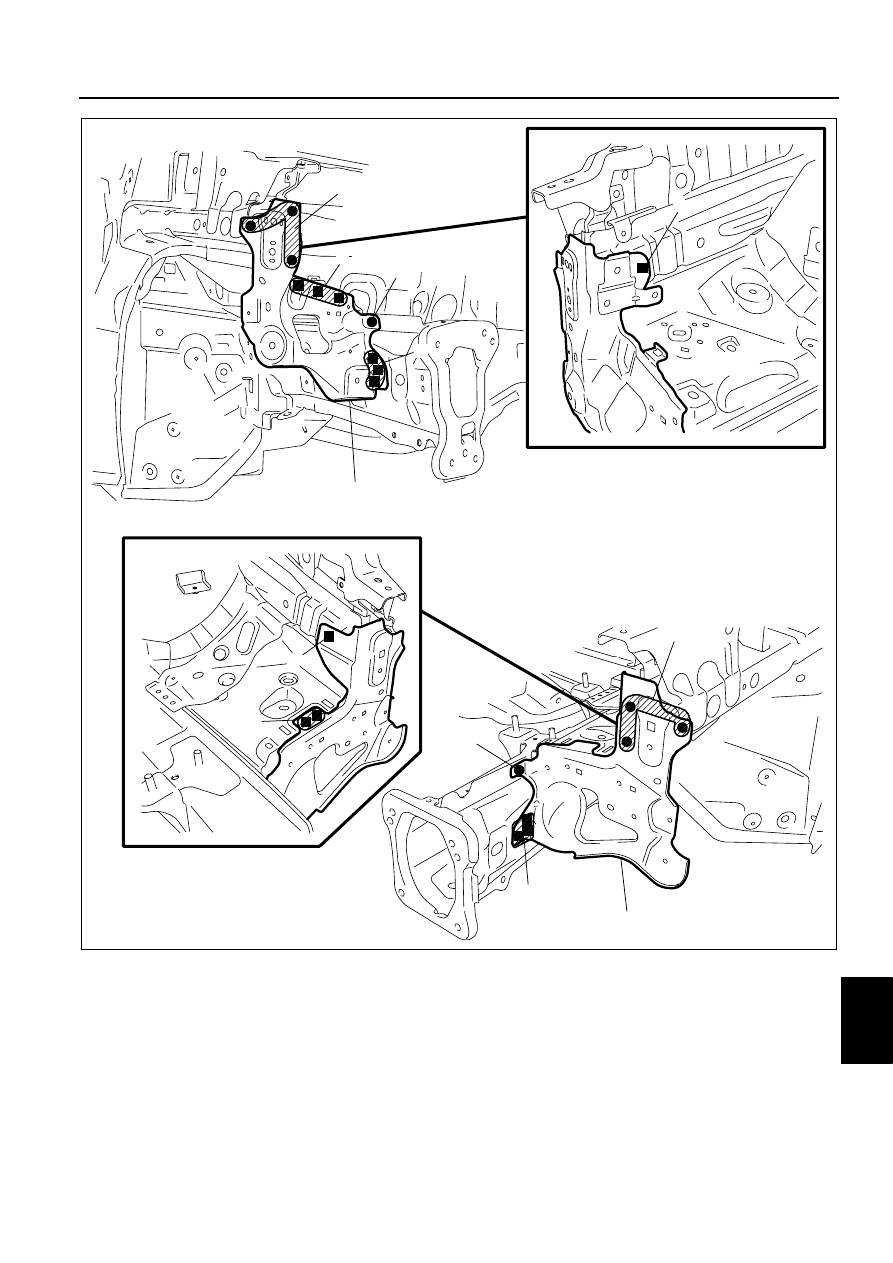

SHROUD SIDE PANEL INSTALLATION

DPE098053140B02

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

1

1

3

3

3

1

2

1

3

3

SHROUD SIDE PANEL (RH)

SHROUD SIDE PANEL (LH)

DPE0980B050

BODY STRUCTURE [PANEL REPLACEMENT]

09–80B–5

09

End Of Sie

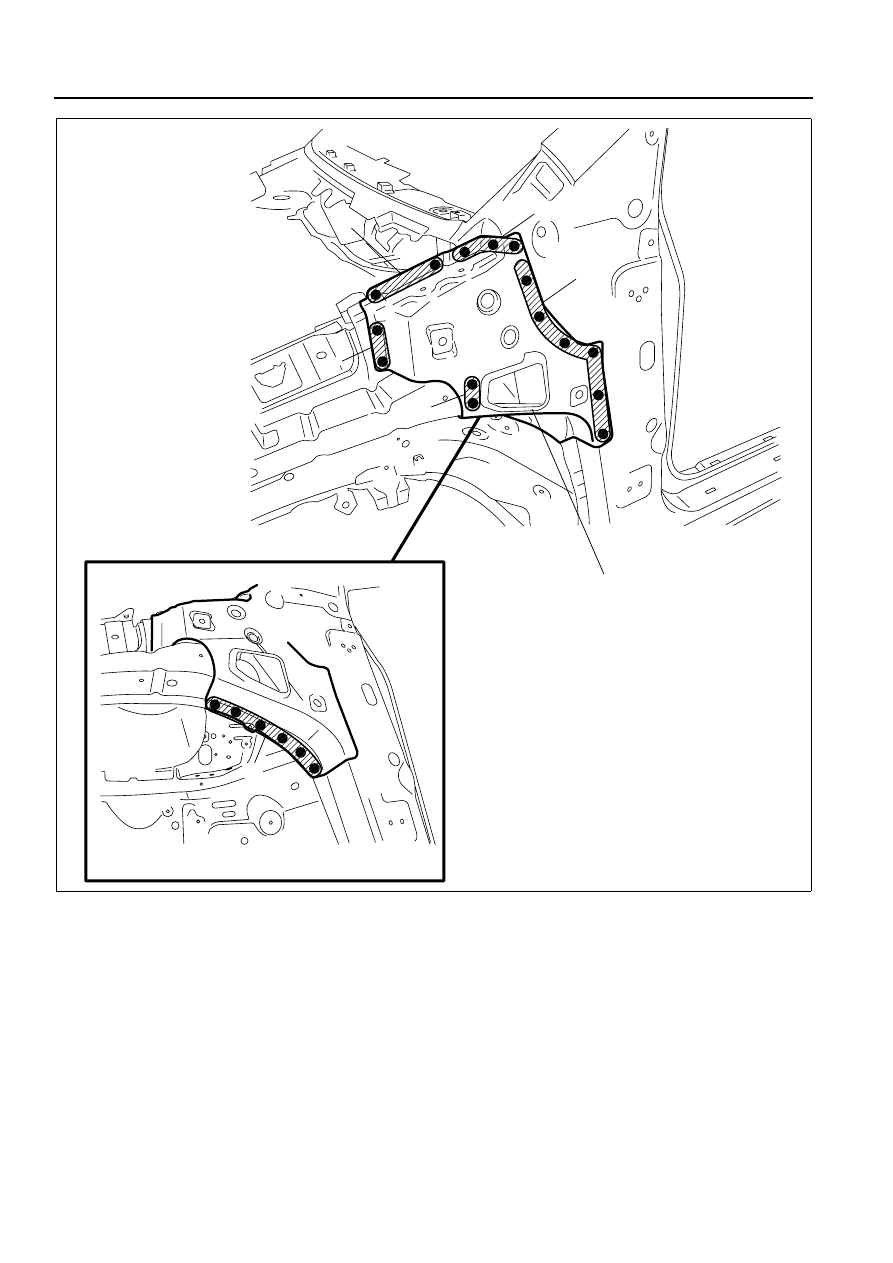

COWL SIDE REINFORCEMENT REMOVAL

DPE098053290B01

1. Remove the cowl side reinforcement.

Caution

• Be careful not to damage the windshield when drilling the 3 locations indicated by (A).

1

1

3

3

4

1

2

1

3

4

SHROUD SIDE PANEL (RH)

SHROUD SIDE PANEL (LH)

DPE0980B051

09–80B–6

BODY STRUCTURE [PANEL REPLACEMENT]

End Of Sie

COWL SIDE REINFORCEMENT INSTALLATION

DPE098053290B02

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

COWL SIDE REINFORCEMENT

10

4

8

(A)3

3

2

DPE0980B052
