Mazda 5. Manual - part 52





05–17–128

AUTOMATIC TRANSAXLE

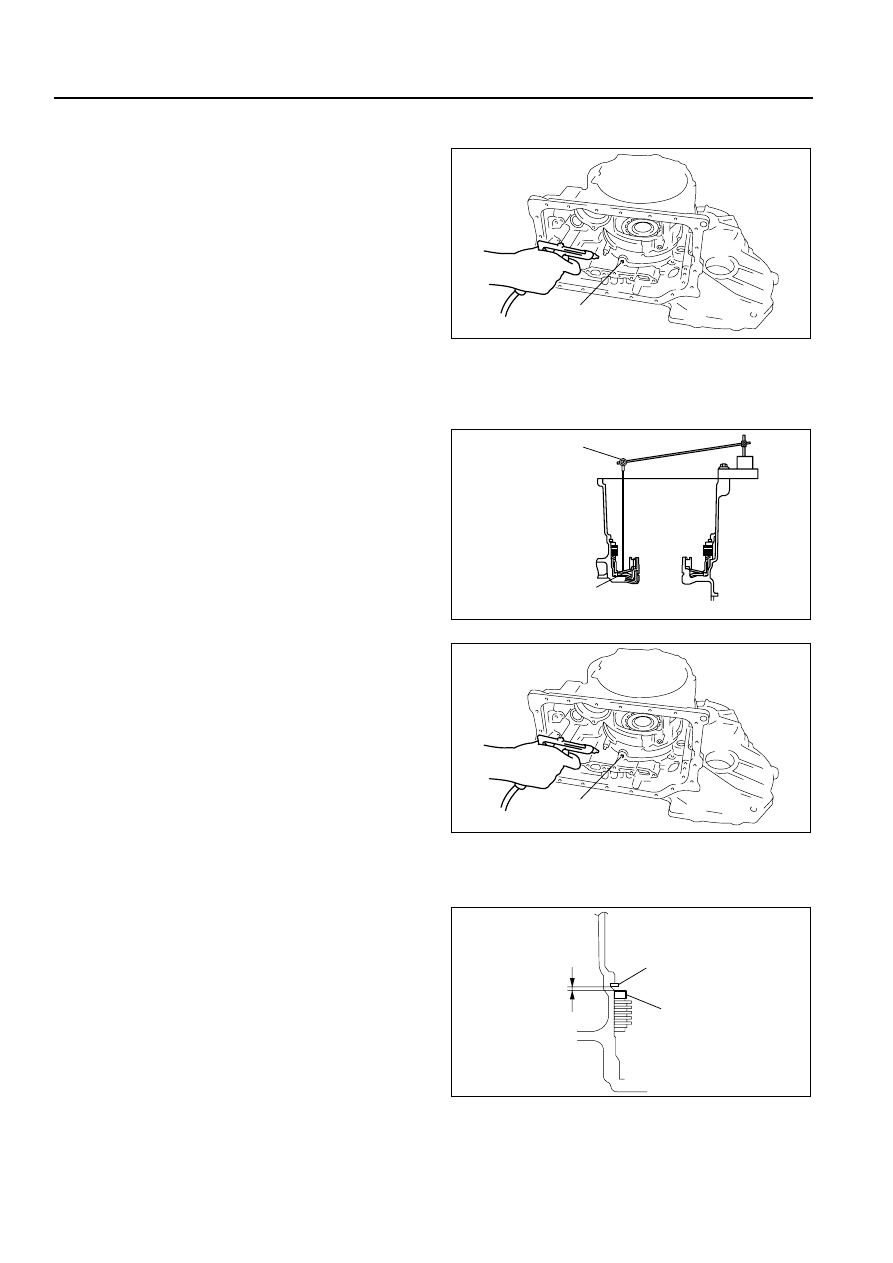

Do not apply compressed air for more than the aforementioned time when testing the system.

1. Inspect the clutch operation by applying

compressed air as shown.

Air pressure

392 kPa {4.0 kgf/cm

2

, 57 psi} max.

2. If not as specified, replace parts as necessary.

(See 05–17–72 LOW AND REVERSE BRAKE
AND ONE-WAY CLUTCH INNER RACE
DISASSEMBLY/ASSEMBLY.)

Clutch clearance

1. Measure the low and reverse brake clearance.

(1) Set the dial gauge to the low and reverse brake.
(2) Set the measuring point of the dial gauge to

the low and reverse brake piston.

(3) Apply compressed air to the part indicated in

the figure and let the low and reverse brake
piston stroke three times.

Air pressure

98.1 kPa {1.0 kgf/cm

2

, 14 psi}

(4) Apply compressed air and operate the low

and reverse brake piston. Read the value
when the indicator of the dial gauge stops.

(5) Release the compressed air and read the dial

gauge when the low and reverse brake piston
is not operating.

(6) Calculate the low and reverse brake

clearance according to the following formula:
Step (4) value – Step (5) value = low and reverse brake clearance.

(7) Measure the clearances at four locations (90

°

apart) by following the steps from (3) to (6).
Verify that the average value is within the
specification below:

Low and reverse brake clearance

2.20—2.50 mm {0.087—0.098 in}

2. If not as specified, replace parts as necessary.

(See 05–17–72 LOW AND REVERSE BRAKE
AND ONE-WAY CLUTCH INNER RACE
DISASSEMBLY/ASSEMBLY.)

LOW AND REVERSE
BRAKE FLUID PASSAGE

B3E0517A128

DIAL GAUGE

LOW AND REVERSE
BRAKE PISTON

B3E0517A329

LOW AND REVERSE
BRAKE FLUID PASSAGE

B3E0517A128

SNAP RING

CLEARANCE

RETAINING PLATE

B3E0517A330

AUTOMATIC TRANSAXLE

05–17–129

05

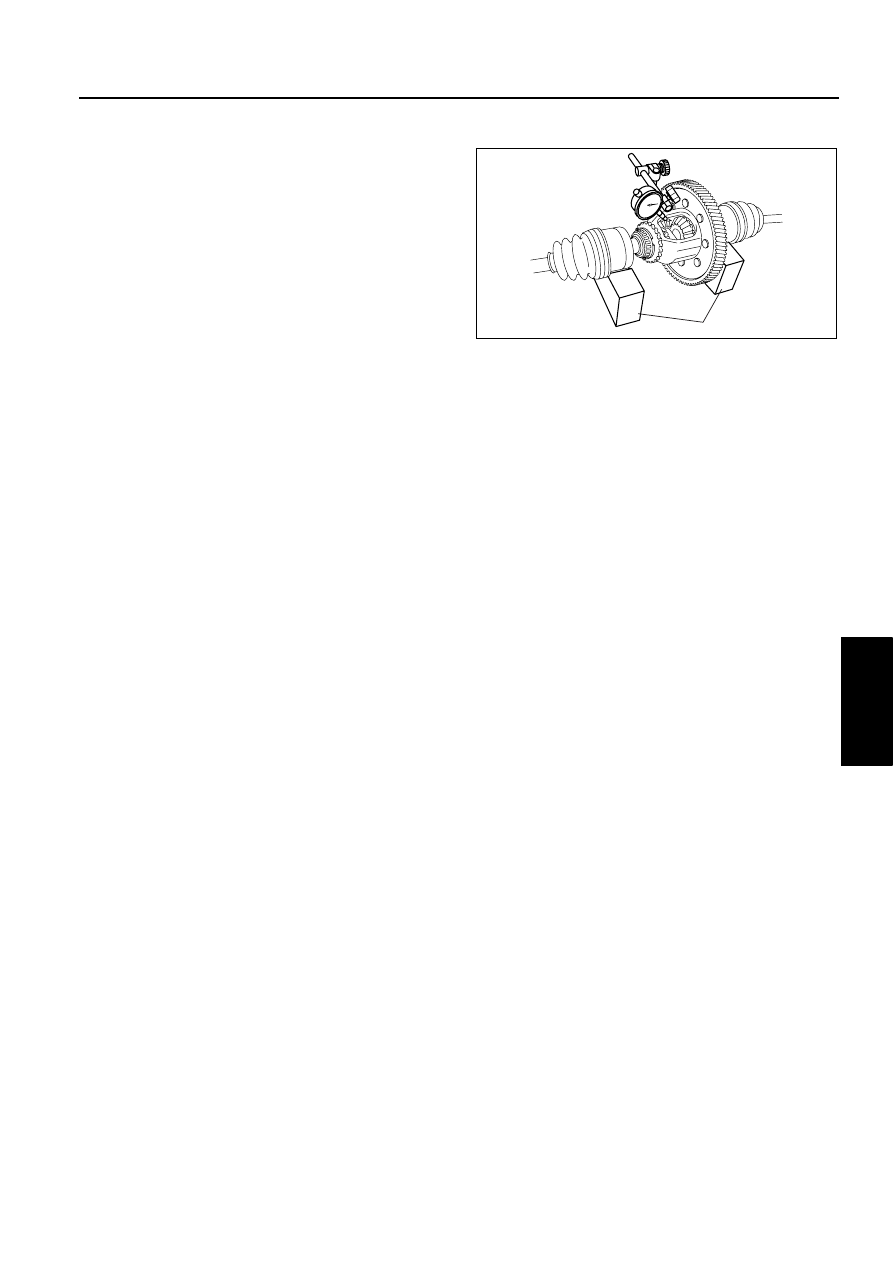

Differential Preinspection
Backlash

1. Measure the backlash of the side gear.

Backlash

Standard: 0.05—0.15 mm {0.002—0.005 in}
Maximum: 0.5 mm {0.020 in}

2. If not specified, replace the differential. (See 05–

17–92 DIFFERENTIAL DISASSEMBLY/
ASSEMBLY.)

End Of Sie

V-BLOCKS

B3E0517A278

TECHNICAL DATA

05–50–1

05

05–50

TECHNICAL DATA

TRANSMISSION/TRANSAXLE \

TECHNICAL DATA  . . . . . . . . . . . . . . . .  05–50–1

End of Toc

TRANSMISSION/TRANSAXLE TECHNICAL DATA

B3E055000000A01

Item

Specification

Automatic transaxle type

FN4A-EL

Oil pump

Bushing inner diameter (torque converter side)

(mm {in})

Standard 40.015—40.040 {1.57539—1.57637}

Maximum

40.060 {1.57716}

Bushing inner diameter (Forward clutch side)

(mm {in})

Standard 19.000—19.021 {0.74803—0.74885}

Maximum

19.041 {0.74964}

Clearance between the end of the oil pump
housing and the outer rotor and inner rotor

(mm {in})

Standard

0.04—0.05 {0.0015—0.0019}

Maximum

0.06 {0.0023}

Clearance between the outer rotor and the
inner rotor

(mm {in})

Standard

0.02—0.13 {0.0008—0.0051}

Maximum

0.14 {0.0055}

Forward clutch

Number of drive/driven plates

4/4

Drive plate thickness

(mm {in})

Standard

1.60 {0.063}

Maximum

1.45 {0.057}

Forward clutch clearance

(mm {in})

1.50—1.80 {0.059—0.071}

Snap ring size

(mm {in})

1.2 {0.047}, 1.4 {0.055}, 1.6 {0.063},

1.8 {0.071}, 2.0 {0.079}, 2.2 {0.087}

Front sun gear

Bushing inner diameter

(mm {in})

Standard 18.000—18.018 {0.70866—0.70936}

Maximum

18.038 {0.71016}

Rear sun gear

Bushing inner diameter

(mm {in})

Standard 29.900—29.921 {1.17717—1.17799}

Maximum

29.941 {1.17878}

End cover

Bushing inner diameter

(mm {in})

Standard 23.600—23.621 {0.92913—0.92995}

Maximum

23.641 {0.93075}

Reverse clutch

Number of drive/driven plates

2/2

Drive plate thickness

(mm {in})

Standard

1.60 {0.063}

Maximum

1.45 {0.057}

Reverse clutch clearance

(mm {in})

1.00—1.30 {0.039—0.051}

Snap ring size

(mm {in})

1.2 {0.047}, 1.4 {0.055}, 1.6 {0.063},

1.8 {0.071}, 2.0 {0.079}, 2.2 {0.087}

3-4 clutch

Drive plate part
number: FN11 19 370

Number of drive/driven plates

3/3

Drive plate thickness

(mm {in})

Standard

1.60 {0.063}

Minimum

1.45 {0.057}

3-4 clutch clearance

(mm {in})

1.00—1.30 {0.039—0.051}

Snap ring size

(mm {in})

1.2 {0.047}, 1.4 {0.055}, 1.6 {0.063},

1.8 {0.071}, 2.0 {0.079}, 2.2 {0.087}

3-4 clutch hub busing
inner diameter

(mm {in})

Standard 18.000—18.018 {0.70866—0.70936}

Minimum

18.038 {0.71016}

Drive plate part
number: FNE1 19 370

Number of drive/driven plates

3/3

Drive plate thickness

(mm {in})

Standard

2.55 {0.100}

Minimum

2.40 {0.094}

3-4 clutch clearance

(mm {in})

1.10—1.40 {0.043—0.055}

Snap ring size

(mm {in})

1.2 {0.047}, 1.4 {0.055}, 1.6 {0.063},

1.8 {0.071}, 2.0 {0.079}, 2.2 {0.087}

3-4 clutch hub busing
inner diameter

(mm {in})

Standard 18.000—18.018 {0.70866—0.70936}

Minimum

18.038 {0.71016}

05–50–2

TECHNICAL DATA

*1 : Applied VIN (assumed): JM0 DY10Y100 100001—106898, JM6 DY10Y100 100001—106898
*2 : Except *1
*3 : Mazda2 (with WU-TWC)
*4 : Except *3
*5 : Mazda2
*6 : MPV
*7 : Mazda6
*8 : Mazda3, Mazda5

Low and
reverse brake

Number of drive/driven plates

4/6

*3

, 5/5

*4

Drive plate thickness

(mm {in})

Standard

1.60 {0.063}

Minimum

1.45 {0.057}

Low and reverse clearance

(mm {in})

2.20—2.50 {0.087—0.098}

Snap ring size

(mm {in})

1.8 {0.071}, 2.0 {0.079}, 2.2 {0.087},
2.4 {0.094}, 2.6 {0.102}, 2.8 {0.110},

3.0 {0.118}

2-4 brake band

Stroke adjust band strut

(mm {in})

36.0 {1.417}, 36.5 {1.437},
37.0 {1.457}, 37.5 {1.476},
38.0 {1.496}, 38.5 {1.516},

39.0 {1.535}

2-4 brake drum bushing inner diameter

(mm {in})

Standard 55.005—55.030 {2.16555—2.16653}

Maximum

55.050 {2.16732}

Total end play

End play adjust race

(mm {in})

1.8 {0.071}, 2.0 {0.079}, 2.2 {0.087},

2.4 {0.094}, 2.6 {0.102}

Primary gear

Primary gear bearing preload

(N·m {kgf·cm, in·lbf}) 0.25—0.60 {2.55—6.12, 2.21—5.31}

Secondary gear

Secondary gear bearing preload

(N·m {kgf·cm, in·lbf})

1.5—2.4 {15—25, 13—21}

*1

0.4—1.5 {5—15, 4—13}

*2

Preload adjust shims

(mm {in})

0.45 {0.018}

*2

, 0.50 {0.020},

0.55 {0.022}, 0.60 {0.024},
0.65 {0.026}, 0.70 {0.028},
0.75 {0.030}, 0.80 {0.031},
0.85 {0.033}, 0.90 {0.035},
0.95 {0.037}, 1.00 {0.039},
1.05 {0.041}, 1.10 {0.043},
1.15 {0.045}, 1.20 {0.047},

1.25 {0.049}, 1.30 {0.051}

*1

Differential

Differential bearing preload

(N·m {kgf·cm, in·lbf})

1.4—2.3 {14—24, 12—20}

Preload adjust shims

(mm {in})

0.50 {0.020}, 0.55 {0.022},
0.60 {0.024}, 0.65 {0.026},
0.70 {0.028}, 0.75 {0.030},
0.80 {0.031}, 0.85 {0.033},
0.90 {0.035}, 0.95 {0.037},
1.00 {0.039}, 1.05 {0.041},
1.10 {0.043}, 1.15 {0.045},
1.20 {0.047}, 1.25 {0.049},
1.30 {0.051}, 1.35 {0.053},

1.40 {0.055}, 1.45 {0.057}
1.50 {0.059}, 1.55 {0.061}

Backlash of side gear and pinion

(mm {in})

Standard

0.05—0.15 {0.002—0.005}

Maximum

0.5 {0.020}

Distance A between end of torque converter and face of converter housing

(mm {in})

15.4 {0.60}

*5

, 17.9 {0.70}

*6

21.4 {0.84}

*7

, 31.4 {1.24}

*8

Item

Specification

Spring name

Outer diameter

(mm {in})

Free length (mm

{in})

No. of coils

Wire diameter

(mm {in})

Accumulators

Servo apply accumulator small spring

13.0 {0.512}

67.8 {2.669}

17.1

2.2 {0.087}

Servo apply accumulator large spring

21.0 {0.827}

67.8 {2.669}

10.3

3.5 {0.138}

Forward accumulator small spring

15.6 {0.614}

49.0 {1.929}

7.7

2.4 {0.094}

Forward accumulator large spring

21.0 {0.827}

75.0 {2.953}

10.7

2.3 {0.091}

Forward clutch
