05–17–44

AUTOMATIC TRANSAXLE

Caution

• Clean the transaxle exterior thoroughly with a steam cleaner or cleaning solvents before removal.

• If any old sealant gets into the transaxle during installation of the oil pan, trouble may occur in the

transaxle. Remove any old sealant from the transaxle case and oil pan, and clean with cleaning
fluids.

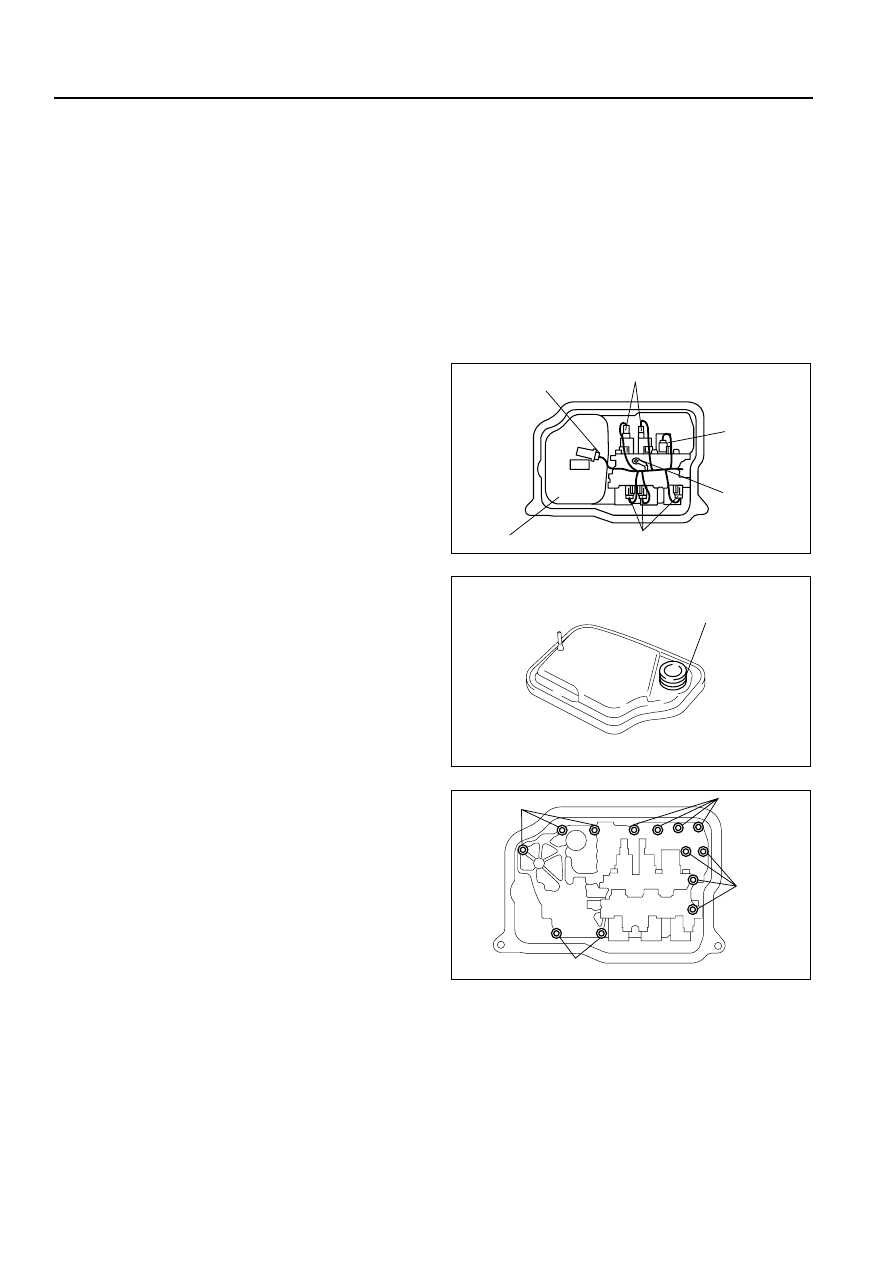

14. Remove the oil pan.

Examine any material found in the pan or on the magnet to determine the condition of the transaxle. If large
amounts of material are found, replace the torque converter and carefully inspect the transaxle for the cause.
(1) Clutch facing material

• Drive plate and brake band wear

(2) Steel (magnetic)

• Bearing, gear, and driven plate wear

(3) Aluminum (nonmagnetic)

• Aluminum part wear

15. Disconnect the solenoid valve connector, ground,

and transaxle fluid temperature sensor.

16. Remove the oil strainer.

17. Remove the O-ring from the oil strainer.

18. Remove the bolts as shown in the figure.

Note

• Remove the control valve body by removing

the head of the manual valve from the port of
the parking assist lever component.

TRANSAXLE FLUID
TEMPERATURE
SENSOR

SOLENOID VALVE CONNECTOR

PRESSURE
CONTROL
SOLENOID
CONNECTOR

GROUND

SOLENOID VALVE CONNECTOR

OIL STRAINER

B3E0517A203

O-RING

B3E0517A204

BOLT

BOLT

BOLT

BOLT

B3E0517W074

AUTOMATIC TRANSAXLE

05–17–45

05

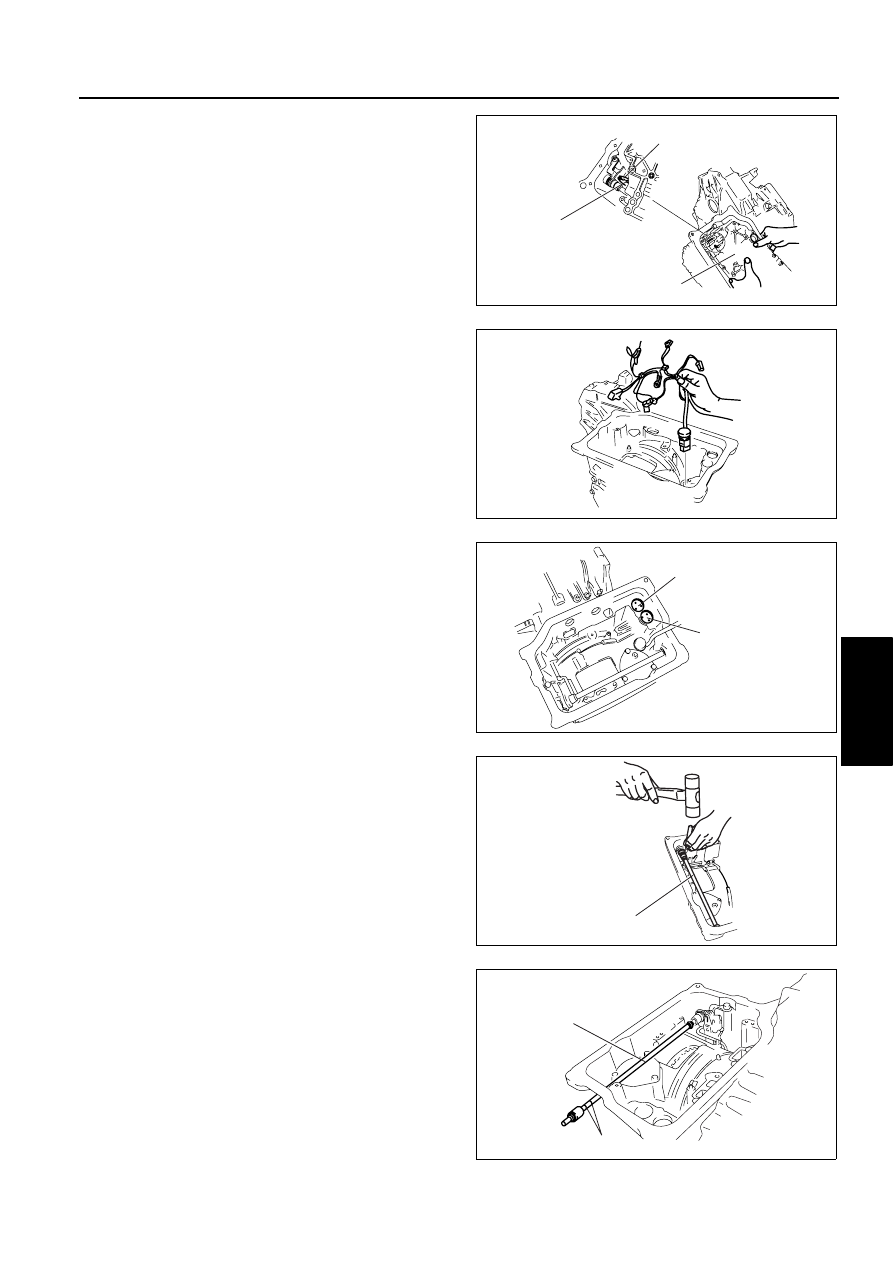

19. Remove the control valve body.

20. Remove the coupler component.

21. Remove the accumulator component.
22. Remove the manual shaft.

(1) Remove the roll pin using a pin punch.
(2) Remove the manual shaft.

(3) Remove the O-ring from the manual shaft.











B3E0517A206

B3E0517A207









B3E0517A208



B3E0517A209





B3E0517A210

05–17–46

AUTOMATIC TRANSAXLE

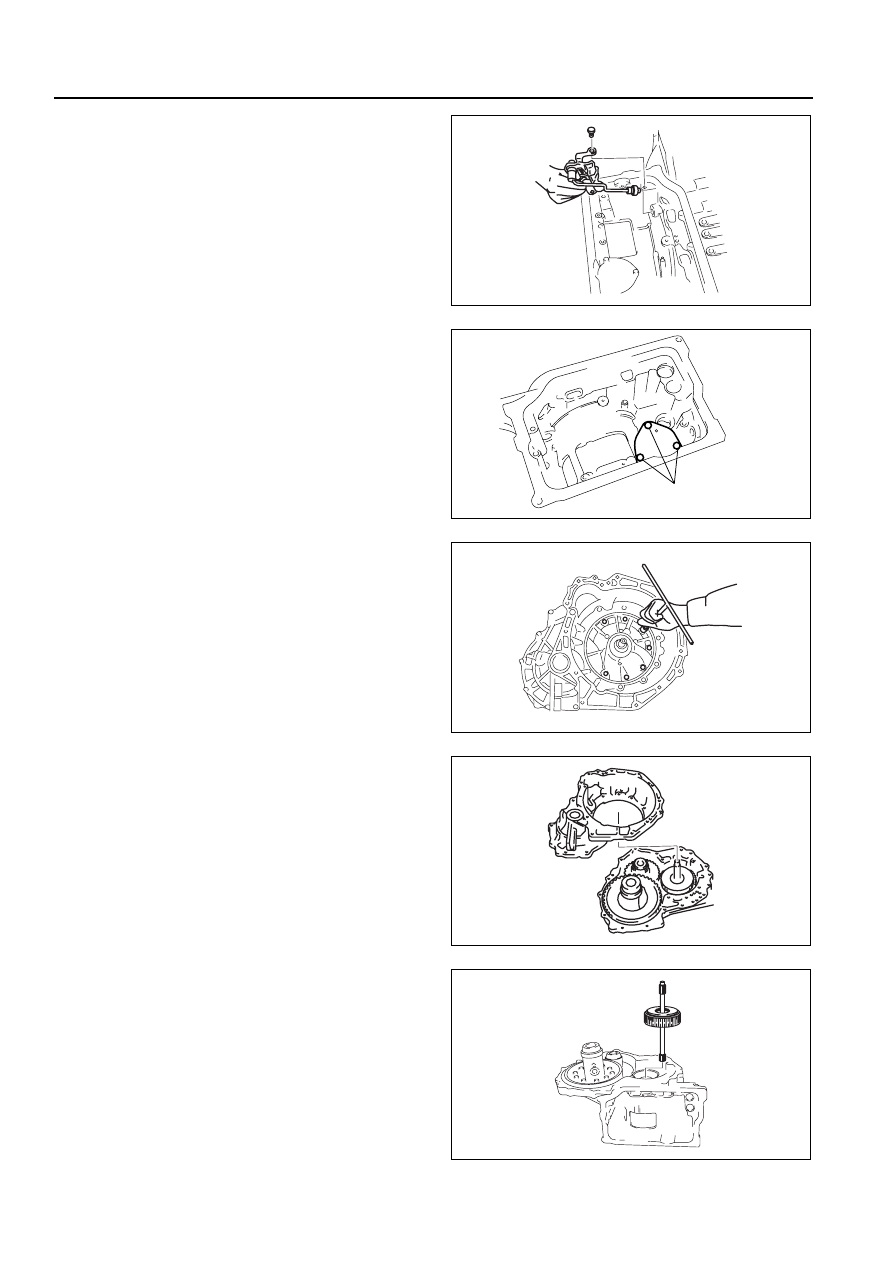

23. Remove the parking rod lever component.

24. Remove the band servo component.

25. Remove the oil pump.

26. Remove the converter housing by tapping lightly

with a plastic hammer.

27. Remove the forward clutch component.

B3E0517A211

BAND SERVO
INSTALLATION BOLTS

B3E0517A125

B3E0517A308

B3E0517A213

B3E0517A214

AUTOMATIC TRANSAXLE

05–17–47

05

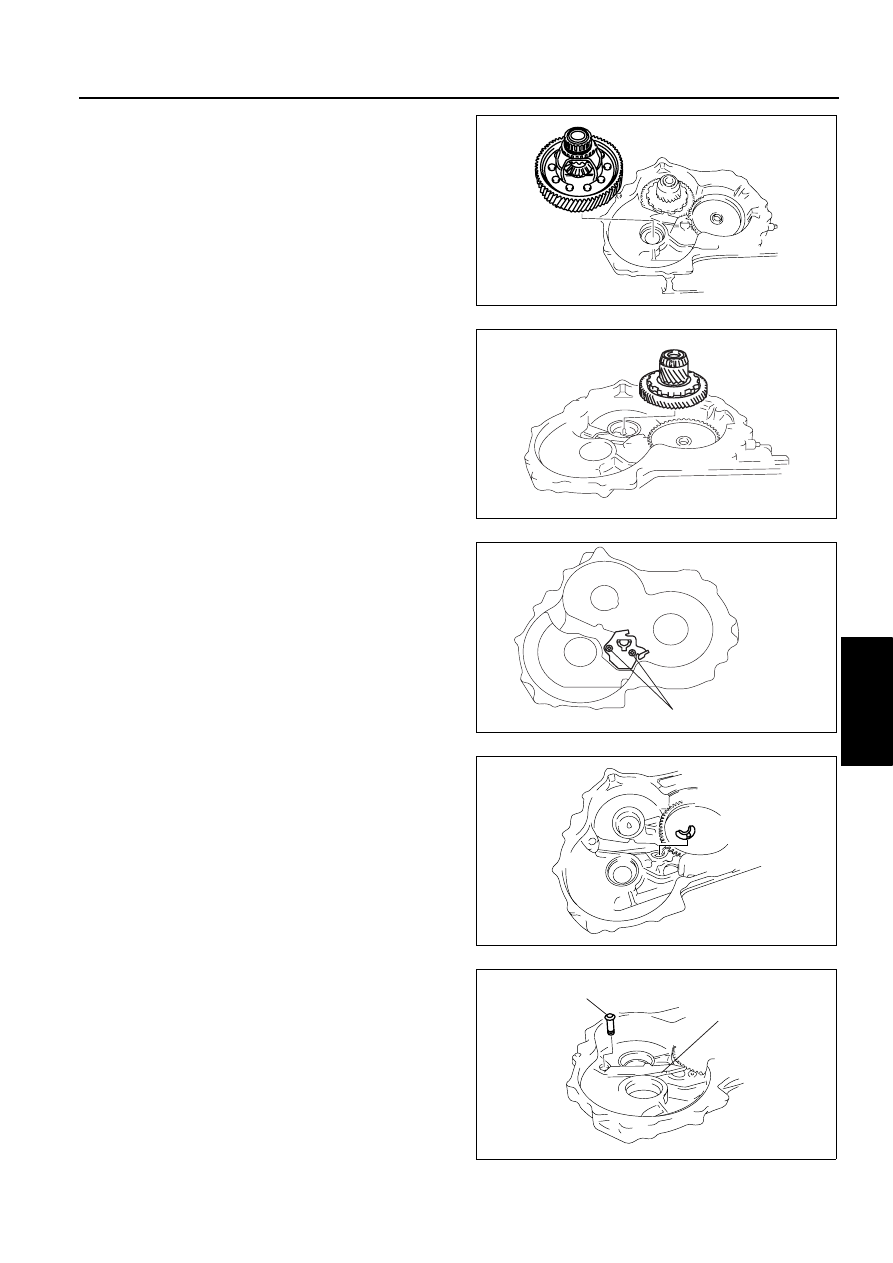

28. Remove the differential.

29. Remove the secondary gear and output gear.

30. Remove the actuator plate.

31. Remove the support actuator.

32. Pull out the parking pawl shaft.
33. Remove the parking pawl.

B3E0517A215

B3E0517A216

ACTUATOR PLATE
INSTALLATION BOLTS

B3E0517A217

B3E0517A218

PARKING PAWL

PARKING PAWL
SHAFT

B3E0517A219
