5. Tighten the SSTs (bolts and nuts) to affix the

SSTs firmly.

Warning

• Self-locking brake system of the engine

stand may not be effective when the
engine is held in an unbalanced position.
This could lead to sudden, rapid
movement of the engine and mounting
stand handle and cause serious injury.
Never keep the engine in an unbalanced
position, and always hold the rotating
handle firmly when turning the engine.

6. Mount the engine on the SST (engine stand).
7. Drain the engine oil into a container.
8. Install the oil pan drain plug.

• With washer

1. Install the oil pan drain plug with a new washer.

Tightening torque

30—41 N·m {3.1—4.1 kgf·m, 23—30 ft·lbf}

• Without washer

1. Inspect the seal rubber of the oil pan drain plug and make sure there are no cracks or damage.

— If necessary, replace the oil pan drain plug.

2. Clean the flange surface (seal rubber) on the oil pan drain plug, then install the oil pan drain plug.

Tightening torque

22—30 N·m {2.2—3.1 kgf·m, 16—22 ft·lbf}

DISMOUNTING

• Dismount in the reverse order of mounting.

End Of Sie

49 L010 101

49 L010 102

49 L010 104

49 L010 103

49 L010 105

PARALLEL

APPROX. 20 mm {0.79 in}

ENGINE

D6E110ZE1010

MECHANICAL

01–10–3

01

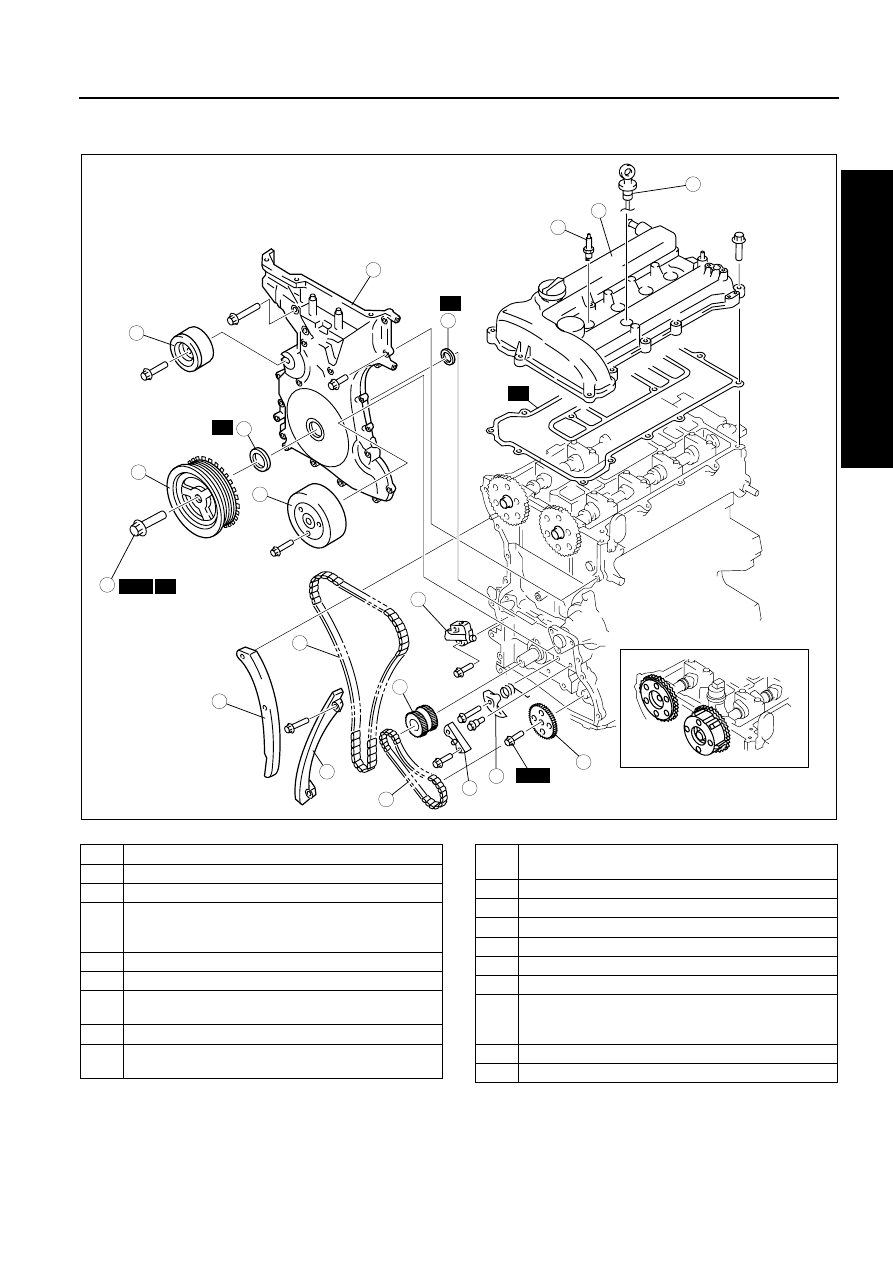

TIMING CHAIN DISASSEMBLY

B3E011002000203

1. Disassemble in the order indicated in the table.

.

SST

SST

R

R

R

R

With variable valve timing mechanism

9

8

7

4

1

2

6

18

17

15

16

12

5

13

11

3

14

19

10

D6E110ZE1001

1

Oil level gauge (If equipped)

2

Spark plug

3

Cylinder head cover

4

Crankshaft pulley lock bolt
(See 01–10–4 Crankshaft Pulley Lock Bolt
Disassembly Note.)

5

Crankshaft pulley

6

Water pump pulley

7

Drive belt idler pulley (Without stretch-type A/C drive
belt)

8

Engine front cover

9

Front oil seal
(See 01–10–4 Front Oil Seal Disassembly Note.)

10

 Chain tensioner
(See 01–10–4 Chain Tensioner Disassembly Note.)

11

 Tensioner arm

12

 Chain guide

13

Timing chain

14

Seal (With variable valve timing mechanism)

15

Oil pump chain tensioner

16

Oil pump chain guide

17

Oil pump sprocket
(See 01–10–4 Oil Pump Sprocket Disassembly
Note.)

18

Oil pump chain

19

Crankshaft sprocket

01–10–4

MECHANICAL

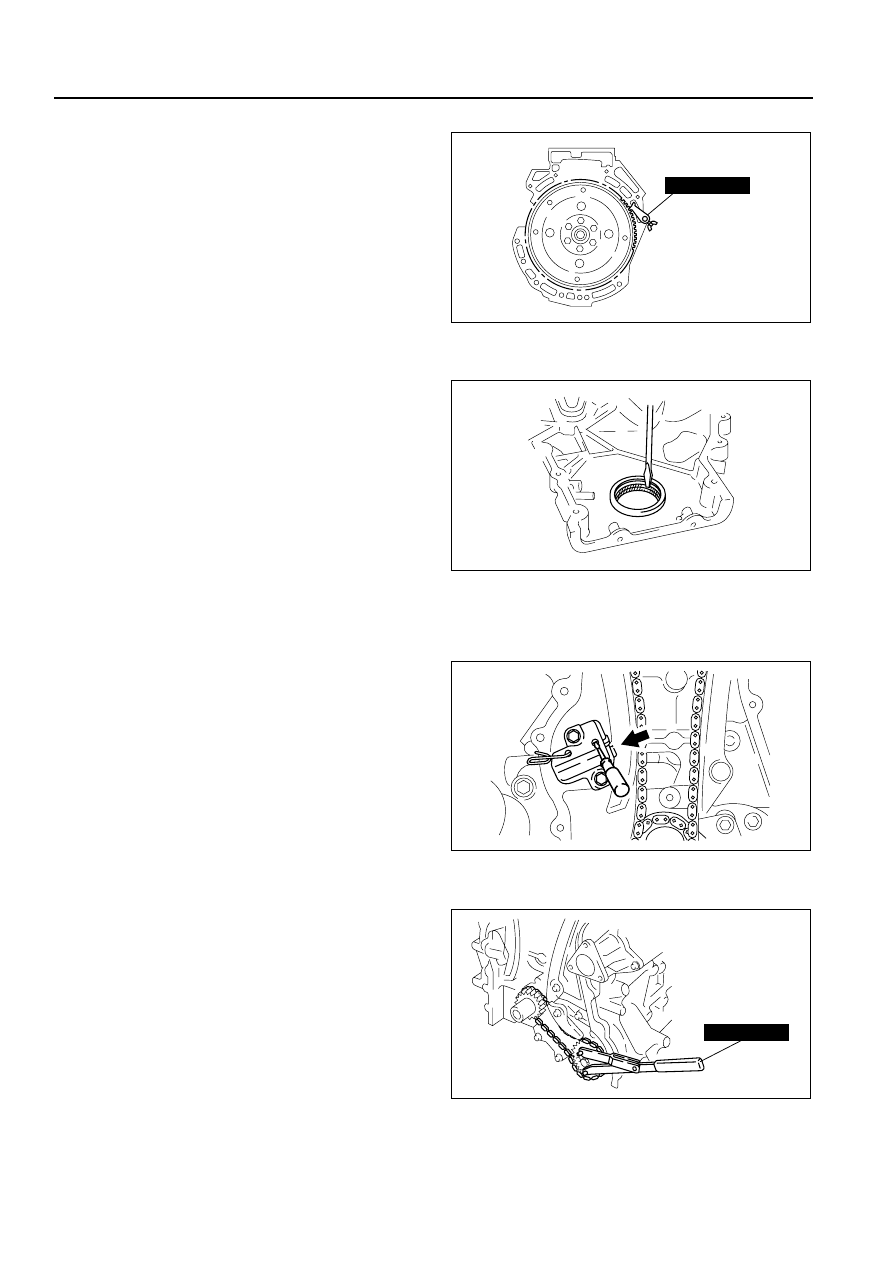

Crankshaft Pulley Lock Bolt Disassembly Note

1. Install the SST to the ring gear to lock the

crankshaft against rotation.

Front Oil Seal Disassembly Note

1. Remove the oil seal using a flat head screwdriver.

Chain Tensioner Disassembly Note

1. Hold the chain tensioner ratchet lock mechanism away from the ratchet stem with a thin screwdriver.
2. Slowly press the tensioner piston.
3. Hold the chain tensioner piston with a 1.5 mm

{0.06 in} wire or paper clip.

Oil Pump Sprocket Disassembly Note

1. Hold the oil pump sprocket using the SST.

End Of Sie

49 E011 1A0

E6U110ZEB033

B3E0110E053

B3E0110E052

49 G032 354

B3E0110E054

MECHANICAL

01–10–5

01

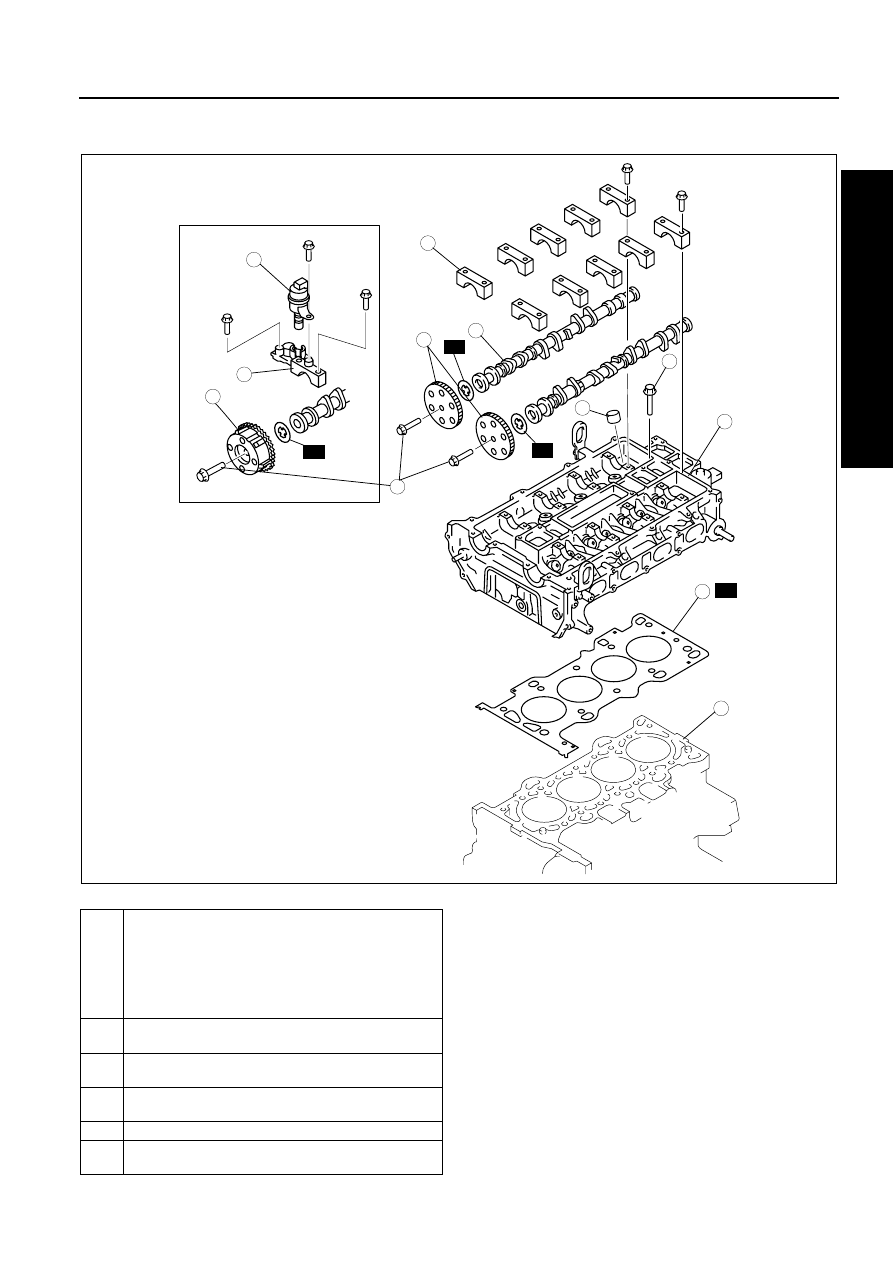

CYLINDER HEAD (I) DISASSEMBLY

B3E011002000204

1. Disassemble in the order indicated in the table.

9

8

7

5

4

4

3

1

2

2

10

R

6

R

R

R

With variable valve timing mechanism

D6E110ZE1013

1

Camshaft sprocket lock bolt, variable valve timing
actuator lock bolt (With variable valve timing
mechanism)
(See 01–10–6 Camshaft Sprocket Lock Bolt,
Variable Valve Timing Actuator Lock Bolt (With
variable valve timing mechanism) Disassembly
Note.)

2

Camshaft sprocket, variable valve timing actuator
(With variable valve timing mechanism)

3

Oil control valve (OCV) (With variable valve timing
mechanism)

4

Camshaft cap
(See 01–10–6 Camshaft Cap Disassembly Note.)

5

Camshaft

6

Tappet
(See 01–10–6 Tappet Disassembly Note.)
