FUEL SYSTEM

01–14–1

01–14

01–14

FUEL SYSTEM

FUEL SYSTEM OUTLINE [LF] . . . . . . . .  01–14–1

Features . . . . . . . . . . . . . . . . . . . . . . . .  01–14–1
Specification. . . . . . . . . . . . . . . . . . . . .  01–14–1

FUEL SYSTEM STRUCTURAL VIEW

[LF]  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  01–14–2

Engine Compartment Side. . . . . . . . . .  01–14–2
Fuel Tank Side . . . . . . . . . . . . . . . . . . .  01–14–3

FUEL SYSTEM FLOW DIAGRAM

[LF]  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  01–14–3

Fuel Flow . . . . . . . . . . . . . . . . . . . . . . .  01–14–3

RETURNEES FUEL SYSTEM OUTLINE

[LF]  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  01–14–4

RETURNEES FUEL SYSTEM

OPERATION [LF]  . . . . . . . . . . . . . . . . .  01–14–4

FUEL TANK CONSTRUCTION [LF] . . . .  01–14–4
NONRETURN VALVE FUNCTION

[LF]  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  01–14–4

NONRETURN VALVE

CONSTRUCTION/OPERATION
[LF]  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  01–14–4

FUEL PUMP UNIT FUNCTION [LF]. . . . . 01–14–5
FUEL PUMP UNIT

CONSTRUCTION/OPERATION
[LF] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–14–5

Fuel Pump Unit . . . . . . . . . . . . . . . . . . . 01–14–5
Pressure Regulator . . . . . . . . . . . . . . . . 01–14–5

QUICK RELEASE CONNECTOR

(FUEL SYSTEM) FUNCTION [LF] . . . . . 01–14–6

QUICK RELEASE CONNECTOR

(FUEL SYSTEM)
CONSTRUCTION/OPERATION
[LF] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–14–6

Type A . . . . . . . . . . . . . . . . . . . . . . . . . . 01–14–6
Type B . . . . . . . . . . . . . . . . . . . . . . . . . . 01–14–7

FUEL INJECTOR FUNCTION [LF]  . . . . . 01–14–8
FUEL INJECTOR

CONSTRUCTION/OPERATION
[LF] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01–14–8

FUEL PUMP RELAY FUNCTION [LF] . . . 01–14–8

End of Toc

FUEL SYSTEM OUTLINE [LF]

E5U011400000N01

Features

Specification

End Of Sie

Improved serviceability

• Nylon tubes adopted for fuel hoses in the engine compartment and around the fuel

tank, and quick release connectors adopted for joints

Reduction of evaporative gas

• Returnees fuel system adopted

Item

Specification

Injector

Type

Hi-ohmic

Type of fuel delivery

Top-feed

Type of drive

Voltage

Pressure regulator control pressure

(kPa {kgf/cm

2

, psi})

Approx. 390 {3.98, 56.6}

Fuel pump type

Electric

Fuel tank capacity

(L {US gal, lmp gal})

48 {12, 10}

Fuel type (Anti-knock index)

Premium unleaded fuel (96 RON or more)

FUEL SYSTEM

01–14–2

FUEL SYSTEM STRUCTURAL VIEW [LF]

E5U011400000N02

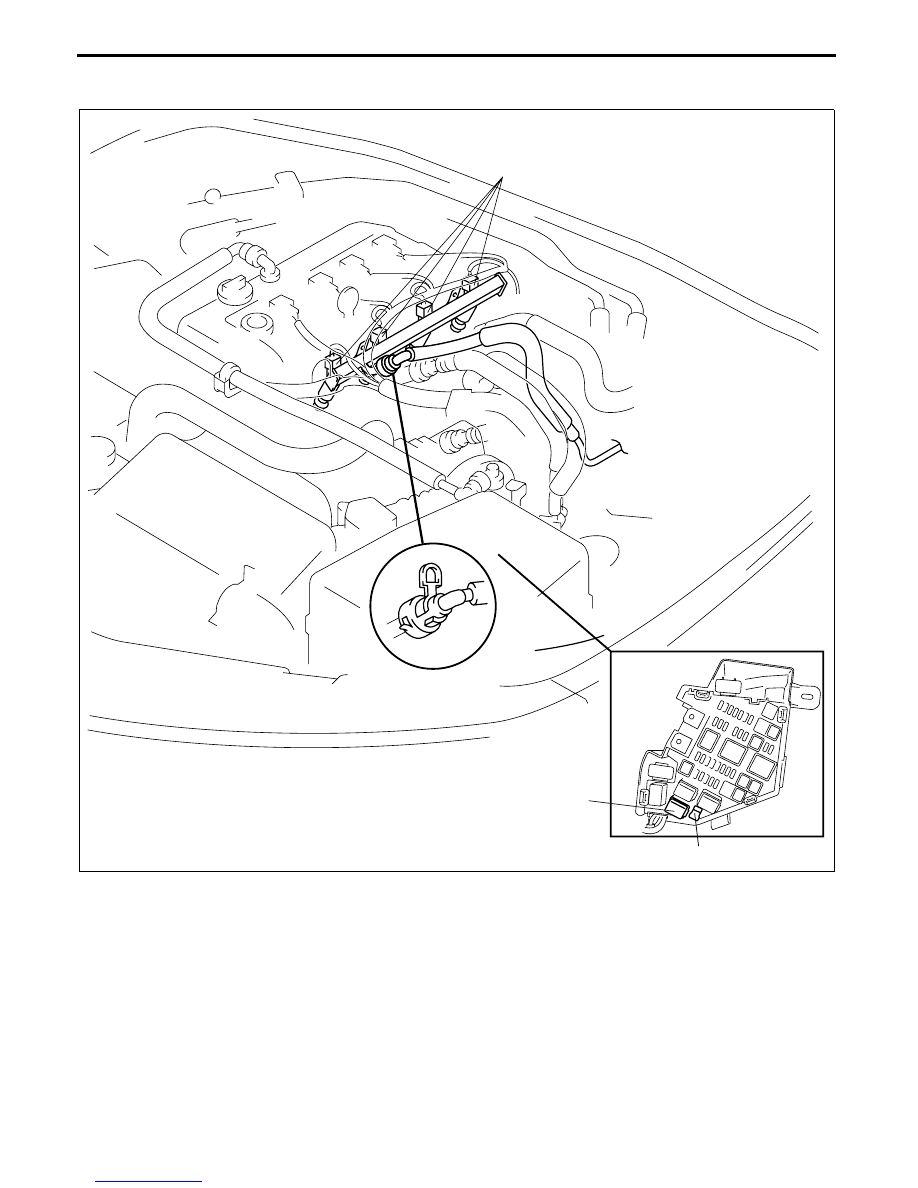

Engine Compartment Side

MAIN FUSE BLOCK
(UPPER BLOCK)

FUEL INJECTOR

QUICK RELEASE
CONNECTOR (TYPE A)

FUEL PUMP RELAY

CHECK CONNECTOR

E5U114ZS5020

FUEL SYSTEM

01–14–3

01–14

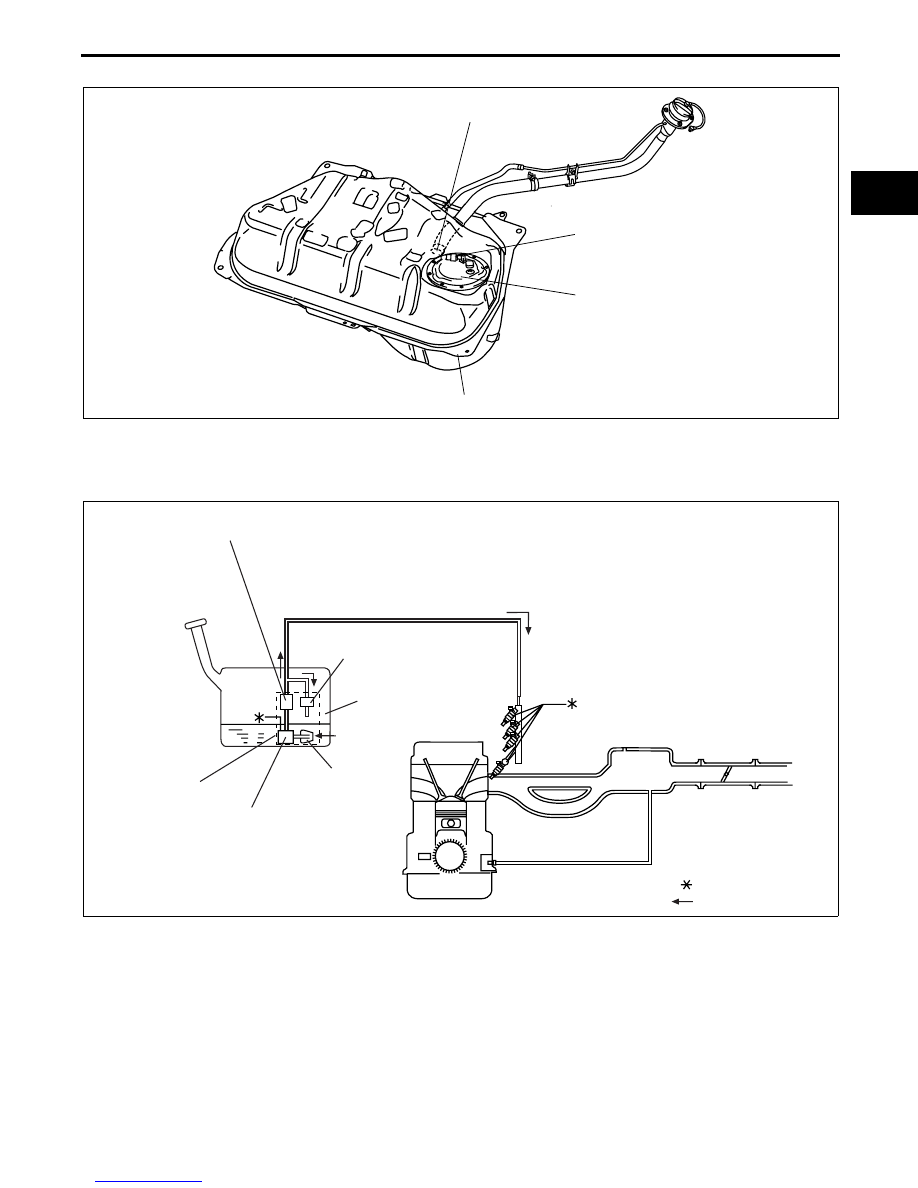

Fuel Tank Side

End Of Sie

FUEL SYSTEM FLOW DIAGRAM [LF]

E5U011400000N03

Fuel Flow

End Of Sie

QUICK RELEASE
CONNECTOR (TYPE B)

FUEL PUMP UNIT

FUEL TANK

NONRETURN VALVE

E5U114ZS5030

FUEL PUMP UNIT

: TO PCM

FUEL
INJECTOR

FUEL PUMP

FUEL FILTER
(LOW-PRESSURE)

PRESSURE
REGULATOR

FUEL TANK

FUEL FILTER
(HIGH-PRESSURE)

: FUEL FLOW

E5U114ZS5001

FUEL SYSTEM

01–14–4

RETURNEES FUEL SYSTEM OUTLINE [LF]

E5U011400000N04

• The returnees fuel system reduces fuel evaporation in the fuel tank.

• The pressure regulator located in the fuel tank prevents fuel return from the engine compartment side, thereby

maintaining a low fuel temperature in the fuel tank. Due to this, formation of evaporative gas produced by a rise
in fuel temperature is suppressed.

• The pressure regulator is built into the fuel pump unit in the fuel tank.

End Of Sie

RETURNEES FUEL SYSTEM OPERATION [LF]

E5U011400000N05

• Fuel in the fuel tank is pumped out through the fuel filter (low-pressure) by the fuel pump, filtered by the fuel

filter (high-pressure), and then regulated to a specified pressure by the pressure regulator.

• The pressure regulated fuel is sent to the fuel injectors.

• After pressure regulation, unnecessary fuel is returned from the pressure regulator to inside the fuel pump unit.

End Of Sie

FUEL TANK CONSTRUCTION [LF]

E5U011442110N01

• Capacity is 48 L {12 US gal, 10 lmp gal}.

• Two rollover valves and a fuel shut-off valve are built-in. For the rollover valve and the fuel shut-off valve, refer

to the emission system.

• Made of steel.

End Of Sie

NONRETURN VALVE FUNCTION [LF]

E5U011442270N01

• Prevents fuel from spouting out due to evaporative gas pressure in the fuel tank when removing the fuel-filler

cap.

End Of Sie

NONRETURN VALVE CONSTRUCTION/OPERATION [LF]

E5U011442270N02

• A single valve type has been adopted.

• The nonreturn valve is built into the fuel-filler pipe

of the fuel tank.

• The nonreturn valve cannot be removed because

it is integrated with the fuel tank. Replace the fuel
tank if the nonreturn valve requires replacement.

• Under normal conditions, this valve is closed as

shown by the dotted line. When refueling, it opens
to the position shown by the solid line due to the
flow of fuel. When refueling is finished, the valve
returns to the normal valve position due to spring
force.

End Of Sie

VALVE POSITION
DURING REFUELING

FUEL-FILLER PIPE OF
FUEL TANK

FUEL

FUEL TANK SIDE

NORMAL VALVE POSITION

E5U114ZS5021
