③ Remove the 2 bolts in the left side of rear bumper.
④ Remove the 2 bolts in the right side of rear bumper.
⑤ Remove the 2 BL1409 snap buttons in the bottom of rear bumper.
⑥ Put protecting tape under the side wall plate.
⑦ Disconnect the rear bumper and left and right connection brackets. Notes: Disconnect the 4

jack catches in the left and right with screwdriver.
⑧ After disconnecting rear bumper and left and right connecting pieces of rear wall, remove rear

bumper. Notes: Pull backwards lightly the rear bumper with holding its two sides by hands and

shake lightly from side to side to disconnect rear bumper from the jack catches of left and right

357

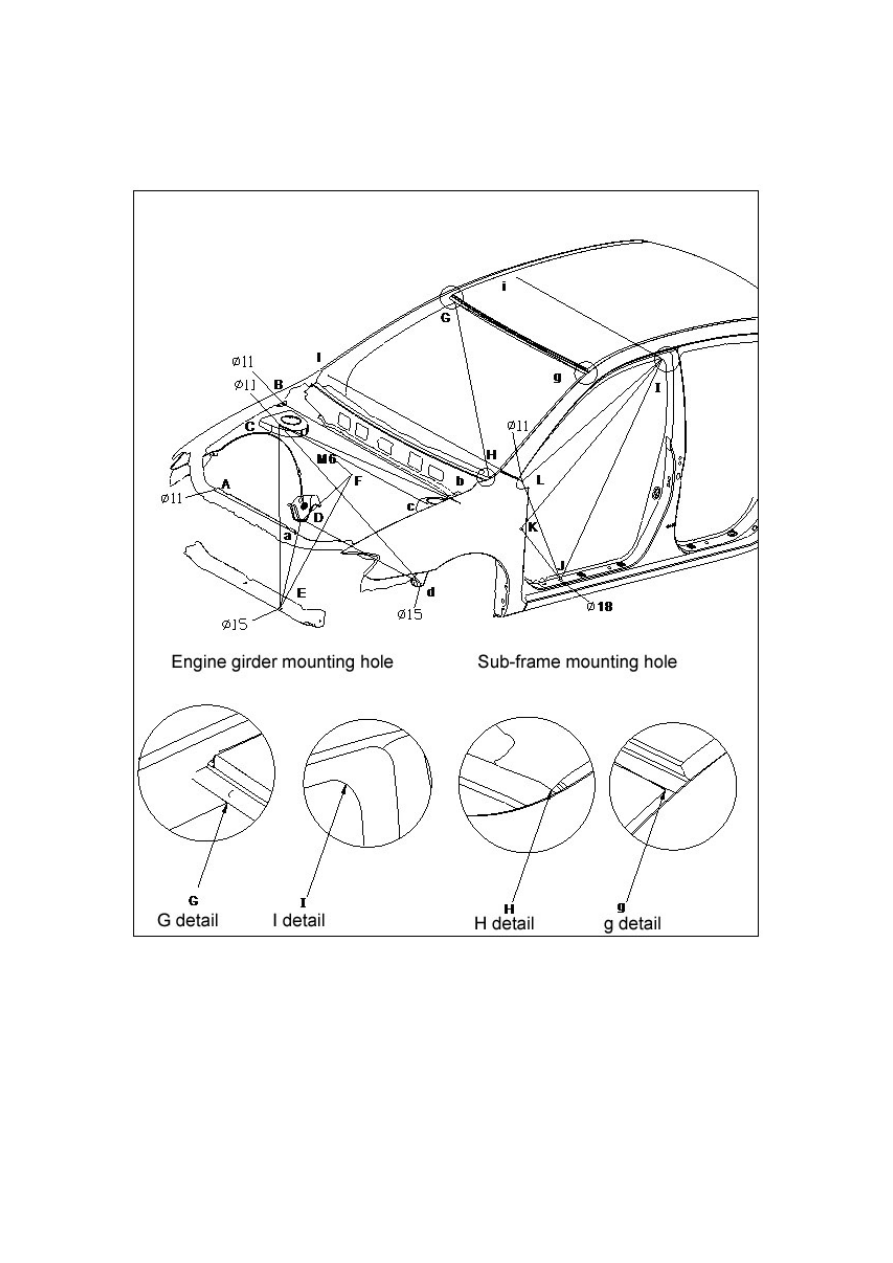

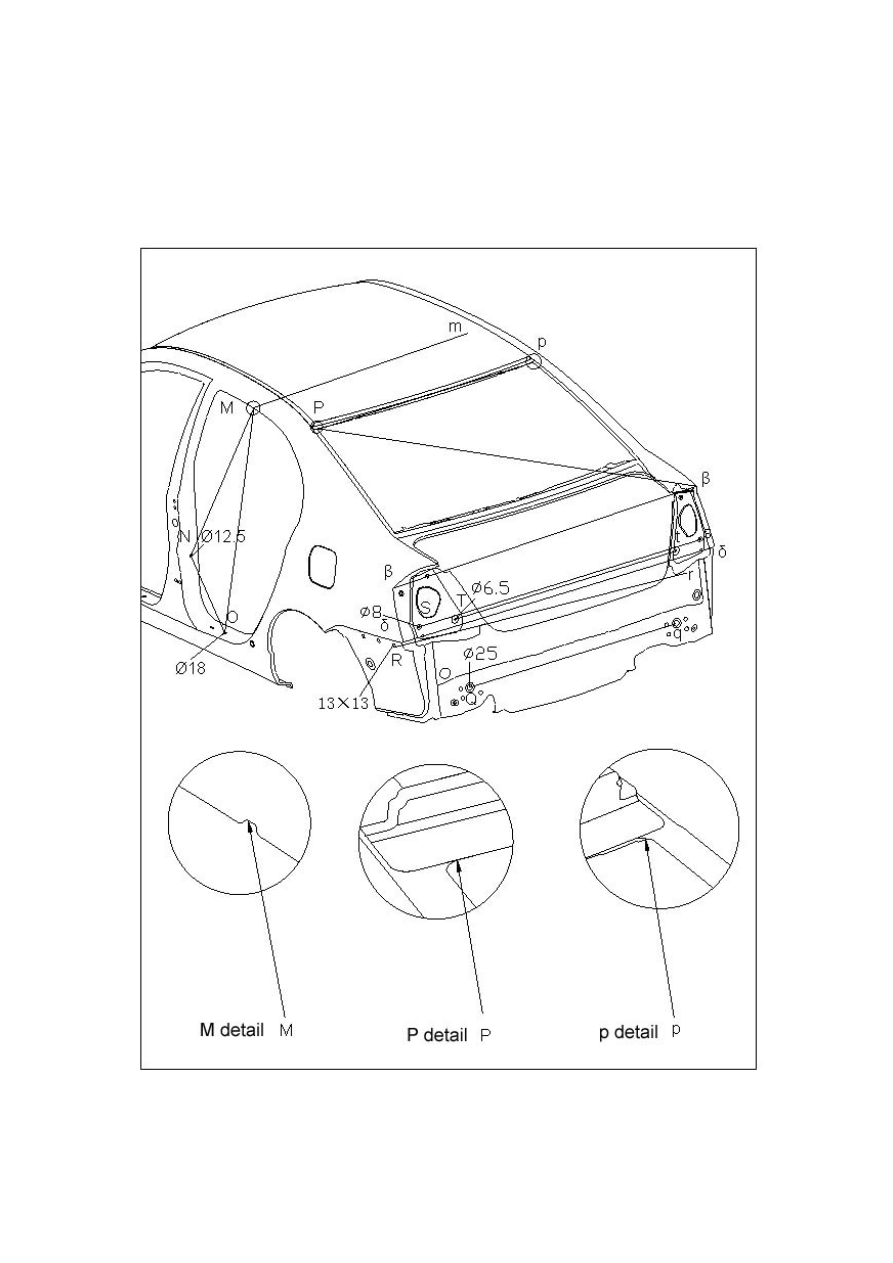

Chapter VIII    Vehicle Body Dimension









358























359

S/N

Measuring

point

Dimension

parameter

(mm)

Remark

S/N

Measuring

point

Dimension

parameter

(mm)

Remark

1 A-a 690    17 I-K

1223.6



2 A-B

835.2   18 I-L 1146.4



3 A-C

685.2   19 L-l 1490.6



4 B-b 1365   20

M-m

1126.5



5 C-c

1136.6   21

M-N

834.7



6 C-b

1256.4   22

M-O

1024.9



A, a

C, c

F

J

Door sill technical hole

W, w

Front floor weld positioning hole

K

Front door limiter mounting hole

X, x

Rubber cover stem mounting hole

L

Fender mounting hole

Y, y

Rear shock damper assembly mounting

hole

N

Rear door limiter mounting hole

Z, z

Rear towing eye hook

O

Door sill technical hole
