Lifan 620. Manual - part 51

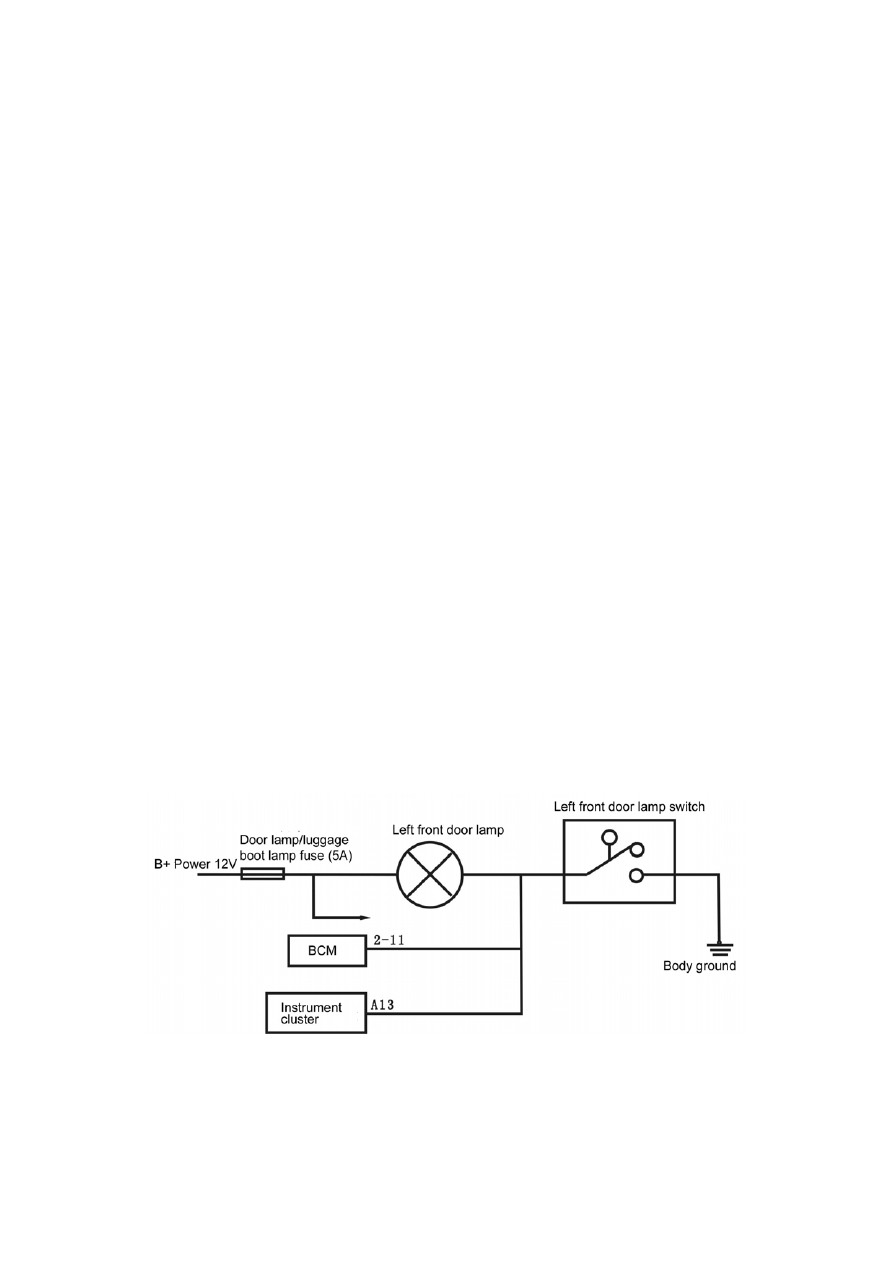

Fig. 4-25





205

7. Driver’s seat belt reminder buzzer does not work properly, as shown in Table 4-4.



Table 4-4

Symptom Cause

Driver’s seat belt reminder buzzer does

not work properly

1  Faulty instrument cluster

2    Faulty air bag ECU

3  Faulty wiring and connector

4    Faulty seat belt buckle switch

206

3. Check the tachometer
Start the engine at DC 13.5V±0.5V, ambient temperature 25 ±5 ,

℃

℃

externally connect with

trouble diagnostic instrument to measure the rotation speed, the value measured should
correspond to the instrument display within a permissible range, as shown in the table below.
Tachometer permissible range (see Table 4-5)



Table 4-5

Value measured (rpm)

Instrument display (rpm)

207



















208
