LEXUS RX 350 L (2019 year). Instruction - part 23

365

4-5. Using the driving support systems

iving

RX350/RX350L_U

■

Lexus parking assist monitor camera

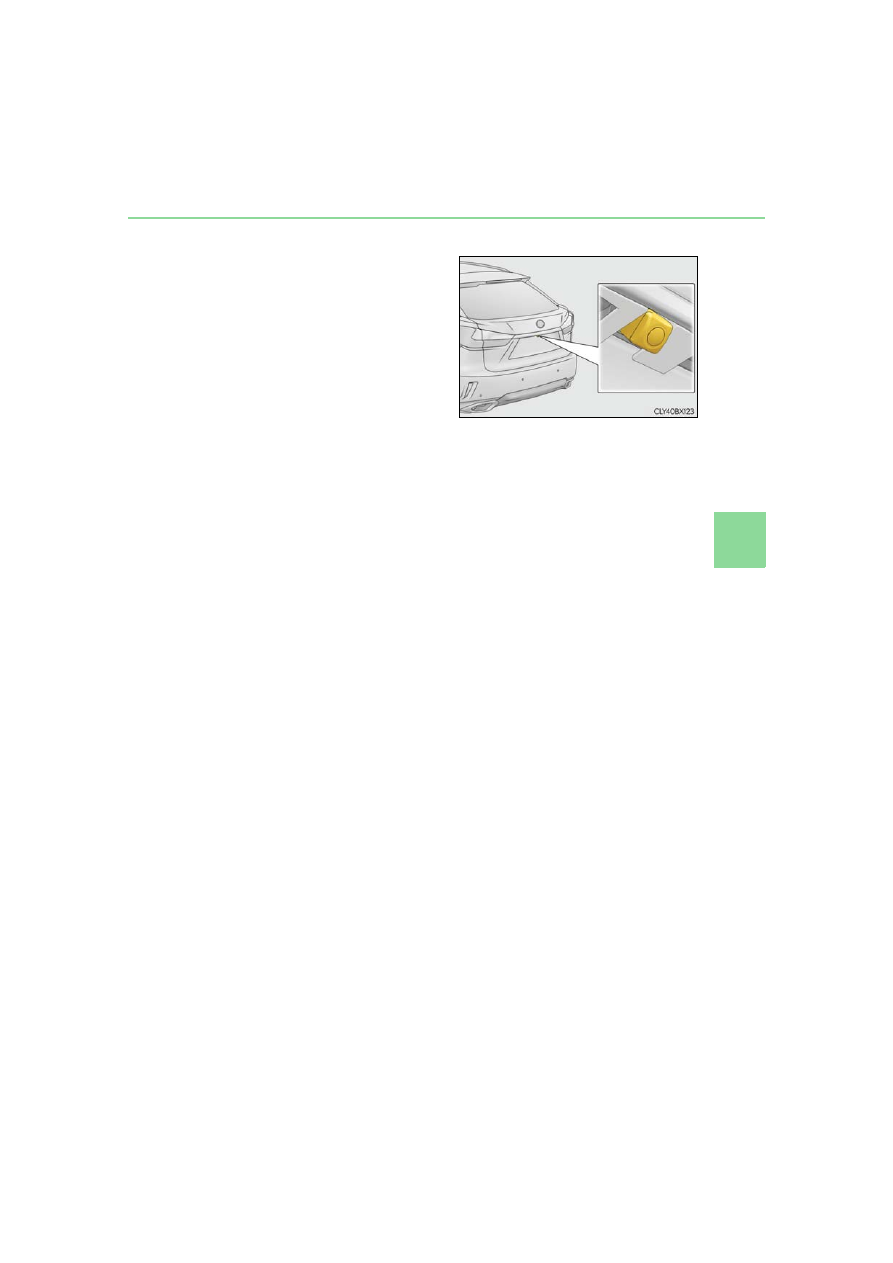

The camera for the parking assist
monitor is located above the license
plate.

●

Using the camera
If dirt or foreign matter (such as water droplets, snow, mud etc.) is adhering
to the camera, it cannot transmit a clear image. In this case, flush it with a
large quantity of water and wipe the camera lens clean with a soft and wet
cloth.

■

Differences between the screen and the actual road
The distance guide lines and the vehicle width guide lines may not actually be
parallel with the dividing lines of the parking space, even when they appear to
be so. Be sure to check visually.
The distances between the vehicle width guide lines and the left and right
dividing lines of the parking space may not be equal, even when they appear
to be so. Be sure to check visually.
The distance guide lines give a distance guide for flat road surfaces. In any of
the following situations, there is a margin of error between the guide lines on
the screen and the actual distance/course on the road.

366

4-5. Using the driving support systems

RX350/RX350L_U

●

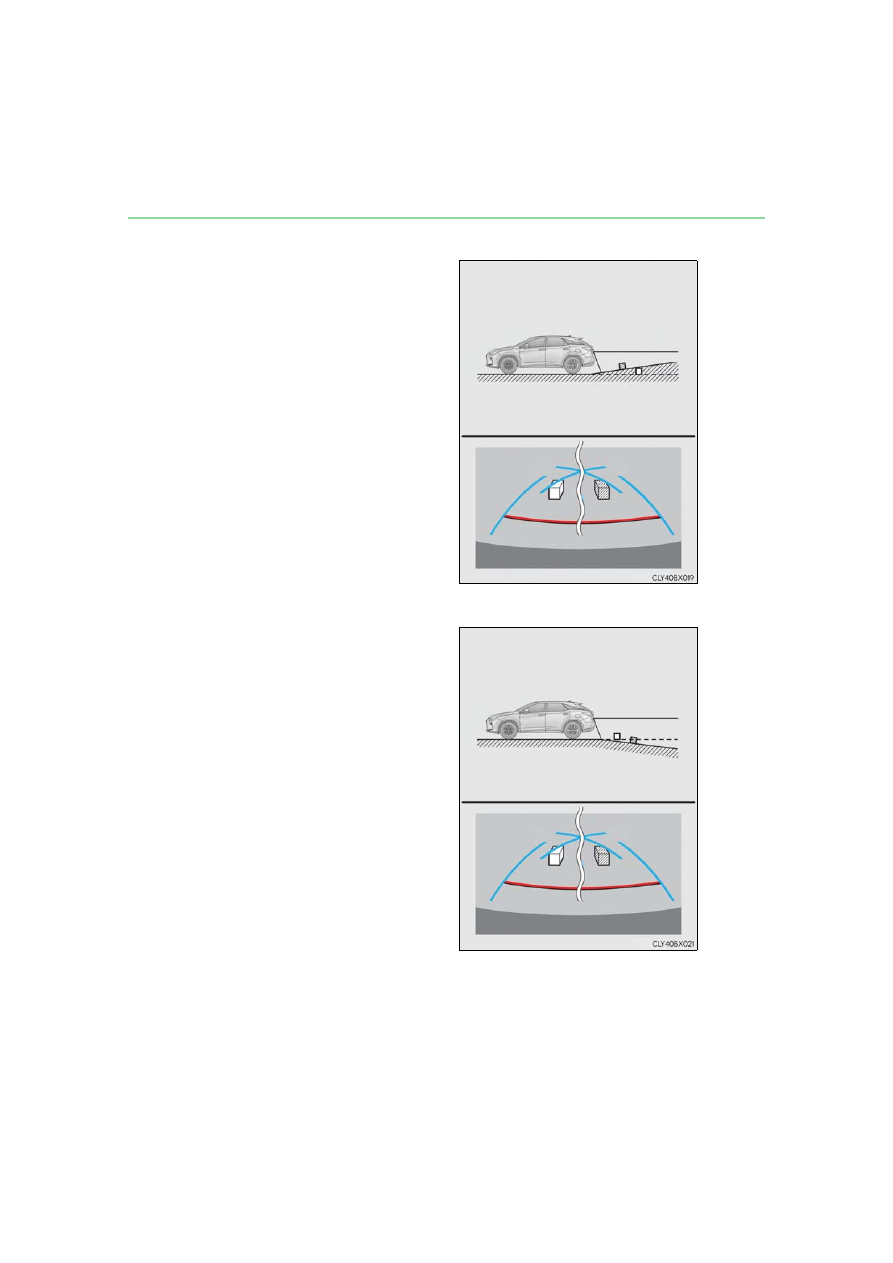

When the ground behind the vehicle slopes up sharply

The distance guide lines will
appear to be closer to the vehicle
than the actual distance. Because
of this, objects will appear to be
farther away than they actually
are. In the same way, there will be
a margin of error between the
guidelines and the actual dis-
tance/course on the road.

●

When the ground behind the vehicle slopes down sharply
The distance guide lines will
appear to be further from the
vehicle than the actual distance.
Because of this, objects will
appear to be closer than they
actually are. In the same way,
there will be a margin of error
between the guidelines and the
actual distance/course on the
road.

367

4-5. Using the driving support systems

iving

RX350/RX350L_U

●

When any part of the vehicle sags
When any part of the vehicle sags
due to the number of passengers
or the distribution of the load,
there is a margin of error between
the guide lines on the screen and
the actual distance/course on the
road.

■

When approaching three-dimensional objects
The estimated course lines target a flat surfaced objects (such as the road). It
is not possible to determine the position of three-dimensional objects (such as
vehicles) using the estimated course lines and distance guide lines. When
approaching a three-dimensional object that extends outward (such as the
flatbed of a truck), be careful of the following.

●

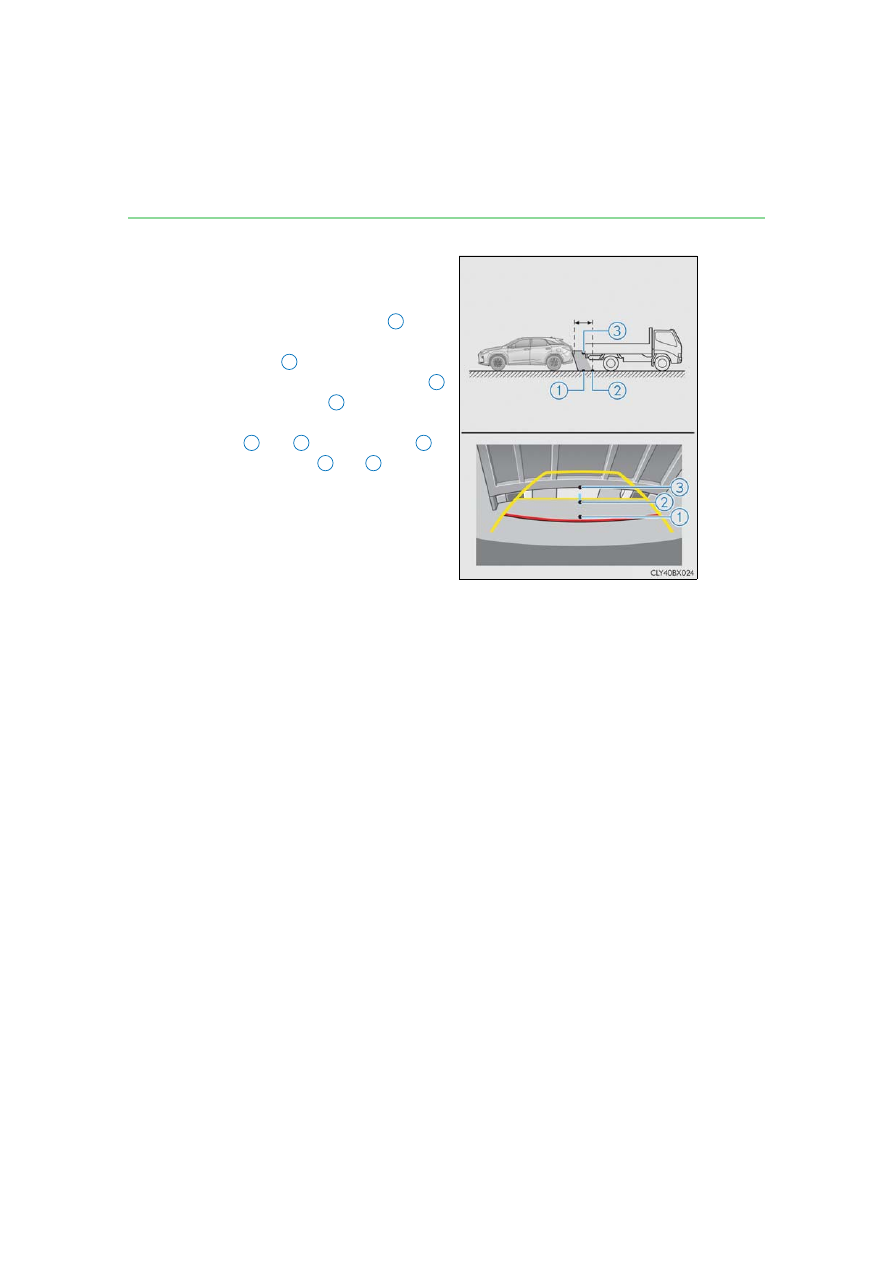

Estimated course lines
Visually check the surroundings
and the area behind the vehicle.
In the case shown in the illustra-
tion, the truck appears to be out-
side of the estimated course lines
and the vehicle does not look as if
it will hits the truck. However, the
rear body of the truck may actu-
ally cross over the estimated
course lines. In reality if you back
up as guided by the estimated
course lines, the vehicle may hit
the truck.

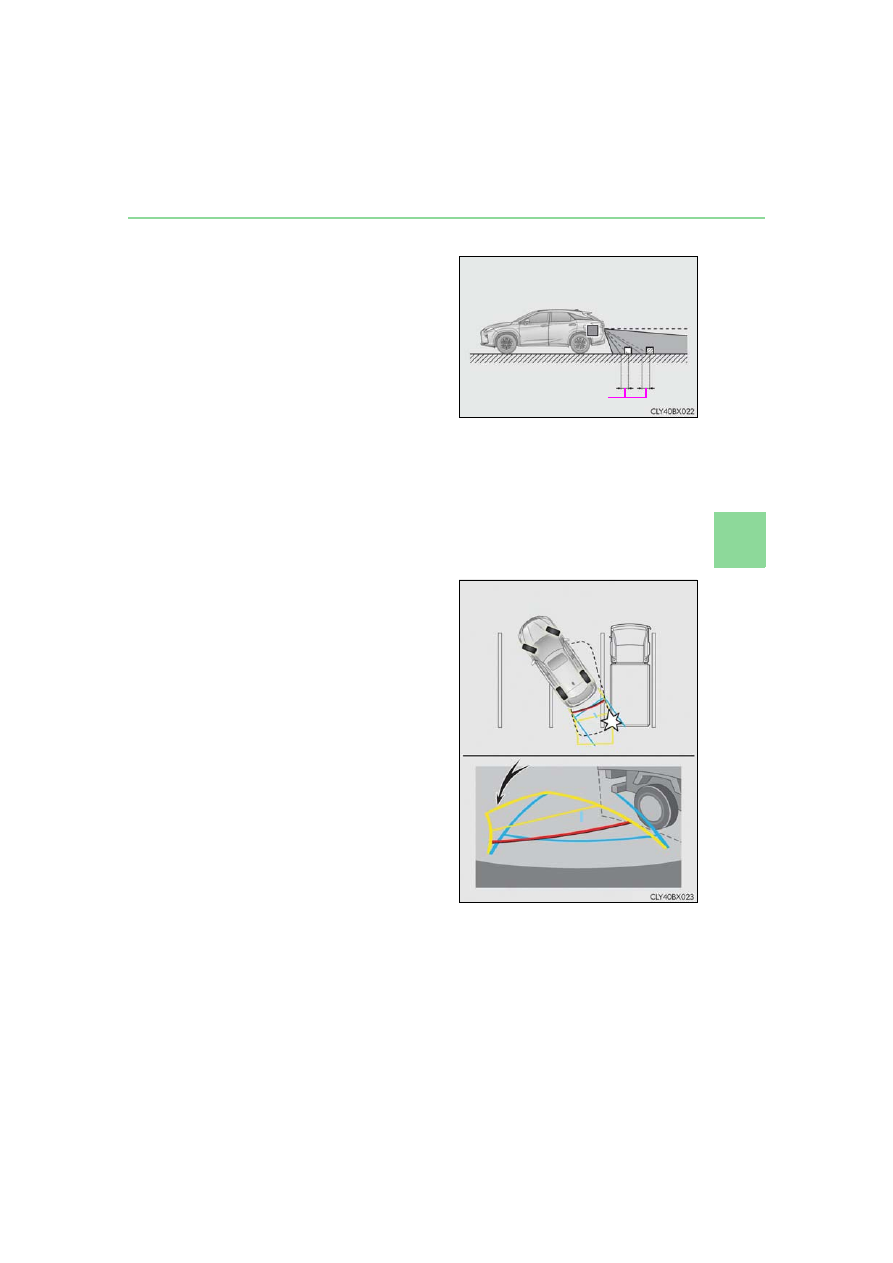

A margin of error

368

4-5. Using the driving support systems

RX350/RX350L_U

●

Distance guidelines
Visually check the surroundings
and the area behind the vehicle.
On the screen, it appears that a
truck is parking at point

. How-

ever, in reality if you back up to
point

, you will hit the truck.

On the screen, it appears that
is closest and

is farthest away.

However, in reality, the distance to

and

is the same and

farther than

and

369

4-5. Using the driving support systems

iving

RX350/RX350L_U

■

If you notice any symptoms
If you notice any of the following symptoms, refer to the likely cause and the
solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle inspected by
your Lexus dealer.

Things you should know

Likely cause

Solution

 The image is difficult to see

• The vehicle is in a dark area

• The temperature around the lens is

either high or low

• The outside temperature is low

• There are water droplets on the cam-

era

• It is raining or humid

• Foreign matter (mud, etc.) is adhering

to the camera

• There are scratches on the camera

• Sunlight or headlights are shining

directly into the camera

• The vehicle is under fluorescent lights,

sodium lights, mercury lights etc.

If this happens due to these causes, it

does not indicate a malfunction.

Back up while visually checking the vehi-

cle’s surroundings. (Use the monitor

again once conditions have been

improved.)

The image on the Lexus parking assist

monitor system screen can be adjusted.

(Vehicles with a Lexus Display Audio sys-

tem:

P. 411) (Vehicles with a navigation

system:

“NAVIGATION SYSTEM

OWNER’S MANUAL”.)

 The image is blurry

Dirt or foreign matter (such as water

droplets, snow, mud, etc.) is adhering to

the camera.

Flush the camera with a large quantity of

water and wipe the camera lens clean

with a soft and wet cloth.

 The image is out of alignment

The camera or surrounding area has

received a strong impact.

Have the vehicle inspected by your Lexus

dealer.

 The guide lines are very far out of alignment

The camera position is out of alignment.

Have the vehicle inspected by your Lexus

dealer.

• The vehicle is tilted (there is a heavy

load on the vehicle, tire pressure is low

due to a tire puncture, etc.)

• The vehicle is used on an incline.

If this happens due to these causes, it

does not indicate a malfunction.

Back up while visually checking the vehi-

cle’s surroundings.

370

4-5. Using the driving support systems

RX350/RX350L_U

 The estimated course lines move even though the steering wheel is straight

There is a malfunction in the signals being

output by the steering sensor.

Have the vehicle inspected by your Lexus

dealer.

 Guide lines are not displayed

The back door is open.

Close the back door.

If this does not resolve the symptom, have

the vehicle inspected by your Lexus

dealer.

 The estimated course lines are not displayed

• The steering wheel has been moved

while the battery was being reinstalled.

• Battery power is low.

• The steering sensor has been rein-

stalled.

• There is a malfunction in the signals

being output by the steering sensor.

Stop the vehicle, and turn the steering

wheel as far as it will go to the left and

right.

If this does not resolve the symptom, have

the vehicle inspected by your Lexus

dealer.

Likely cause

Solution

371

4-5. Using the driving support systems

iving

RX350/RX350L_U

WARNING

■

When using the Lexus parking assist monitor system
The parking assist monitor is a supplemental device intended to assist the driver when

backing up. When backing up, be sure to check visually behind and all around the vehi-

cle before proceeding.
Observe the following precautions to avoid an accident that could result in death or

serious injuries.

●

Never depend on the parking assist monitor entirely when backing up. The image

and the position of the guide lines displayed on the screen may differ from the actual

state.

Use caution, just as you would when backing up any vehicle.

●

Be sure to back up slowly, depressing the brake pedal to control vehicle speed.

●

If you seem likely to hit nearby vehicles, obstacles, people or mount the shoulder,

depress the brake pedal to stop the vehicle.

●

The instructions given are only guidelines.

When and how much to turn the steering wheel will vary according to traffic condi-

tions, road surface conditions, vehicle condition, etc. when parking. It is necessary to

be fully aware of this before using the parking assist system.

●

When parking, be sure to check that the parking space will accommodate your vehi-

cle before maneuvering into it.

●

Do not use the parking assist monitor in the following cases:
• On icy or slick road surfaces, or in snow

• When using tire chains or emergency tires

• When the back door is not closed completely

• On roads that are not flat or straight, such as curves or slopes.

●

In low temperatures, the screen may darken or the image may become faint. The

image could distort when the vehicle is moving, or you may become unable to see the

image on the screen. Be sure to check direct visually and with the mirrors all around

the vehicle before proceeding.

●

If the tire sizes are changed, the position of the guide lines displayed on the screen

may change.

●

The camera uses a special lens. The distances between objects and pedestrians that

appear in the image displayed on the screen will differ from the actual distances.

(

P. 365)

●

Estimated course line display mode: If the steering wheel is straight and the vehicle

width guide lines and the estimated course lines are not in alignment, have the vehicle

inspected by your Lexus dealer.

372

4-5. Using the driving support systems

RX350/RX350L_U

NOTICE

■

How to use the camera

●

The parking assist monitor may not operate properly in the following cases.
• If the back of the vehicle is hit, the position and mounting angle of the camera may

change.

• As the camera has a water proof construction, do not detach, disassemble or

modify it. This may cause incorrect operation.

• When cleaning the camera lens, flush the camera with a large quantity of water

and wipe it with a soft and wet cloth. Strongly rubbing the camera lens may cause

the camera lens to be scratched and unable to transmit a clear image.

• Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to

the camera. If this happens, wipe it off as soon as possible.

• If the temperature changes rapidly, such as when hot water is poured on the vehi-

cle in cold weather, the system may not operate normally.

• When washing the vehicle, do not apply intensive bursts of water to the camera or

camera area. Doing so may result in the camera malfunctioning.

• When the camera is used under fluorescent lights, sodium light or mercury light

etc., the lights and the illuminated areas may appear to flicker.

●

Do not expose the camera to strong impact as this could cause a malfunction.

If this happens, have the vehicle inspected by your Lexus dealer as soon as possible.

373

4-5. Using the driving support systems

iving

RX350/RX350L_U



Vehicles without Adaptive Variable Suspension System

Normal mode
Provides an optimal balance of fuel economy, quietness, and dynamic perfor-
mance. Suitable for city driving.

Press the switch to change the driving mode to normal mode when Eco drive mode or

sport mode is selected.

Eco drive mode
Helps the driver accelerate in an eco-friendly manner and improve fuel econ-
omy through moderate throttle characteristics and by controlling the opera-
tion of the air conditioning system (heating/cooling).

When not in Eco drive mode, if the driving mode select switch is turned to the left, the

Eco drive mode indicator will come on.

Sport mode
Controls the transmission and engine to provide quick, powerful acceleration.
This mode also changes the steering feel, making it suitable for when agile
driving response is desired, such as when driving on roads with many curves.

When not in sport mode, if the driving mode select switch is turned to the right, the

“SPORT” indicator will comes on.

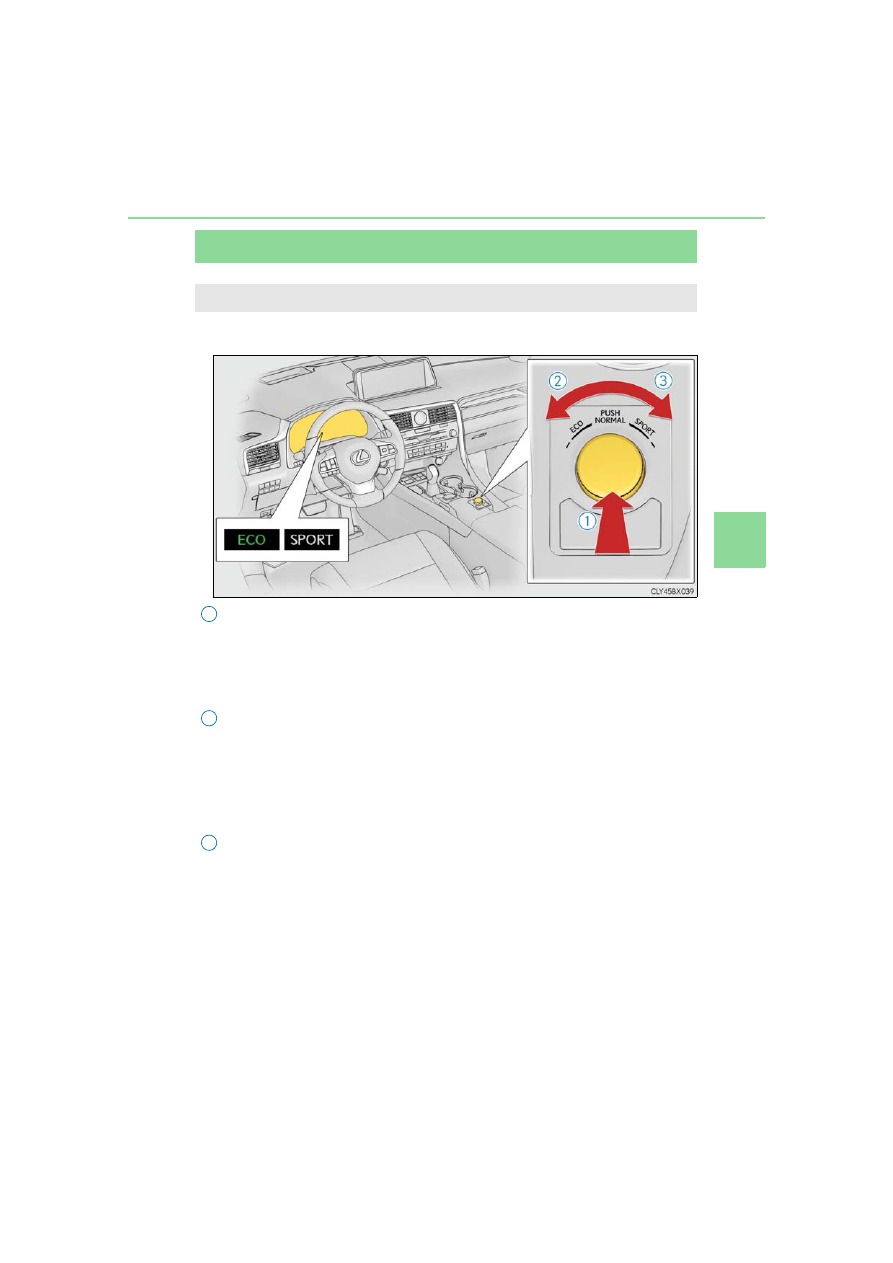

Driving mode select switch

The driving modes can be selected to suit driving conditions.

374

4-5. Using the driving support systems

RX350/RX350L_U



Vehicles with Adaptive Variable Suspension System

Normal mode/Customized mode

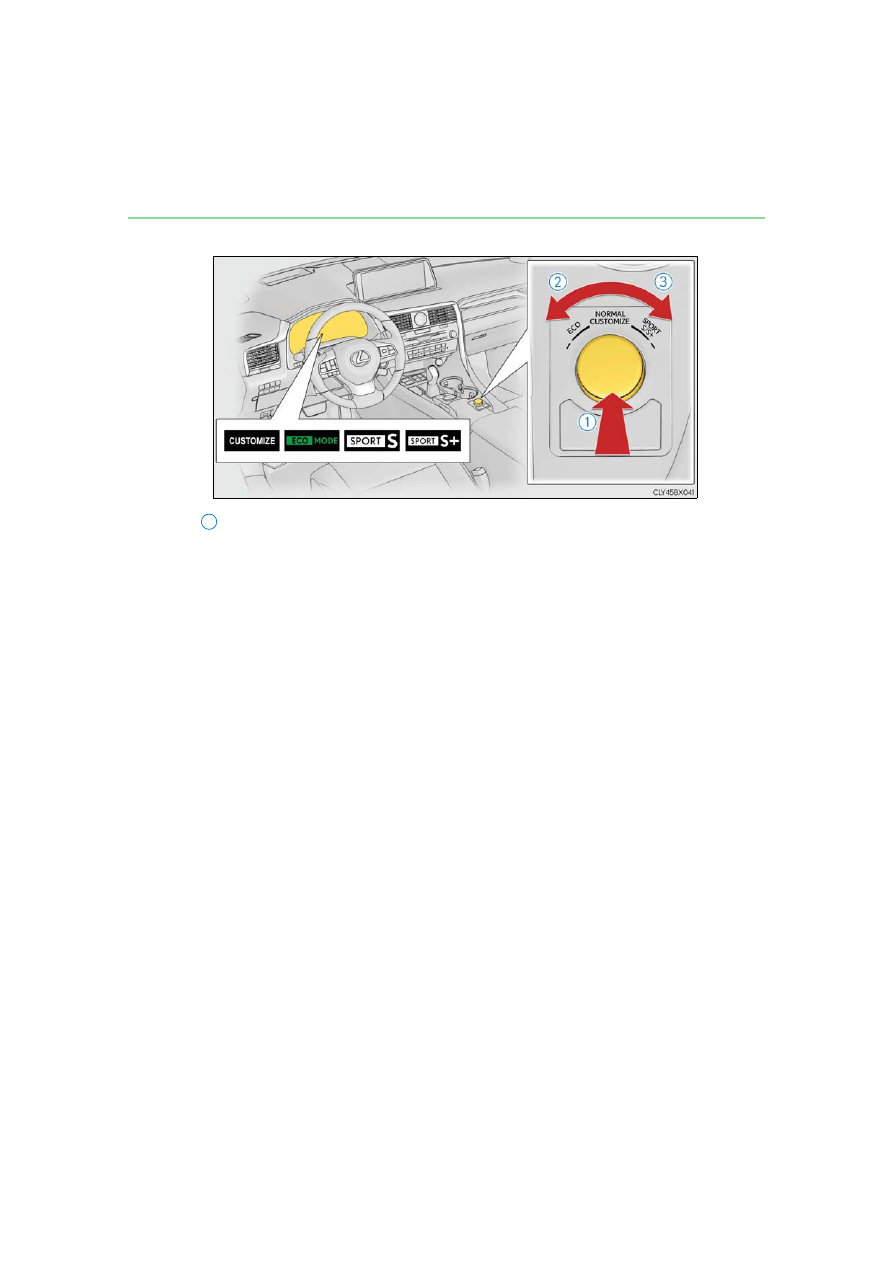

Normal mode and customized mode are selected by pressing the driving
mode select switch. Each time the switch is pressed, the driving mode
changes between normal mode and customized mode. When customized
mode is selected, the “CUSTOMIZE” indicator will be illuminated.

When Eco drive mode or sport mode is selected, pressing the switch changes the

driving mode to normal mode.

• Normal mode

Provides an optimal balance of fuel economy, quietness, and dynamic per-
formance. Suitable for city driving.

• Customized mode

Allows you to drive with the following functions set to your preferred set-
tings.
Customized mode settings can only be changed on the drive mode cus-
tomization display of the audio system screen.
(Displaying the drive mode customization display:

P. 722)

375

4-5. Using the driving support systems

iving

RX350/RX350L_U

When not in Eco drive mode, if the driving mode select switch is turned to the left, the

Eco drive mode indicator will come on.

Sport mode

• SPORT S mode

Controls the transmission and engine to provide quick, powerful accelera-
tion. This mode is suitable for when agile driving response is desired, such
as when driving on roads with many curves.

When not in SPORT S mode, if the driving mode select switch is turned to the

right, the “SPORT S” indicator will come on.

• SPORT S+ mode

Helps to ensure steering performance and driving stability by simultane-
ously controlling the steering and suspension in addition to the transmis-
sion and engine. Suitable for sportier driving.

When in SPORT S mode, if the driving mode select switch is turned to the right,

the “SPORT S+” indicator will come on.

Function

Setting

Powertrain

Normal

Power

Eco

Chassis

Normal

Sport

Air conditioning system

Normal

Eco

376

4-5. Using the driving support systems

RX350/RX350L_U

■

Operation of the air conditioning system in Eco drive mode
Eco drive mode controls the heating/cooling operations and fan speed of the air condi-

tioning system to enhance fuel efficiency. To improve air conditioning performance,

adjust the fan speed or turn off Eco drive mode.

■

Automatic deactivation of sport mode and customized mode
If the engine switch is turned off after driving in sport mode or customized mode, the

drive mode will be changed to normal mode.

■

Driving mode pop-up display (12.3-inch display only)
When the driving mode is changed, the selected driving mode will be temporarily dis-

played on the side display. (

P. 500)

377

4-5. Using the driving support systems

iving

RX350/RX350L_U

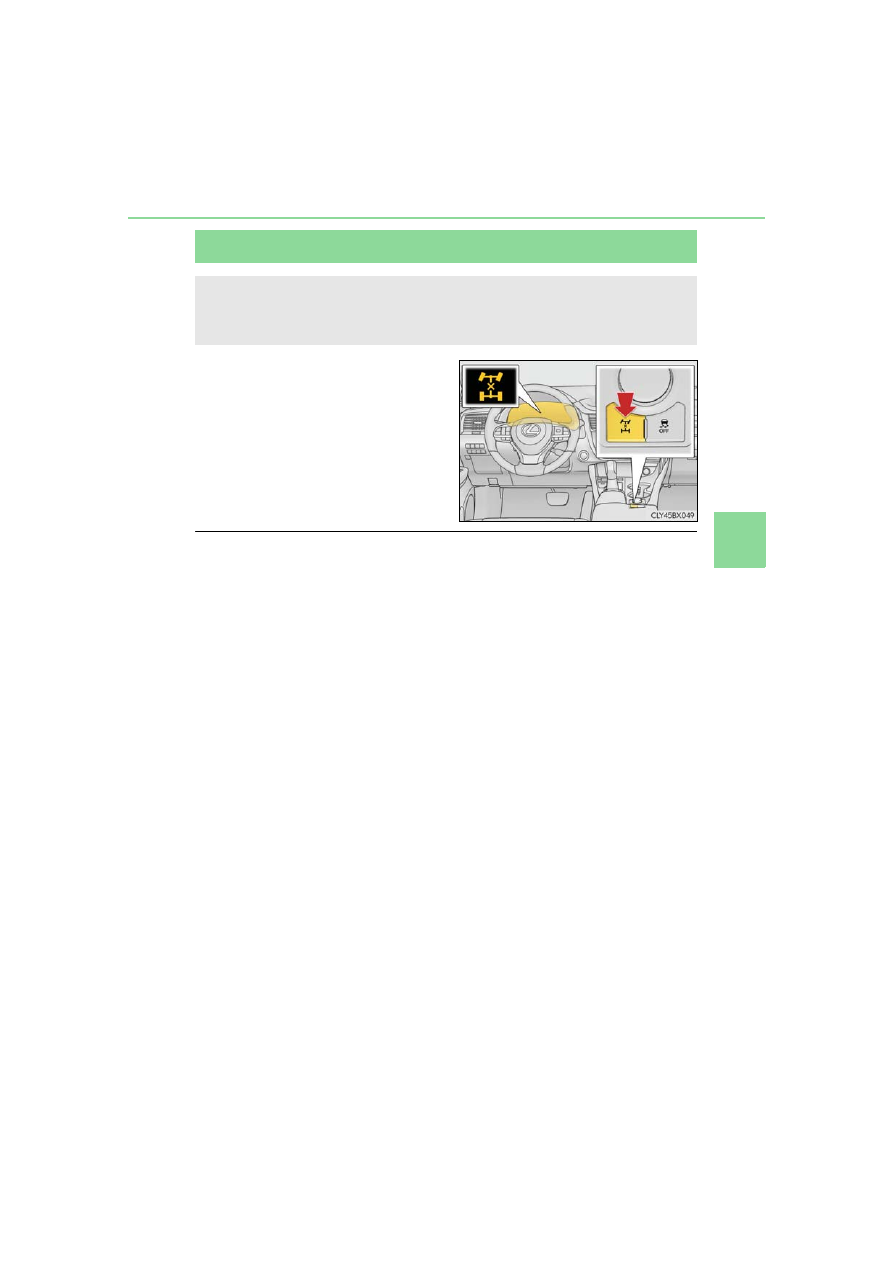

Press the switch.

The torque of the engine is distributed to

the rear wheels to the maximum extent

possible in accordance with driving con-

ditions.
Pressing the switch again cancels

all-wheel drive lock mode and returns

the Dynamic Torque Control AWD sys-

tem to normal mode. (

P. 379)

■

All-wheel drive lock mode can be operated when
The engine switch is in IGNITION ON mode.

■

Automatic release for the all-wheel drive lock mode

●

All-wheel drive lock mode is canceled when the brakes are applied to ensure the ABS

and VSC systems operate effectively.

●

All-wheel drive lock mode is canceled when the vehicle speed exceeds 25 mph

(40 km/h).

All-wheel drive lock switch (AWD models)

All-wheel drive lock mode can be used when a large amount of drive power
needs to be applied to all the wheels, such as when the vehicle gets stuck in
mud and you need to free it.

378

4-5. Using the driving support systems

RX350/RX350L_U

◆

ABS (Anti-lock Brake System)

Helps to prevent wheel lock when the brakes are applied suddenly, or if the
brakes are applied while driving on a slippery road surface

◆

Brake assist

Generates an increased level of braking force after the brake pedal is
depressed when the system detects a panic stop situation

◆

VSC (Vehicle Stability Control)

Helps the driver to control skidding when swerving suddenly or turning on
slippery road surfaces.

◆

Enhanced VSC (Enhanced Vehicle Stability Control)

Provides cooperative control of the ABS, TRAC, VSC and EPS.
Helps to maintain directional stability when swerving on slippery road sur-
faces by controlling steering performance.

◆

Trailer Sway Control

Helps the driver to control trailer sway by selectively applying brake pressure
for individual wheels and reducing driving torque when trailer sway is
detected.

◆

TRAC (Traction Control)

Helps to maintain drive power and prevent the drive wheels from spinning
when starting the vehicle or accelerating on slippery roads

◆

Hill-start assist control

Helps to reduce the backward movement of the vehicle when starting on an
uphill

◆

EPS (Electric Power Steering)

Employs an electric motor to reduce the amount of effort needed to turn the
steering wheel

Driving assist systems

To keep driving safety and performance, the following systems operate auto-
matically in response to various driving situations. Be aware, however, that
these systems are supplementary and should not be relied upon too heavily
when operating the vehicle.

379

4-5. Using the driving support systems

iving

RX350/RX350L_U

◆

Dynamic Torque Control AWD system (AWD models)

Automatically switches from front-wheel drive to all-wheel drive (AWD)
according to the driving conditions, helping to ensure reliable handling and
stability. Examples of conditions where the system will switch to AWD are
when cornering, going uphill, starting off or accelerating, and when the road
surface is slippery due to snow, rain, etc.

◆

Adaptive Variable Suspension System (if equipped)

Controls the damping force of the shock absorber of each wheel according to
the road and driving conditions, helping achieve a comfortable ride, excellent
driveability and a high level of stability.
If SPORT S+ mode is selected using the driving mode select switch, the
damping force will become more suitable for sporty driving. (

P. 374)

◆

VDIM (Vehicle Dynamics Integrated Management) (if equipped)

Provides integrated control of the ABS, brake assist, TRAC, VSC, hill-start
assist control and EPS systems
Helps to maintain vehicle stability when swerving on slippery road surfaces by
controlling the brakes and engine output

380

4-5. Using the driving support systems

RX350/RX350L_U

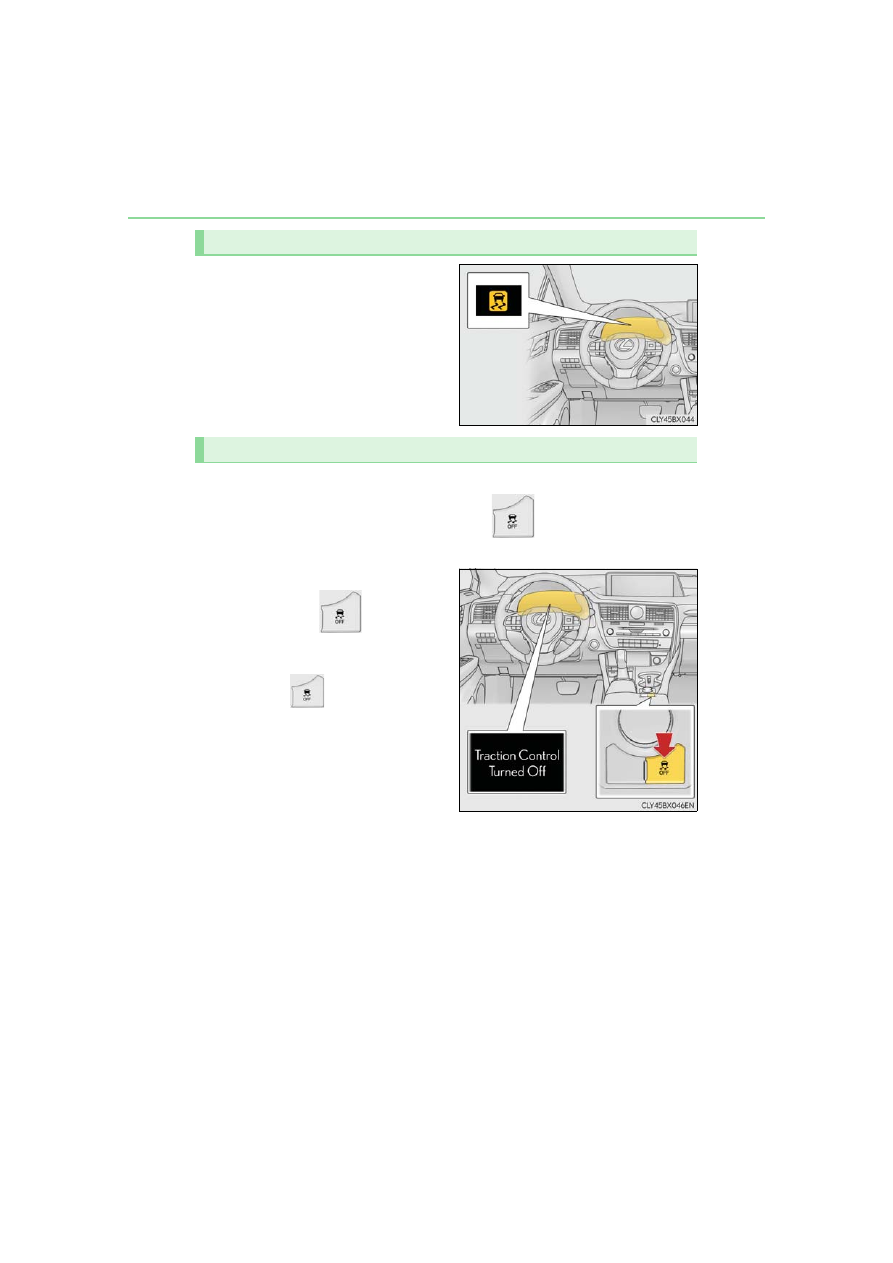

The slip indicator light will flash while
the TRAC/VSC/Trailer Sway Control
systems are operating.

If the vehicle gets stuck in mud, dirt or snow, the TRAC system may reduce

power from the engine to the wheels. Pressing

to turn the system off may

make it easier for you to rock the vehicle in order to free it.
To turn the TRAC system off, quickly

press and release

The “Traction Control Turned Off” will

be shown on the multi-information dis-

play. Press

again to turn the sys-

tem back on.

When the TRAC/VSC/Trailer Sway Control systems are operating

Disabling the TRAC system

Content .. 21 22 23 24 ..
