LEXUS RX 350 L (2019 year). Instruction - part 22

349

4-5. Using the driving support systems

4

Dr

iving

RX350/RX350L_U

NOTICE

■

To prevent the system from malfunctioning

●

If the area around a sensor is subjected to an impact, the system may not operate

properly due to the sensor being misaligned. Have the vehicle inspected by your

Lexus dealer.

●

When using a high pressure washer to wash the vehicle, do not spray the sensors

directly, as doing so may cause a sensor to malfunction.

●

When using steam to clean the vehicle, do not direct steam too close to the sensors

as doing so may cause a sensor to malfunction.

■

To prevent a radar sensor from malfunctioning

●

If the area around a radar sensor is subjected to an impact, the system may not oper-

ate properly due to a sensor malfunction. Have the vehicle inspected by your Lexus

dealer.

●

Observe the radar sensor handling precautions. (

P. 316)

■

To prevent unnecessary operation of the Intelligent Clearance Sonar system
In the following situations, disable the Intelligent Clearance Sonar system as the system

may operate even though there is no possibility of a collision.

●

When inspecting the vehicle using a chassis roller, chassis dynamo or free roller

●

When loading the vehicle onto a boat, truck or other transport vessel

●

If the suspension has been modified or tires of a size other than specified are installed

●

If the front of the vehicle is raised or lowered due to the carried load

●

If towing eyelets are installed

350

4-5. Using the driving support systems

RX350/RX350L_U

If the Rear Cross Traffic Auto Brake function detects that a collision with an
approaching vehicle is possible, the engine output will be restricted to restrain
any increase in vehicle speed. (Engine output restriction control: See A below.)
Additionally, if the accelerator pedal continues to be depressed, the brakes will
be applied automatically to reduce the vehicle speed. (Brake control: See B
below.)

Rear Cross Traffic Auto Brake function (if equipped)

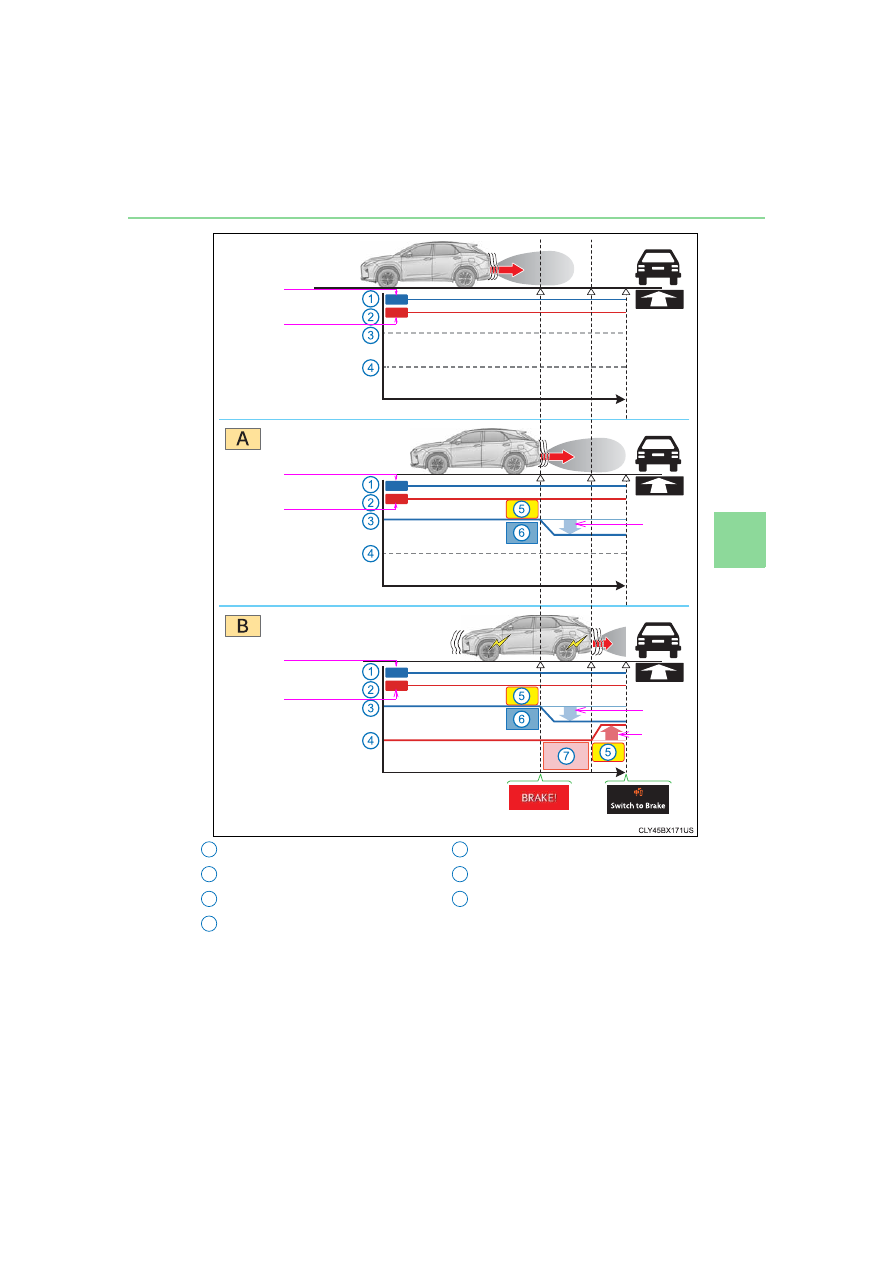

351

4-5. Using the driving support systems

4

Dr

iving

RX350/RX350L_U

On

Off

Time

Down

On

Off

Time

On

Off

Time

Down

Up

Accelerator pedal
Brake pedal
Engine output
Braking force

Start of control
High possibility of a collision
Extremely high possibility of a colli-
sion

1

2
3
4

5
6
7

352

4-5. Using the driving support systems

RX350/RX350L_U

■

The Rear Cross Traffic Auto Brake function will operate when
The function will operate when the ICS OFF indicator is not illuminated or flashing

(

P. 339, 347) and all of the following conditions are met:

●

Engine output restriction control
• The Intelligent Clearance Sonar with Rear Cross Traffic Auto Brake is enabled.

• The vehicle speed is 10 mph (15 km/h) or less.

• The shift lever is in R.

• The system determines that a stronger than normal brake operation is necessary to

avoid a collision with an approaching vehicle.

●

Brake control
• Engine output restriction control is operating.

• The system determines that an emergency brake operation is necessary to avoid a

collision with an approaching vehicle.

■

The Rear Cross Traffic Auto Brake function will stop operating when
The function will stop operating if any of the following conditions are met:

●

Engine output restriction control
• The Intelligent Clearance Sonar with Rear Cross Traffic Auto Brake is disabled.

• The collision becomes avoidable with normal brake operation.

• A vehicle is no longer approaching from the right or left at the rear of the vehicle.

●

Brake control
• The Intelligent Clearance Sonar with Rear Cross Traffic Auto Brake is disabled.

• Approximately 2 seconds elapse after the vehicle is stopped by brake control.

• The brake pedal is depressed after the vehicle is stopped by brake control.

• A vehicle is no longer approaching from the right or left at the rear of the vehicle.

■

Detection area of the Rear Cross Traffic Auto Brake function
The detection area of the Rear Cross Traffic Auto Brake function differs from the detec-

tion area of the RCTA function (

P. 323).

Therefore, even if the RCTA function detects a vehicle and provides an alert, the Rear

Cross Traffic Auto Brake function may not start operating.

■

If the Rear Cross Traffic Auto Brake function has operated
If the vehicle is stopped due to operation of the Rear Cross Traffic Auto Brake function,

the Rear Cross Traffic Auto Brake function will be disabled and the ICS OFF indicator

will illuminate.

353

4-5. Using the driving support systems

4

Dr

iving

RX350/RX350L_U

■

Re-enabling the Rear Cross Traffic Auto Brake function
To re-enable the Rear Cross Traffic Auto Brake function when it is disabled during opera-

tion of the Rear Cross Traffic Auto Brake function, either enable the system again (

P.

339), or turn the engine switch off and then back to IGNITION ON mode.
Additionally, if there is no longer a vehicle approaching from the right or left at the rear of

the vehicle, or if the traveling direction of the vehicle changes (such as changing from

moving forward to backing up or from backing up to moving forward), the system will be

re-enabled automatically.

■

Conditions under which the Rear Cross Traffic Auto Brake function will not detect a

vehicle
The Rear Cross Traffic Auto Brake function is not designed to detect the following types

of vehicles and/or objects:

●

Vehicles approaching from directly behind

●

Vehicles backing up in a parking space next to your vehicle

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

*

●

Small motorcycles, bicycles, pedestrians, etc.

*

●

Vehicles moving away from your vehicle

●

Vehicles approaching from the parking spaces next to your vehicle

*

*

: Depending on the conditions, detection of a vehicle and/or object may occur.

■

RCTA function buzzer
Regardless of whether the RCTA function is enabled or not (

P. 315), if the Rear Cross

Traffic Auto Brake function is enabled and brake control is performed, a buzzer will

sound to notify the driver.

●

Vehicles that the sensors cannot detect due to

obstructions

●

Vehicles which suddenly accelerate or decel-

erate near your vehicle

354

4-5. Using the driving support systems

RX350/RX350L_U

■

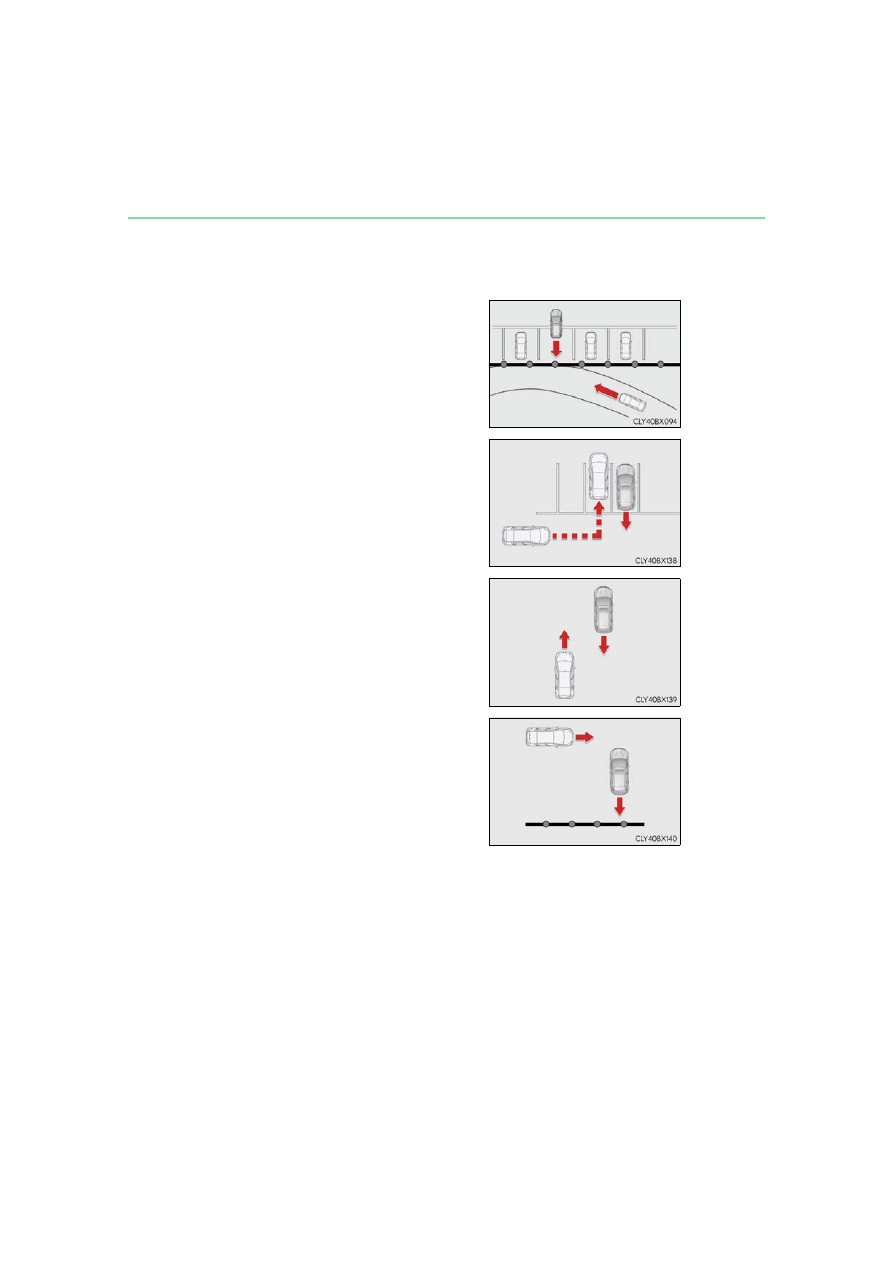

Situations in which the system may operate even though there is no possibility of a colli-

sion
In some situations such as the following, the Rear Cross Traffic Auto Brake function may

operate even though there is no possibility of a collision.
• When the parking space faces a street and

vehicles are being driven on the street

• When a detected vehicle turns while

approaching the vehicle

• When a vehicle passes by the side of your

vehicle

• When the distance between your vehicle and

metal objects, such as a guardrail, wall, sign,

or parked vehicle, which may reflect electrical

waves toward the rear of the vehicle, is short

• When there are spinning objects near your

vehicle such as the fan of an air conditioning

unit

• When water is splashed or sprayed toward

the rear bumper, such as from a sprinkler

355

4-5. Using the driving support systems

4

Dr

iving

RX350/RX350L_U

■

Situations in which the Rear Cross Traffic Auto Brake function may not operate prop-

erly
In some situations such as the following, this function may not operate properly.

●

Objects and vehicles which the radar sensors are not designed to detect
• Stationary objects

• Vehicles which are moving away from your vehicle

• Pedestrians, motorcycles, bicycles, etc.

*

• Objects which are extremely close to a radar sensor

• Vehicles which are approaching from the right or left at the rear of the vehicle at a

traveling speed of less than approximately 5 mph (8 km/h)

• Vehicles which are approaching from the right or left at the rear of the vehicle at a

traveling speed of more than approximately 15 mph (24 km/h)

*

: Depending on conditions, detection of a vehicle and/or object may occur.

●

Situations in which the radar sensors may not be able to detect an object
• When a sensor or the area around a sensor is extremely hot or cold

• If the rear bumper is covered with ice, snow, dirt, etc.

• If heavy rain or water strikes the vehicle

• When the detection area of a radar sensor is obstructed by an adjacent vehicle

• If the vehicle is significantly tilted

• If towing eyelets are installed

• If the suspension has been modified or tires of a size other than specified are

installed

• If the front of the vehicle is raised or lowered due to the carried load

• If a sticker or an electronic component, such as a backlit license plate (especially flu-

orescent type), fog lights, a fender pole or wireless antenna is installed near a radar

sensor

• If the orientation of a radar sensor has been changed due to a collision or other

impact or removal and installation

• When multiple vehicles are approaching with only a small gap between each vehicle

• When a vehicle is approaching at high speed

●

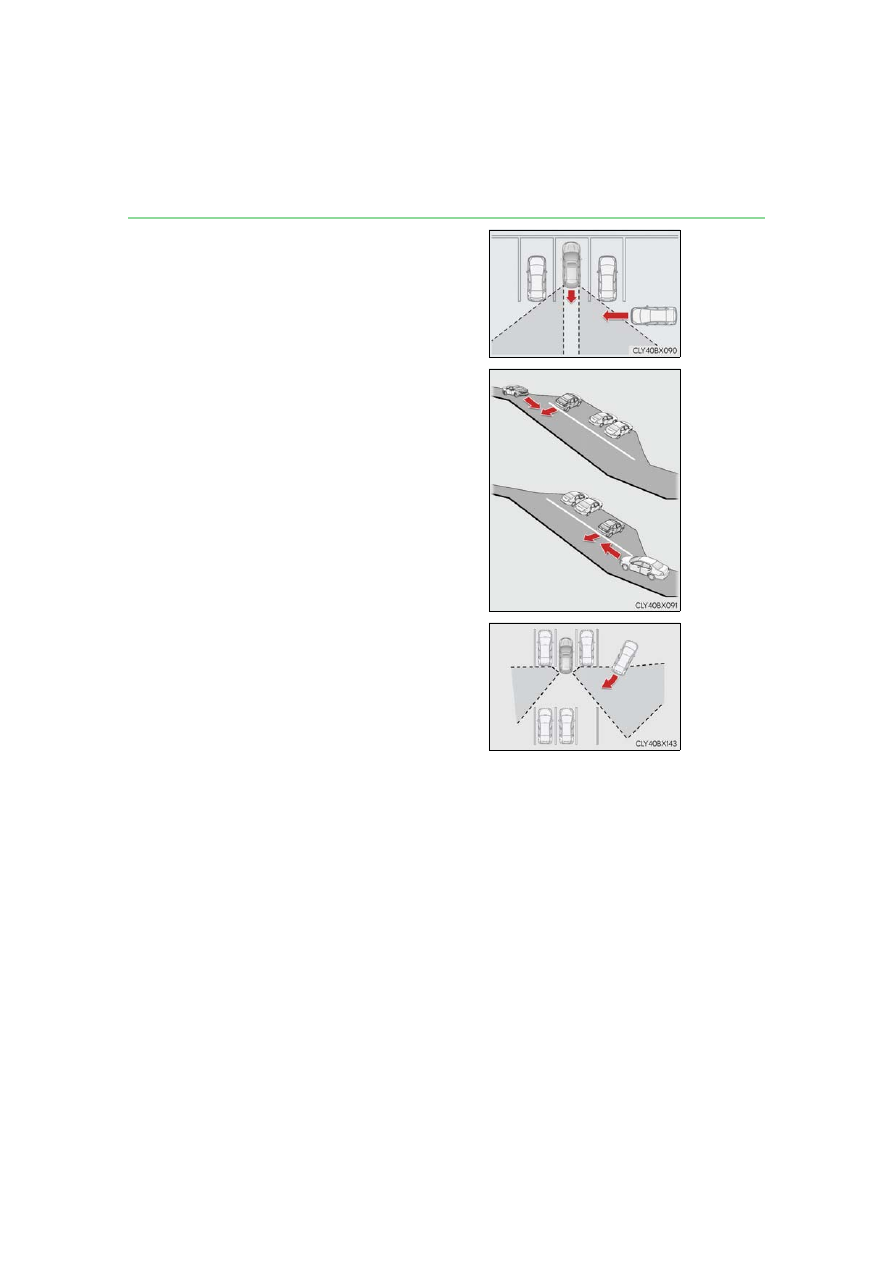

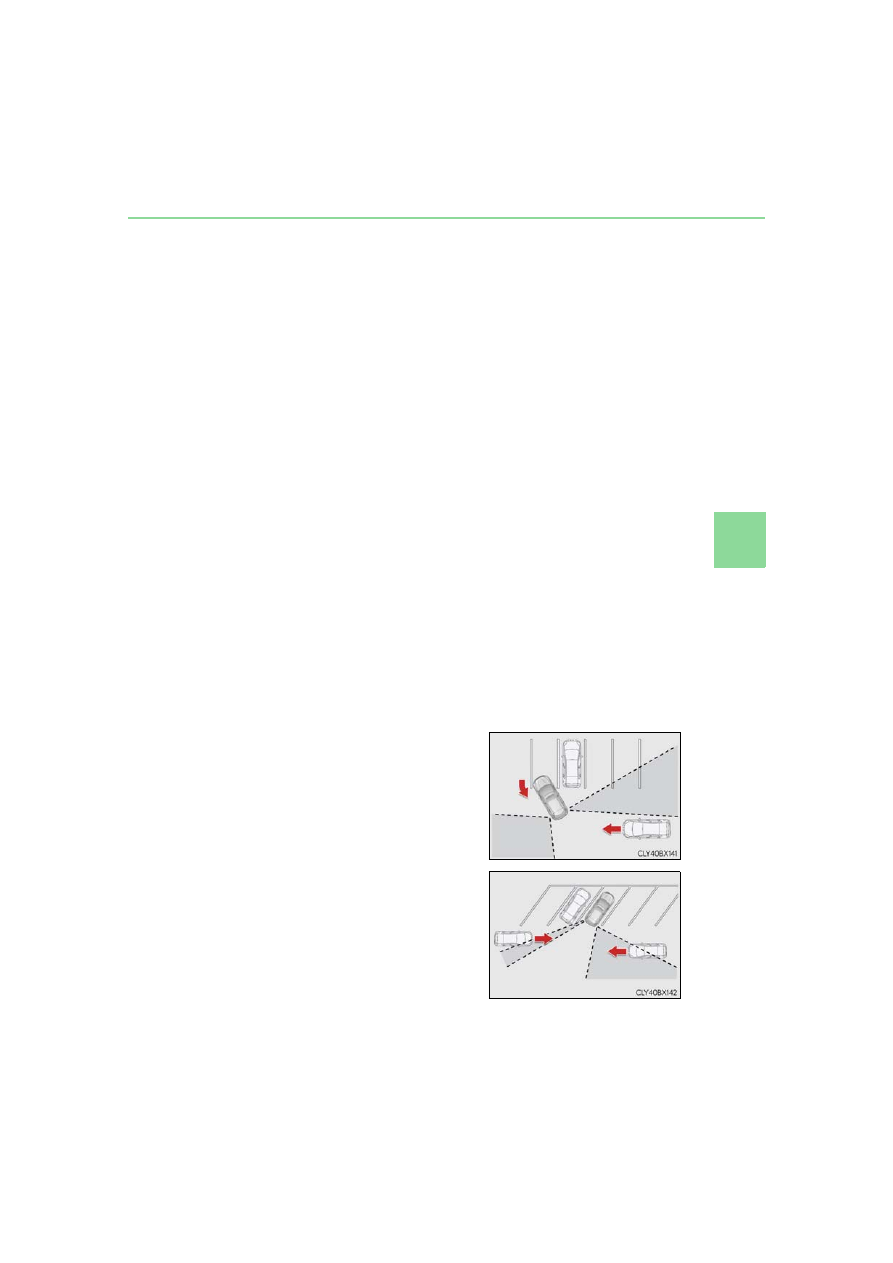

Situations in which the radar sensor may not detect a vehicle
• When a vehicle approaches from the right

or left at the rear of the vehicle while you

are turning while backing up

• When turning while backing up

• When backing out of a shallow angle park-

ing spot

356

4-5. Using the driving support systems

RX350/RX350L_U

■

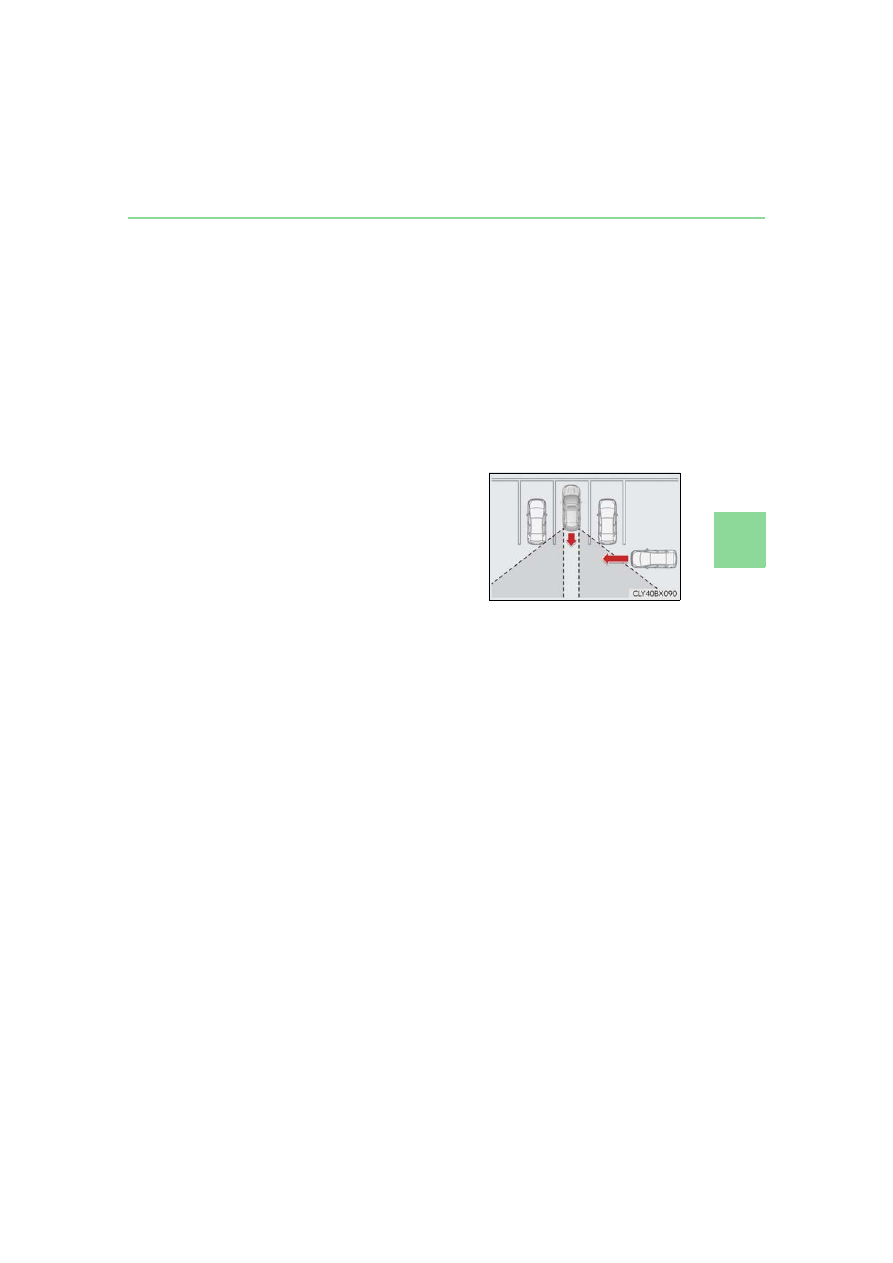

Handling the radar sensors
P. 316

• Vehicles that the sensors cannot detect due

to obstructions

• When backing up on a slope with a sharp

change in grade

• When a vehicle turns into the detection

area

357

4-5. Using the driving support systems

4

Dr

iving

RX350/RX350L_U

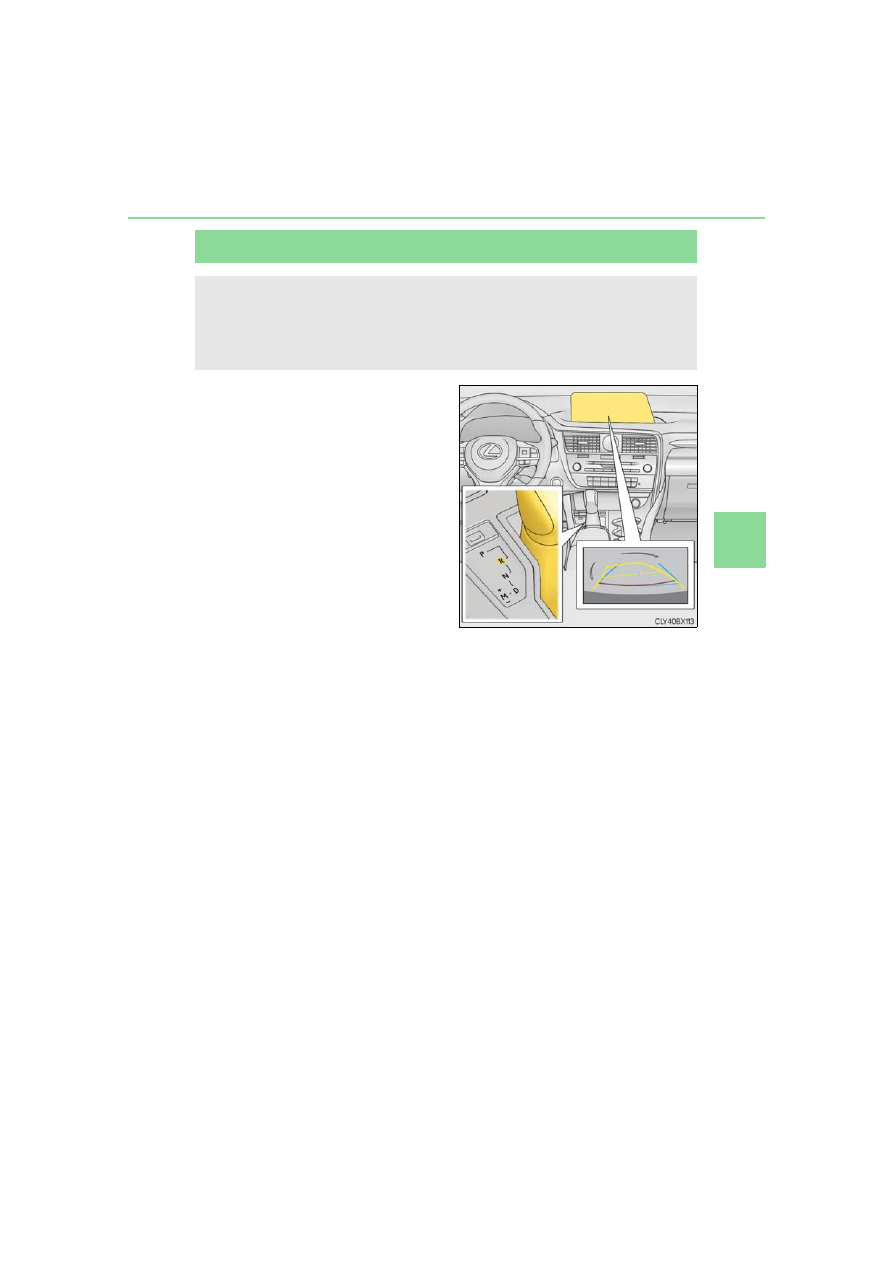

The rear view image is displayed when
the shift lever is in R and the engine
switch is in IGNITION ON mode.

The parking assist monitor system will

be deactivated when the shift lever is in

any position other than R.

Lexus parking assist monitor





: If equipped

The parking assist monitor assists the driver by displaying an image of the view
behind the vehicle while backing up, for example while parking.
The screen illustrations used in this text are intended as examples, and may
differ from the image that is actually displayed on the screen.

358

4-5. Using the driving support systems

RX350/RX350L_U

■

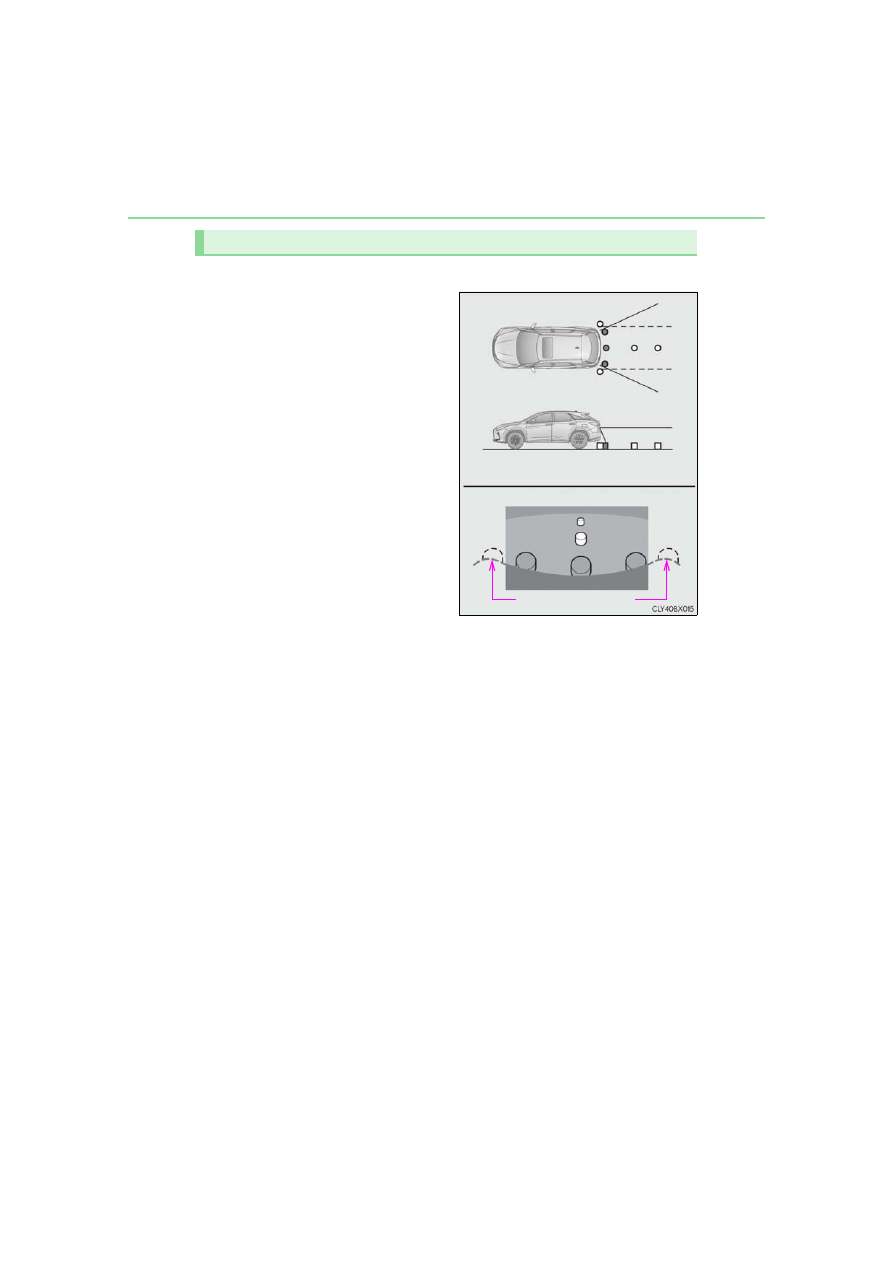

Screen display
The parking assist monitor screen will be displayed if the shift position is
shifted to R while the engine switch is in IGNITION ON mode.

Intuitive parking assist (if
equipped)
Rear Cross Traffic Alert (if
equipped)
A simplified image is displayed on
the upper part of the screen when
an obstacle is detected.

■

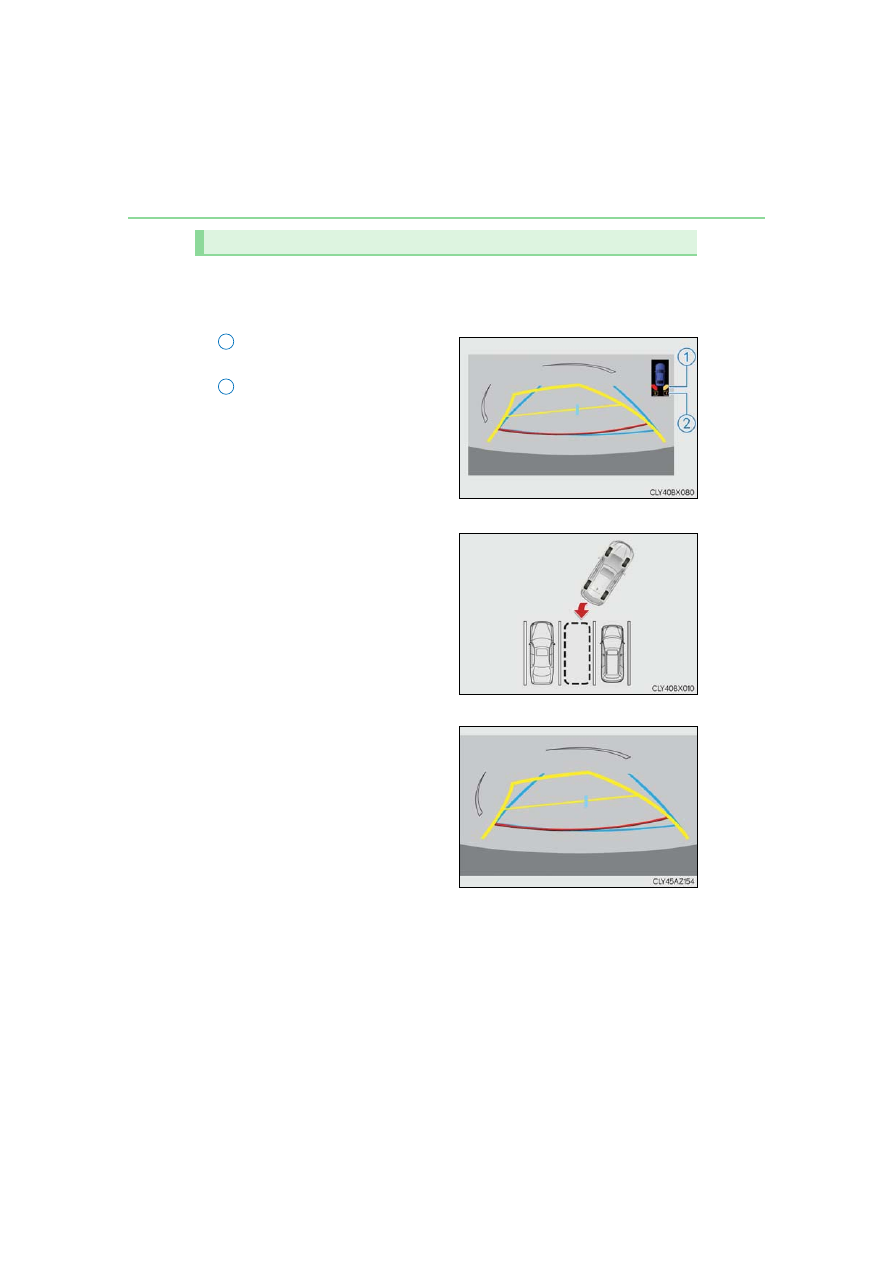

Using the system
Use any of the following modes.

●

Estimated course line display mode (

P. 360)

Estimated course lines are dis-
played which move in accor-
dance with the operation of the
steering wheel.

Using the Lexus parking assist monitor

1

2

359

4-5. Using the driving support systems

4

Dr

iving

RX350/RX350L_U

●

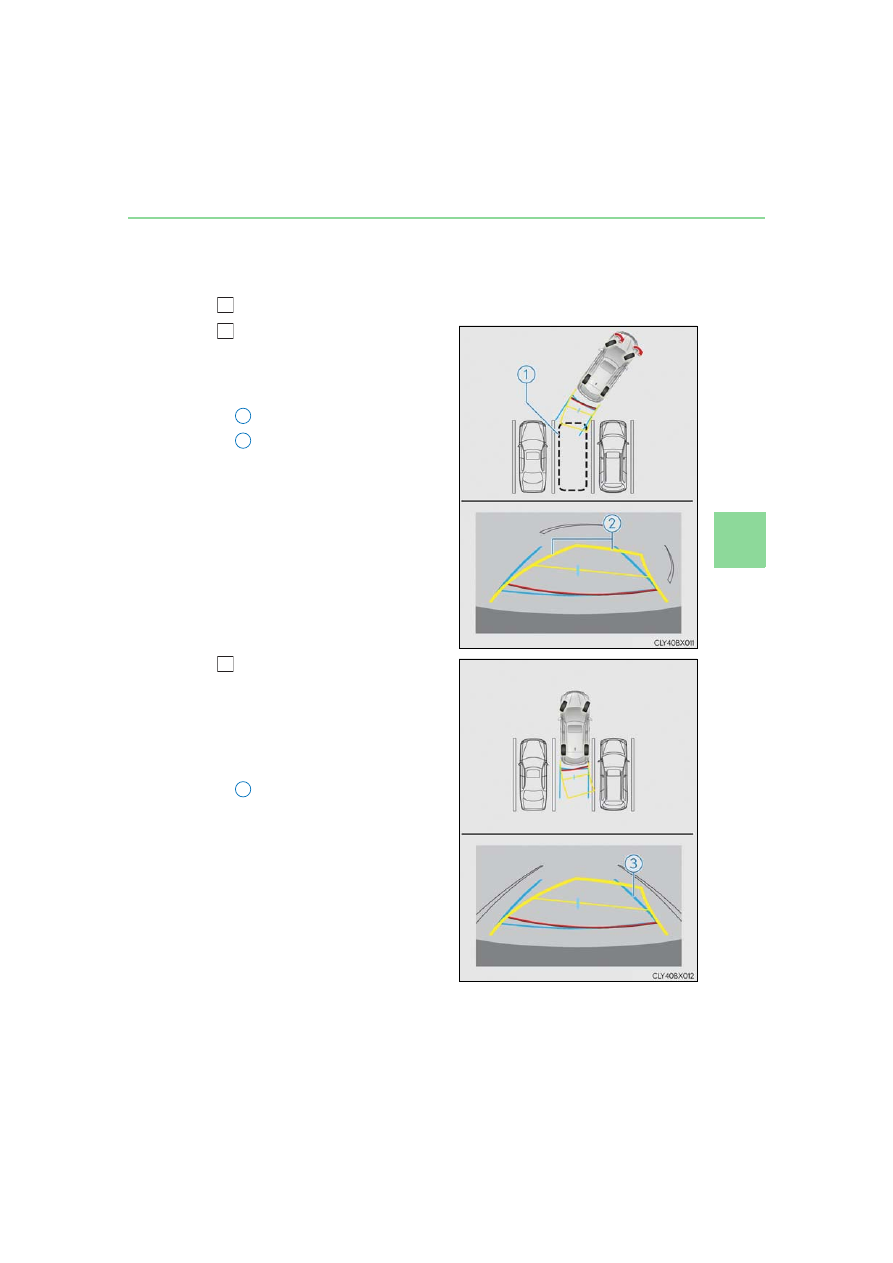

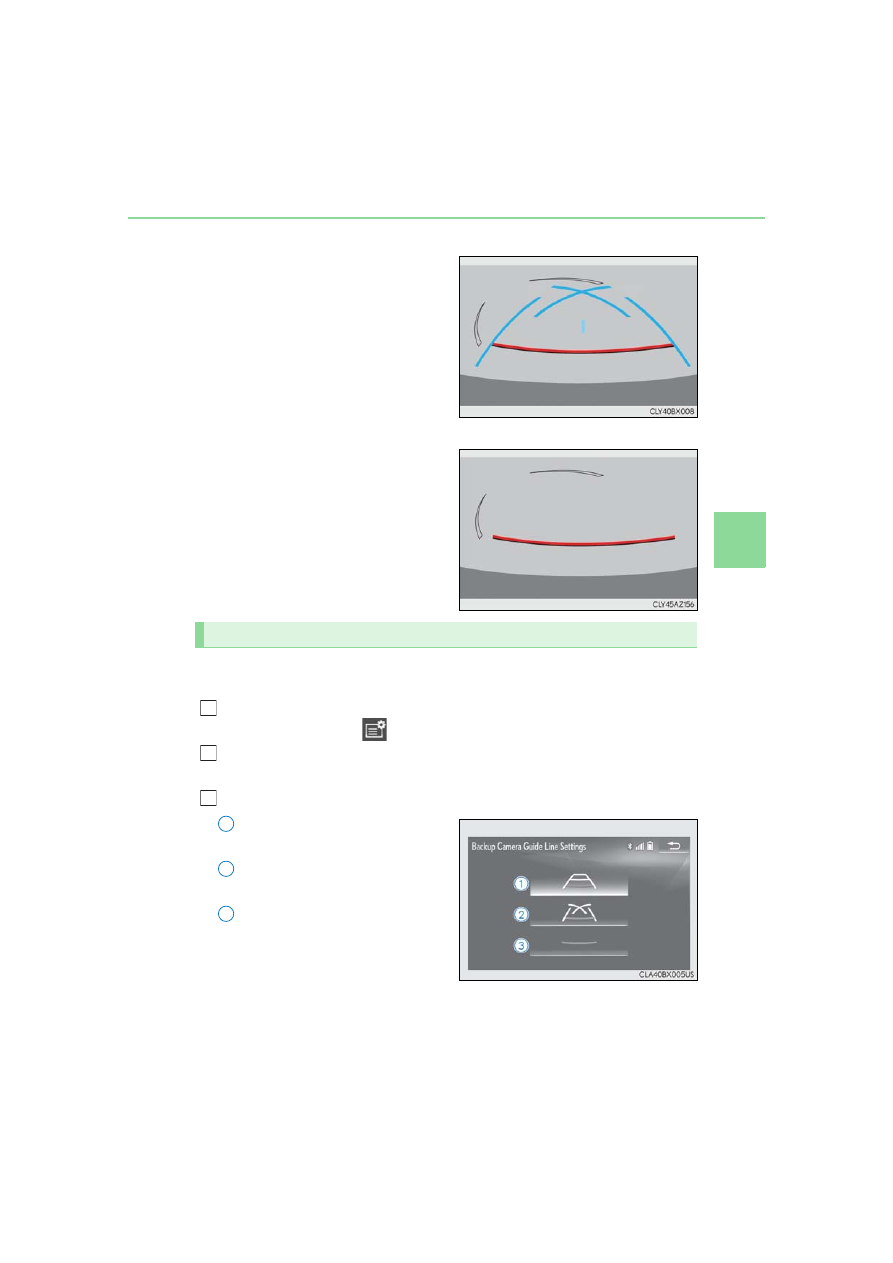

Parking assist guide line display mode (

P. 362)

The steering wheel return points
(parking assist guide lines) are
displayed.

●

Distance guide line display mode
Distance guide lines only are dis-
played.

When the shift lever is in any position other than R, the display mode can be
changed in the following procedure.

Press the “MENU” button on the Lexus Display Audio controller/Remote
touch, and then select

 on the screen.

Select “Vehicle”, and then select “Backup Camera Guide Line Settings” on
the screen.
Select the desired display mode.

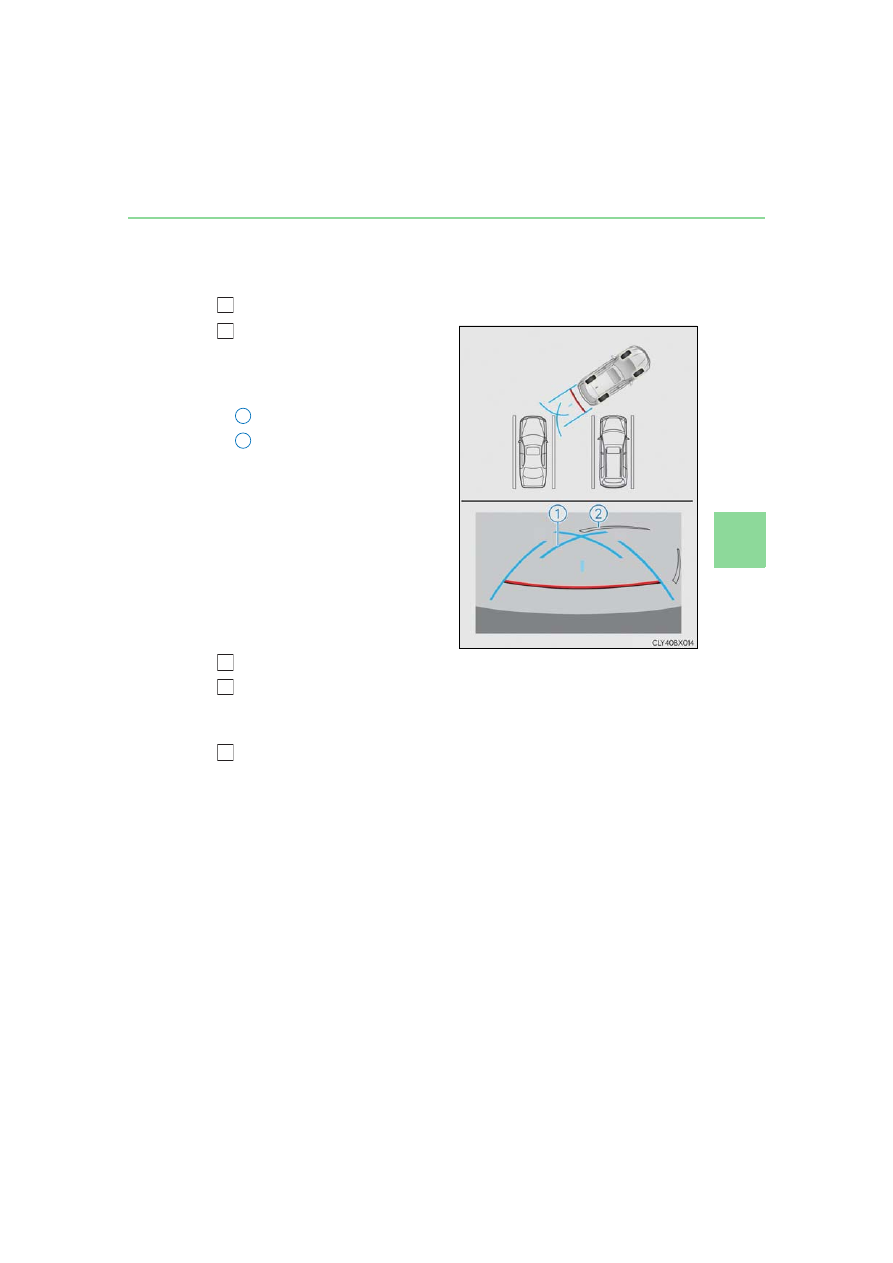

Estimated course line display
mode (

P. 360)

Parking assist guide line display
mode (

P. 362)

Distance guide line display mode
Distance guide lines only are dis-
played.

Switching the display mode

1

2

3

1

2

3

360

4-5. Using the driving support systems

RX350/RX350L_U

■

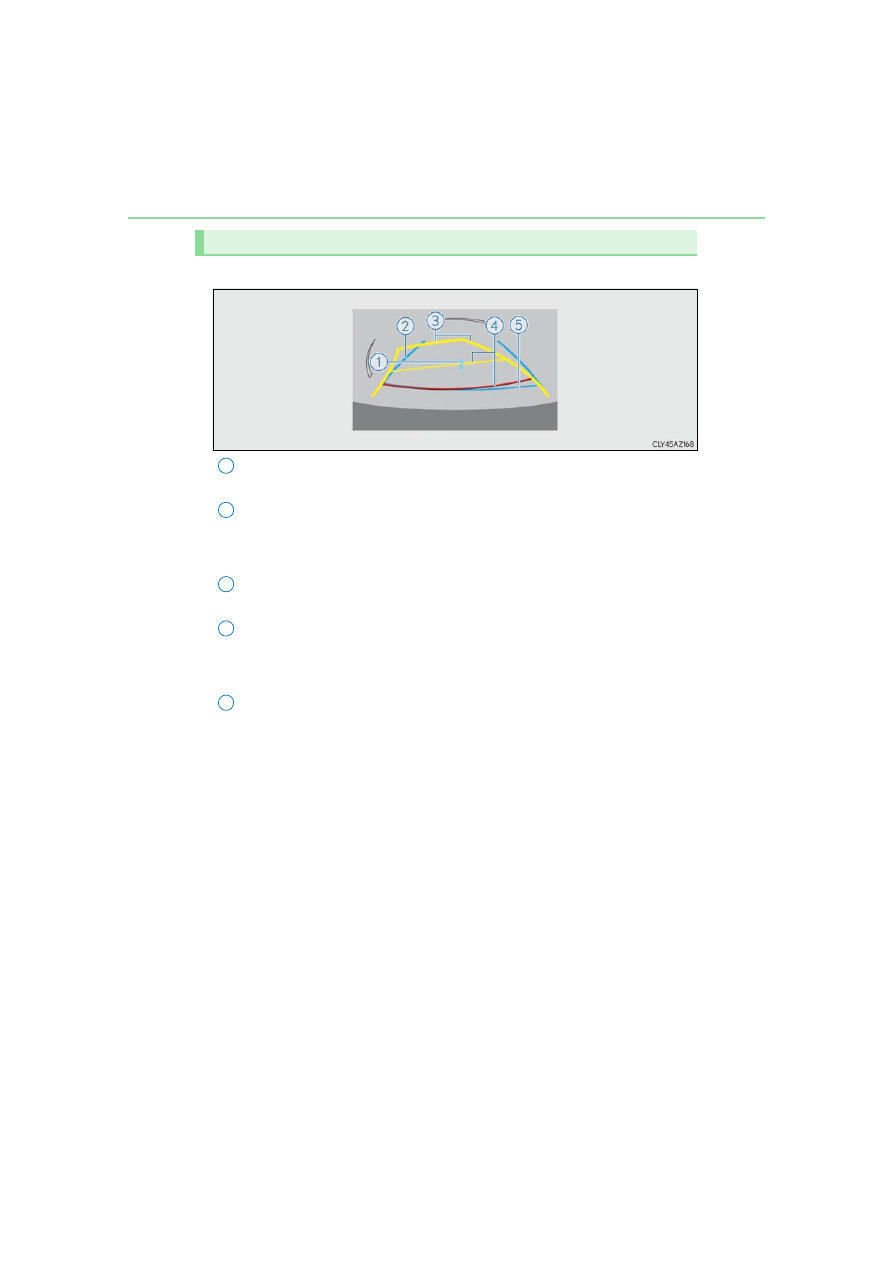

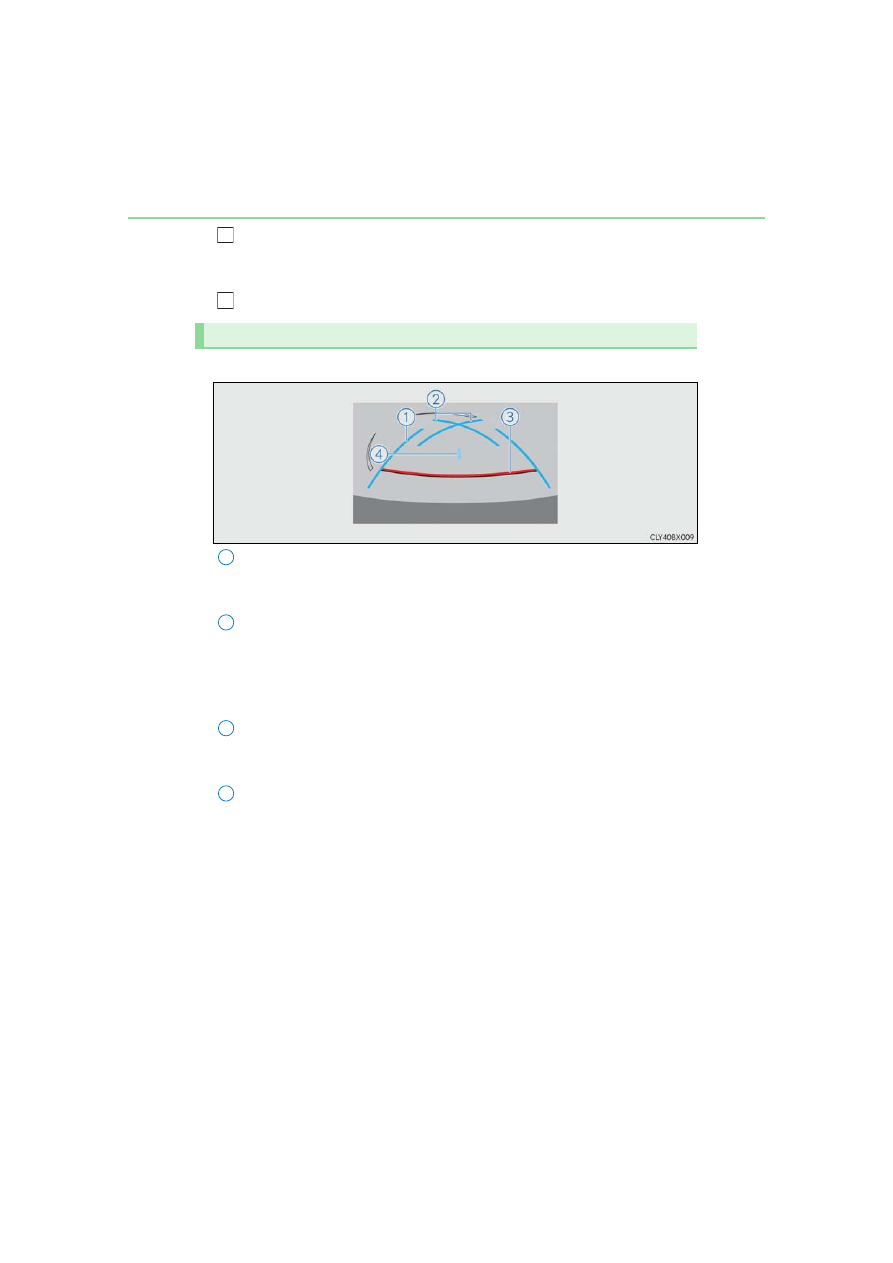

Screen description

Vehicle center guide line

The line indicates the estimated vehicle center on the ground.

Vehicle width guide line

The line indicates a guide path when the vehicle is being backed straight up.

The displayed width is wider than the actual vehicle width.

The line aligns with the estimated course lines when the steering wheel is straight.

Estimated course lines

The lines show an estimated course when the steering wheel is turned.

Distance guide line

The line moves, together with the estimated course lines, in sync with the steering

wheel. The line shows points approximately 1.5 ft. (0.5 m) (red) and approximately

3 ft. (1 m) (yellow) from the center of the edge of the bumper.

Distance guide line

The line shows distance behind the vehicle, a point approximately 1.5 ft. (0.5 m)

(blue) from the edge of the bumper.

Estimated course line display mode

1

2

3

4

5

361

4-5. Using the driving support systems

4

Dr

iving

RX350/RX350L_U

■

Parking operation
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.

Shift the shift lever to R.
Turn the steering wheel so that
the estimated course lines are
within the parking space, and
back up slowly.

Parking space
Estimated course lines

When the rear position of the
vehicle has entered the parking
space, turn the steering wheel so
that the vehicle width guide lines
are within the left and right divid-
ing lines of the parking space.

Vehicle width guide line

1

2

1

2

3

3

362

4-5. Using the driving support systems

RX350/RX350L_U

Once the vehicle width guide lines and the parking space lines are parallel,
straighten the steering wheel and back up slowly until the vehicle has com-
pletely entered the parking space.
Stop the vehicle in an appropriate place, and finish parking.

■

Screen description

Vehicle width guide lines
These lines indicate a guide path when the vehicle is being backed straight
up. The displayed width is wider than the actual vehicle width.
Parking assist guide lines
These lines indicate the path of the smallest turn possible behind the vehi-
cle.
These lines also indicate the approximate position of the steering wheel
when parking.
Distance guide line
This line (red) indicates points approximately 1.5 ft. (0.5 m) behind the rear
bumper of your vehicle.
Vehicle center guide line
The line indicates the estimated vehicle center on the ground.

Parking assist guide line display mode

4

5

1

2

3

4

363

4-5. Using the driving support systems

4

Dr

iving

RX350/RX350L_U

■

Parking operation
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.

Shift the shift lever to R.
Back up until the parking assist
guide line meets the edge of the
left-hand dividing line of the park-
ing space.

Parking assist guide line
Parking space dividing line

Turn the steering wheel all the way to the right, and back up slowly.
Once the vehicle is parallel with the parking space, straighten the steering
wheel and back up slowly until the vehicle has completely entered the
parking space.
Stop the vehicle in an appropriate place, and finish parking.

1

2

1

2

3
4

5

364

4-5. Using the driving support systems

RX350/RX350L_U

■

Area displayed on screen
The parking assist monitor displays
an image of the view from the
bumper of the rear area of the vehi-
cle.
The image of the Lexus parking
assist monitor can be adjusted.
(Vehicles with a Lexus Display
Audio system:

P. 411) (Vehicles

with a navigation system:

“NAVI-

GATION SYSTEM OWNER’S
MANUAL”.)

• The area displayed on the screen

may vary according to vehicle orien-

tation conditions.

• Objects which are close to either

corner of the bumper or under the

bumper cannot be seen on the

screen.

• The camera uses a special lens. The distance of the image that appears on the

screen differs from the actual distance.

• Items which are located higher than the camera may not be displayed on the mon-

itor.

• If your vehicle is equipped with a backlit license plate, it may interfere with the dis-

play.

Lexus parking assist monitor precautions

Corners of bumper
