4-5. Using the driving support systems

during driving (poor roads or road

seams).

●

The headlight lenses are dirty and emit a

faint amount of light at night, or the beam

axis has deviated.

●

The vehicle is struck by a crosswind.

●

The vehicle has just changed lanes or

crossed an intersection.

●

Snow tires, etc. are equipped.

■

Warning message

If the following warning message is dis-

played on the multi-information display and

the LKA indicator illuminates in orange, fol-

low the appropriate troubleshooting proce-

dure.

Warning message

Details/Actions

“Lane Keeping

Assist Malfunction
Visit Your Dealer”

The system may not
be operating prop-
erly.
 Have the vehicle

inspected at
your Lexus
dealer.

“Front Camera

Unavailable

Remove Debris On

Windshield”

Dirt, rain, conden-
sation, ice, snow,
etc., are present on
the windshield in
front of the camera
sensor.
 Turn the LKA

system off,
remove any dirt,
rain, condensa-
tion, ice, snow,
etc., from the
windshield, and
then turn the
LKA system
back on.

“Front Camera

Unavailable”

The operation con-
ditions of the cam-
era sensor
(temperature, etc.)
are not met.
 When the opera-

tion conditions
of the camera
sensor (tem-
perature, etc.)
are met, the LKA
system will
become avail-
able. Turn the
LKA system off,
wait for a little
while, and then
turn the LKA
system back on.

“Lane Keeping

Assist Unavailable”

The LKA system is
temporarily can-
celed due to a mal-
function in a sensor
other than the cam-
era sensor.
 Turn the LKA

system off and
follow the appro-
priate trouble-
shooting
procedures for
the warning
message. After-
ward, drive the
vehicle for a
short time, and
then turn the
LKA system
back on.

Warning message

Details/Actions

203

4-5. Using the driving support systems

Driving

If a different warning message is displayed,

follow the instructions displayed on the

screen.

■

Customization

The following settings can be changed.

For how to change settings, refer to P.391.

■

Meter display

Display

Set speed

Indicators

“Lane Keeping

Assist Unavailable

Below Approx

32MPH”

The LKA system
cannot be used as
the vehicle speed is
less than approxi-
mately 32 mph (50
km/h).
 Drive the vehicle

at approxi-
mately 32 mph
(50 km/h) or
more.

“Lane Keeping

Assist Unavailable at

Current Speed”

The LKA system
cannot be used as
the vehicle speed is
too high.
 Slow down.

Function

Setting details

Lane departure alert

function

Adjust alert sensitiv-

ity

Steering assist func-

tion

Turn steering wheel

assistance on and off

Vehicle sway warn-

ing function

Turn function on and

off

Adjust alert sensitiv-

ity

Lane centering

function

Turn function on and

off

Warning message

Details/Actions

Dynamic radar cruise con-
trol with full-speed range

In vehicle-to-vehicle distance con-
trol mode, the vehicle automati-
cally accelerates, decelerates and
stops to match the speed changes
of the preceding vehicle even if the
accelerator pedal is not depressed.
In constant speed control mode,
the vehicle runs at a fixed speed.
Use the dynamic radar cruise con-
trol with full-speed range on free-
ways and highways.
 Vehicle-to-vehicle distance con-

trol mode (

P.206)

 Constant speed control mode

(

P.210)

System Components

A
B
C

204

4-5. Using the driving support systems

■

Operation switches

Vehicle-to-vehicle distance switch

“+RES” switch

Cruise control main switch

Cancel switch

“-SET” switch

WARNING

■

Before using dynamic radar cruise

control with full-speed range

●

Driving safely is the sole responsibility

of the driver. Do not rely solely on the

system, and drive safely by always pay-

ing careful attention to your surround-

ings.

●

The dynamic radar cruise control with

full-speed range provides driving

assistance to reduce the driver’s bur-

den. However, there are limitations to

the assistance provided.

Read the following conditions care-

fully. Do not overly rely on this system

and always drive carefully.

• When the sensor may not be correctly

detecting the vehicle ahead:

P.211

• Conditions under which the vehicle-

to-vehicle distance control mode may

not function correctly:

P.212

●

Set the speed appropriately depend-

ing on the speed limit, traffic flow, road

conditions, weather conditions, etc.

The driver is responsible for checking

the set speed.

A
B
C
D

●

Even when the system is functioning

normally, the condition of the preced-

ing vehicle as detected by the system

may differ from the condition

observed by the driver. Therefore, the

driver must always remain alert, assess

the danger of each situation and drive

safely. Relying on this system or assum-

ing the system ensures safety while

driving can lead to an accident, result-

ing in death or serious injury.

●

Switch the dynamic radar cruise con-

trol with full-speed range off using the

cruise control main switch when not in

use.

■

Cautions regarding the driving assist

systems

Observe the following precautions, as

there are limitations to the assistance

provided by the system.

Failure to do so may cause an accident

resulting in death or serious injury.

●

Assisting the driver to measure follow-

ing distance

The dynamic radar cruise control with

full-speed range is only intended to

help the driver in determining the fol-

lowing distance between the driver’s

own vehicle and a designated vehicle

traveling ahead. It is not a mechanism

that allows careless or inattentive driv-

ing, and it is not a system that can assist

the driver in low-visibility conditions. It

is still necessary for driver to pay close

attention to the vehicle’s surroundings.

●

Assisting the driver to judge proper

following distance

The dynamic radar cruise control with

full-speed range determines whether

the following distance between the

driver’s own vehicle and a designated

vehicle traveling ahead is within a set

range. It is not capable of making any

other type of judgement. Therefore, it

is absolutely necessary for the driver to

remain vigilant and to determine

whether or not there is a possibility of

danger in any given situation.

205

4-5. Using the driving support systems

Driving

WARNING

●

Assisting the driver to operate the

vehicle

The dynamic radar cruise control with

full-speed range has limited capability

to prevent or avoid a collision with a

vehicle traveling ahead. Therefore, if

there is ever any danger, the driver

must take immediate and direct con-

trol of the vehicle and act appropri-

ately in order to ensure the safety of all

involved.

■

Situations unsuitable for dynamic

radar cruise control with full-speed

range

Do not use dynamic radar cruise control

with full-speed range in any of the follow-

ing situations.

Doing so may result in inappropriate

speed control and could cause an acci-

dent resulting in death or serious injury.

●

Roads where there are pedestrians,

cyclists, etc.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as those cov-

ered with rain, ice or snow

●

On steep downhills, or where there

are sudden changes between sharp up

and down gradients

Vehicle speed may exceed the set

speed when driving down a steep hill.

●

At entrances to freeways and highways

●

When weather conditions are bad

enough that they may prevent the sen-

sors from detecting correctly (fog,

snow, sandstorm, heavy rain, etc.)

●

When there is rain, snow, etc. on the

front surface of the radar sensor or

camera sensor

●

In traffic conditions that require fre-

quent repeated acceleration and

deceleration

●

During emergency towing

●

When an approach warning buzzer is

heard often

206

4-5. Using the driving support systems

This mode employs a radar sensor to detect the presence of vehicles up to approx-
imately 328 ft. (100 m) ahead, determines the current vehicle-to-vehicle following
distance, and operates to maintain a suitable following distance from the vehicle
ahead.

Note that vehicle-to-vehicle distance will close in when traveling on downhill slopes.

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver. The desired vehicle-to-vehicle distance
can also be set by operating the vehicle-to-vehicle distance switch.

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed appears

When a vehicle is detected running ahead of you, the system automatically decelerates
your vehicle. When a greater reduction in vehicle speed is necessary, the system applies
the brakes (the stop lights will come on at this time). The system will respond to changes in
the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle distance set by
the driver. Approach warning warns you when the system cannot decelerate sufficiently to
prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is stopped by sys-
tem control). After the vehicle ahead starts off, pressing the “+RES” switch or depressing
the accelerator pedal will resume follow-up cruising.

Example of acceleration
When there are no longer any preceding vehicles driving slower than the set
speed

The system accelerates until the set speed is reached. The system then returns to constant
speed cruising.

Driving in vehicle-to-vehicle distance control mode

207

4-5. Using the driving support systems

Driving

Press the cruise control main switch
to activate the cruise control.

Radar cruise control indicator will come on

and a message will be displayed on the

multi-information display.
Press the switch again to deactivate the

cruise control.
If the cruise control main switch is pressed

and held for 1.5 seconds or more, the sys-

tem turns on in constant speed control

mode. (

P.210)

Accelerate or decelerate, with
accelerator pedal operation, to the
desired vehicle speed (at or above
approximately 30 mph [50 km/h])
and press the “-SET” switch to set
the speed.

Cruise control “SET” indicator will come

on.
The vehicle speed at the moment the

switch is released becomes the set speed.
If the switch is operated while the vehicle

speed is below approximately 30 mph (50

km/h) and a preceding vehicle is present,

the set speed will be adjusted to approxi-

mately 30 mph (50 km/h).

To change the set speed, operate the
“+RES” or “-SET” switch until the
desired set speed is displayed.

Increases the speed

(Except when the vehicle has been
stopped by system control in vehicle-to-
vehicle distance control mode)

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold the
switch to change the speed, and
release when the desired speed is
reached.
In the vehicle-to-vehicle distance con-
trol mode, the set speed will be
increased or decreased as follows:



For the U.S. mainland and Hawaii

Fine adjustment: By 1 mph (1.6 km/h)

or 1

Setting the vehicle speed (vehi-
cle-to-vehicle distance control
mode)

Adjusting the set speed

208

4-5. Using the driving support systems

km/h (0.6mph)

each time the switch is

pressed
Large adjustment: Increases or decreases
in 1mph (1.6 km/h)

or 1 km/h (0.6 mph)

increments for as long as the switch is held



For Canada and Puerto Rico

Fine adjustment: By 1 mph (1.6 km/h)

or 1

km/h (0.6mph)

each time the switch is

pressed
Large adjustment: Increases or decreases
in 5 mph (8 km/h)

or 5 km/h (3.1 mph)

increments for as long as the switch is held

In the constant speed control mode
(

P.210), the set speed will be

increased or decreased as follows:

Fine adjustment: By 1 mph (1.6 km/h)

or 1

km/h (0.6 mph)

each time the switch is

pressed
Large adjustment: The speed will continue
to change while the switch is held.

: When the set speed is shown in “MPH”

: When the set speed is shown in “km/h”

Pressing the switch changes the vehi-
cle-to-vehicle distance as follows:

Long

Medium

Short

The vehicle-to-vehicle distance is set auto-
matically to long mode when the engine
switch <power switch> is turned to IGNI-
TION ON mode <ON mode>.
If a vehicle is running ahead of you, the pre-
ceding vehicle mark

will also be dis-

played.

Select a distance from the table below.
Note that the distances shown corre-
spond to a vehicle speed of 50 mph
(80 km/h). Vehicle-to-vehicle distance
increases/decreases in accordance
with vehicle speed. When the vehicle is
stopped by system control, the vehicle
stops at a certain vehicle-to-vehicle
distance depending on the situation.

After the vehicle ahead of you starts

Changing the vehicle-to-vehicle
distance (vehicle-to-vehicle dis-
tance control mode)

Vehicle-to-vehicle distance set-
tings (vehicle-to-vehicle dis-
tance control mode)

Distance options

Vehicle-to-vehicle

distance

Long

Approximately 160

ft. (50 m)

Medium

Approximately 130

ft. (40 m)

Short

Approximately 100

ft. (30 m)

Resuming follow-up cruising
when the vehicle has been
stopped by system control (vehi-
cle-to-vehicle distance control
mode)

209

4-5. Using the driving support systems

Driving

off, press the “+RES” switch.
Your vehicle will also resume follow-up
cruising if the accelerator pedal is
depressed after the vehicle ahead of
you starts off.

Pressing the cancel switch cancels
the speed control.

The speed control is also canceled when
the brake pedal is depressed.
(When the vehicle has been stopped by
system control, depressing the brake pedal
does not cancel the setting.)

Pressing the “+RES” switch
resumes the cruise control and
returns vehicle speed to the set
speed.

However, when a vehicle ahead is not
detected, cruise control does not resume
when the vehicle speed is approximately

25 mph (40 km/h) or less.

When your vehicle is too close to a
vehicle ahead, and sufficient automatic
deceleration via the cruise control is
not possible, the display will flash and
the buzzer will sound to alert the driver.
An example of this would be if another
driver cuts in front of you while you are
following a vehicle. Depress the brake
pedal to ensure an appropriate vehi-
cle-to-vehicle distance.

■

Warnings may not occur when

In the following instances, warnings
may not occur even when the vehicle-
to-vehicle distance is small.
 When the speed of the preceding

vehicle matches or exceeds your
vehicle speed

 When the preceding vehicle is trav-

eling at an extremely slow speed

 Immediately after the cruise control

speed was set

 When depressing the accelerator

pedal

Canceling and resuming the
speed control

Approach warning (vehicle-to-
vehicle distance control mode)

210

4-5. Using the driving support systems

When constant speed control mode is
selected, your vehicle will maintain a
set speed without controlling the vehi-
cle-to-vehicle distance. Select this
mode only when vehicle-to-vehicle dis-
tance control mode does not function
correctly due to a dirty radar sensor,
etc.

With the cruise control off, press
and hold the cruise control main
switch for 1.5 seconds or more.

Immediately after the switch is pressed, the

radar cruise control indicator will come on.

Afterwards, it switches to the cruise con-

trol indicator.
Switching to constant speed control mode

is only possible when operating the switch

with the cruise control off.

Accelerate or decelerate, with
accelerator pedal operation, to the
desired vehicle speed (at or above
approximately 25 mph [40 km/h])
and press the “-SET” switch to set
the speed.

Cruise control “SET” indicator will come

on.
The vehicle speed at the moment the

switch is released becomes the set speed.
Adjusting the speed setting:

P.207

Canceling and resuming the speed setting:

P.209

■

Dynamic radar cruise control with full-

speed range can be set when

●

The shift position is in D.

●

LC500: Range 4 or higher of D has been

selected by using the paddle shift switch.

●

Vehicle speed is at or above approxi-

mately 30 mph (50 km/h).

However, when a preceding vehicle is

detected, the dynamic radar cruise con-

trol with full-speed range can be set even

if the vehicle speed is below approxi-

mately 30 mph (50 km/h).

■

Accelerating after setting the vehicle

speed

The vehicle can accelerate by operating the

accelerator pedal. After accelerating, the

set speed resumes. However, during vehi-

cle-to-vehicle distance control mode, the

vehicle speed may decrease below the set

speed in order to maintain the distance to

the preceding vehicle.

■

When the vehicle stops while follow-up

cruising

●

Pressing the “+RES” switch while the

vehicle ahead stops will resume follow-up

cruising if the vehicle ahead starts off

within approximately 3 seconds after the

switch is pressed.

●

If the vehicle ahead starts off within 3 sec-

onds after your vehicle stops, follow-up

cruising will be resumed.

■

Automatic cancelation of vehicle-to-

vehicle distance control mode

Vehicle-to-vehicle distance control mode is

automatically canceled in the following situ-

Selecting constant speed con-
trol mode

211

4-5. Using the driving support systems

Driving

ations.

●

Actual vehicle speed falls at or below

approximately 25 mph (40 km/h) when

there are no vehicles ahead.

●

The preceding vehicle leaves the lane

when your vehicle is following at a vehicle

speed at or below approximately 25 mph

(40 km/h). Otherwise, the sensor can

not properly detect the vehicle.

(“CRUISE NOT AVAILABLE No Pre-

ceding Vehicles” is displayed on the

multi-information display)

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is

turned off.

●

When snow mode is set.

●

The sensor cannot detect correctly

because it is covered in some way.

●

Pre-collision braking is activated.

●

The parking brake is operated.

●

The vehicle is stopped by system control

on a steep incline.

●

The following are detected when the

vehicle has been stopped by system con-

trol:

• The driver is not wearing a seat belt.

• The driver’s door is opened.

• The vehicle has been stopped for about 3

minutes

If vehicle-to-vehicle distance control mode

is automatically canceled for any other rea-

son, there may be a malfunction in the sys-

tem. Contact your Lexus dealer.

■

Automatic cancelation of constant

speed control mode

Constant speed control mode is automati-

cally canceled in the following situations:

●

Actual vehicle speed is more than

approximately 10 mph (16 km/h) below

the set vehicle speed.

●

Actual vehicle speed falls below approxi-

mately 25 mph (40 km/h).

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is

turned off.

●

Pre-collision braking is activated.

If constant speed control mode is automati-

cally canceled for any other reason, there

may be a malfunction in the system. Con-

tact your Lexus dealer.

■

Brake system operation sound

If the brakes are applied automatically while

the vehicle is in vehicle-to-vehicle distance

control mode, a brake system operation

sound may be heard. This does not indicate

a malfunction.

■

If “Radar Cruise Control Unavailable” is

shown on the multi-information display

The radar cruise control system cannot be

used temporarily. Use the system when it

becomes available again.

■

Warning messages and buzzers for

dynamic radar cruise control with full-

speed range

Warning messages and buzzers are used to

indicate a system malfunction or to inform

the driver of the need for caution while driv-

ing. If a warning message is shown on the

multi-information display, read the message

and follow the instructions.

■

When the sensor may not be correctly

detecting the vehicle ahead

In the case of the following and depending

on the conditions, operate the brake pedal

when deceleration of the system is insuffi-

cient or operate the accelerator pedal

when acceleration is required.

As the sensor may not be able to correctly

detect these types of vehicles, the approach

warning (

P.209) may not be activated.

●

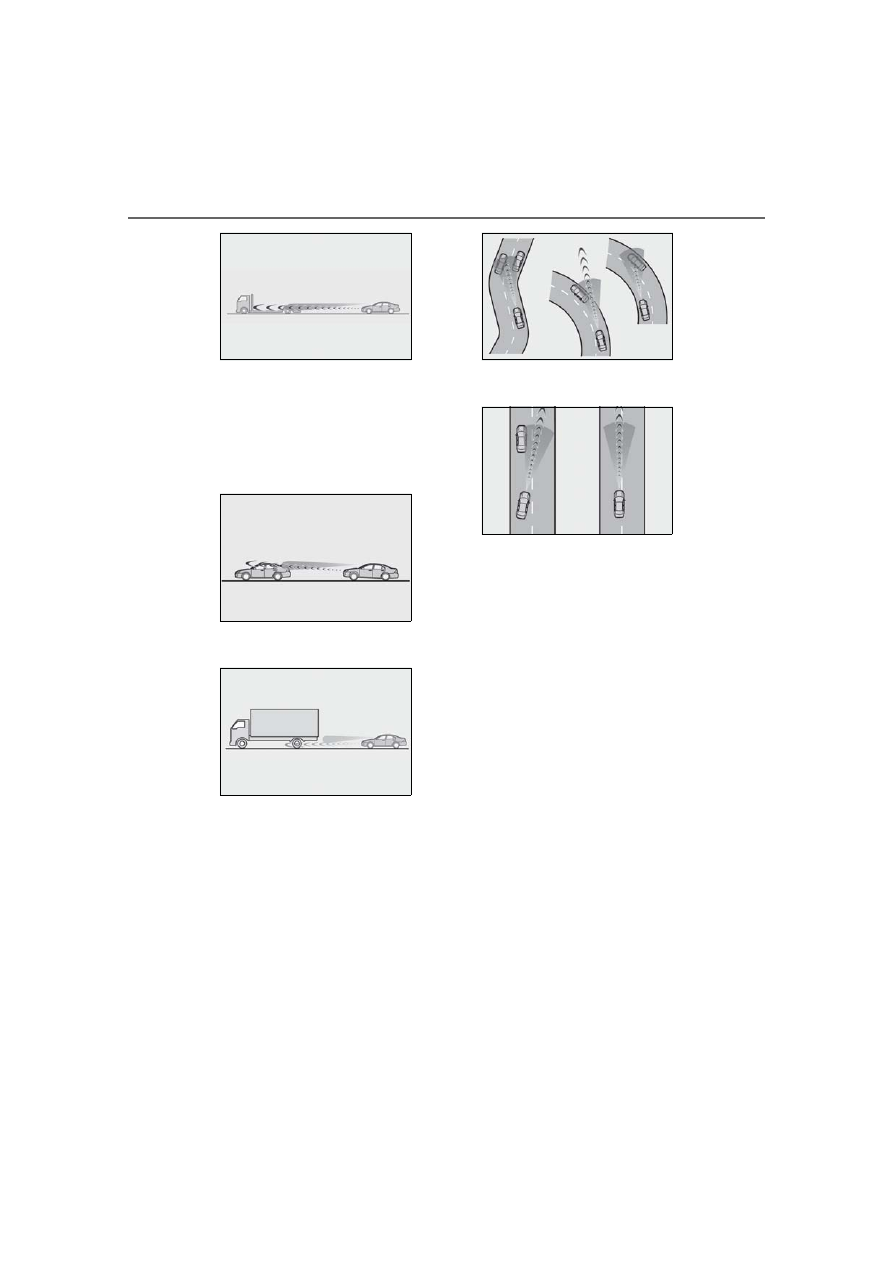

Vehicles that cut in suddenly

●

Vehicles traveling at low speeds

●

Vehicles that are not moving in the same

lane

●

Vehicles with small rear ends (trailers

with no load on board, etc.)

212

4-5. Using the driving support systems

●

Motorcycles traveling in the same lane

●

When water or snow thrown up by the

surrounding vehicles hinders the detect-

ing of the sensor

●

When your vehicle is pointing upwards

(caused by a heavy load in the luggage

compartment, etc.)

●

Preceding vehicle has an extremely high

ground clearance

■

Conditions under which the vehicle-to-

vehicle distance control mode may not

function correctly

In the case of the following conditions,

operate the brake pedal (or accelerator

pedal, depending on the situation) as nec-

essary.

As the sensor may not be able to correctly

detect vehicles ahead, the system may not

operate properly.

●

When the road curves or when the lanes

are narrow

●

When steering wheel operation or your

position in the lane is unstable

●

When the vehicle ahead of you deceler-

ates suddenly

●

When driving on a road surrounded by a

structure, such as in a tunnel or on a

bridge

●

While the vehicle speed is decreasing to

the set speed after the vehicle acceler-

ates by depressing the accelerator pedal

213

4-5. Using the driving support systems

Driving

Normal mode/Custom mode

Normal mode and custom mode are
selected by pressing the driving mode
select switch. Each time the switch is
pressed, the driving mode changes
between normal mode and custom mode.
When custom mode is selected, the “Cus-
tom” indicator comes on.
Press the switch to change the driving
mode to normal mode when not in normal
mode.
• Normal mode
Provides an optimal balance of fuel econ-
omy, quietness, and dynamic performance.
Suitable for city driving.
When the shift position is in D, an appropri-
ate gear for sporty driving may automati-

cally be selected according to driver
performance and driving conditions.
• Custom mode
Allows you to drive with the power train,
chassis and air conditioning system func-
tions set to your preferred settings.
Custom mode settings can only be
changed on the drive mode customization
display of the Center Display. (

P.243)

Comfort mode

By controlling the suspension, riding com-
fort is further enhanced. Suitable for city
driving.
When not in comfort mode and the driving
mode select switch is turned forward, the
“Comfort” indicator comes on.

Eco drive mode

Helps the driver accelerate in an eco-
friendly manner and improve fuel economy
through moderate throttle characteristics
and by controlling the operation of the air
conditioning system (heating/cooling).
When in comfort mode, if the driving mode
select switch is turned forward, the “Eco”
indicator comes on.

Sport mode

• SPORT S mode
Controls the transmission and engine to
provide quick, powerful acceleration. This
mode is suitable for when agile driving
response is desired, such as when driving
on roads with many curves.
When not in SPORT S mode, if the driving
mode select switch is turned backward, the
“Sport S” indicator comes on.
• SPORT S+ mode
Provides earlier downshift timing than
SPORT S mode in order to maintain a high
engine speed and provides faster gear
changes. This mode also changes the
steering feel, suspension control and
VDIM control, making it suitable for pow-

Driving mode select switch

The driving modes can be selected
to suit driving condition.

Selecting the driving mode

214

4-5. Using the driving support systems

erful sporty driving.
When in SPORT S mode, if the driving
mode select switch is turned backward, the
“Sport S+” indicator comes on.

■

Operation of the air conditioning sys-

tem in Eco drive mode

Eco drive mode controls the heating/cool-

ing operations and fan speed of the air con-

ditioning system to enhance fuel efficiency.

To improve air conditioning performance,

perform the following operations:

●

Turn off eco air conditioning mode

(

P.253)

●

Adjust the fan speed (

P.251)

●

Turn off Eco drive mode (

P.213)

■

Automatic deactivation of sport mode

and custom mode

If the engine switch <power switch> is

turned off after driving in sport mode or

custom mode, the drive mode will be

changed to normal mode.

■

Driving mode pop-up display

When the driving mode is changed, the

selected driving mode will be temporarily

displayed on the side display. (

P.244)

For custom mode, select “Setting” on the

display to customize the driving mode.

: If equipped

■

Types of sensors

Front corner sensors

Front center sensors

Rear corner sensors

Rear center sensors

■

Display

When the sensors detect an obstacle, a
graphic is shown on the multi-informa-
tion display, head-up display and Cen-
ter Display depending on the position
and distance to the obstacle.
 Multi-information display and head-

Intuitive parking assist

The distance from your vehicle to
nearby obstacles when parallel
parking or maneuvering into a
garage is measured by the sensors
and communicated via the multi-
information display, head-up dis-
play (if equipped), Center Display
and a buzzer. Always check the sur-
rounding area when using this sys-
tem.

System components

A
B
C
D

215

4-5. Using the driving support systems

Driving

up display

Front corner sensor detection

Front center sensor detection

Rear corner sensor detection

Rear center sensor detection

 Center Display

A graphic is shown when the Lexus park-
ing assist monitor is displayed (insert dis-
play)
A simplified image is displayed on the
upper right corner of the Center Display
when an obstacle is detected.

Press

of the meter con-

trol switches, and select

Press

of the meter con-

trol switches, and select “Parking
Assist”, and press “OK”.

When the intuitive parking assist turn
on, the intuitive parking assist indicator
comes on to inform the driver that the
system is operational.

■

The intuitive parking assist can be oper-

ated when

●

Front center sensors:

• The engine switch <power switch> is in

IGNITION ON mode <ON mode>.

• The shift position is in a position other

than P or R.

• The vehicle speed is less than about 6

mph (10 km/h).

●

Front corner sensors:

• The engine switch <power switch> is in

IGNITION ON mode <ON mode>.

• The shift position is in a position other

than P.

• The vehicle speed is less than about 6

mph (10 km/h).

(At any speed when the shift position is in

●

Rear corner and rear center sensors:

• The engine switch <power switch> is in

IGNITION ON mode <ON mode>.

• The shift position is in R.

■

Muting the buzzer sound

●

To mute the buzzer sound:

The buzzer can be temporarily muted by
pressing “OK” of the meter control switches
while an obstacle detection display is shown
on the multi-information display.

●

To cancel the mute:

Mute will be automatically canceled in the
following situations.
• When the shift position is changed

(except shifting from D to N, or N to D)

• When the vehicle speed has reached or

exceeded 6 mph (10 km/h) with the shift

position in D

• When the intuitive parking assist is turned

off once and turned on again

Turning intuitive parking assist
on/off

A
B
C
D

216

4-5. Using the driving support systems

• When the engine switch <power switch>

is turned off once and turned to IGNI-

TION ON mode <ON mode> again

■

If “Clean Parking Assist Sensor” is dis-

played on the multi-information display

A sensor may be dirty or covered with snow

or ice. In such cases, if it is removed from

the sensor, the system should return to nor-

mal.
Also, due to the sensor being frozen at low

temperatures, a malfunction display may

appear or an obstacle may not be detected.

If the sensor thaws out, the system should

return to normal.

■

If “Parking Assist Malfunction” or “Park-

ing Assist Malfunction Visit Your

Dealer” is displayed on the multi-infor-

mation display

There is a malfunction and the device may

not be working properly.
Have the vehicle inspected by your Lexus

dealer.

■

Sensor detection information

●

The sensor’s detection areas are limited

to the areas around the vehicle’s front and

rear bumpers.

●

Certain vehicle conditions and the sur-

rounding environment may affect the

ability of the sensor to correctly detect

obstacles. Particular instances where this

may occur are listed below.

• There is dirt, snow or ice on the sensor.

(Wiping the sensors will resolve this

problem.)

• The sensor is frozen. (Thawing the area

will resolve this problem.)

In especially cold weather, if a sensor is

frozen the screen may show an abnormal

display, or obstacles may not be

detected.

• The sensor is covered in any way.

• The vehicle is leaning considerably to one

side.

• On an extremely bumpy road, on an

incline, on gravel, or on grass.

• The vicinity of the vehicle is noisy due to

vehicle horns, motorcycle engines, air

brakes of large vehicles, or other loud

noises producing ultrasonic waves.

• There is another vehicle equipped with

parking assist sensor in the vicinity.

• The sensor is coated with a sheet of spray

or heavy rain.

• The vehicle is equipped with a fender

pole or wireless antenna.

• Towing eyelets are installed.

• The bumper or sensor receives a strong

impact.

• The vehicle is approaching a tall or

curved curb.

• In harsh sunlight or intense cold weather.

• The area directly under the bumpers is

not detected.

• If obstacles draw too close to the sensor.

• A non-genuine Lexus suspension (low-

ered suspension etc.) is installed.

• People may not be detected if they are

wearing certain types of clothing.

In addition to the examples above, there are
instances in which, because of their shape,
signs and other objects may be judged by
the sensor to be closer than they are.

●

The shape of the obstacle may prevent

the sensor from detecting it. Pay particu-

lar attention to the following obstacles:

• Wires, fences, ropes, etc.

• Cotton, snow and other materials that

absorb sound waves

• Sharply-angled objects

• Low obstacles

• Tall obstacles with upper sections pro-

jecting outwards in the direction of your

vehicle

●

The following situations may occur

during use.

• Depending on the shape of the obstacle

and other factors, the detection distance

may shorten, or detection may be impos-

sible.

• Obstacles may not be detected if they

are too close to the sensor.

• There will be a short delay between

obstacle detection and display. Even at

slow speeds, there is a possibility that the

obstacle will come within the sensor’s

detection areas before the display is

shown and the warning beep sounds.

• Thin posts or objects lower than the sen-

sor may not be detected when

approached, even if they have been

detected once.

• It might be difficult to hear beeps due to

217

4-5. Using the driving support systems

Driving

the volume of the audio system or air flow

noise of the air conditioning system.

• It might be difficult to hear beeps due to

the sounds of other systems.

■

Customization

Some functions can be customized.

(

P.391)

■

Certification



For vehicles sold in the U.S.A.



For vehicles sold in Canada

WARNING

■

When using the intuitive parking

assist

Observe the following precautions.

Failing to do so may result in the vehicle

being unable to be driven safely and pos-

sibly cause an accident.

●

Do not use the sensor at speeds in

excess of 6 mph (10 km/h).

●

The sensors’ detection areas and reac-

tion times are limited. When moving

forward or reversing, check the areas

surrounding the vehicle (especially the

sides of the vehicle) for safety, and

drive slowly, using the brake to control

the vehicle’s speed.

●

Do not install accessories within the

sensors’ detection areas.

NOTICE

■

When using intuitive parking assist

In the following situations, the system

may not function correctly due to a sen-

sor malfunction etc. Have the vehicle

checked by your Lexus dealer.

●

The intuitive parking assist operation

display flashes or shows continuously,

and a beep sounds when no obstacles

are detected.

●

If the area around a sensor collides

with something, or is subjected to

strong impact.

●

If the bumper or grille collides with

something.

LEXUS LC 500H (2019 year). Instruction - part 13
