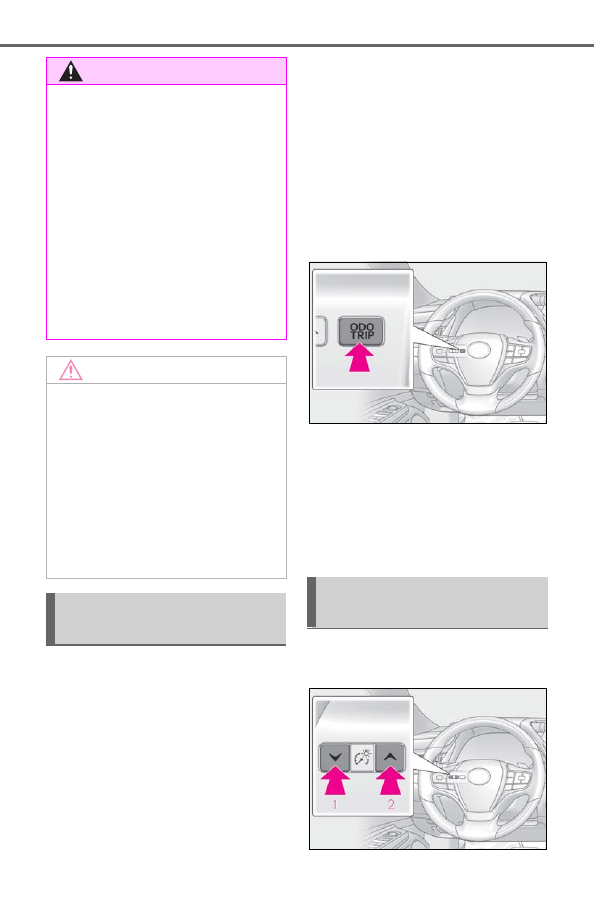

2-1. Instrument cluster

Display items

 Odometer

Displays the total distance the vehicle has
been driven.

 Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.

 Distance until next engine oil

change

Displays the distance the vehicle can be
driven until an oil change is necessary.

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

Pop-up display

The distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

WARNING

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

To prevent damage to the engine and

its components

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (

P.377)

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

71

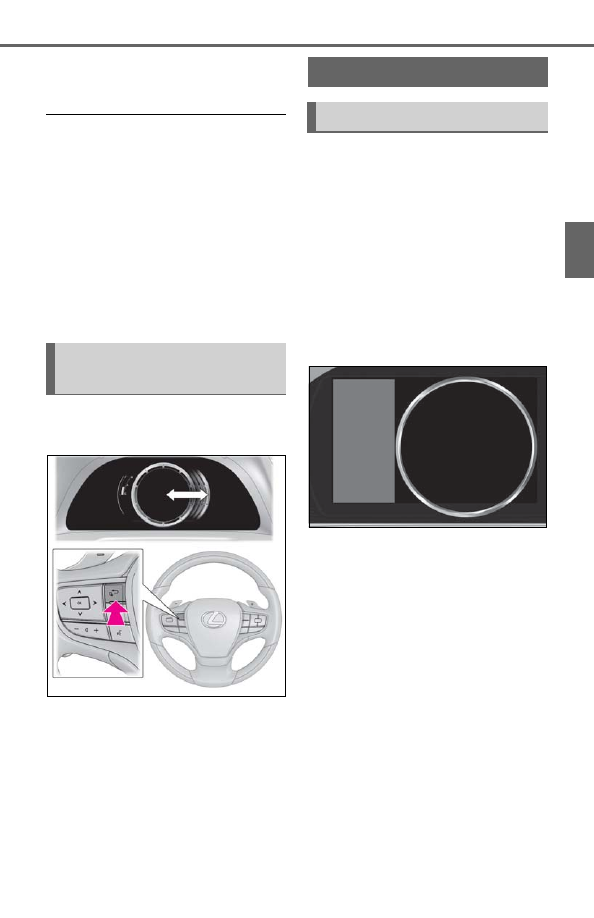

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

1

Darker

2

Brighter

Brightness of the meter lights (day mode

and night mode)

The brightness of the meter lights can be

adjusted individually.
In the following situations, the meters

changes between day mode and night

mode.

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

Night mode: When the tail lights are on

and the surrounding area is dark

The display can be switched between
the center and side positions.

Display (except F SPORT models)

By selecting menu icons on the multi-
information display, a variety of driving-
related information can be displayed.
The multi-information display can also
be used to change display settings and
other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

Display (F SPORT models)

Main meter in center position

The multi-information display presents
the driver with a variety of driving-
related information.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

Changing the main meter loca-
tion

Multi-information display

Display and menu icons

72

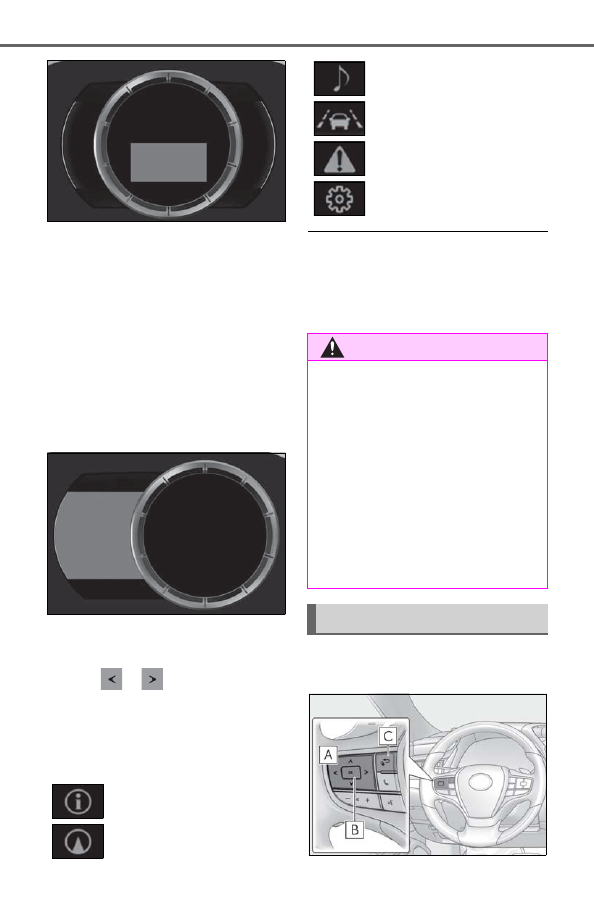

2-1. Instrument cluster

Main meter moved to the right

By selecting menu icons on the multi-
information display, a variety of driving-
related information can be displayed.
The multi-information display can also
be used to change display settings and
other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

Menu icons

The menu icons will be displayed by
pressing

 or

 of the meter con-

trol switches.

F SPORT models: The menu icons can be
displayed when the main meter is moved to
the right.

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

The multi-information display is oper-
ated using the meter control switches.

Driving information display
(

P.73)

Navigation system-linked dis-
play (if equipped) (

P.75)

Audio system-linked display
(

P.75)

Driving support system infor-
mation display (

P.76)

Warning message display
(

P.358)

Settings display (

P.76)

WARNING

Caution for use while driving

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

The information display at low tem-

peratures

P.65, 70

Changing the meter display

73

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

/

: Select menu icons

/

: Change displayed con-

tent, scroll up/down the screen and
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Move the main meter

*

 and return

to the previous screen

*

: F  SPORT  models

Display items (except F SPORT
models)

Press

 or

 of the meter control

switches and select

. Then press



or

 to display the following items:

 Drive information 1
 Drive information 2
 Eco Driving Indicator
 Tire pressure (

P.319)

 Display off

Display items (F SPORT models)

Main meter in center position

Press

 or

 of the meter control

switches to display the following items:
 Drive information 1
 Drive information 2
 Gear position
 Tire pressure (

P.319)

 Units
 Display off

Main meter moved to the right

Press

 or

 of the meter control

switches and select

. Then press



or

 to display the following items:

 Drive information 1
 Drive information 2
 Eco Driving Indicator
 G-force
 Gear Position
 Tire pressure (

P.319)

 Display off

Drive information 1/Drive infor-
mation 2

Displays drive information such as the
following:

Use the displayed values as a reference
only.

 Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)

 Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)

Displayed items (listed below) can be
changed on

. (

P.76)

 Current fuel consumption

Bar type: Displays instantaneous current
fuel consumption

 Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

*1

After start: Displays average fuel con-
sumption since engine start

Content of driving information

A

B

C

74

2-1. Instrument cluster

After refuel: Displays average fuel con-
sumption since refuel

 Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

*1

After start: Displays average vehicle speed
since engine start

 Elapsed time

After reset: Displays elapsed time since the
display was reset

*1

After start: Displays elapsed time since
engine start

 Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven
since engine start

 Other

Blank: No item

*1

: To reset, display the desired item and

press and hold “OK” of the meter con-
trol switches.

*2

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

*3

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.

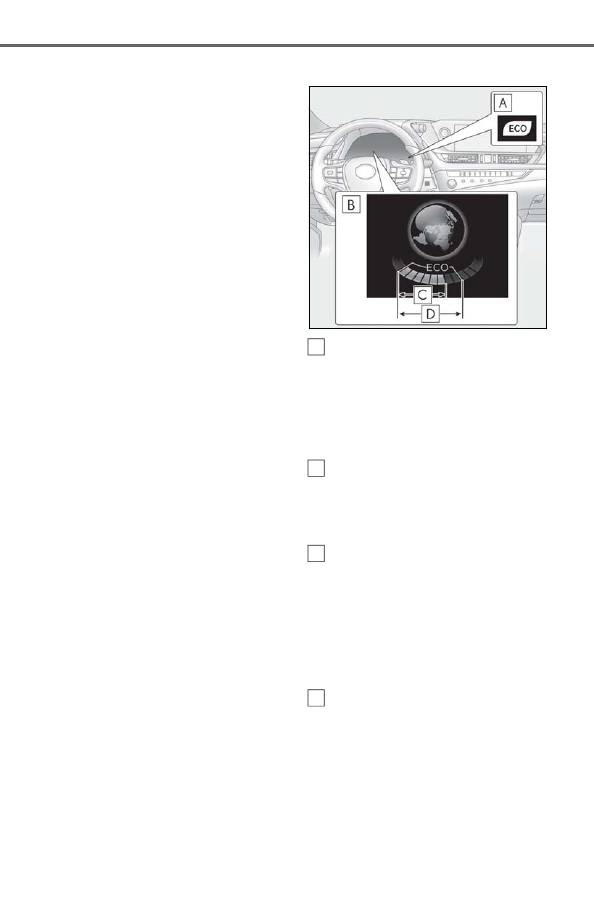

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.

Zone of Eco driving

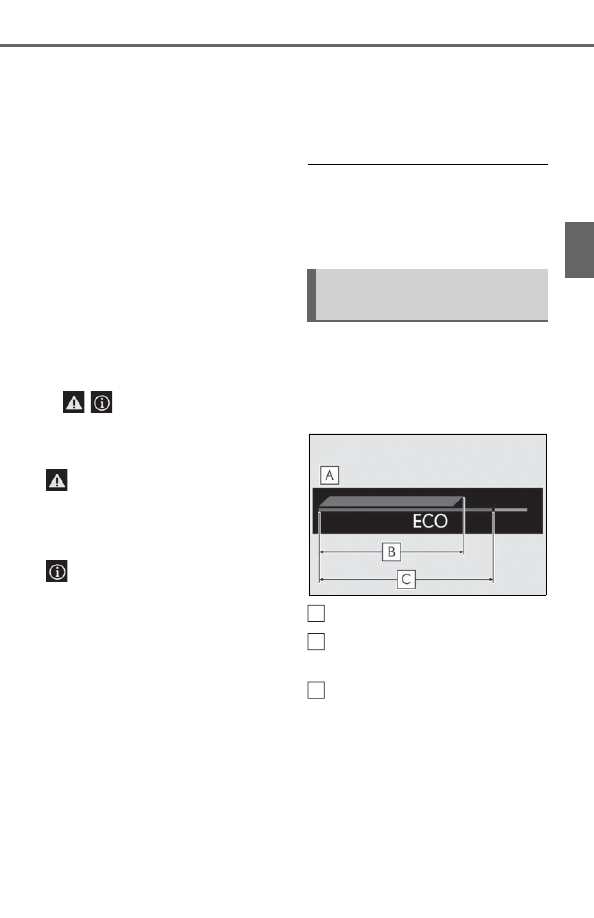

Boost gauge

Displays the boost pressure. The dis-
play will change color if the specified
pressure is exceeded.

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle

A

B

C

D

75

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

speed, the display may not show the actual
condition of the vehicle.

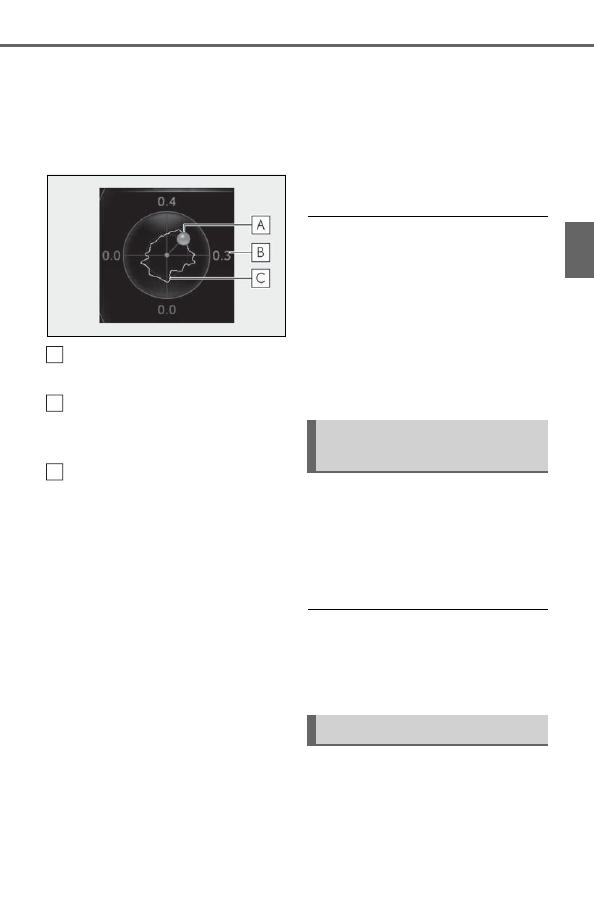

G-force (F SPORT models)

Displays lateral G-forces on the vehi-
cle.

Acceleration G-force on the vehi-
cle

Current G-force value (analyzed
value of front/rear and left/right G-
forces)

Record of the maximum G-forces

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

 Resetting the record of maximum

G-forces

Press and hold “OK” of the meter control
switches to reset the record.

 Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

Gear Position (F SPORT models)

Displays the current shift range or gear
position when the shift lever is in D or S.

Units (F SPORT models)

The units of measure used can be
changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

Eco Driving Indicator

Eco Driving Indicator will not operate

under the following conditions:

The shift lever is in any position other than

D.

A paddle shift switch is operated.

The driving mode is set to other than nor-

mal mode or eco drive mode.

The vehicle speed is approximately 80

mph (130 km/h) or higher.

Select to display the following naviga-
tion system-linked information.
 Route guidance to destination
 Compass display (heading-up dis-

play)

Route guidance to destination display

When the route guidance to destination

display is enabled on the head-up display, it

will not be displayed on the multi-informa-

tion display. (

P.79)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

A

B

C

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

76

2-1. Instrument cluster

Select to display the operational status
of the following systems:
 LTA (Lane Tracing Assist) (

P.176)

 Dynamic radar cruise control with

full-speed range (

P.187)

 RSA (Road Sign Assist) (if

equipped) (

P.185)

Meter display settings that can be
changed

 Language

Select to change the language displayed.

 Units

Select to change the units of measure dis-
played.

 Speedometer display (except F

SPORT models)

Select to set the display of the speedome-
ter to digital/analog/both digital and ana-
log.

 Drive information 1/Drive informa-

tion 2

Select to select up to 2 items (

P.73) that

will be displayed on each Drive information
screen (Drive information 1 screen and
Drive information 2 screen) respectively.

 Clock

Select to switch between 12-hour display
and 24-hour display.

 Pop-up display

Select to enable/disable pop-up displays
for each relevant system.

 Accent color

Select to change the accent color on the
screen, such as the cursor color.

 Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.

 Rev peak (F SPORT models)

Select to enable/disable the rev peak.

 Eco Driving Indicator Light

Select to enable/disable the Eco Driving
Indicator Light.

 Default setting

Select to reset the meter display settings to
the default setting.

Vehicle functions and settings that
can be changed

P.400

Suspension of the settings display

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Driving support system informa-
tion display

Settings display

WARNING

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

77

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight
switch in

 after the engine switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.

If a front door is opened after the engine
switch is turned off, this suggestion mes-
sage will not be displayed.

Customization

Some functions can be customized.

(

P.400)

NOTICE

During setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

Suggestion function

78

2-1. Instrument cluster

*

: If  equipped

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

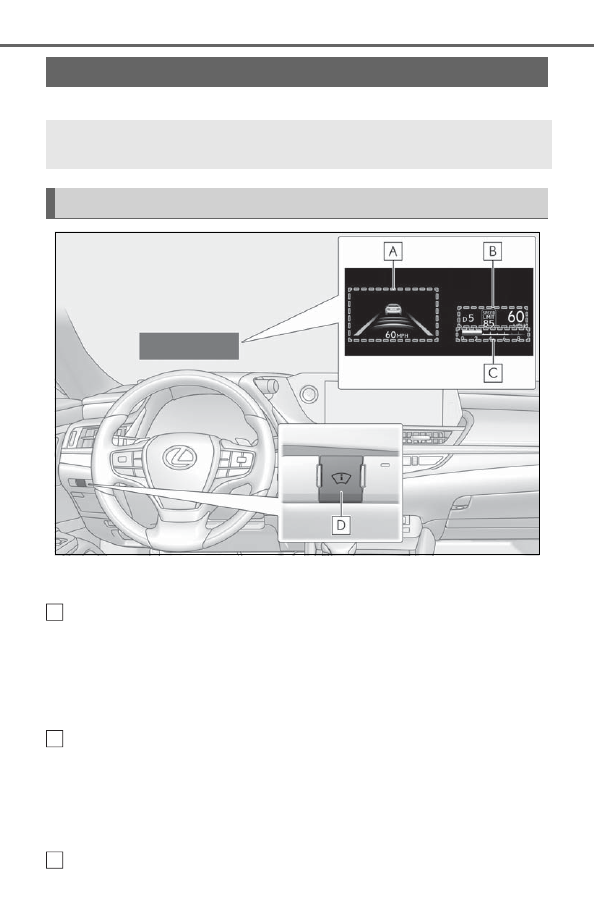

Driving support system display area (

P.80)

Navigation system-linked display area (if equipped)

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street  name
• Compass (heading-up display)

Driving information display area

Displays the following items:
• Speed limit of the current road (linked to the navigation system) (U.S.A. only)
• RSA (Road Sign Assist) display (if equipped) (

P.185)

• Speedometer
• Shift position and shift range (

P.141)

Tachometer/Eco Driving Indicator display area (

P.81)

Head-up display

*

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.

System components

A

B

C

79

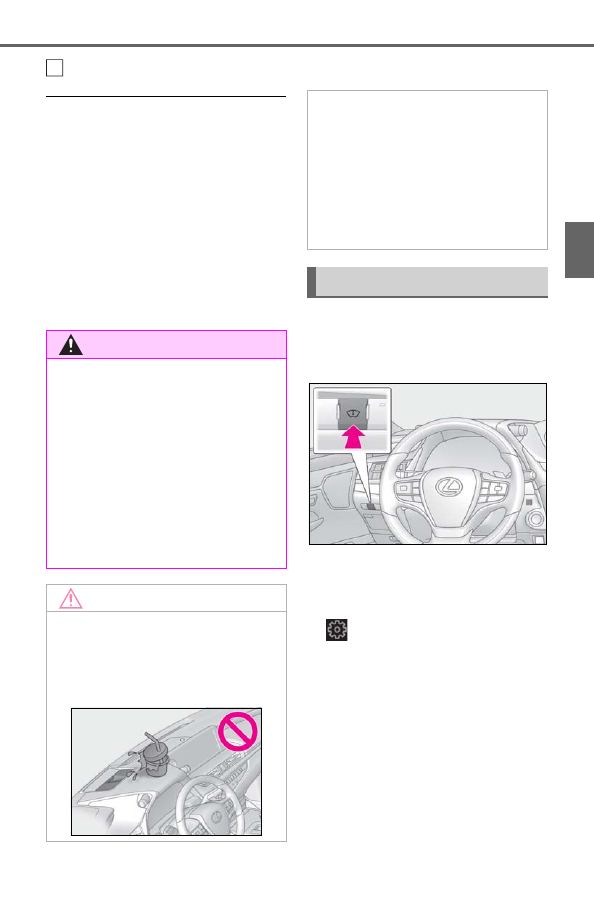

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

Head-up display switch

Head-up display will operate when

The engine switch is in IGNITION ON

mode.

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

Street name display

Only street names which are included in the

map data will be displayed.

Enabling/disabling the head-up dis-
play

Press the Head-up display switch.

Changing settings of the head-up
display

The following settings can be changed
on

 of the multi-information display.

(

P.400)

 Brightness and vertical position of

the head-up display

Select to adjust the brightness or vertical
position of the head-up display.

 Tachometer/Eco Driving Indicator

Select to display the tachometer, Eco Driv-
ing Indicator or no content.

 Display content

Select to enable/disable the following

D

WARNING

When using the head-up display

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

NOTICE

Head-up display projector

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

Using the head-up display

80

2-1. Instrument cluster

items:
• Route guidance to destination/street

name

• Driving support system display

*

• Compass (heading-up display)
• Audio system operation status

*

: Make sure to enable this display when

using the driving support systems

 Display angle

Select to adjust the angle of the head-up
display.

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the engine switch is

turned off then back to IGNITION ON

mode.

Display brightness

The brightness of the head-up display can
be adjusted on

 of the multi-information

display. Also, it is automatically adjusted

according to the ambient brightness.

Head-up display automatic position

adjustment

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(

P.108)

When the battery is disconnected

The customize settings of the head-up dis-

play will be reset.

Displays the operational status of the
following systems:
 LTA (Lane Tracing Assist) (

P.176)

 Dynamic radar cruise control with

full-speed range (

P.187)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel-

WARNING

Caution for changing settings of the

head-up display

As the engine needs to be running while

changing the settings of the head-up dis-

play, ensure that the vehicle is parked in a

place with adequate ventilation. In a

closed area such as a garage, exhaust

gases including harmful carbon monox-

ide (CO) may collect and enter the vehi-

cle. This may lead to death or a serious

health hazard.

NOTICE

When changing the settings of the

head-up display

To prevent battery discharge, ensure that

the engine is running while the changing

the settings of the head-up display.

Driving support system display
area

Pop-up display

81

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

evant system.
 PCS (Pre-Collision System)

(

P.169)

 Intuitive parking assist (if equipped)

(

P.205)

 Parking Support Brake function

(static objects) (if equipped)
(

P.224)

 Brake Override System (

P.128)

 Drive-Start Control (

P.129)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

/



icons

These icons are linked to the multi-
information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(

P.358)

: Information icon

Displayed when a suggestion pop-up dis-
play (

P.77) or advice pop-up display is

displayed on the multi-information display.

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display.

Audio system operation status

Displayed when an audio remote con-
trol switch on the steering wheel is

operated.

Hands-free system status

Displayed when the hands-free system
is operated.

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

Tachometer

Displays the engine speed in revolu-
tions per minute.

Eco Driving Indicator

Eco Driving Indicator Zone Display

Eco driving ratio based on acceler-
ation

Zone of Eco driving

Displayed content is the same as that dis-
played on the multi-information display
(Eco Driving Indicator). For details, refer to
P.74.

Tachometer/Eco Driving Indica-
tor display area

A
B

C

82

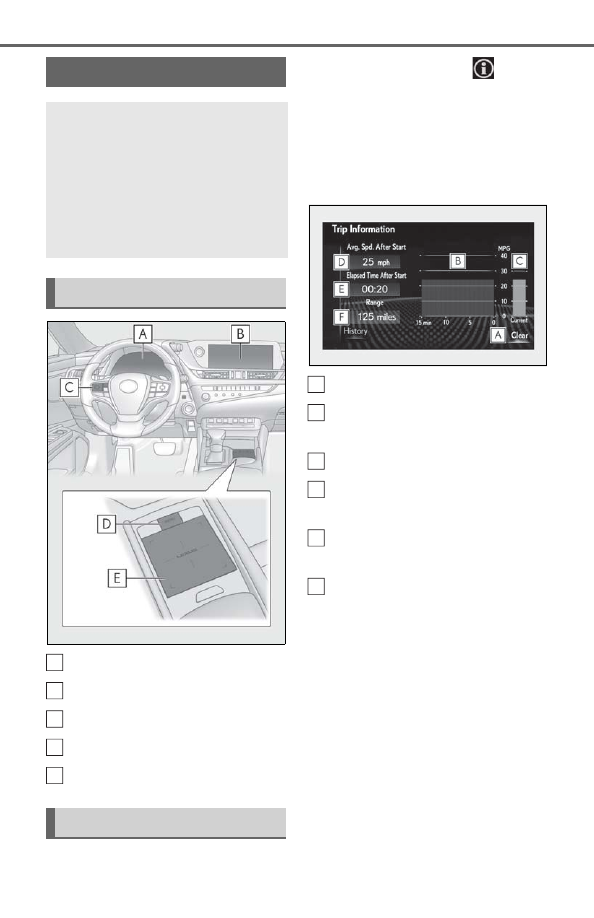

2-1. Instrument cluster

Multi-information display

Center Display

Meter control switches

“MENU” button

Touchpad

Press the “MENU” button on the

Remote Touch, then select

 on the

screen, and then select “Trip Informa-
tion” or “History”.

Trip information

If a screen other than “Trip Information”
is displayed, select “Trip Information”.

Resetting the consumption data

Fuel consumption in the past 15
minutes

Current fuel consumption

Average vehicle speed since the
engine was started.

Elapsed time since the engine was
started.

Cruising range

Average fuel consumption for the past 15
minutes is divided by color into past aver-
ages and averages attained since the
engine switch was last turned to IGNI-
TION ON mode. Use the displayed aver-
age fuel consumption as a reference.
The image is an example only, and may
vary slightly from actual conditions.

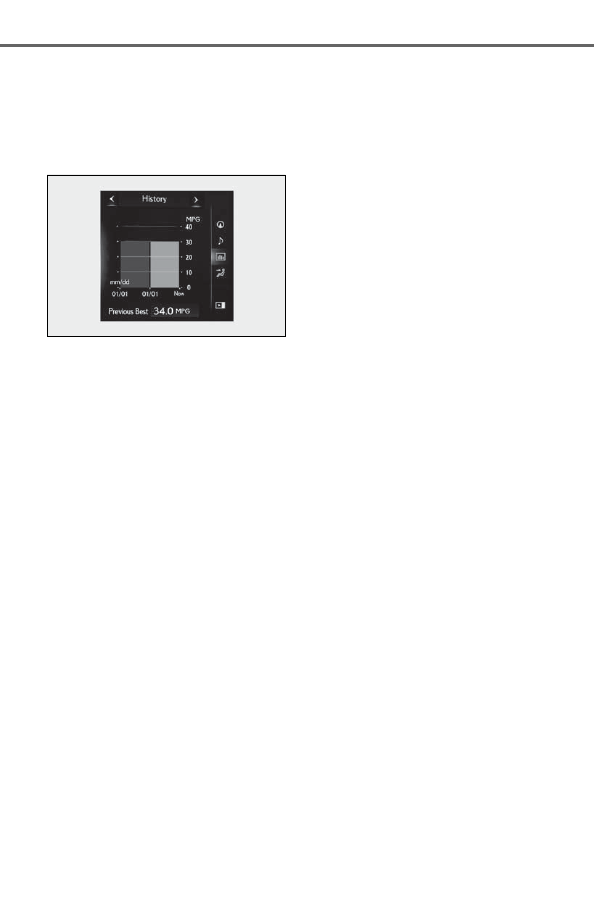

History

If a screen other than “History” is dis-
played, select “History”.

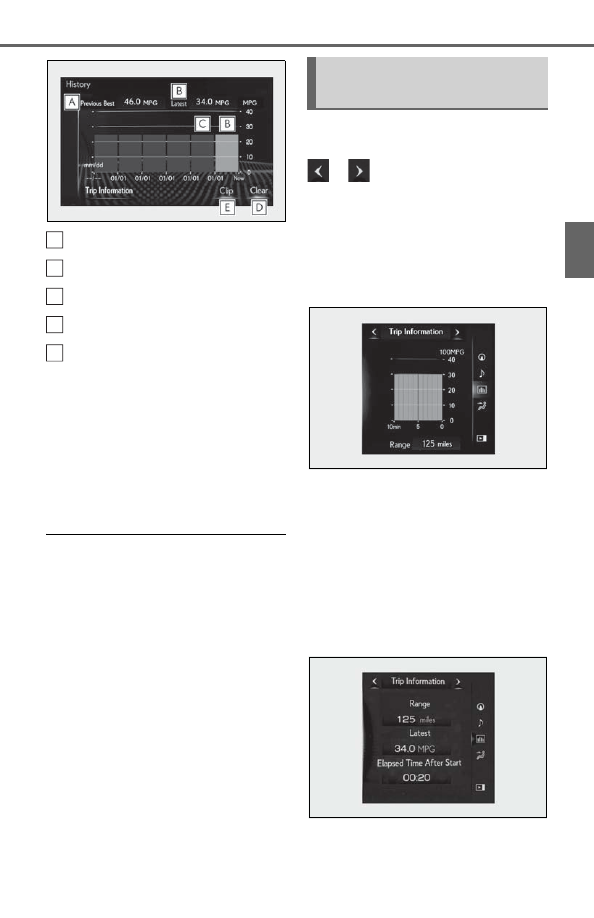

Fuel consumption screen

You can view the status of your fuel
consumption information on the
multi-information display and Cen-
ter Display.
12.3-inch display model: The con-
sumption screen can be displayed
on the side display.

System components

Consumption

A
B
C
D

E

A
B

C
D

E

F

83

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

Best recorded fuel consumption

Latest fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel consump-
tion data

The average fuel consumption history is
divided by color into past averages and the
average fuel consumption since the last
updated. Use the displayed average fuel
consumption as a reference.
The image is an example only, and may
vary slightly from actual conditions.

Updating the history data

Update the latest fuel consumption by

selecting “Clip” to measure the current fuel

consumption again.

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

Display the vehicle information on the
side display (

P.247), and then selec

 or

 to display the desired

screen.

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.

The image is an example only, and may
vary slightly from actual conditions.

A
B
C
D

E

Using the side display (12.3-inch
display model)

84

2-1. Instrument cluster

Use the displayed average fuel consump-
tion as a reference.

History

Displays the average fuel consumption
and highest fuel consumption.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

85

3

3

Be

fore
 d

riv

in

g

Before driving

3-1. Key information

Keys ...................................................

86

3-2. Opening, closing and locking the

doors and trunk

Doors.................................................

89

Trunk..................................................

93

Smart access system with push-

button start.................................

100

3-3. Adjusting the seats

Front seats.....................................

107

Driving position memory ........

108

Head restraints..............................

111

3-4. Adjusting the steering wheel and

mirrors

Steering wheel..............................

113

Inside rear view mirror..............

114

Outside rear view mirrors.......

115

3-5. Opening and closing the win-

dows and moon roof

Power windows............................

118

Moon roof .....................................

120

Panoramic moon roof ..............

123















Content   ..  3  4  5  6   ..
