EQUIPMENT

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Part Name

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Note

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Caliper gauge

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Hydraulic pump, Hydraulic motor

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Micrometer

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Hydraulic pump, Hydraulic motor

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Precision straight edge

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Hydraulic pump, Hydraulic motor

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Pressure gauge

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Radiator cap tester

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Thermometer

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Torque wrench

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Vernier caliper

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Hydraulic pump

COOLANT

ÑÑÑÑÑÑÑÑÑÑÑÑ

Item

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Capacity

ÑÑÑÑÑÑÑÑÑÑÑÑ

Classification

ÑÑÑÑÑÑÑÑÑÑÑÑ

Item

ÑÑÑÑÑ

Liters

ÑÑÑÑÑÑ

US qts

ÑÑÑÑÑ

lmp. qts

ÑÑÑÑÑÑÑÑÑÑÑÑ

Classification

ÑÑÑÑÑÑÑÑÑÑÑÑ

Engine coolant

ÑÑÑÑÑ

10.8

ÑÑÑÑÑÑ

11.4

ÑÑÑÑÑ

9.5

ÑÑÑÑÑÑÑÑÑÑÑÑ

Ethylene–glycol base

LUBRICANT

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

Item

ÑÑÑÑÑÑÑÑÑÑÑÑ

Capacity

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

Classification

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

Cooling fan fluid

ÑÑÑÑÑÑÑÑÑÑÑÑ

–

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ATF DEXRON



SSM (SPECIAL SERVICE MATERIALS)

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

Part Name

ÑÑÑÑÑÑ

Part No.

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use etc.

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

Seal packing 1282B,
Three bond 1282B or equivalent

ÑÑÑÑÑÑ

08826–00100

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Water pump, Water inlet housing

–

COOLIING SYSTEM

Preparation

CO–5

CHECK AND REPLACEMENT OF
ENGINE COOLANT

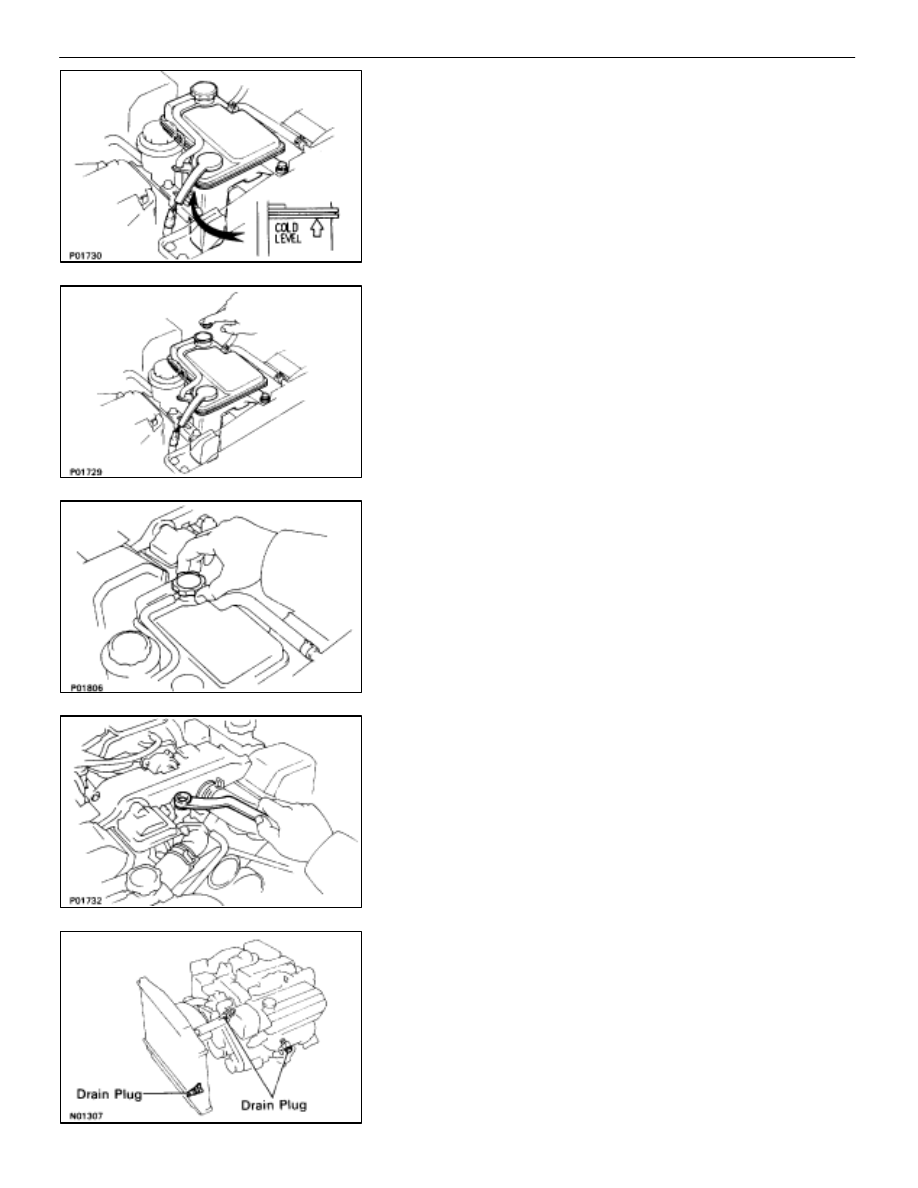

CHECK ENGINE COOLANT LEVEL AT RESERVE TANK
The coolant level should be above the ”COLD LEVEL” at nor-
mal temperature (20

C (68

F)).

If low, check for leaks and add coolant up to the ”COLD LEV-
EL”.

CHECK ENGINE COOLANT QUALITY
There should not be any excessive deposits of rust or scales
around the radiator cap or reservoir tank filler hole, and the
coolant should be free from oil.
If excessively dirty, clean the coolant passages and replace
the coolant.

REPLACE ENGINE COOLANT
(a) Remove the radiator cap from the reservoir tank.
CAUTION: To avoid the danger of being burned, do not
remove the cap while the engine and radiator are still hot,
as fluid and steam can be blown out under pressure.

(b) Remove the filler plug from the water inlet housing.

cylinder block, drain the coolant from the radiator and
engine.

(d) Clean the coolant passages.
(e) Close the three drain plugs.

Torque (Engine drain plug):

18 N

⋅

m (180 kgf

⋅

cm, 13 ft

⋅

lbf)

CO–6

–

COOLIING SYSTEM

Check and Replacement of Engine Coolant

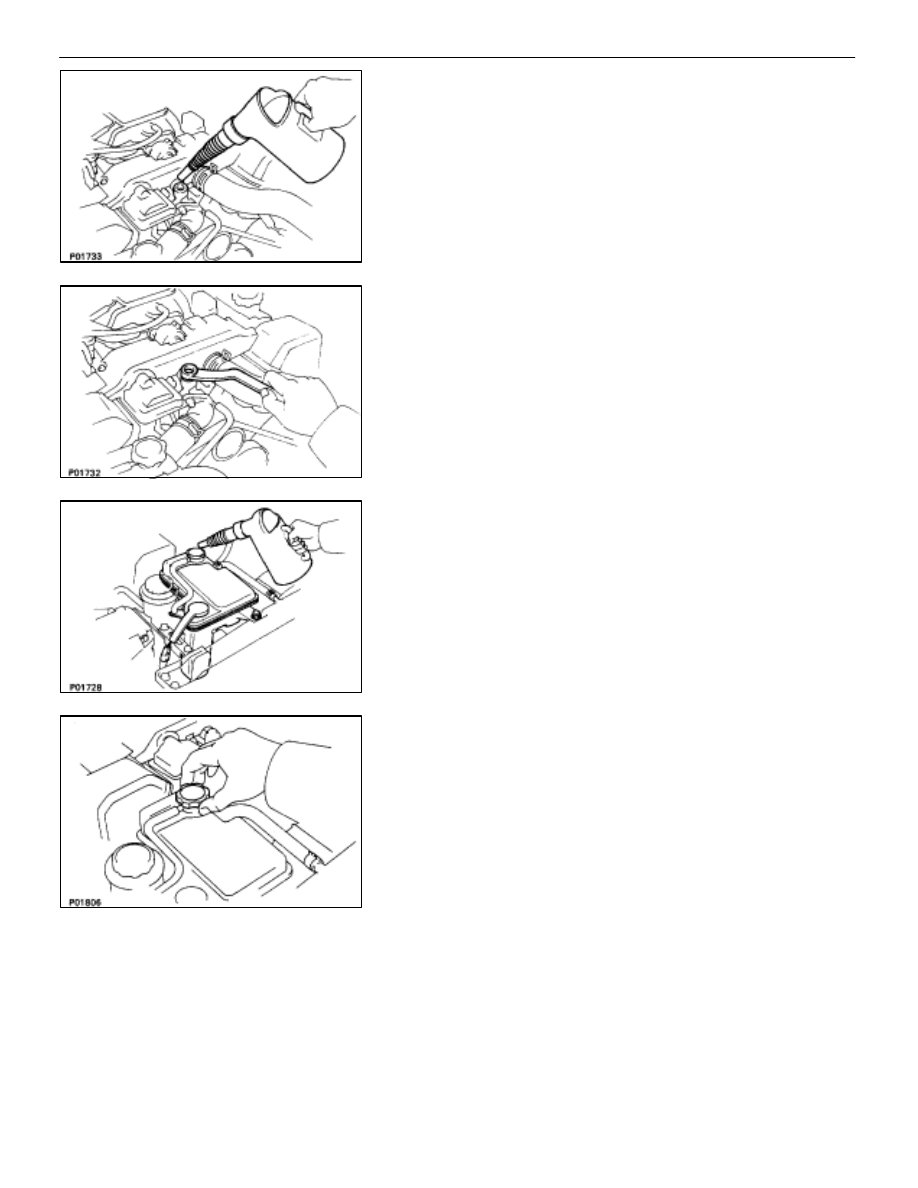

(f) Slowly add coolant to water inlet housing until it is full.

•

Use a good brand of ethylene–glycol base coolant,
mixed according to the manufacturer’s directions.

•

Using coolant which includes more than 50%
ethylene–glycol (but not more 70%) than is
recommended.

NOTICE:

•

Do not use alcohol type coolant.

•

The coolant should be mixed with demineralized water or

distilled water.

Capacity (w/ Heater):

10.8 liters (11.4 US qts, 9.5 lmp. qts)

(g) Reinstall a new gasket and filler plug to the water inlet

housing.

Torque: 44 N

⋅

m (450 kgf

⋅

cm, 33 ft

⋅

lbf)

(h) Slowly add coolant to reservoir tank until it is full.

(i)

Reinstall the radiator cap.

(j)

Bleed the cooling system.

•

Start the engine, and open the heater water valve.

•

Maintain the engine speed at 2,000 rpm, and warm
up the engine.

(k) Check for leaks.
(l)

Recheck the coolant level and refill as necessary.

–

COOLIING SYSTEM

Check and Replacement of Engine Coolant

CO–7

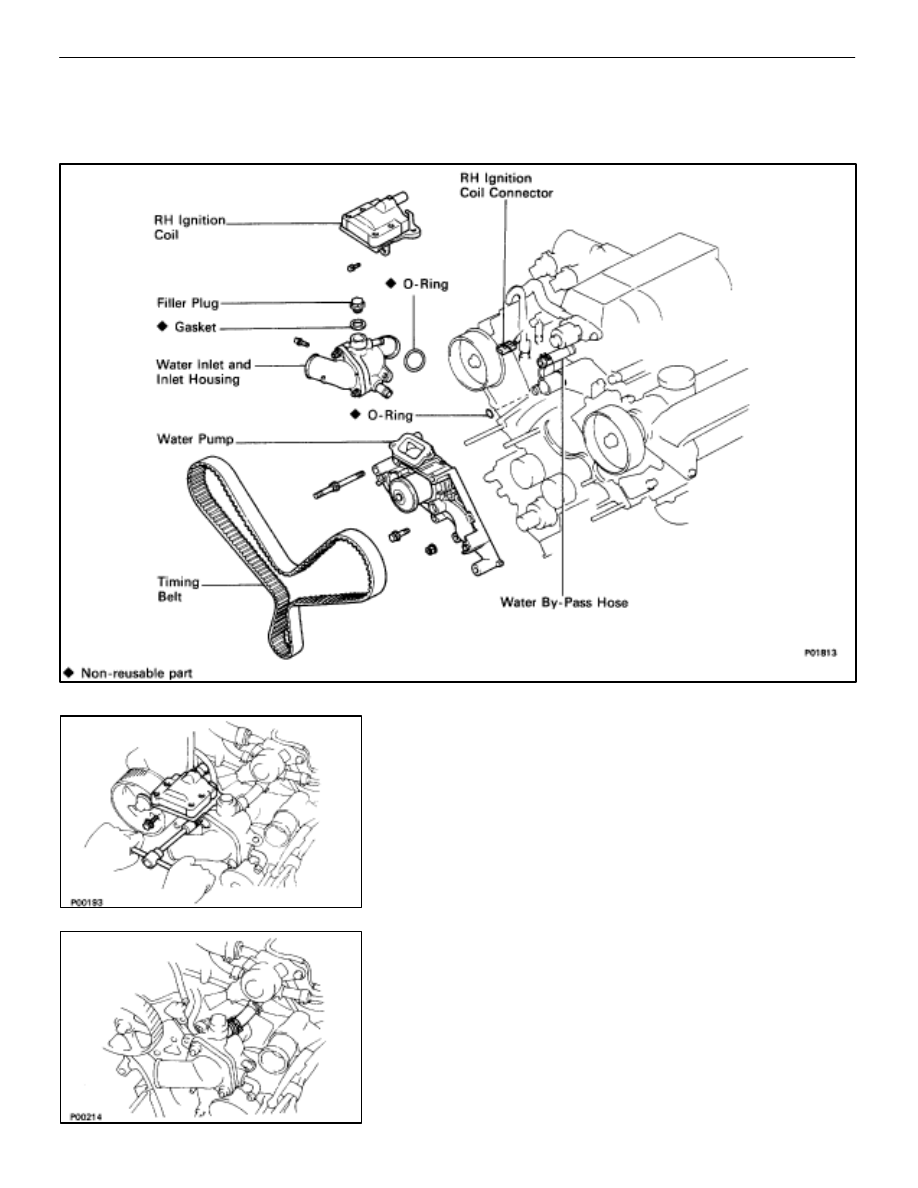

WATER PUMP

COMPONENTS FOR REMOVAL AND
INSTALLATION

REMOVAL OF WATER PUMP

REMOVE TIMING BELT
(See steps 1 to 35 on pages

EM–35

to 43)

REMOVE RH IGNITION COIL
(a) Disconnect the ignition coil connector.
(b) Remove the two bolts and ignition coil.

REMOVE WATER INLET AND INLET HOUSING
(a) Disconnect the water by–pass hose from the water inlet

housing.

CO–8

–

COOLIING SYSTEM

Water Pump
