Range Rover Sport. Manual - part 15







Discard the nut.

9 . Release the wheel speed sensor from the wheel knuckle.



Remove the bolt.

10
.

  CAUTION: Use a Torx socket to prevent the ball joint rotating whilst removing the nut.

  CAUTION: Note the position of the hardened steel washer. The hardened steel washer must be

installed between the stabilizer bar link and the upper arm. Failure to follow this instruction may result in
damage to the vehicle.

Release the stabilizer bar link.



Discard the nut.

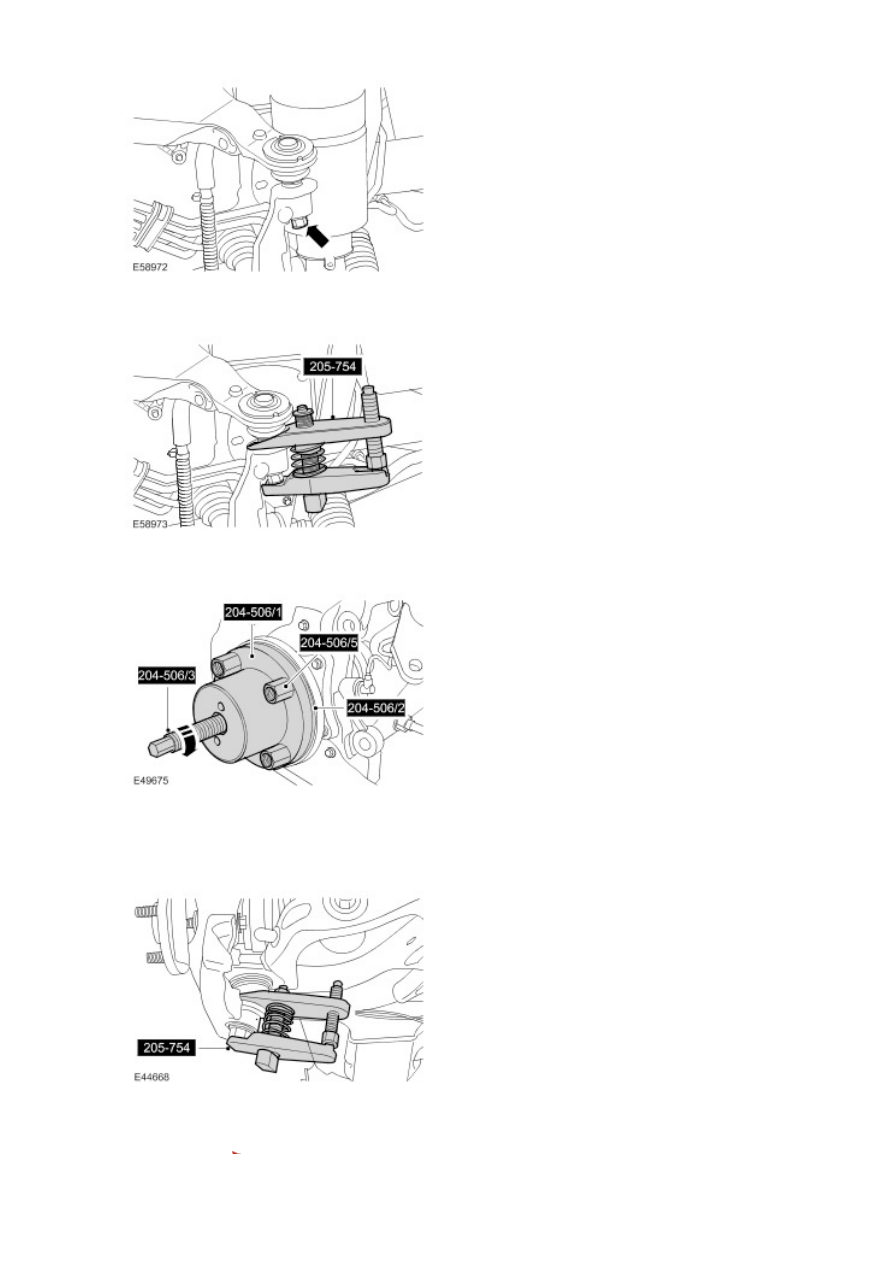

12 . Using the special tool, release the upper arm ball joint.

13 . Using the special tools, release the halfshaft from the drive flange.

14 . Remove the lower ball joint retaining nut.

15 . Using the special tool, release the lower ball joint from the steering knuckle.

16 . Remove the upper arm retaining nut.

Discard the nut.

17
.

  CAUTION: The lower arm ball joint can be damaged by excessive articulation. The wheel knuckle

must be fully supported at all times. Do not allow the wheel knuckle to hang on the lower arm. Failure to
follow this instruction will result in damage to vehicle.

NOTE:



Do not disassemble further if the component is removed for access only.

Remove the wheel knuckle.

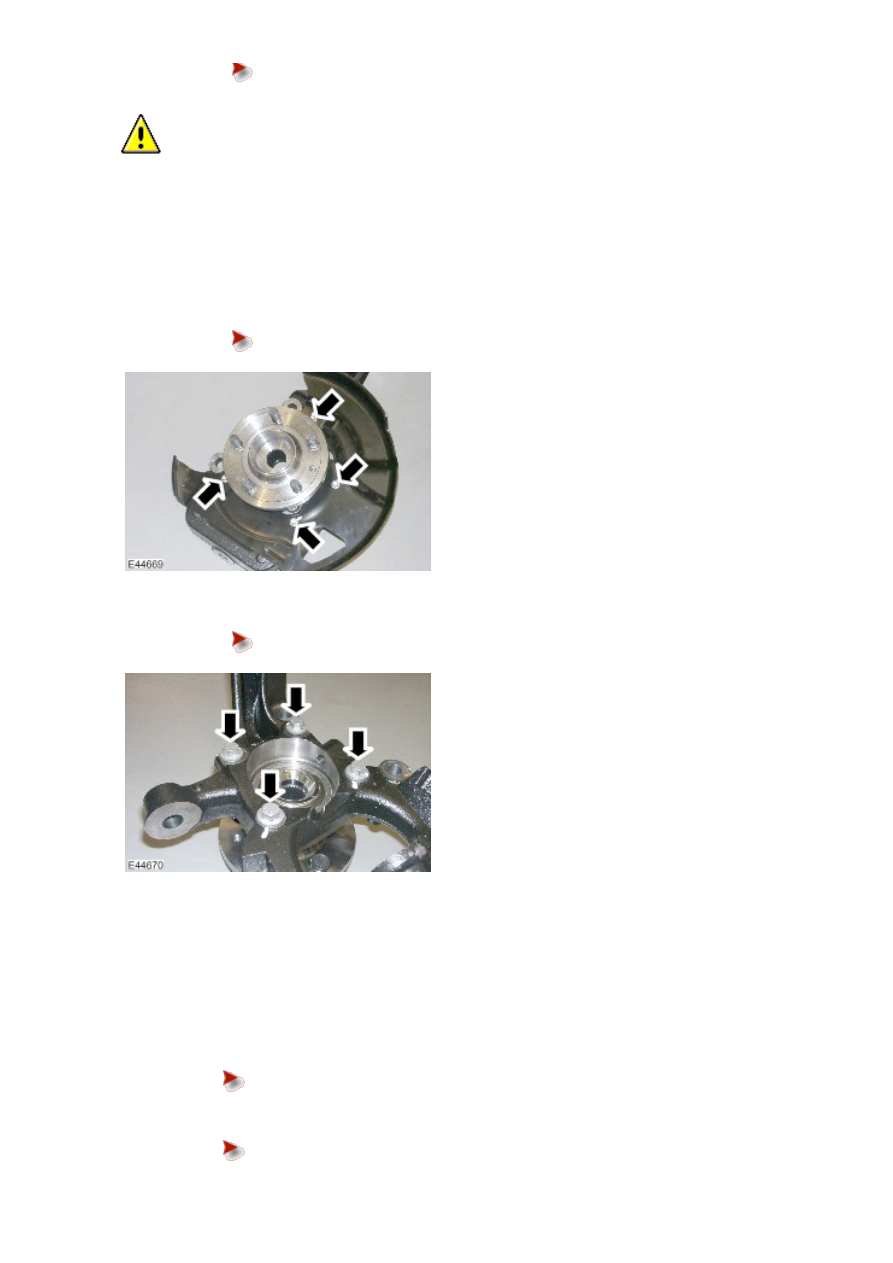

18 . Remove the brake disc dust shield.



Remove the five retaining bolts.

19 . Remove the wheel hub.



Remove the 4 bolts.

Installation

All vehicles

1 . Clean the components.

2 . Install the wheel hub.



Tighten the 4 bolts to 115 Nm (85 lb.ft).

3 . Install the brake disc dust shield.



Tighten the 5 bolts to 10 Nm (7 lb.ft).

  CAUTION: The lower arm ball joint can be damaged by excessive articulation. The wheel knuckle

must be fully supported at all times. Do not allow the wheel knuckle to hang on the lower arm. Failure to
follow this instruction will result in damage to vehicle.

With assistance, install the wheel knuckle.

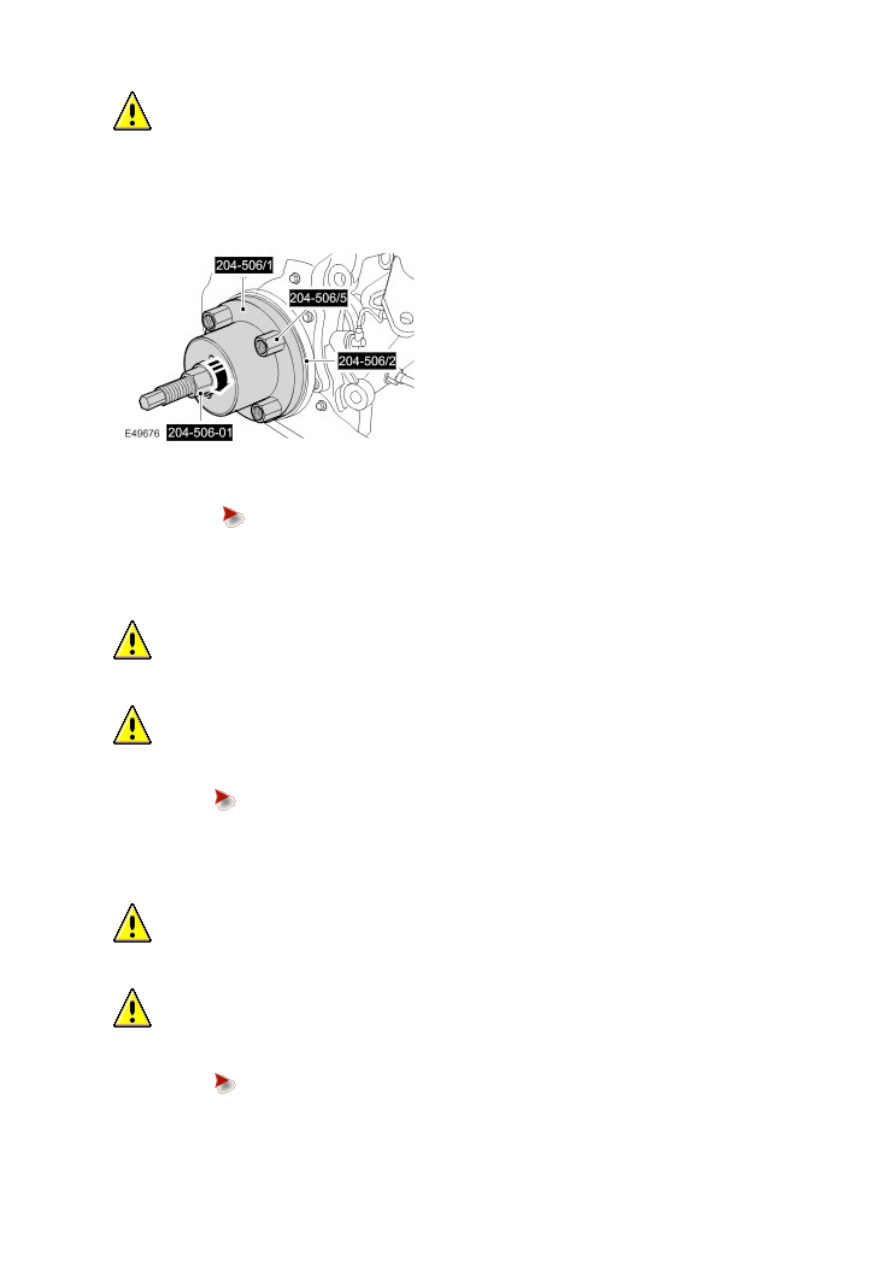

5 . Using the special tools, install the halfshaft in the wheel hub.

6 . Connect the upper arm and wheel knuckle.



Install a new nut and tighten to 70 Nm (52 lb.ft).

Vehicles without Active Stabilization

7
.

  CAUTION: Make sure the hardened steel washer is installed between the stabilizer bar link and the

upper arm. Failure to follow this instruction may result in damage to the vehicle.

  CAUTION: Use a Torx socket to prevent the ball joint rotating whilst installing the nut.

Secure the stabilizer bar link.



Install a new nut and tighten to 175 Nm (129 lb.ft).

Vehicles with Active Stabilization

8
.

  CAUTION: Make sure the hardened steel washer is installed between the stabilizer bar link and the

upper arm. Failure to follow this instruction may result in damage to the vehicle.

  CAUTION: Use a Torx socket to prevent the ball joint rotating whilst installing the nut.

Secure the stabilizer bar link.



Install a new nut and tighten to 175 Nm (129 lb.ft).

9 . Tighten the lower arm ball joint retaining nut to 115 Nm (85 lb.ft).
