Range Rover Body Repair Manual - part 35





CHASSIS AND BODY

65

REPAIR

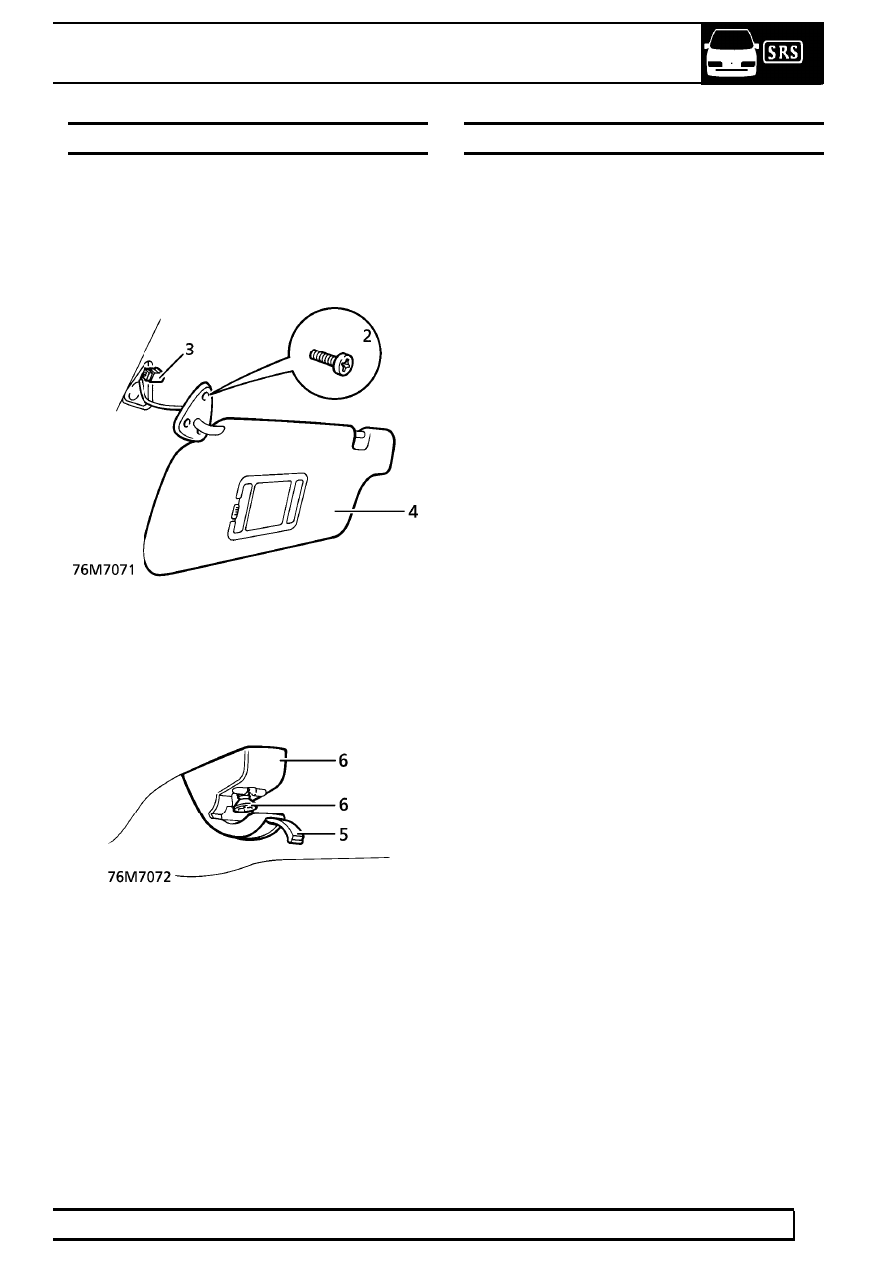

SUN VISOR

Service repair no - 76.10.47

Remove

1. Release visor from clip.
2. Remove 3 visor retaining screws.

3. Disconnect visor lamp multiplug.
4. Remove visor.
5. Remove clip if required. Carefully lever plastic

tag down.

6. Remove screw, remove clip.

Refit

7. Reverse removal procedure.

SILL FINISHER

Service repair no - 76.43.84

Remove

1. Remove 3 screws securing front tread plate.
2. Remove 2 screws securing rear tread plate.
3. Remove trim stud securing rear of sill finisher.
4. Release 8 clips securing finisher to sill.
5. Remove sill finisher.

Refit

6. Renew clips as necessary.
7. Reverse removal procedure.

76

CHASSIS AND BODY

NEW RANGE ROVER

66

REPAIR

TAILGATE - UPPER

Service repair no - 76.28.29

Remove

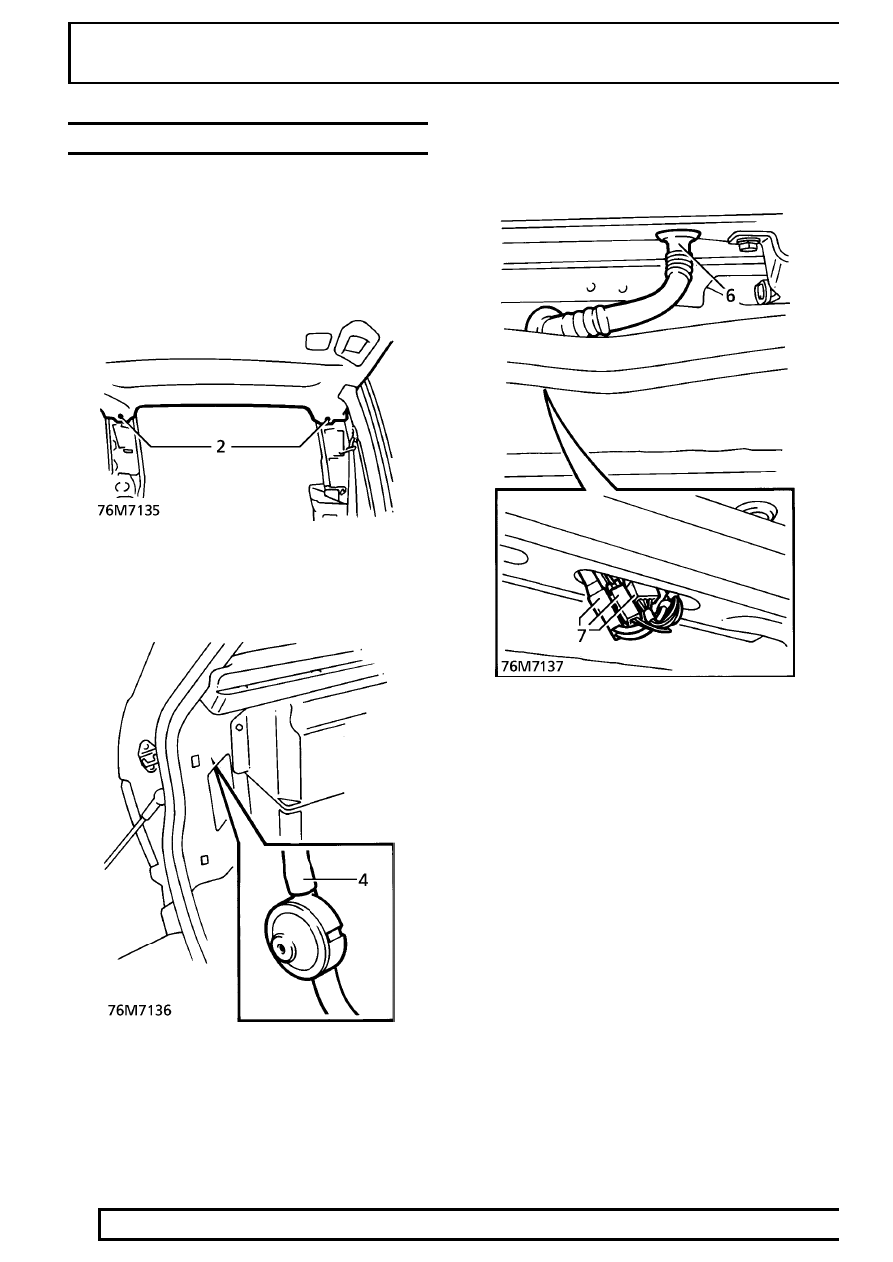

1. Remove both ’E’ post finishers.
2. Remove 2 trim fixing studs. Release headlining

from ’E’ posts.

3. Release 4 turn buckles securing access panel to

LH side load space trim. Remove panel.

4. Locate rear screen washer non-return valve.

Disconnect tailgate feed tube from valve.

5. Attach draw string to tube to aid re-assembly.
6. Release tailgate harness protective sleeve from

roof panel.

7. Disconnect 3 tailgate harness multiplugs from

body harness. Pull plugs out through hole in roof
panel.

8. Pull screen washer tube out through hole in roof

panel. Disconnect draw string.

9. Mark outline of hinge on tailgate to aid

re-assembly.

10. Apply protective tape to roof panel before

releasing tailgate.

11. With assistance, disconnect gas struts from

tailgate.

12. With assistance, remove 4 bolts securing hinges

to tailgate. Remove tailgate.

CHASSIS AND BODY

67

REPAIR

Refit

13. With assistance, position tailgate to hinges. Align

marks. Secure with bolts. Tighten to

25 Nm. (18

lbf.ft)

14. With assistance, connect gas struts to tailgate.
15. Remove protective tape from roof panel.
16. Attach draw string to washer tube. Pull tube

along roof into position at ’E’ post. Remove draw
string.

17. Connect tube to non-return valve.
18. Feed 3 tailgate harness multiplugs through roof

panel. Connect to body harness.

19. Secure tailgate harness protective sleeve to roof

panel.

20. Reposition headlining at ’E’ posts. Secure with

studs.

21. Fit load space access panel. Secure with turn

buckles.

22. Fit both ’E’ post finishers.

Adjust

23. Check alignment of lower tailgate.

See this

section.

24. Align tailgate to aperture by adjusting position of

hinges on tailgate or body.

25. Align tailgate to adjacent body panels by

adjusting position of hinges on body.

NOTE: To prevent wind noise, ensure top
edge of tailgate does not stand proud of
roof panel.

TAILGATE - LOWER

Service repair no - 76.28.30

Remove

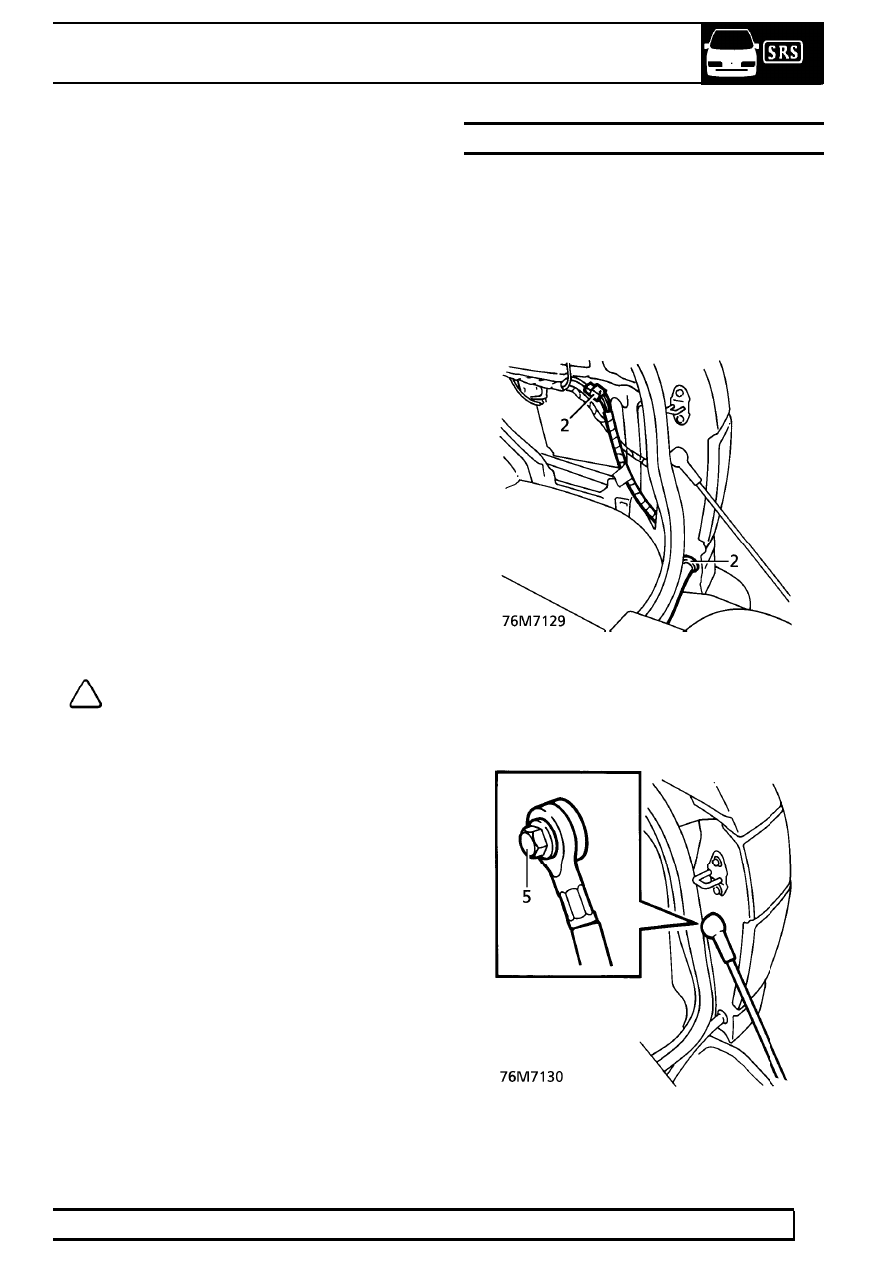

1. Remove parcel tray support trim from RH side of

luggage area.

See this section.

2. Disconnect tailgate harness multiplug from body

harness. Release grommet from lower of ’E’
post. Pull harness from body.

3. Fit protection under tailgate.
4. Mark outline of hinges to body to aid

reassembly.

5. Remove bolt securing each check strap to body.

Collect spacer and fibre sealing washer.

76

CHASSIS AND BODY

NEW RANGE ROVER

68

REPAIR

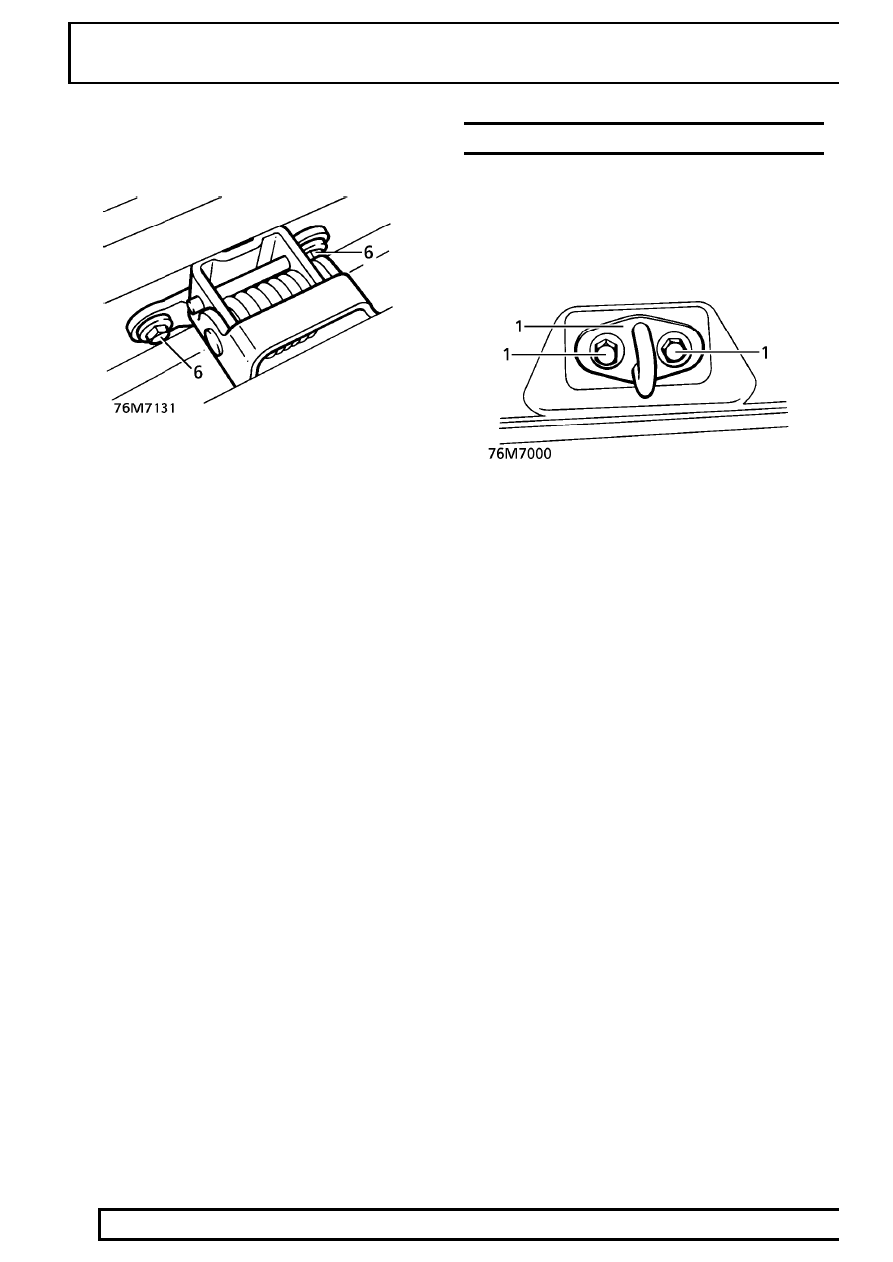

6. With assistance, remove bolts securing tailgate

hinges to body. Remove tailgate complete with
hinges.

Refit

7. With assistance, position tailgate to body.

Secure with bolts. Tighten to

25 Nm. (18 lbf.ft)

8. Position support stays with spacer and sealing

washer next to body. Tighten to

22 Nm. (16

lbf.ft)

9. Remove protection.

10. Feed tailgate harness into ’E’ post. Connect

multiplug to body harness.

11. Fit harness grommet to ’E’ post.
12. Fit parcel tray support trim.

See this section.

Adjust

13. Align tailgate to aperture by adjusting position of

hinges on tailgate or body.

14. Align tailgate to adjacent body panels by

adjusting position of hinge to tailgate.

15. When tailgate alignment is correct, adjust height

and inboard/outboard position of each striker.
Tighten striker bolts. Check for correct latching.

16. Slacken bolts, re-adjust striker positions as

necessary. Tighten to

8 Nm. (6 lbf.ft)

TAILGATE STRIKER

Service repair no - 76.37.26

Remove

1. Remove 2 bolts securing striker. Remove striker.

Refit

2. Position striker. Secure with bolts
3. Close tailgate. Check alignment.
4. If necessary, open tailgate, slacken bolts, realign

striker. Re-tighten bolts.
