CHASSIS AND BODY

49

REPAIR

PARCEL TRAY SUPPORT

Service repair no - 76.67.11

Remove

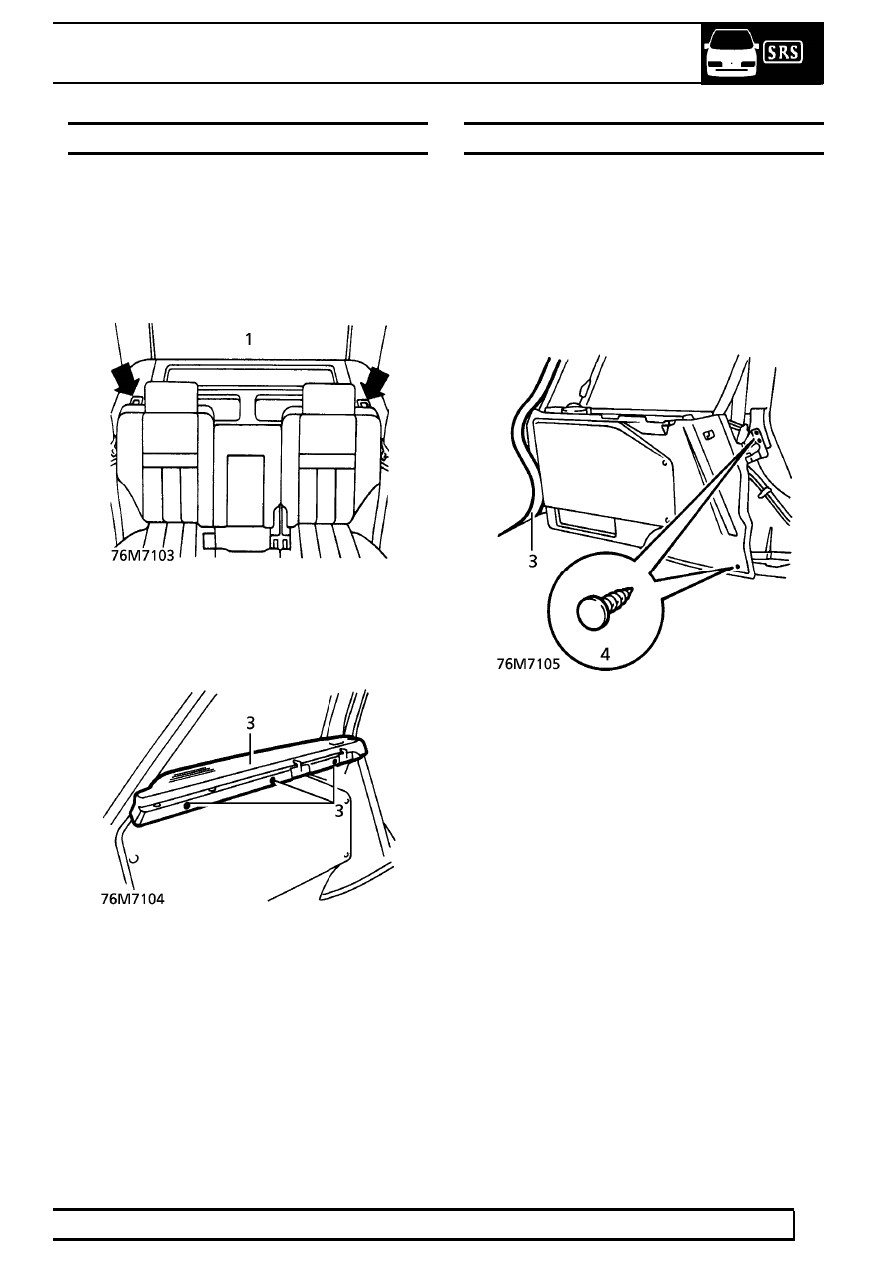

1. Release 2 squab catches and fold rear seats

forward.

2. Remove parcel tray.
3. Remove 3 studs securing parcel tray support.

Remove support.

Refit

4. Reverse removal procedure.

PARCEL TRAY SUPPORT TRIM

Service repair no - 76.67.12 - Right Hand
Service repair no - 76.67.21 - Left Hand

Remove

1. Remove parcel tray support.

See this section.

2. Remove ’D’ post lower trim.
3. Release tailgate aperture seal from support trim

flange.

4. Remove 3 trim studs.

LH Trim Only

5. Remove CD autochanger.

See ELECTRICAL,

Repair.

6. Remove 2 nuts and 2 bolts securing sub-woofer

assembly.

76

CHASSIS AND BODY

NEW RANGE ROVER

50

REPAIR

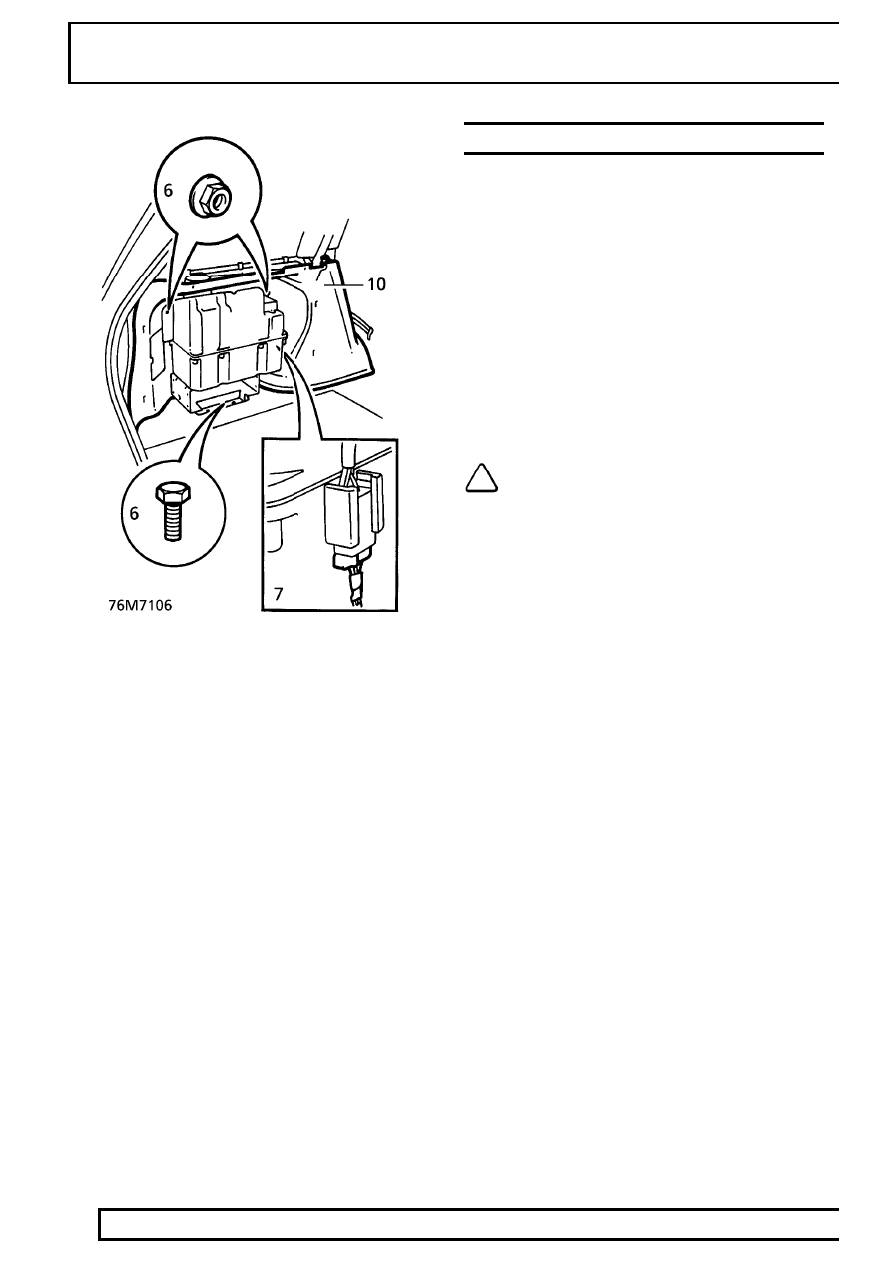

7. Disconnect multiplug from sub-woofer.

Both Trim Panels

8. Release 2 sprag clips securing support trim to

body.

9. Remove support trim panel.

10. LH Trim Only: Separate sub-woofer from trim

panel.

Refit

11. Reverse removal procedure.

A,B,D and E POST TRIMS

Remove

1. Remove aperture seal from appropriate area.
2. Remove retaining screws (’A’ post lower trims)
3. Remove seat belt top mounting (’B’ and ’D’ post

upper trims)

4. Release retaining clips, remove finisher.

Refit

5. Position finisher, secure with retaining clips and

screws.

6. Fit seat belt top mounting. Tighten to

25 Nm.

(18lbf. ft)

7. Secure aperture seal.

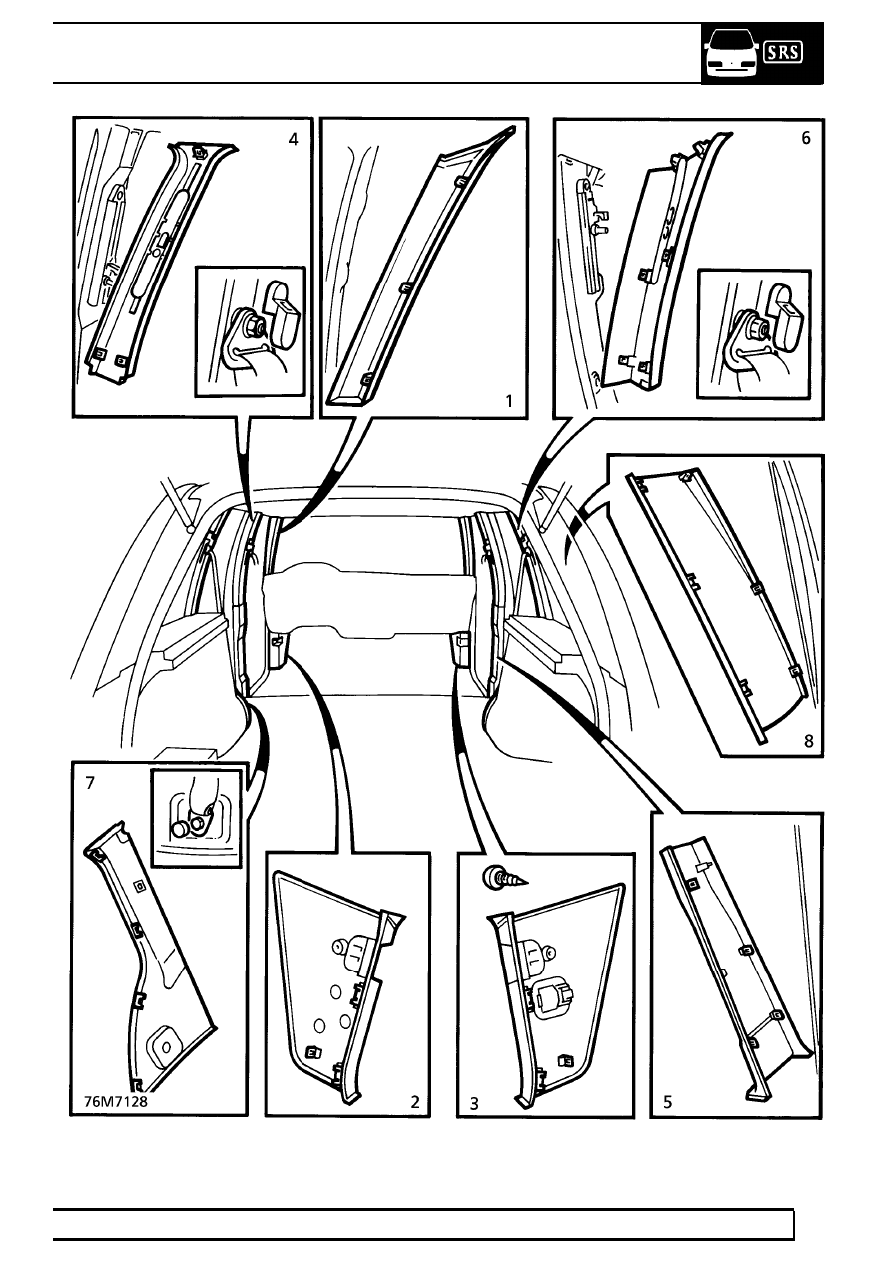

NOTE: Illustration 76M 7128 shows the
fixing method for the A, B, D and E post
trim finishers.

1. A post upper
2. A post lower left hand
3. A post lower right hand
4. B post upper
5. B post lower
6. D post upper
7. D post lower
8. E post

CHASSIS AND BODY

51

REPAIR

76

CHASSIS AND BODY

NEW RANGE ROVER

52

REPAIR

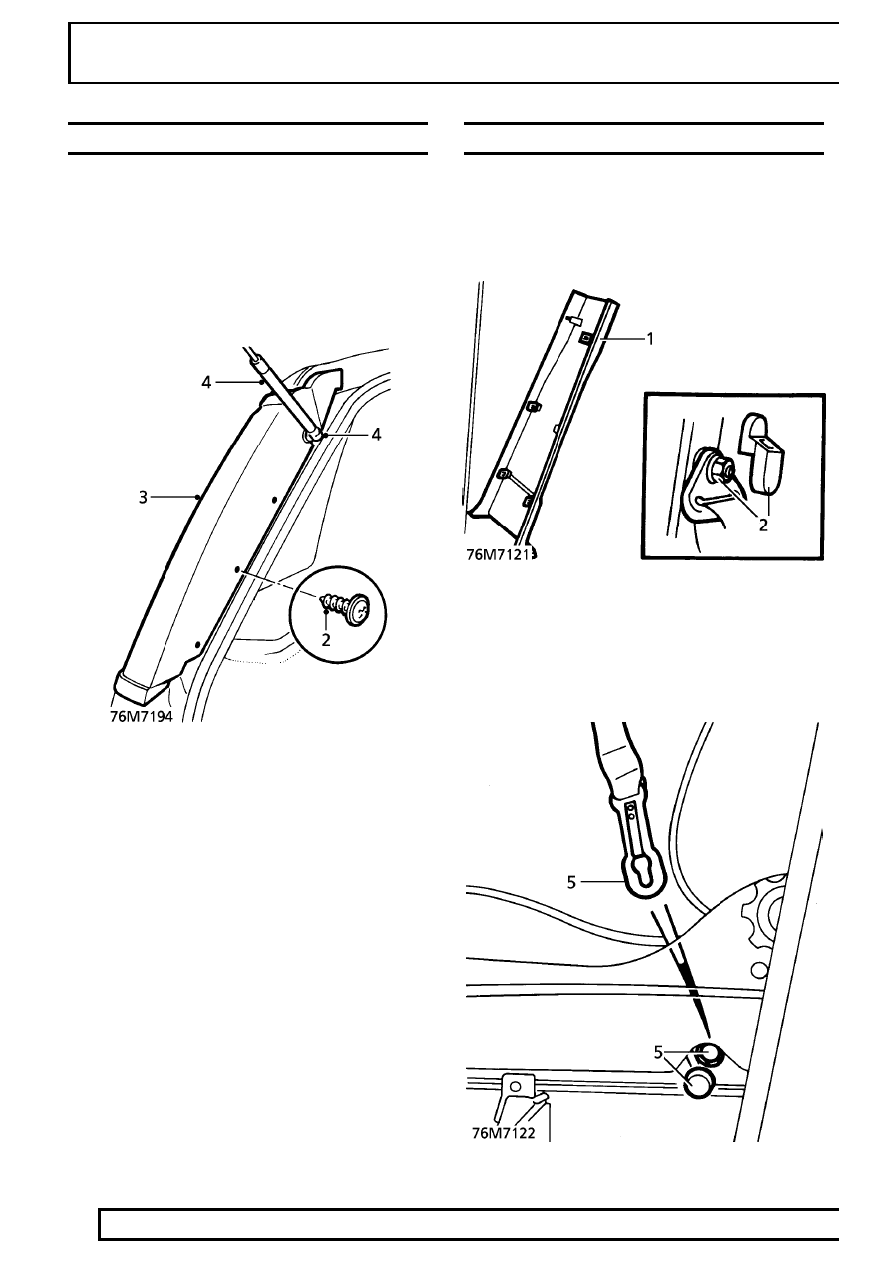

’E’ POST - EXTERIOR TRIM

Service repair no - 76.43.

Remove

1. Open upper tailgate.
2. Remove 3 screws securing trim to ’E’ post.

3. Remove trim.

Refit

4. Position trim to ’E’ post, engage slot beneath

special washer on tailgate strut ball joint and
engage channel to rear edge of quarter glass.

5. Secure trim with screws.
6. Close tailgate.

SEAT BELT - FRONT

Service repair no - 76.73.13

Remove

1. Remove lower ’B’ post finisher.

2. Remove cover and nut securing seat belt to

upper anchorage point.

3. Release seat belt guide from ’B’ post.
4. Move seat fully forwards.
5. Remove bolt cover. Release seat belt from lower

anchorage point on seat.
