PANEL REPAIRS

REPLACEMENT PANELS

77-2-7

Rear floor assembly.

1 Rear floor assembly

M77 1673C

 1

PANEL REPAIRS

77-2-8

REPLACEMENT PANELS

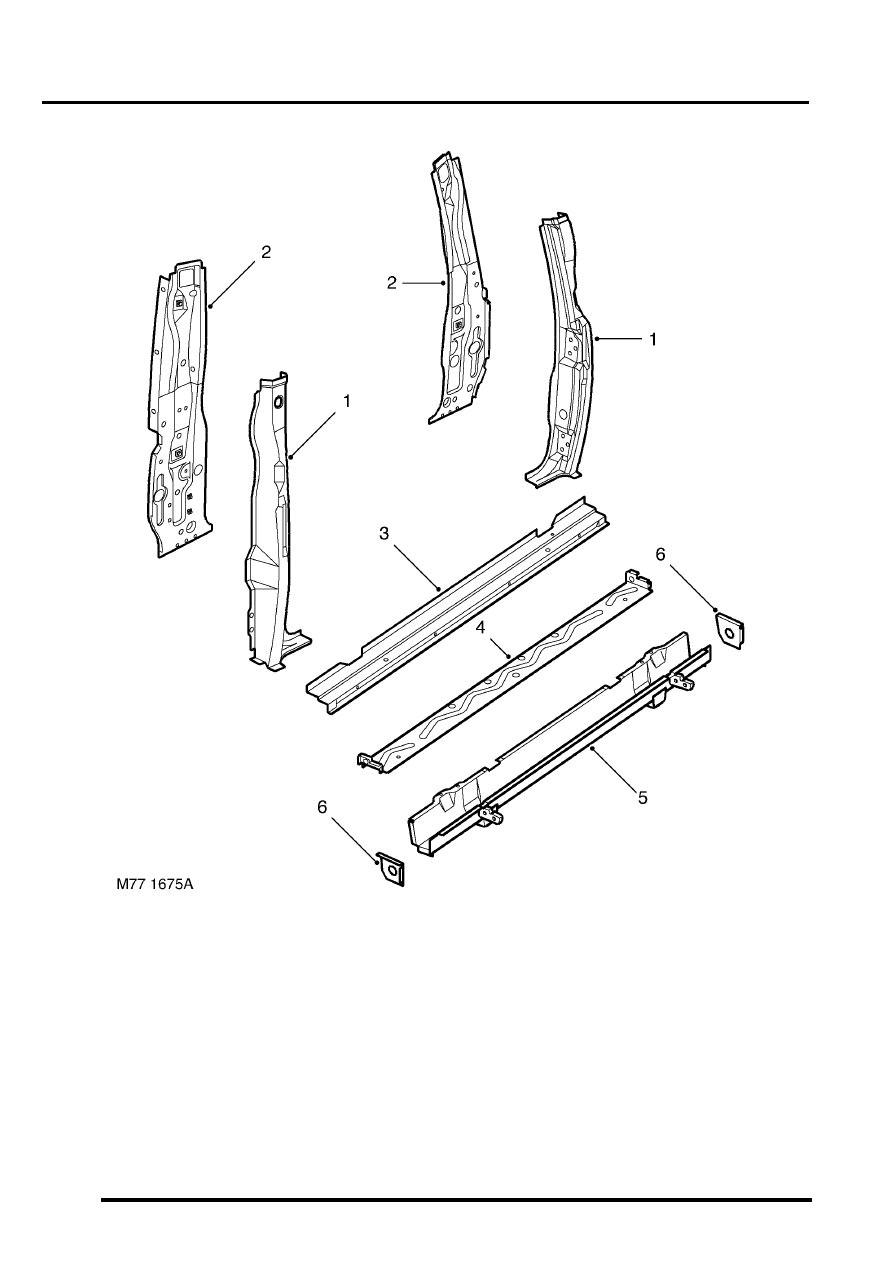

Rear end panels

1 'E' post assemblies
2 'E' post closing assemblies
3 Crossmember outer rear panel
4 Crossmember closing rear panel
5 Crossmember rear assembly
6 Crossmember closing rear brackets

PANEL REPAIRS

REPLACEMENT PANELS

77-2-9

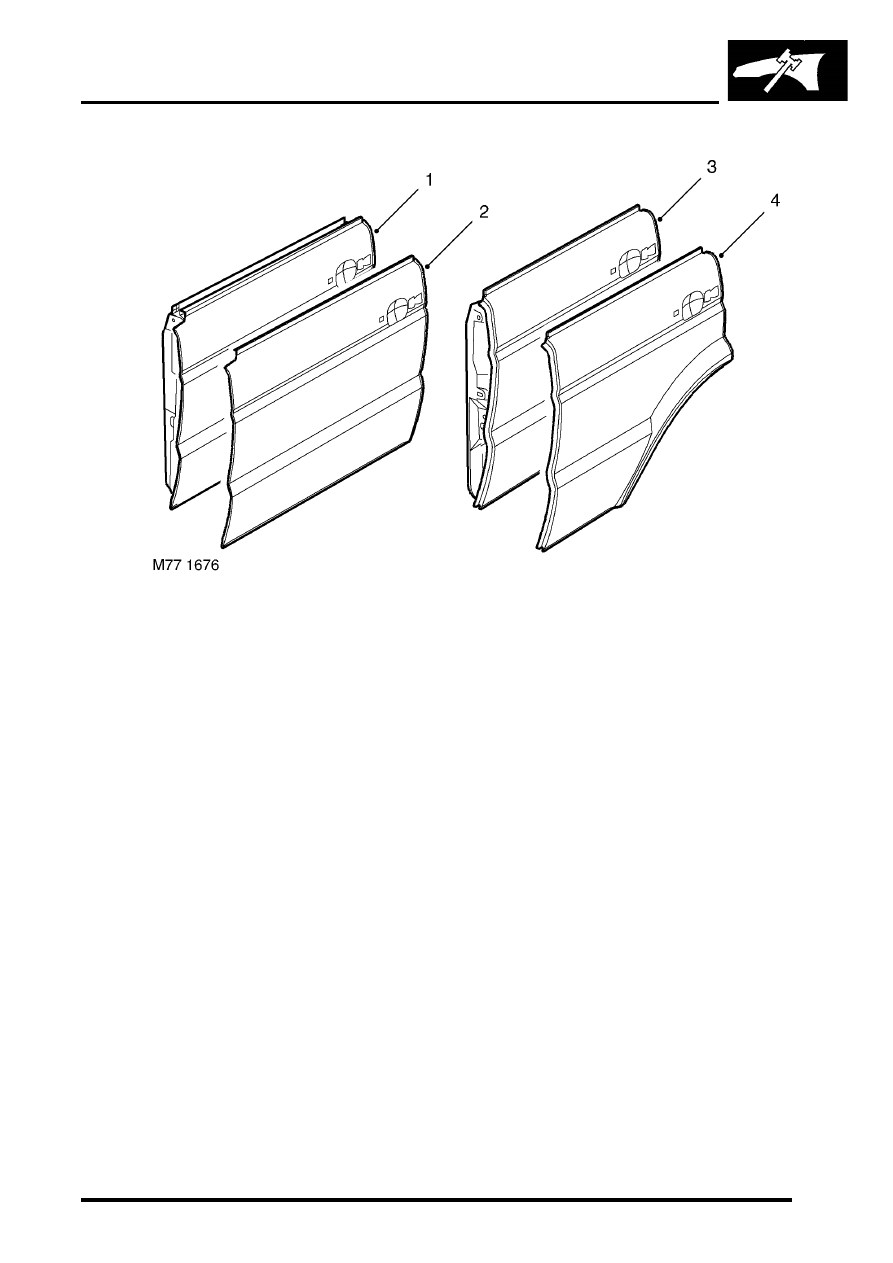

Front and rear doors

1 Front door assembly
2 Front door skin panel
3 Rear door assembly
4 Rear door skin panel

PANEL REPAIRS

77-2-10 REPLACEMENT PANELS

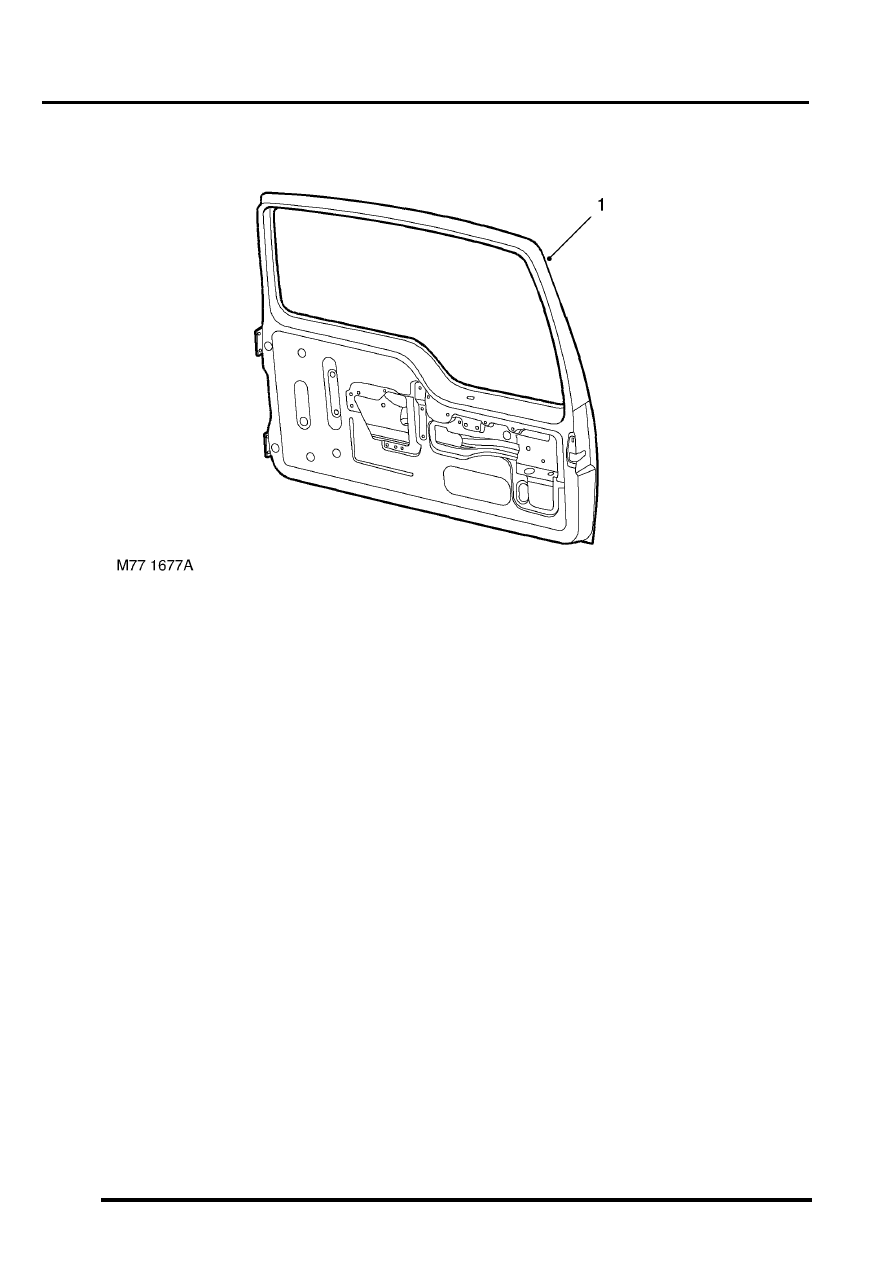

Taildoor

1 Taildoor complete assembly
