PANEL REPAIRS

REPLACEMENT PANELS

77-2-3

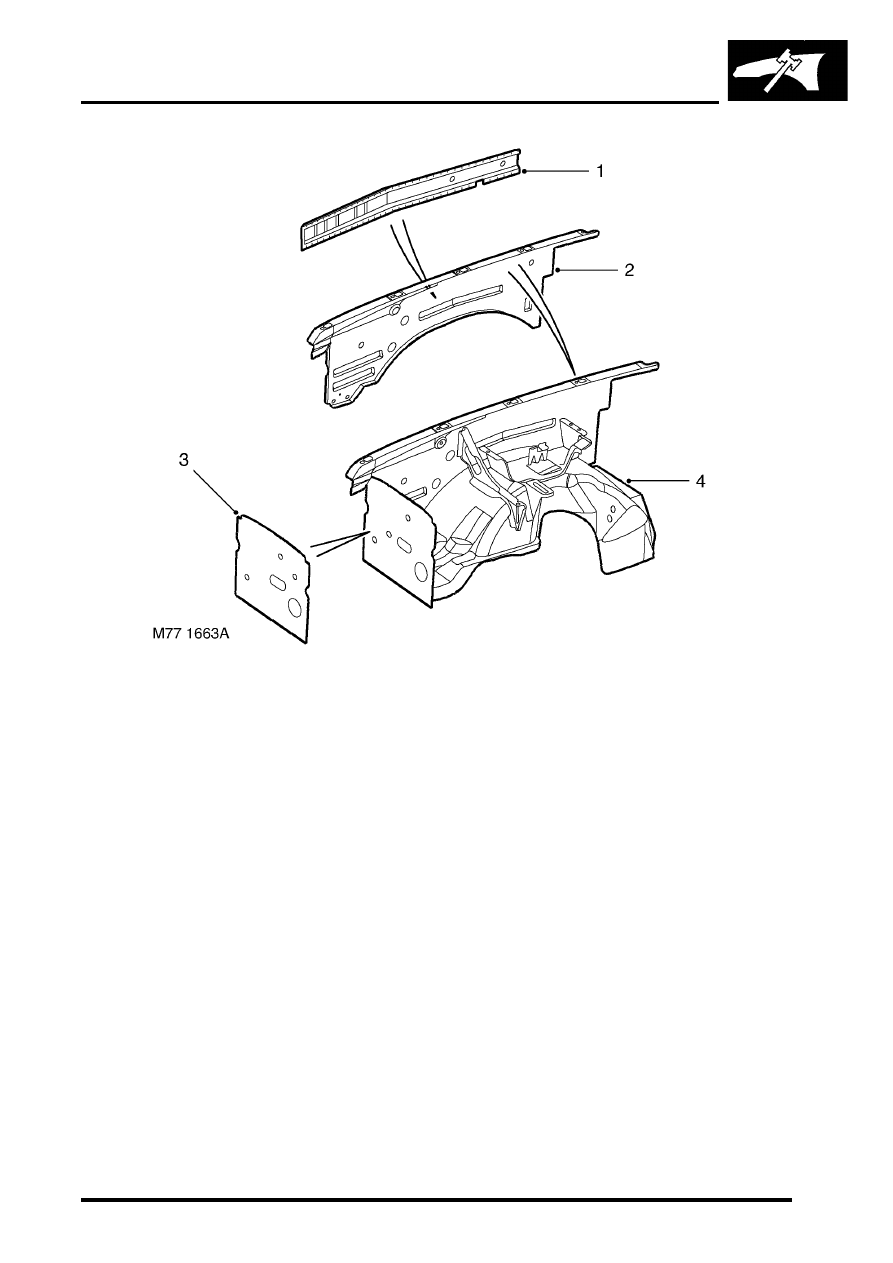

Valance panels

1 Reinforcement valance outer
2 Valance upper assembly
3 Headlamp closing panel
4 Front valance assembly

PANEL REPAIRS

77-2-4

REPLACEMENT PANELS

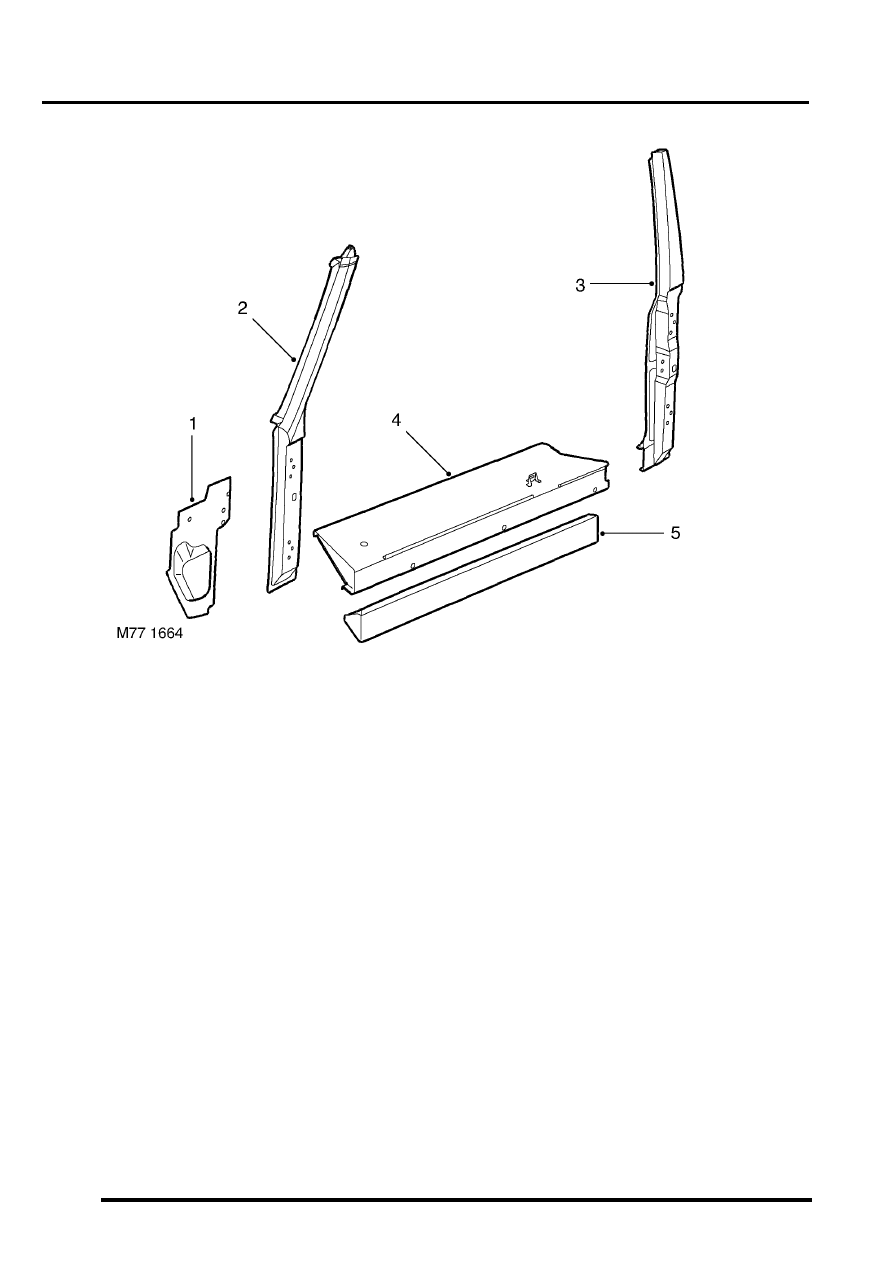

Body side panels

1 Dash side assembly
2 'A' post assembly
3 'B/C' post assembly
4 Sill inner assembly
5 Sill outer assembly

PANEL REPAIRS

REPLACEMENT PANELS

77-2-5

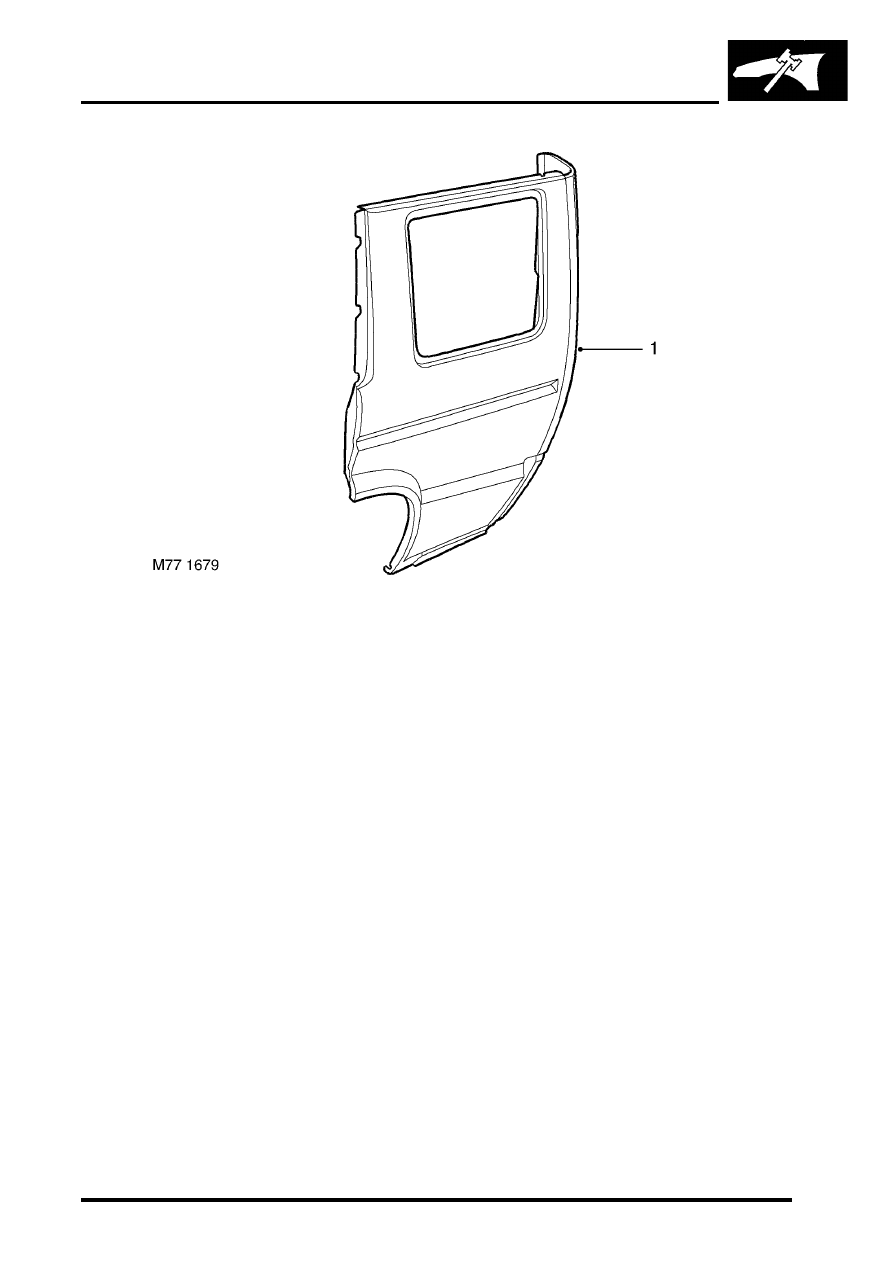

Body side assembly

1 Panel body side assembly

PANEL REPAIRS

77-2-6

REPLACEMENT PANELS

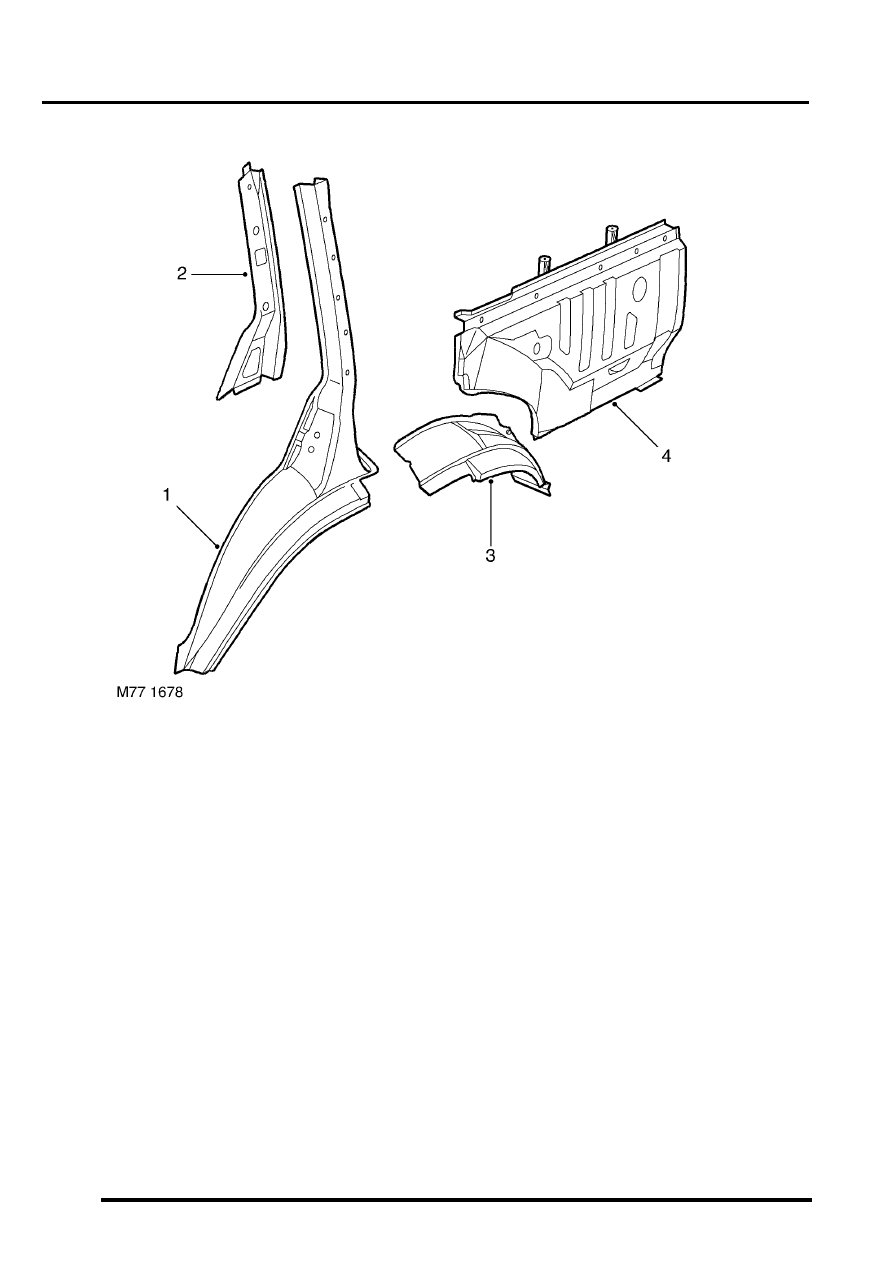

'D'-post assembly

1 'D' post outer assembly
2 'D' post closing assembly
3 Wheelarch rear outer assembly
4 Bodyside inner rear assembly
