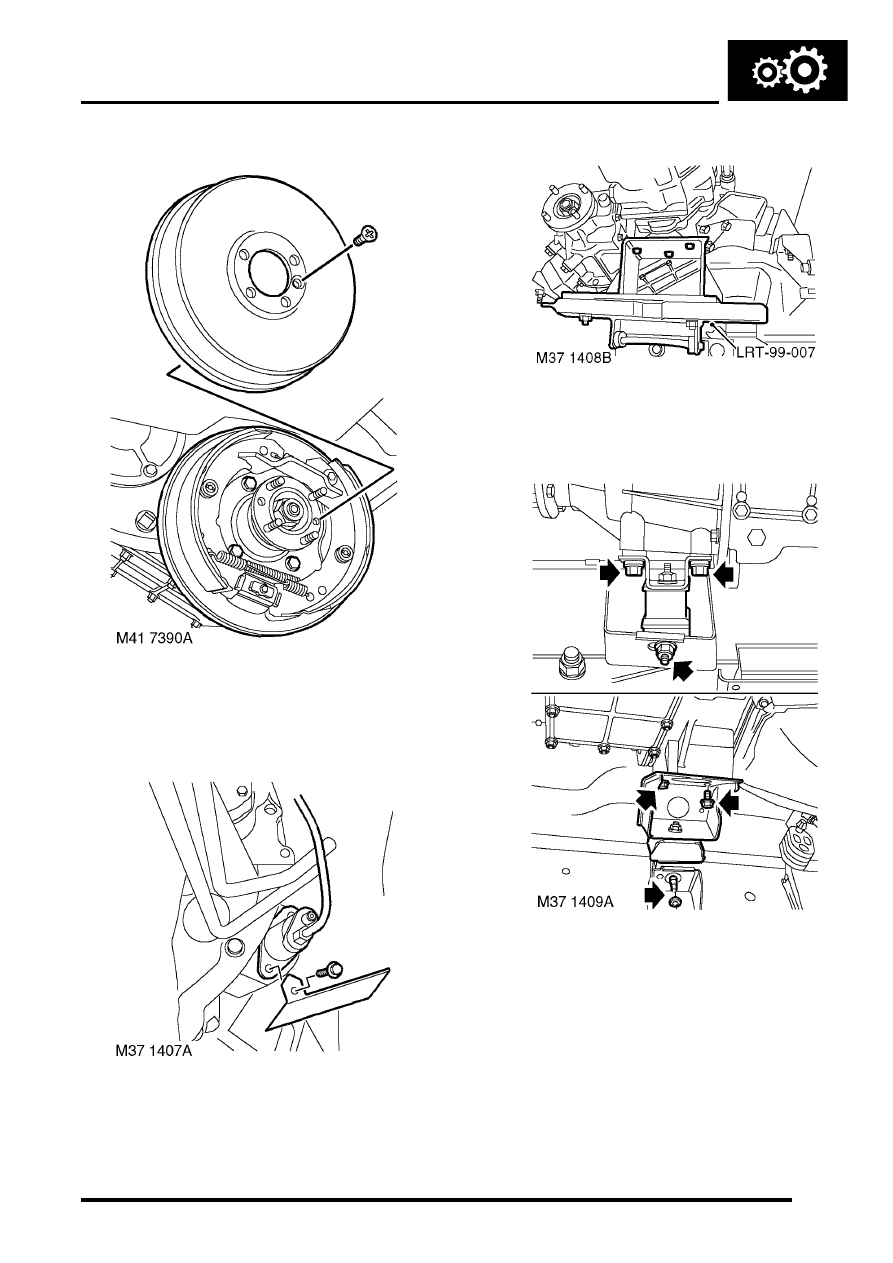

MANUAL GEARBOX - R380 REPAIRS 37-17 14. Remove handbrake drum retaining screw and remove handbrake drum. 15. Remove 4 bolts from handbrake back plate, release back plate and tie aside. 16. Remove 2 bolts securing clutch slave cylinder, collect heat shield, release slave cylinder and 17. Fit support plate LRT-99-007 to gearbox jack. gearbox and secure with 3 bolts. 19. Support the weight of gearbox, remove nuts securing gearbox mountings to body. 20. Remove 4 bolts securing both mountings to gearbox, raise gearbox and remove both 21. Lower gearbox sufficiently to access top of gearbox. |
