Jeep Wrangler (2018 year). Instruction - part 5

Manual Climate Control Descriptions

Icon

Description

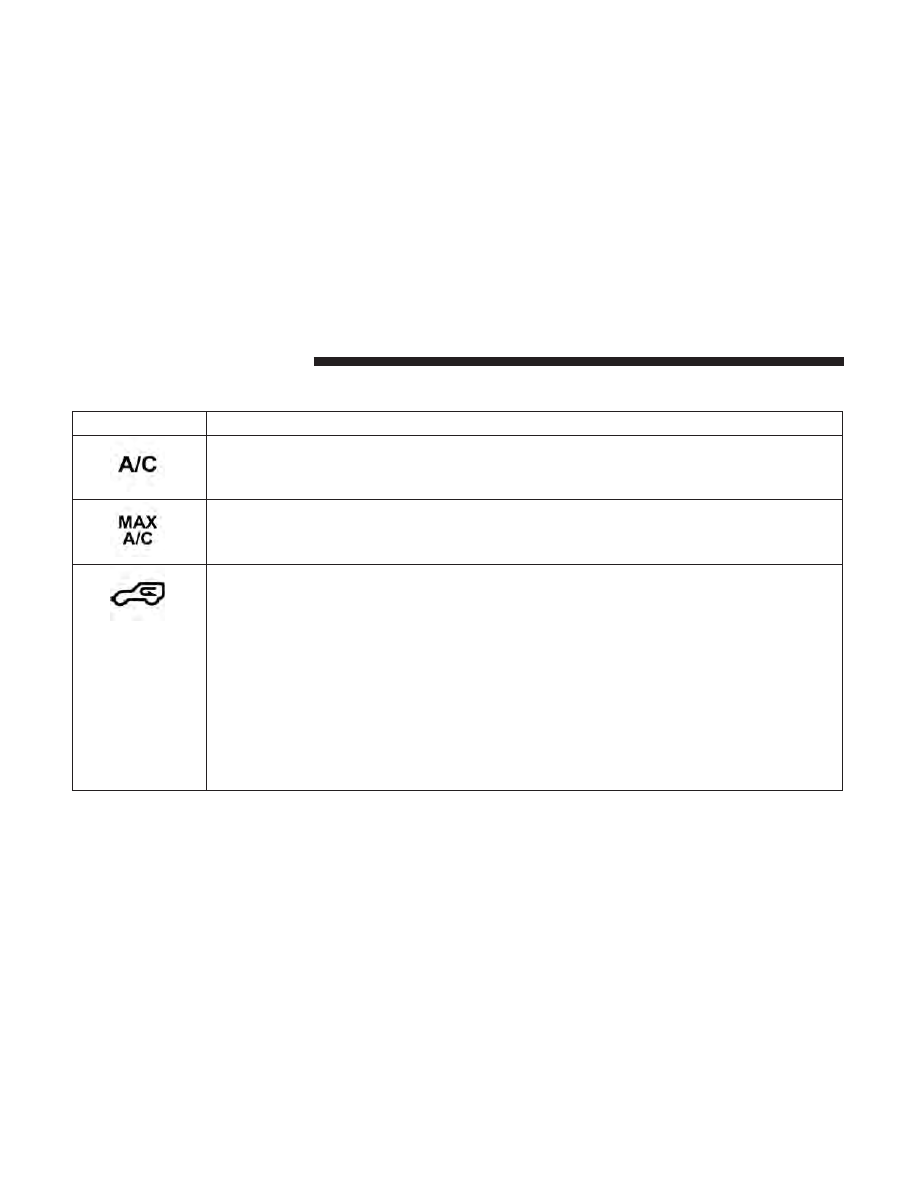

A/C Button
Push the A/C button to engage the Air Conditioning (A/C). An LED illuminates when the A/C

system is engaged.

MAX A/C Setting
Turn the temperature control knob to the MAX Air Conditioning (A/C) setting to engage MAX

Air Conditioning (A/C). This is the coldest setting.

Recirculation Button
Push and release this button to change the system between recirculation mode and outside air

mode. Recirculation can be used when outside conditions such as smoke, odors, dust, or high

humidity are present.

NOTE:

• Continuous use of the Recirculation mode may make the inside air stuffy and window fog-

ging may occur. Extended use of this mode is not recommended.

• The use of the Recirculation mode in cold or damp weather could cause windows to fog on

the inside, because of moisture buildup inside the vehicle. Select the outside air position for

maximum defogging.

• Recirculation can be used in all modes except for Defrost.

• The A/C can be deselected manually without disturbing the mode control selection.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

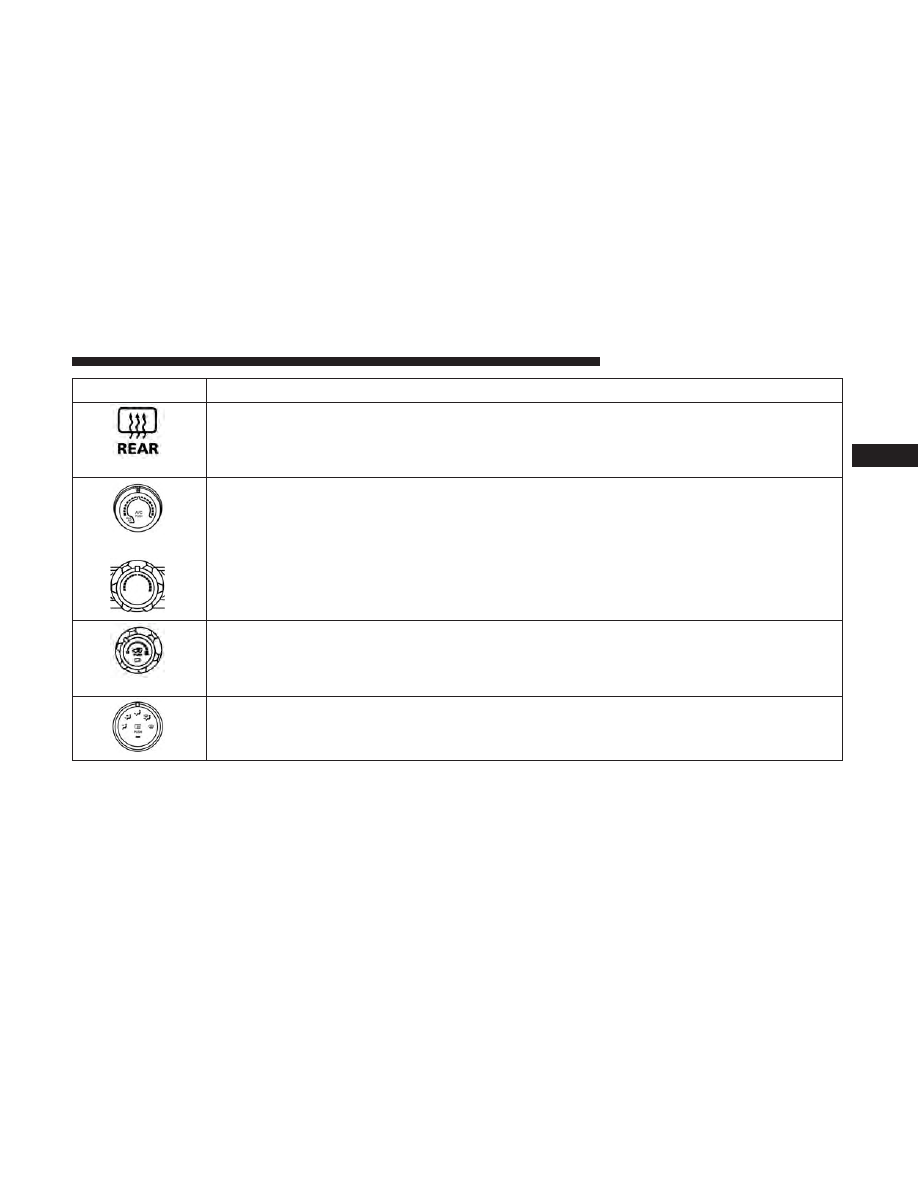

Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and the

heated outside mirrors (if equipped). An indicator will illuminate when the rear window de-

froster is on. The rear window defroster automatically turns off after ten minutes.

Heater Only

Temperature Control
Use this control to regulate the temperature of the air inside the passenger compartment. Rotat-

ing the knob counterclockwise, from top center into the blue area of the scale, indicates cooler

temperatures. Rotating the knob clockwise, into the red area, indicates warmer temperatures.

Blower Control
There are seven blower speeds. Use this control to regulate the amount of air forced through the

system in any mode you select. The blower speed increases as you move the control clockwise

from the off position.
Modes Control
Turn the knob to adjust airflow distribution. The airflow distribution mode can be adjusted so

air comes from the instrument panel outlets, floor outlets, defrost outlets and demist outlets.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

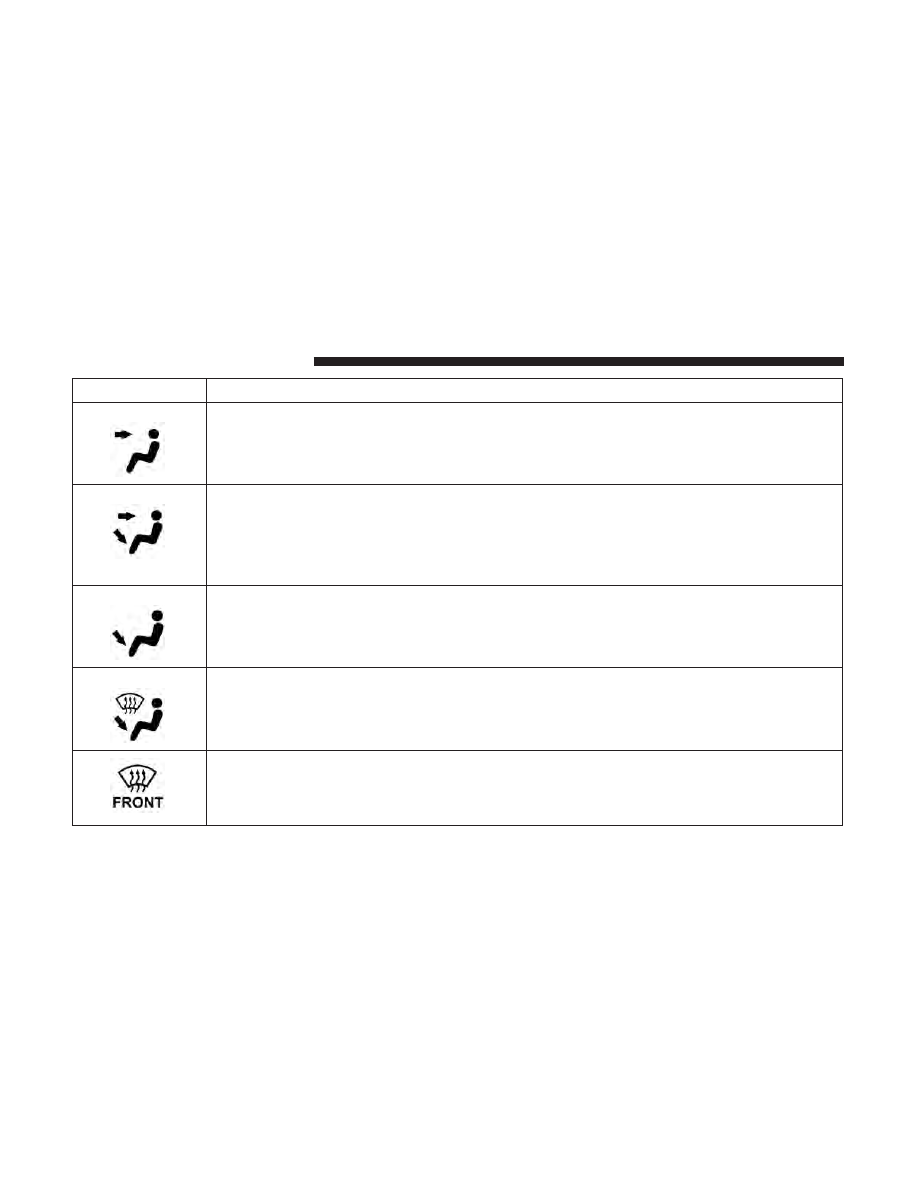

Panel Mode

Panel Mode
Air comes from the outlets in the instrument panel. Each of these outlets can be individually

adjusted to direct the flow of air. The air vanes of the center outlets and outboard outlets can be

moved up and down or side to side to regulate airflow direction.

Bi-Level Mode

Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed

through the defrost and side window demister outlets.

NOTE:

Bi-Level mode is designed under comfort conditions to provide cooler air out of the

panel outlets and warmer air from the floor outlets.

Floor Mode

Floor Mode
Air comes from the floor outlets. A slight amount of air is directed through the defrost and side

window demister outlets.

Mix Mode

Mix Mode
Air is directed through the floor, defrost, and side window demister outlets. This setting works

best in cold or snowy conditions that require extra heat to the windshield. This setting is good

for maintaining comfort while reducing moisture on the windshield.

Front Defrost Mode
Turn the Knob to the Front Defrost position. Air comes from the windshield and side window

demist outlets. Use Defrost mode with maximum temperature settings for best windshield and

side window defrosting and defogging.

GETTING TO KNOW YOUR VEHICLE

Automatic Climate Controls Overview

The Climate Control System allows you to regulate the

temperature, air flow, and direction of air circulating

throughout the vehicle. The controls are located on the

instrument panel below the radio.

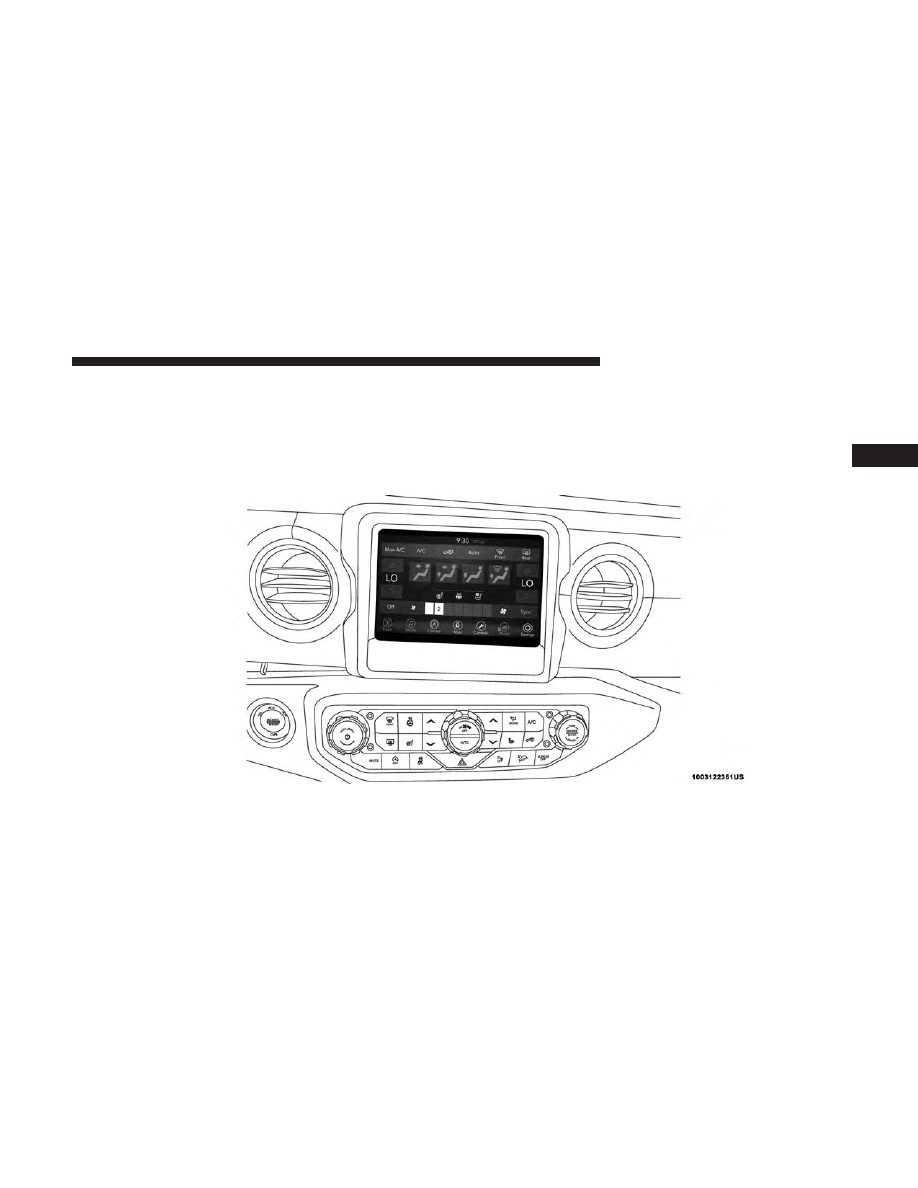

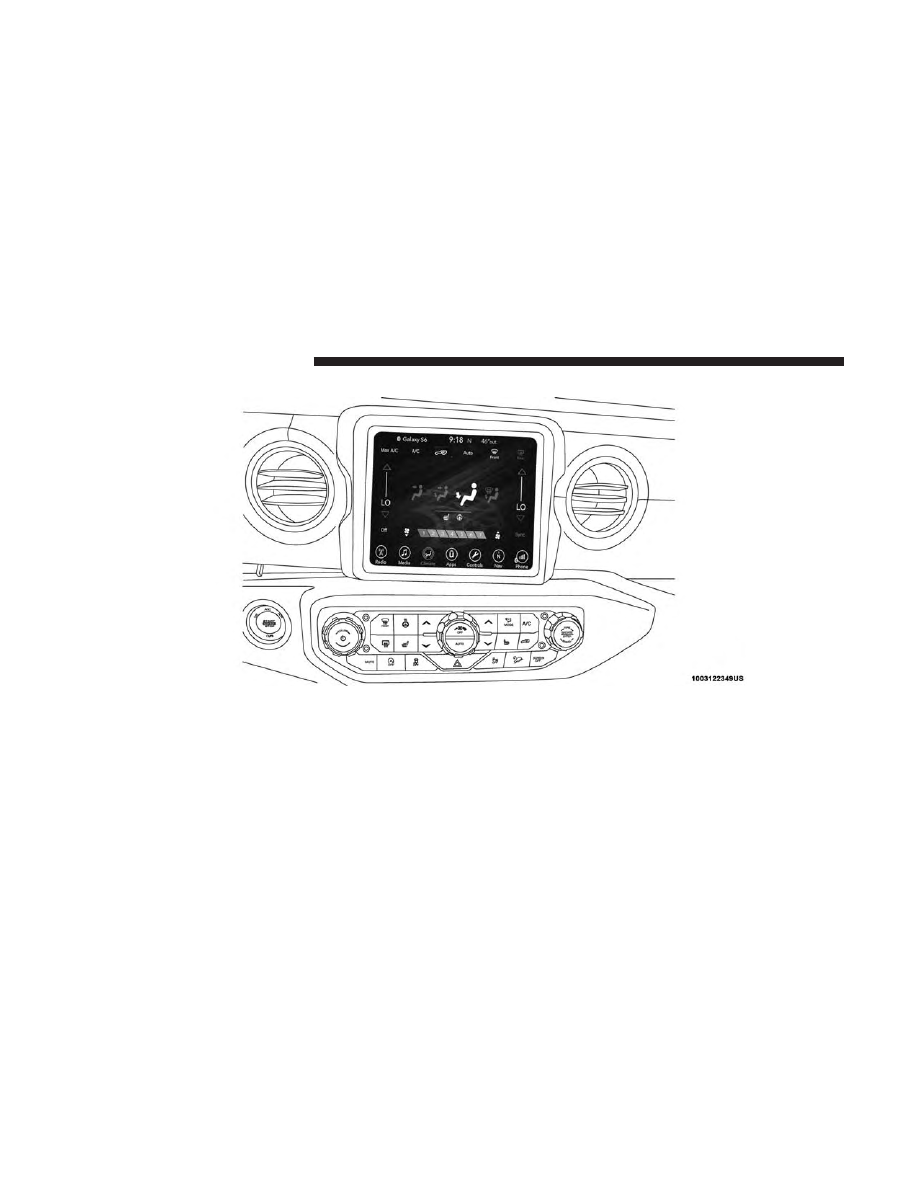

Uconnect 4 With 7–inch Display Automatic Climate Controls

GETTING TO KNOW YOUR VEHICLE

Uconnect 4C/4C NAV With 8.4–inch Display Automatic Climate Controls

GETTING TO KNOW YOUR VEHICLE

Automatic Control Descriptions

Icon

Description

MAX A/C Button
Press to change to the coldest setting, the indicator illuminates when MAX A/C is on. Pressing

the button again causes the MAX A/C operation to switch into manual mode and the MAX

A/C indicator turns off.
A/C Button
Press and release to change the current setting. The indicator illuminates when A/C is on.

Recirculation Button
Press and release this button on the touchscreen, or push the button on the faceplate, to change

the system between recirculation mode and outside air mode. Recirculation can be used when

outside conditions, such as smoke, odors, dust, or high humidity are present. Recirculation can

be used in all modes. The A/C can be deselected manually without disturbing the mode control

selection. Continuous use of the Recirculation mode may make the inside air stuffy and window

fogging may occur. Extended use of this mode is not recommended. The A/C can be deselected

manually without disturbing the mode control selection.
AUTO Button
Automatically controls the interior cabin temperature by adjusting airflow distribution and

amount. Toggling this function will cause the system to switch between manual mode and auto-

matic modes. Refer to “Automatic Operation” within this section for more information.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

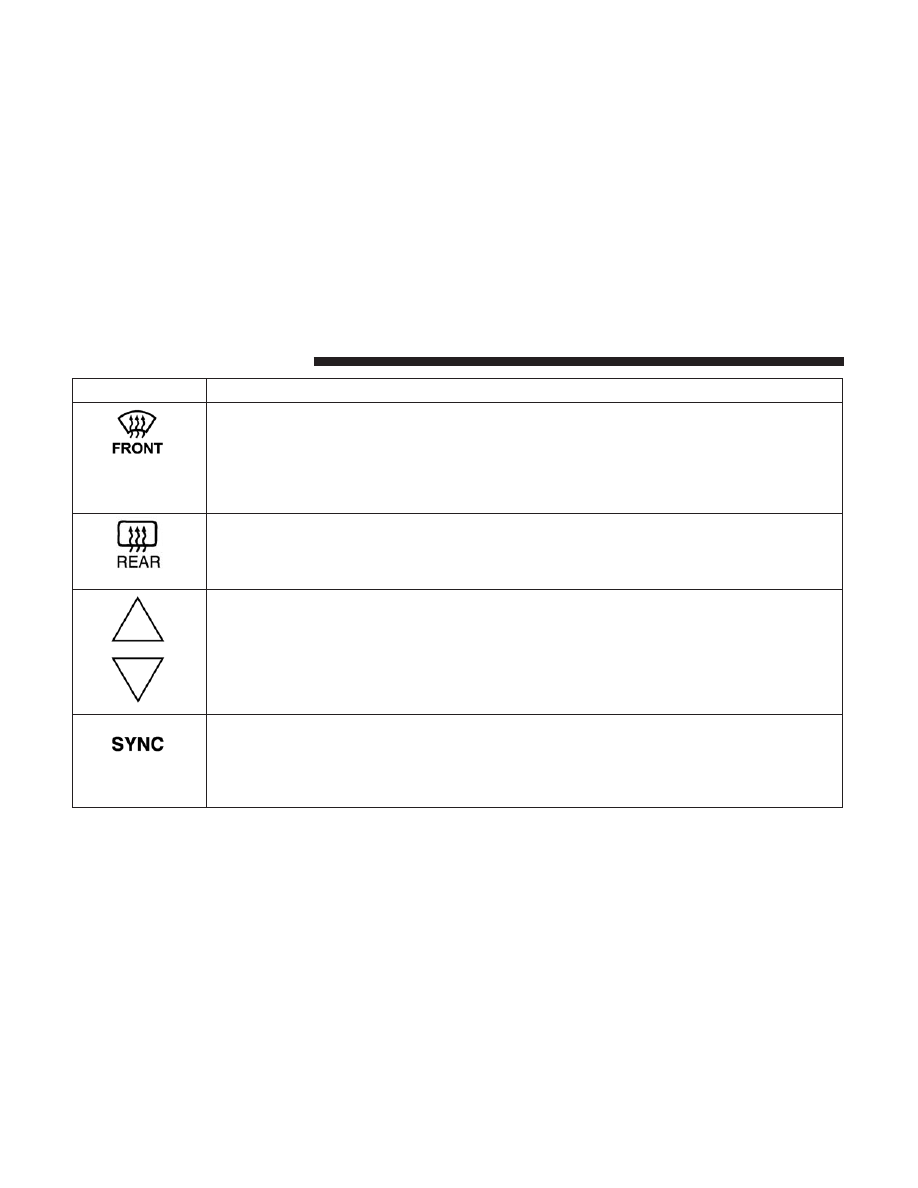

Front Defrost Button
The Front Defrost button changes the current airflow setting to Defrost mode. The indicator illu-

minates when this feature is on. Air comes from the windshield and side window demist out-

lets. When the defrost button is selected, the blower level may increase. Use Defrost mode with

maximum temperature settings for best windshield and side window defrosting and defogging.

When toggling the front defrost mode button, the climate system will return to previous setting.
Rear Defrost Button
The Rear Defrost Control button turns on the rear window defroster and the heated outside

mirrors (if equipped). An indicator will illuminate when the rear window defroster is on. The

rear window defroster automatically turns off after a short period of time.
Driver And Passenger Temperature Up And Down Buttons
Provides the driver and passenger with independent temperature control. Push the red button

on the faceplate or touchscreen or press and slide the temperature bar towards the red arrow

button on the touchscreen for warmer temperature settings. Push the blue button on the face-

plate or touchscreen or press and slide the temperature bar towards the blue arrow button on

the touchscreen for cooler temperature settings.

SYNC Button
Press the SYNC button on the touchscreen to toggle the SYNC feature on/off. The SYNC indica-

tor is illuminated when this feature is enabled. SYNC is used to synchronize the passenger tem-

perature setting with the driver temperature setting. Changing the passenger’s temperature set-

ting while in SYNC will automatically exit this feature.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

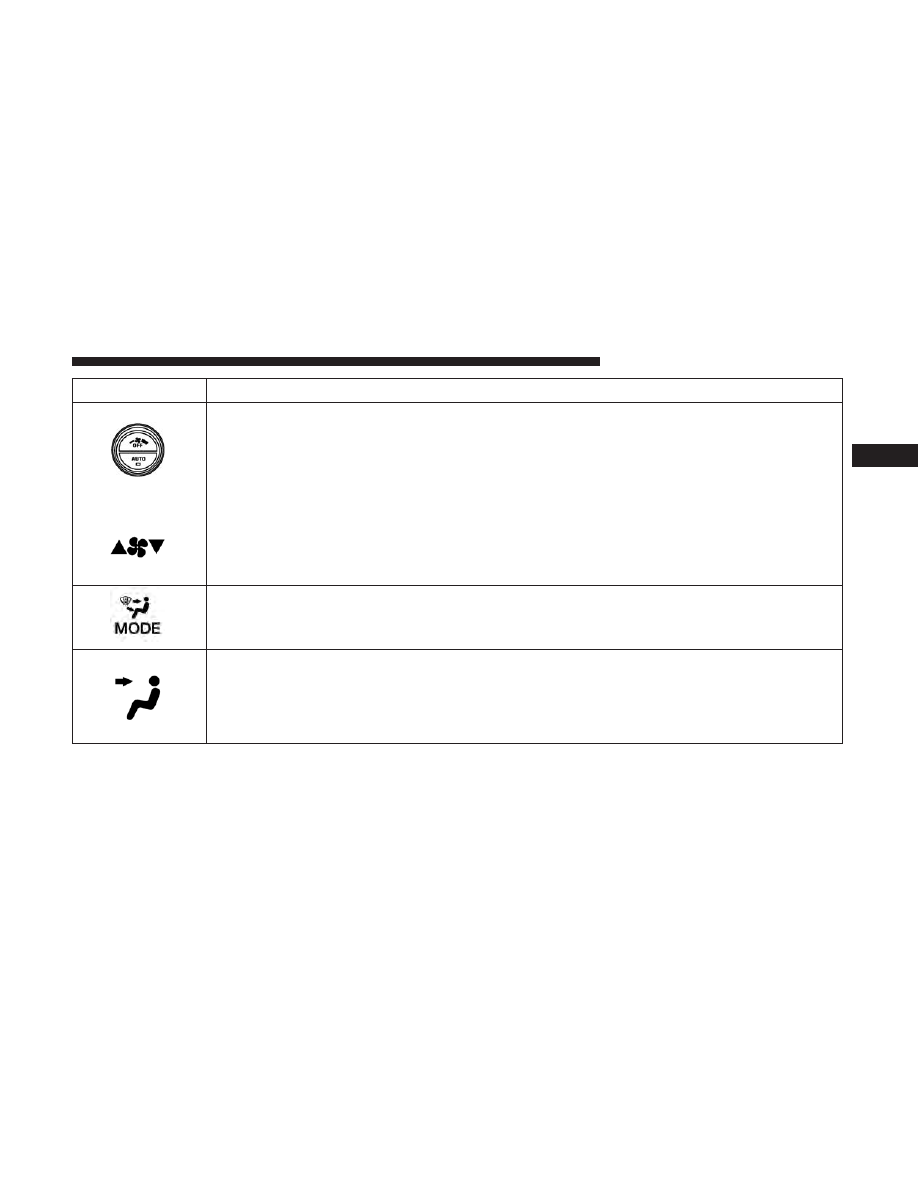

Faceplate Knob

Touchscreen

Buttons

Blower Control
Blower Control is used to regulate the amount of air forced through the climate system. There

are seven blower speeds available. The speeds can be selected using either the blower control

knob on the faceplate or the buttons on the touchscreen.

• Faceplate: The blower speed increases as you turn the blower control knob clockwise from

the lowest blower setting. The blower speed decreases as you turn the blower control knob

counterclockwise.

• Touchscreen: Use the small blower icon to reduce the blower setting and the large blower

icon to increase the blower setting. The blower can also be selected by pressing the blower

bar area between the icons.

Modes Control

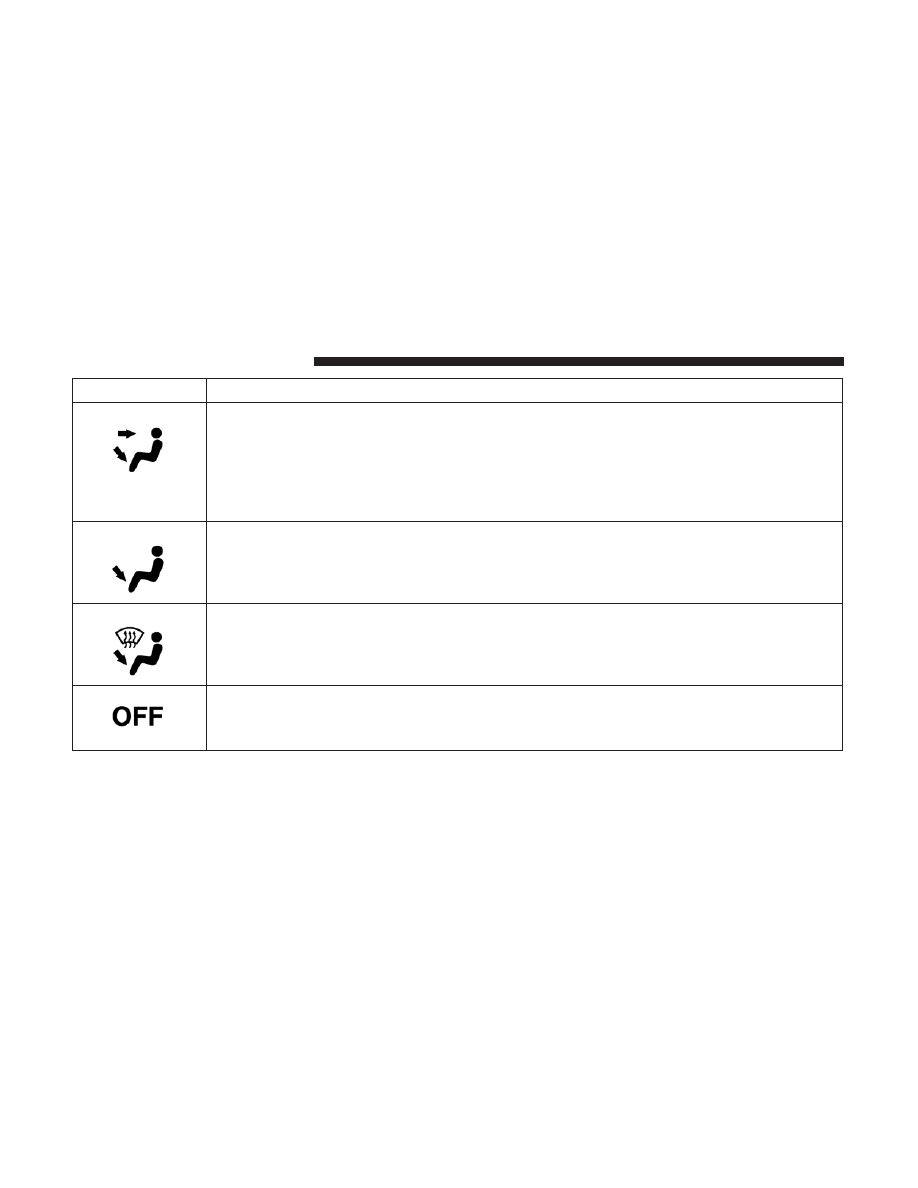

Press the button to adjust airflow distribution. The airflow distribution mode can be adjusted so

air comes from the instrument panel outlets, floor outlets, defrost outlets and demist outlets.

Panel Mode

Panel Mode
Air comes from the outlets in the instrument panel. Each of these outlets can be individually

adjusted to direct the flow of air. The air vanes of the center outlets and outboard outlets can be

moved up and down or side to side to regulate airflow direction. There is a shut off wheel lo-

cated below the air vanes to shut off or adjust the amount of airflow from these outlets.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

Bi-Level Mode

Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed

through the defrost and side window demister outlets.

NOTE:
Bi-Level mode is designed under comfort conditions to provide cooler air out of the panel out-

lets and warmer air from the floor outlets.

Floor Mode

Floor Mode
Air comes from the floor outlets. A slight amount of air is directed through the defrost and side

window demister outlets.

Mix Mode

Mix Mode
Air is directed through the floor, defrost, and side window demister outlets. This setting works

best in cold or snowy conditions that require extra heat to the windshield. This setting is good

for maintaining comfort while reducing moisture on the windshield.

Climate Control OFF Button
This button turns the Climate Control System off.

GETTING TO KNOW YOUR VEHICLE

Climate Control Functions

Air Conditioning (A/C)

The Air Conditioning (A/C) button allows the operator to

turn the air conditioning system on and off. When the

system is turned on, cool dehumidified air flows through

the vents into the cabin.
For improved fuel economy, press the A/C button to turn

off the air conditioning off and adjust the blower and

airflow mode settings. Make sure to only select Panel,

Bi-Level, or Floor modes.

NOTE:
• If fog or mist appears on the windshield or windows,

select Defrost mode and increase the blower speed.

• If the air conditioning performance is lower than ex-

pected, there may a blockage. Gently clean the area

around the radiator with water.

MAX A/C

The MAX A/C setting provides the maximum cooling

performance.
Press the button to toggle between MAX A/C and your

prior setting. The button illuminates when MAX A/C is on.

In the MAX A/C setting, you can adjust the blower level

and mode position. Pressing other settings causes the MAX

A/C operation to switch to your desired setting.

Recirculation

The Recirculation button helps remove smoke, odors, or

high humidity from the cabin.
The indicator illuminates when Recirculation mode is on.

Press the button again to turn it off.

NOTE:

Using Recirculation in cold weather may cause the

windows to fog up and this mode may be unavailable on

the touchscreen.

Automatic Temperature Control (ATC) — If
Equipped

Automatic Operation

1. Push the AUTO button on the faceplate, or the AUTO

button on the touchscreen on the Automatic Tempera-

ture Control (ATC) Panel.

2. Next, adjust the temperature you would like the system

to maintain by adjusting the driver and passenger

temperature control buttons. Once the desired tempera-

ture is displayed, the system will achieve and automati-

cally maintain that comfort level.

GETTING TO KNOW YOUR VEHICLE

3. When the system is set up for your comfort level, it is

not necessary to change the settings. You will experience

the greatest efficiency by simply allowing the system to

function automatically.

NOTE:
• It is not necessary to move the temperature settings for

cold or hot vehicles. The system automatically adjusts

the temperature, mode, and blower speed to provide

comfort as quickly as possible.

• The temperature can be displayed in U.S. or Metric units

by selecting the US/Metric customer-programmable fea-

ture. Refer to the “Uconnect Settings” in “Multimedia”

for further information.

To provide you with maximum comfort in the Automatic

mode during cold start-ups, the blower fan will remain on

low until the engine warms up. The blower will increase in

speed and transition into Auto mode.

Manual Operation Override

This system offers a full complement of manual override

features. The AUTO symbol in the front ATC display will

be turned off when the system is being used in the manual

mode.

Operating Tips

NOTE:

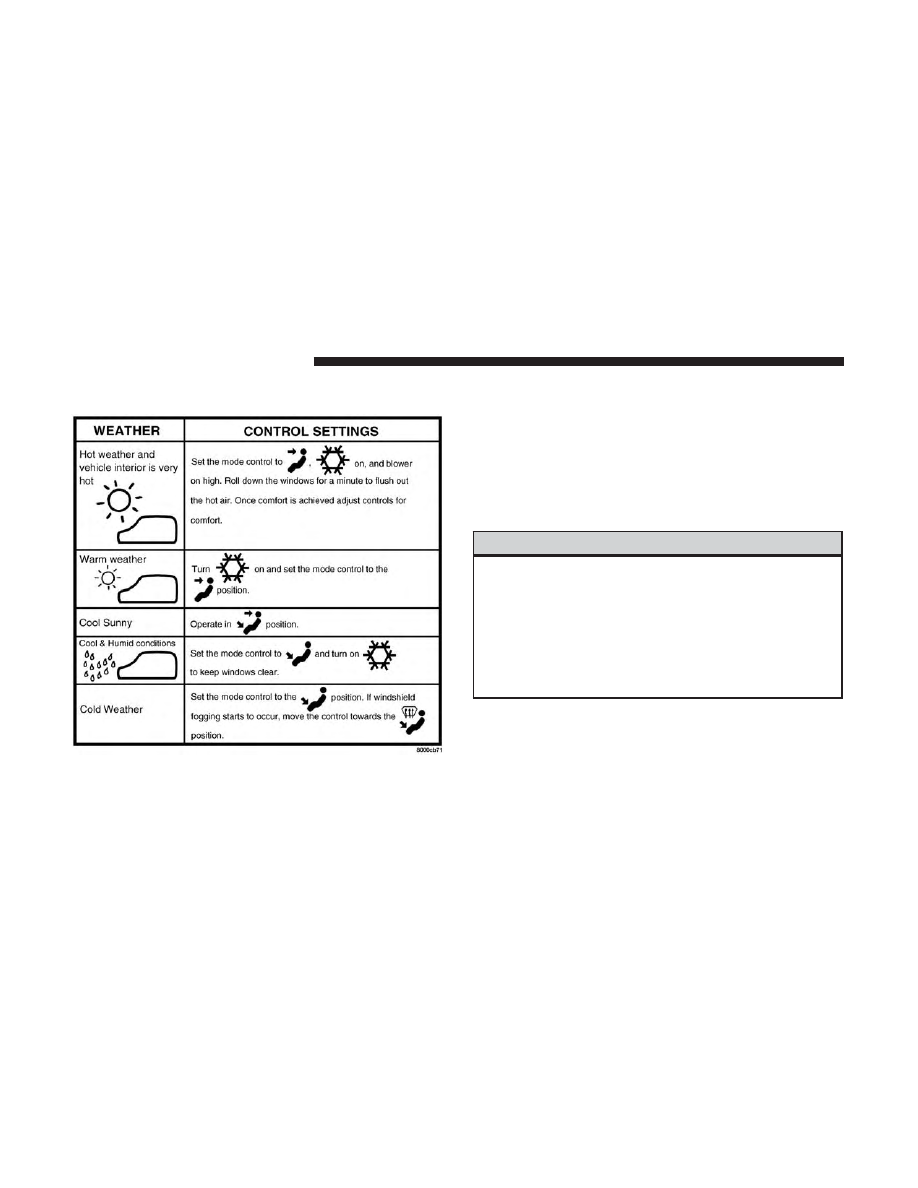

Refer to the chart at the end of this section for

suggested control settings for various weather conditions.

Summer Operation

The engine cooling system must be protected with a

high-quality antifreeze coolant to provide proper corrosion

protection and to protect against engine overheating. OAT

coolant (conforming to MS.90032) is recommended.

Winter Operation

To ensure the best possible heater and defroster perfor-

mance, make sure the engine cooling system is functioning

properly and the proper amount, type, and concentration

of coolant is used. Use of the Air Recirculation mode

during Winter months is not recommended, because it may

cause window fogging.

Vacation/Storage

Before you store your vehicle, or keep it out of service (i.e.,

vacation) for two weeks or more, run the air conditioning

system at idle for about five minutes, in fresh air with the

blower setting on high. This will ensure adequate system

lubrication to minimize the possibility of compressor dam-

age when the system is started again.

GETTING TO KNOW YOUR VEHICLE

Window Fogging

Vehicle windows tend to fog on the inside in mild, rainy,

and/or humid weather. To clear the windows, select De-

frost or Mix mode and increase the front blower speed. Do

not use the Recirculation mode without A/C for long

periods, as fogging may occur.

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear win-

dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and a
mild washing solution, wiping parallel to the heat-
ing elements. Labels can be peeled off after soaking
with warm water.

• Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the win-
dow.

• Keep all objects a safe distance from the window.

Outside Air Intake

Make sure the air intake, located directly in front of the

windshield, is free of obstructions, such as leaves. Leaves

collected in the air intake may reduce airflow, and if they

enter the plenum, they could plug the water drains. In

Winter months, make sure the air intake is clear of ice,

slush, and snow.

Cabin Air Filter

The climate control system filters out dust and pollen from

the air. Contact an authorized dealer to service your cabin

air filter, and to have it replaced when needed.

GETTING TO KNOW YOUR VEHICLE

Operating Tips Chart

POWER WINDOWS — IF EQUIPPED

The power window switches are located on the instrument

panel below the climate controls. Push the switch down-

ward to open the window and upward to close the

window.
The top left switch controls the left front window and the

top right switch controls the right front window.

WARNING!

Never leave children unattended in a vehicle, and do
not let children play with power windows. Do not
leave the key fob in or near the vehicle, or in a location
accessible to children. Occupants, particularly unat-
tended children, can become entrapped by the win-
dows while operating the power window switches.
Such entrapment may result in serious injury or death.

GETTING TO KNOW YOUR VEHICLE

NOTE:
• The power window switches will remain active for up to

10 minutes after ignition is switched to the OFF position.

Opening either front door will cancel this feature.

Four-Door Models

The lower left switch controls the left rear passenger

window, and the lower right switch controls the right rear

passenger window.

NOTE:

There are window switches located on the rear of

the center console for the rear passenger windows in the

four-door model.

Auto-Down Feature

The driver door power window switch and the passenger

door power window switches have an Auto-Down feature.

Push the window switch down, for a short period of time,

and release and the window will go down automatically.
To open the window part way, push the window switch

down briefly and release it when you want the window to

stop.
To stop the window from going all the way down during

the Auto-Down operation, pull up on the switch briefly.

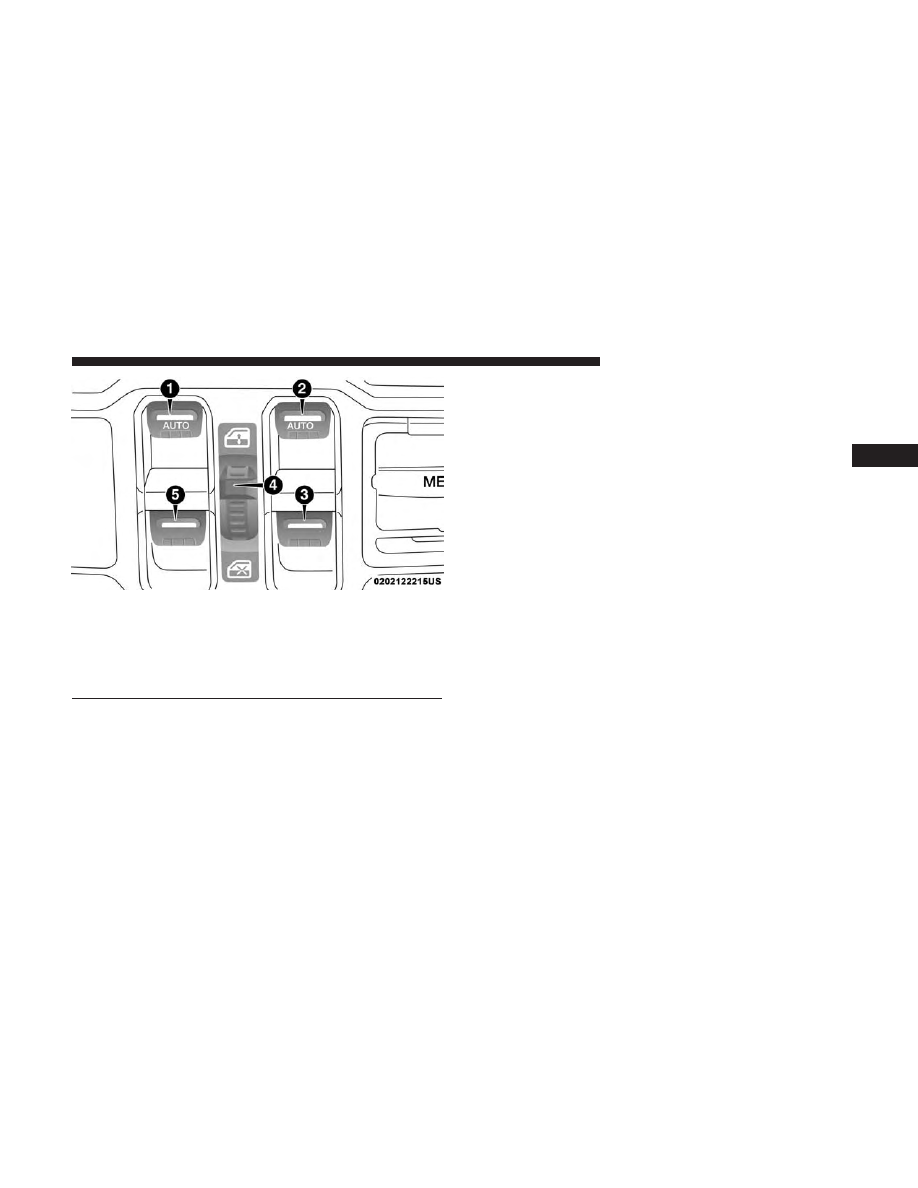

Power Window Switches

1 — Driver Side Front Window Switch
2 — Passenger Side Front Window Switch
3 — Passenger Side Rear Window Switch
4 — Window Lockout Switch
5 — Driver Side Rear Window Switch

GETTING TO KNOW YOUR VEHICLE

Wind Buffeting

Wind buffeting can be described as the perception of

pressure on the ears or a helicopter-type sound in the ears.

Your vehicle may exhibit wind buffeting with the windows

down in certain open or partially open positions. This is a

normal occurrence and can be minimized by adjusting the

window opening.

DUAL TOP FOUR DOOR MODELS — IF EQUIPPED

If your vehicle is equipped with a Dual Top, the soft top

system will be provided in a separate box located in the

rear of the vehicle for shipping purposes only. The soft top
and the hard top are to be used independently.

Your

vehicle warranty will not cover damage resulting from

both tops being installed at the same time.
For your convenience, a tool kit is provided with your

vehicle located in the center console. This kit includes the

necessary tools required for the operations described in the

following sections. All pieces fit into the ratchet for easy

use.

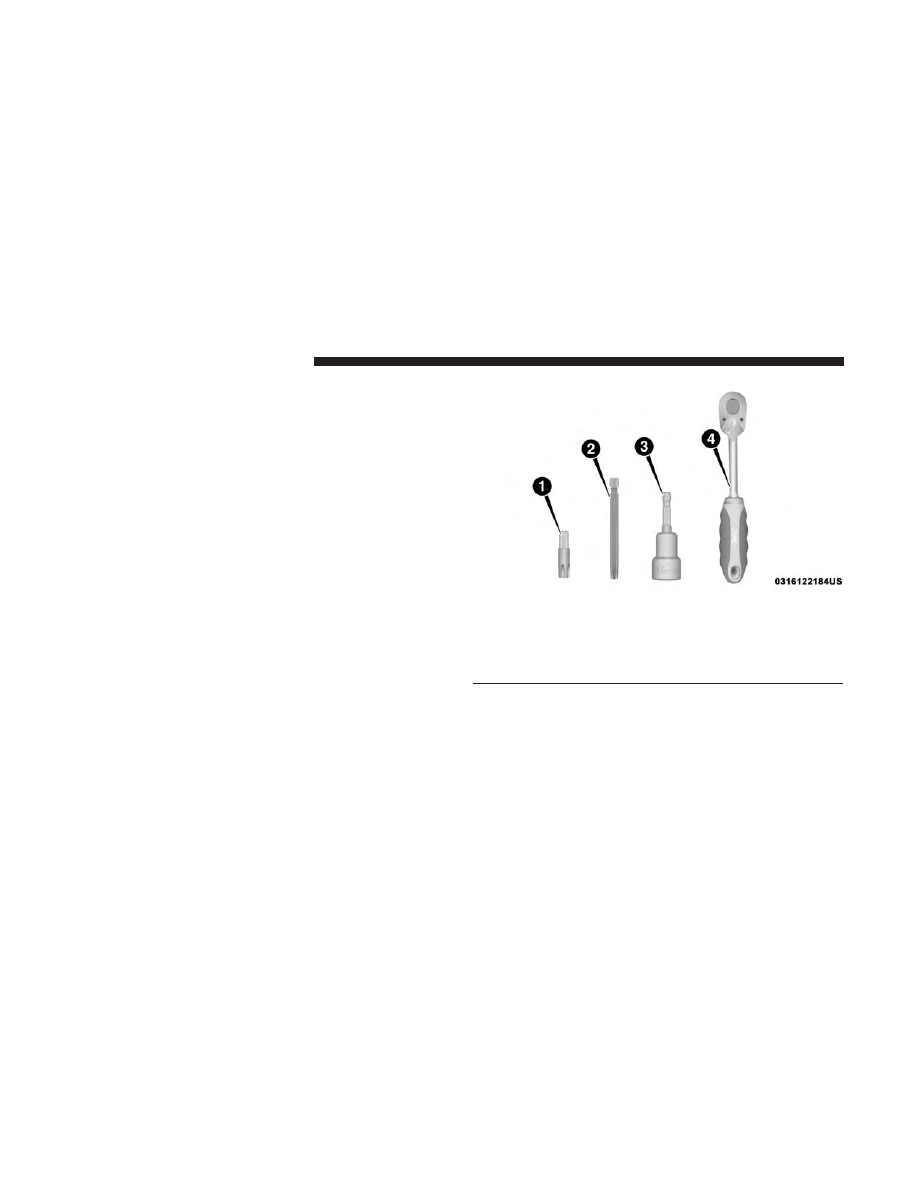

Provided Tools

1 — #50 Torx Head Driver
2 — #40 Torx Head Driver
3 — 15mm Socket
4 — Ratchet

GETTING TO KNOW YOUR VEHICLE

Removing The Soft Top — Four Door Models

1. Fully lower the soft top. Refer to “Soft Top — Four Door

Models” in this section.

2. Make sure the lift assist mechanism on both the driver’s

and passenger’s sides are in the “lock” position before

removing.

3. Using the provided #40 Torx head driver and ratchet,

unscrew the two Torx head screws on each lift assist

mechanism, then lift the mechanism up and away from

the vehicle.

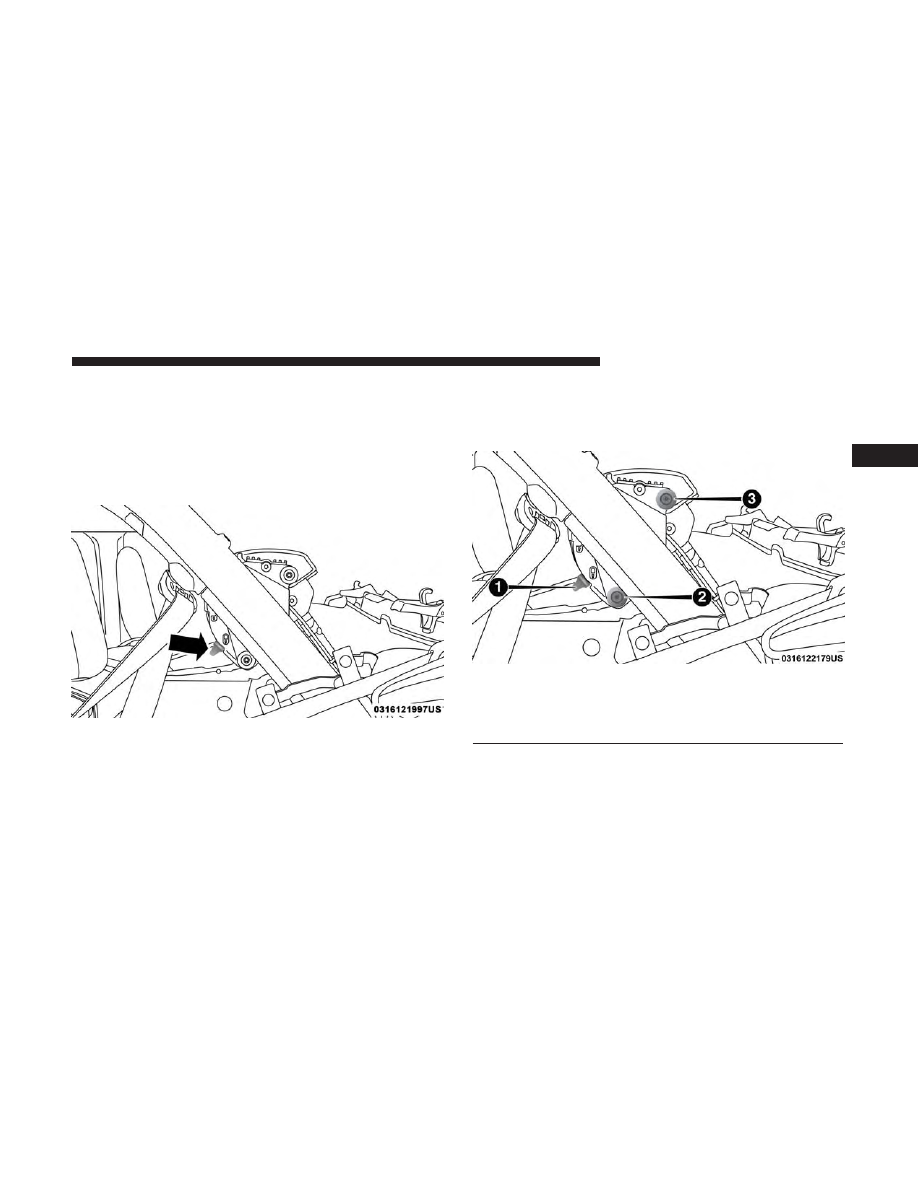

Lock Position

Lift Assist Mechanism

1 — Lock Position
2 — Torx Head Screw
3 — Torx Head Screw

GETTING TO KNOW YOUR VEHICLE

Content .. 3 4 5 6 ..
